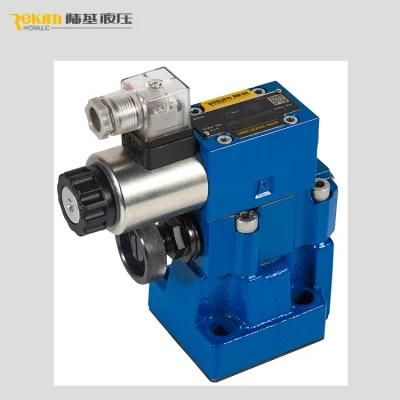

Pressure Relief Valve Dbw10/20/30-5X Normally Open Rekith Brand
Jiangmen Jianghai Lianhe Colour Packing and Printing Co., Ltd.- Function：Pressure Regulating
- Installation：Plate
- Drive：Hydraulic
- Type：Pilot-Operated Type
- Max Working Pressure：315 Bar
- Transport Package：Standard Carton or Plywood Package
Base Info
- Model NO.：DBW10-5X
- Trademark：Rekith
- Origin：China
- HS Code：8481201090
- Production Capacity：2000 Pieces,Month
Description
Overview
Fixing position Opitional Weight 10 15 (DB...15) 25 (DB...20) 25 (DB...25) 32 Subplate connection DB kg 2.6 - 3.5 - 4.4 DBW kg 4.05 - 4.95 - 5.85 DBC kg 1.2 DBWC kg 2.65 DBC10/30 kg 1.5 DBWC10/30 kg 2.95 Thread connection DB...G kg 5.3 5.2 5.1 5.0 4.8 DBW...G kg 6.75 6.65 6.55 6.45 6.25 Environment temperature range DB ºC -30 to +80 (for NBR seal) -15 to +80 (for FKM seal) DBW -30 to +50 (for NBR seal) -15 to +50 (for FKM seal) Max.operating pressure Port P,X MPa 35.0 Port T MPa 31.5 Max.back pressure Port Y (DB) MPa 31.5 Port Y,T(DBW) MPa DC 21 AC 16 Max.setting pressure MPa 5,10,50,31.5,35.0 Min.setting pressure MPa Related to flow(refer to the curve) Max flow-rate Subplate connection L/min 250 - 500 - 650 Thread connection 250 500 500 500 650 Fluid Mineral oil suitable for NBR and FKM seal Phosphate ester for FKM seal Fluid temperature range ºC -30 to +80 (NBR seal) -15 to +80(FKM seal) Viscosity range mm²/s 10 to 800 Degree of contamination Maximum permissible degree of fluid contamination: 20/18/15, ISO 4406 FAQ
Q2: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q3: How to guarantee the high quality?
A: We have testing department to make sure quality of every product, appearance, flow and pressure test are good.
Q4: How about your delivery time?
A: Generally, it will take 7 to 20 days after receiving your payment. The specific delivery time depends on the items and the quantity of your order.
Q5: What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q6: What is your terms of packing?
A: Generally, we pack our goods in brown cartons and plywood boxes.
Q7: What is your terms of payment?
A: 100% T/T in advance, or 30% T/T as deposit and 70% paid before delivery for bigger order with bigger value.
Q8: How do you make our besiness long-term and good relationship?
A: We keep good quality and competitive price to ensure our customers benefit. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Technical data

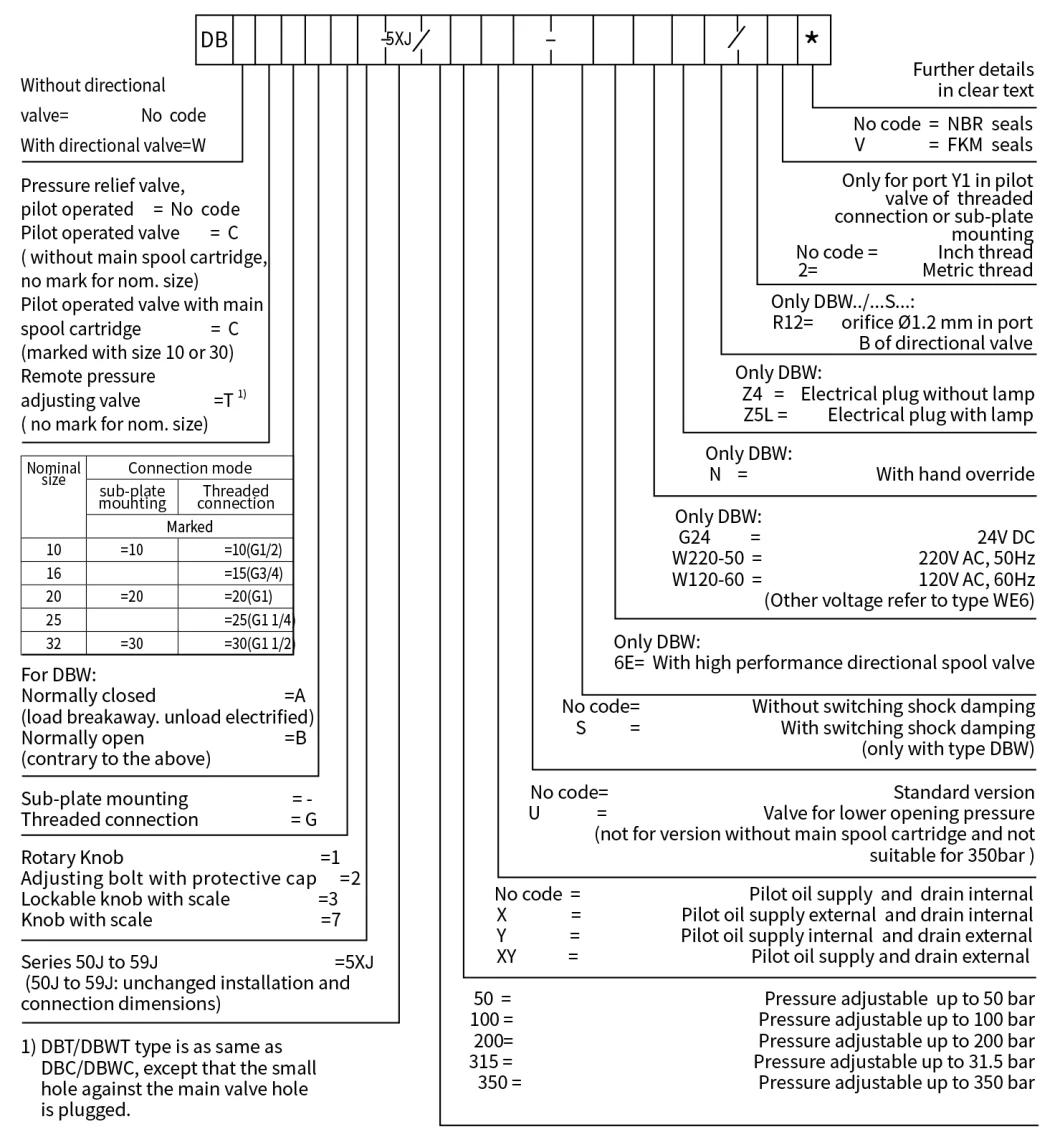

Ordering code
Product categories
