• Model NO.：Brazed
• Origin：China
• HS Code：82075010
• Production Capacity：1, 000, 000

Basic Info.

Model NO. Brazed Origin China HS Code 82075010 Production Capacity 1, 000, 000

Product Description

Basic info

Model No.	PT- PDDCDBS	Application:	For drilling Granite, Marble and stones
Samples:	Free samples when it is stock	Size:	From 6mm to 150mm are all available
Arbor:	M14, 5/8-11 and required	Delivery Time:	Based on the Quantity
Price Term:	EXW, FOB, CIF, CNF, DDP, DDU and Etc	Payment Term:	TT, LC, Western Union, PAYPAL, CREDIT CARD
Color:	Green, Plain, Yellow, Blue and as required	Quality:	All have to pass 3 times QC inspection
Certificate:	CE EN13236	Test report:	Have
Transport Package:	Double Corrugated Carton and pallet	Service:	Custom-made Service
Sample order:	Available	Trademark:	Protec
Origin:	China	HS CODE:	82075010

Product Description

Diameter	Arbor hole	Use	Segment quantity	Segment Size
6mm	M10, M14, M16, 5/8-11 and as required	Wet	Crown	1.5x8mm
8mm	M10, M14, M16, 5/8-11 and as required	Wet	Crown	2.0x8mm
10mm	M10, M14, M16, 5/8-11 and as required	Wet	Crown	2x10mm
12mm	M10, M14, M16, 5/8-11 and as required	Wet	Crown	2.5x10mm
14mm	M10, M14, M16, 5/8-11 and as required	Wet	Crown	2.5x10mm
16mm	M10, M14, M16, 5/8-11 and as required	Wet	Crown	2.5x10mm
18mm	M10, M14, M16, 5/8-11 and as required	Wet	Crown	2.5x10mm
20mm	M10, M14, M16, 5/8-11 and as required	Wet	Crown	2.5x10mm
25mm	M10, M14, M16, 5/8-11 and as required	Wet	Crown	2.5x10mm
32mm	M10, M14, M16, 5/8-11 and as required	Wet	Crown	3x10mm
35mm	M10, M14, M16, 5/8-11 and as required	Wet	Crown	3x10mm
38mm	M10, M14, M16, 5/8-11 and as required	Wet	Crown	3x10mm
40mm	M10, M14, M16, 5/8-11 and as required	Wet	4T	20x3x10mm
45mm	M10, M14, M16, 5/8-11 and as required	Wet	4T	24x3x10mm
50mm	M10, M14, M16, 5/8-11 and as required	Wet	5T	20x3x10mm
55mm	M10, M14, M16, 5/8-11 and as required	Wet	5T	24x3x10mm
60mm	M10, M14, M16, 5/8-11 and as required	Wet	6T	20x3x10mm
65mm	M10, M14, M16, 5/8-11 and as required	Wet	6T	24x3x10mm
70mm	M10, M14, M16, 5/8-11 and as required	Wet	7T	20x3x10mm
75mm	M10, M14, M16, 5/8-11 and as required	Wet	7T	24x3x10mm
80mm	M10, M14, M16, 5/8-11 and as required	Wet	8T	20x3x10mm
85mm	M10, M14, M16, 5/8-11 and as required	Wet	8T	24x3x10mm
90mm	M10, M14, M16, 5/8-11 and as required	Wet	9T	24x3x10mm
95mm	M10, M14, M16, 5/8-11 and as required	Wet	9T	24x3x10mm
100mm	M10, M14, M16, 5/8-11 and as required	Wet	9T	24x3.5x10mm
110mm	M10, M14, M16, 5/8-11 and as required	Wet	10T	24x3.5x10mm
120mm	M10, M14, M16, 5/8-11 and as required	Wet	10T	24x3.5x10mm
130mm	M10, M14, M16, 5/8-11 and as required	Wet	10T	24x3.5x10mm
140mm	M10, M14, M16, 5/8-11 and as required	Wet	11T	24x3.5x10mm
150mm	M10, M14, M16, 5/8-11 and as required	Wet	12T	24x3.5x10mm

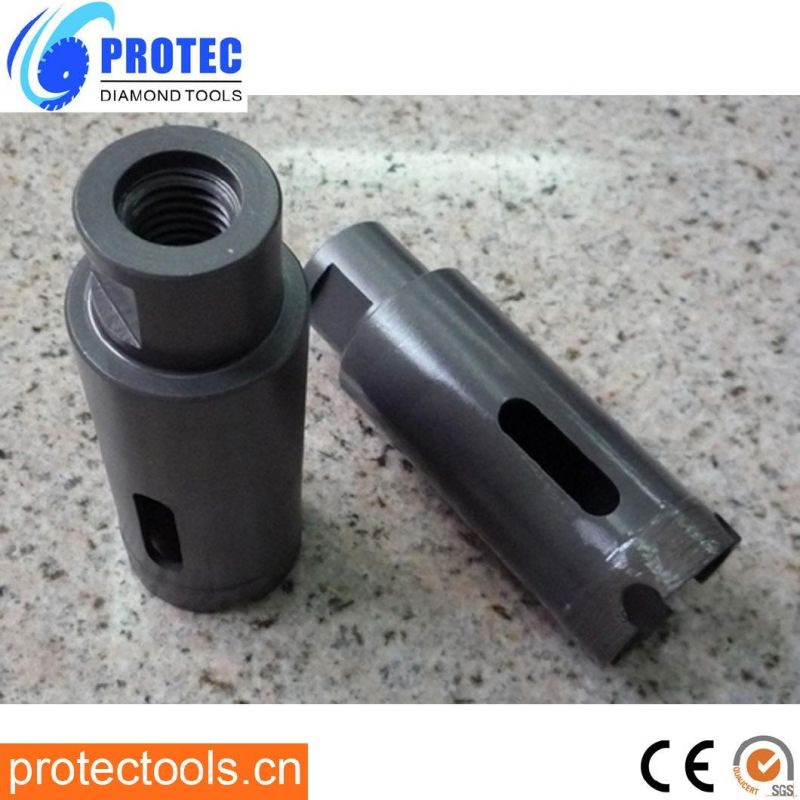

Brazed Diamond core drill bit for Granite/Marble

Product Description:
Diamond Drills are available in wet use for drilling holes on various stones. With high efficiency smooth drilling and long life. Brazed technology are more economical.

Features:
1. Premium grade core bits that deliver fast drilling speed and extend product life.
2. Use application with core drilling machines and hand drills.
3. Silver welded technology
4. With water application
5.Common thread: Shank, M14, 5/8" -11 or G1/2"
Application: These diamond drill bits are used for drilling stones including granite, marble, sandstone, limestone, and so on.




Product show

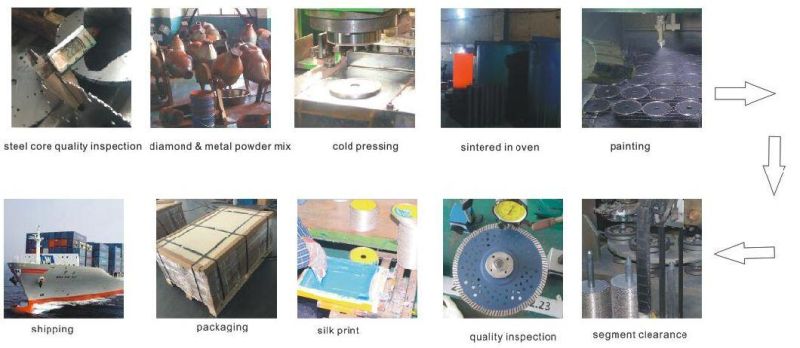

Manufacturing process

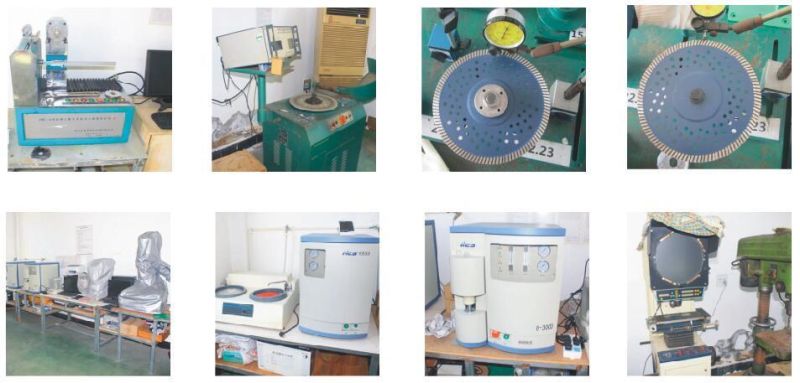

Inspection




Cutting test




Why choose us





Company profile
Protec Tools Co.,Limited ,was established in 2006. As a professional and experiened diamond saw blade and drilling tools manufacturer , To give our customers best quality tools , make them work easier , more efficient and lower cost is what we always focused on . By continuous research, successful and unsuccessful experience, thousands of testing, PROTEC has developed best bonding for most of the building materials from different areas all over the world. In order to keep our products at a high level , we take the most advanced equipments in this industry,such as the automatic laser welding machine, automatic segment press and sintering machine etc.Our products are manufacted coordinate to CE/EN13236. All of these efforts leading a significant grows every year. All our customers will find it is happy to work with PROTEC for the satisfying products and service .Our products are exported to more than 30 countries all over the world and we are the OEM supplier of some world wide famous brands. Looking forward to work for you.

We export to more than 30 countries all over the world

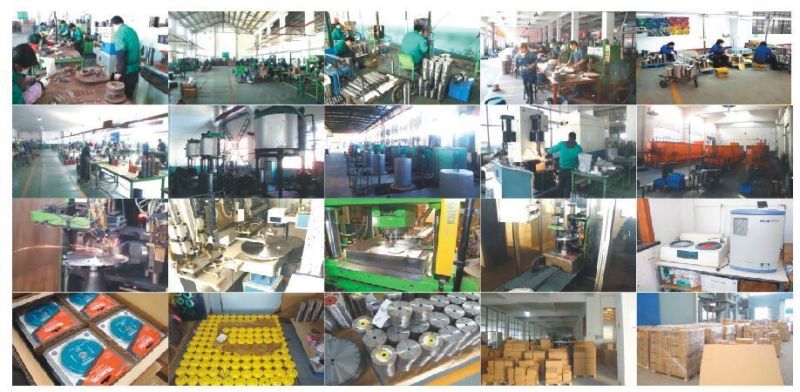

Work shop

Fairs and customer meeting

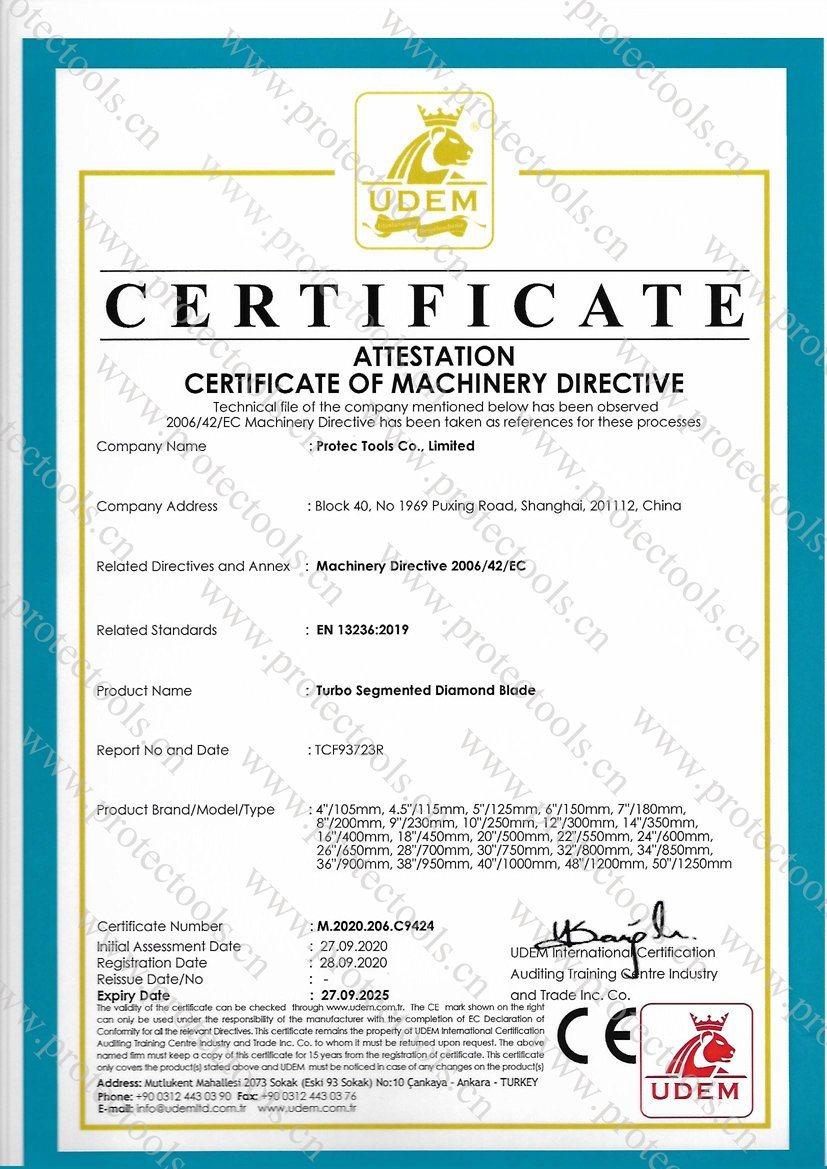

CE CERTIFICATE

Our diamond saw blades are compliant to CE/EN13236 .



Our service
a)  Good after-sale service, all questions will be replied within 12 hours.
b)  Customized design is available. ODM&OEM are welcomed.
c)  We can provide free sample.
d)  Convenient transportation and fast delivery, all available shipping ways could be applied, by express, air or sea.
e)  High quality and most competitive price.
f)  Advanced produce and inspecting equipments.

FAQ:
1. Can I order a small list?
---Yes. Of course you can.

2. What price do you offer?
---FOB, CIF, CNF, DDU, DDP and other ways according to your request.

3. How can we ship to you?
---By sea, By air, By express, By train and other transport ways according to your request.

4. What is the quality of your products guarantee?
---We have passed CE certification.

5.Do you have after-sales service?
---Certainly, you can contact us at any time.
