• Model NO.：Brazed
• Origin：China
• HS Code：82075010
• Production Capacity：1, 000, 000

Basic Info.

Model NO. Brazed Origin China HS Code 82075010 Production Capacity 1, 000, 000

Product Description

Basic info

Model No.	PT- PDDCDBS	Application:	For drilling bricks, concrete and masonry.
Samples:	Free samples when it is stock	Size:	24*4.0*10mm or as required
Arbor:	1/2BSP, 1-1/4 and as required	Delivery Time:	Based on the Quantity
Price Term:	EXW, FOB, CIF, CNF, DDP, DDU and ETC	Payment Term:	TT, LC, Western Union, PAYPAL, CREDIT CARD
Color:	Blue, Plain, Silver, Gold and as required	Quality:	All have to pass 3 times QC inspection
Certificate:	CE EN13236	Test report:	Have
Transport Package:	Double Corrugated Carton and pallet	Service:	Custom-made Service
Sample order:	Available	Trademark:	Protec
Origin:	China	HS CODE:	82075010

Product Description

Diameter	Arbor hole	Use	Effective length	Segment Size
10mm	1/2BSP / 1-1/4 and as required	Wet	400mm, 450mm and as required	Crown segment*2.0*12
20mm	1/2BSP / 1-1/4 and as required	Wet	400mm, 450mm and as required	Crown segment*2.5*12
30mm	1/2BSP / 1-1/4 and as required	Wet	400mm, 450mm and as required	Crown segment*2.5*12
40mm	1/2BSP / 1-1/4 and as required	Wet	400mm, 450mm and as required	20*3.5*10mm
50mm	1/2BSP / 1-1/4 and as required	Wet	400mm, 450mm and as required	24*3.5*10mm
60mm	1/2BSP / 1-1/4 and as required	Wet	400mm, 450mm and as required	24*3.5*10mm
70mm	1/2BSP / 1-1/4 and as required	Wet	400mm, 450mm and as required	24*3.5*10mm
80mm	1/2BSP / 1-1/4 and as required	Wet	400mm, 450mm and as required	24*3.5*10mm
90mm	1/2BSP / 1-1/4 and as required	Wet	400mm, 450mm and as required	24*3.5*10mm
100mm	1/2BSP / 1-1/4 and as required	Wet	400mm, 450mm and as required	24*3.5*10mm
150mm	1/2BSP / 1-1/4 and as required	Wet	400mm, 450mm and as required	24*4.0*10mm
200mm	1/2BSP / 1-1/4 and as required	Wet	400mm, 450mm and as required	24*4.0*10mm
250mm	1/2BSP / 1-1/4 and as required	Wet	400mm, 450mm and as required	24*4.0*10mm
300mm	1/2BSP / 1-1/4 and as required	Wet	400mm, 450mm and as required	24*4.5*10mm
350mm	1/2BSP / 1-1/4 and as required	Wet	400mm, 450mm and as required	24*4.5*10mm
400mm	1/2BSP / 1-1/4 and as required	Wet	400mm, 450mm and as required	24*4.5*10mm
450mm	1/2BSP / 1-1/4 and as required	Wet	400mm, 450mm and as required	24*4.5*10mm
500mm	1/2BSP / 1-1/4 and as required	Wet	400mm, 450mm and as required	24*5.0*10mm
550mm	1/2BSP / 1-1/4 and as required	Wet	400mm, 450mm and as required	24*5.0*10mm
600mm	1/2BSP / 1-1/4 and as required	Wet	400mm, 450mm and as required	24*5.0*10mm
700mm	1/2BSP / 1-1/4 and as required	Wet	400mm, 450mm and as required	24*5.5*10mm
800mm	1/2BSP / 1-1/4 and as required	Wet	400mm, 450mm and as required	24*5.5*10mm
900mm	1/2BSP / 1-1/4 and as required	Wet	400mm, 450mm and as required	24*5.0*10mm
1000mm	1/2BSP / 1-1/4 and as required	Wet	400mm, 450mm and as required	24*6.0 *10mm
1100mm	1/2BSP / 1-1/4 and as required	Wet	400mm, 450mm and as required	24*6.0*10mm
1200mm	1/2BSP / 1-1/4 and as required	Wet	400mm, 450mm and as required	24*6.0*10mm

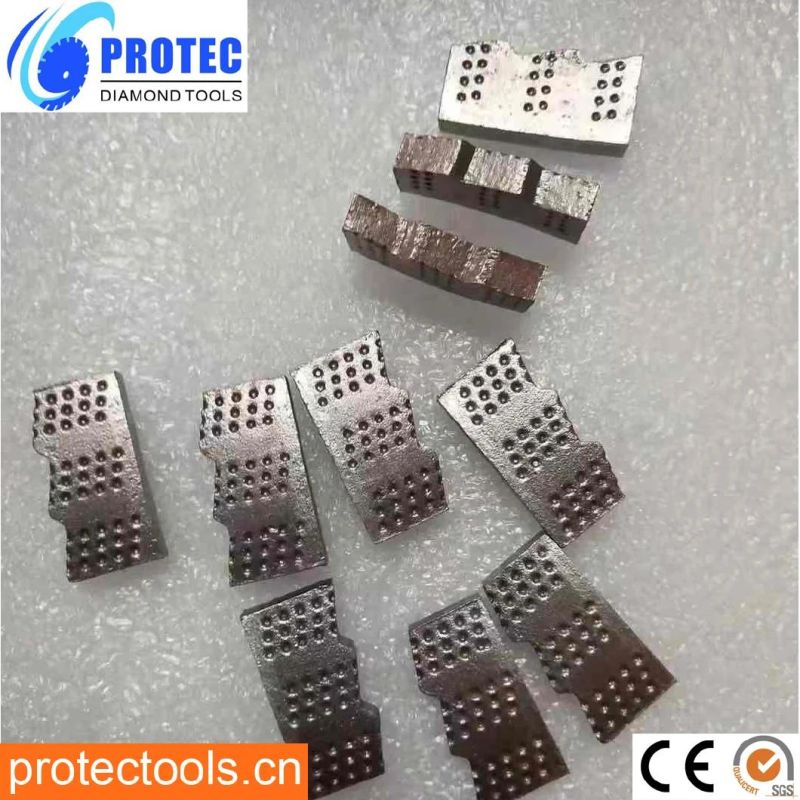

Diamond segments for diamond drill bit

Product Description:
Diamond Core bit segments are designed for laser welding or high-frequency brazing on diamond core drill, used for drilling concrete, reinforced concrete, asphalt, bricks and other construction materials. Common items of the segments are roof segments, turbo segments, crown segments and some special type of wave turbo and Spinosaurus. The advantage of segments are quickly & smooth drilling and long life.
Features:

1. Our diamond core drill bit segments are very good cutting for reinforced concrete with steel bars. Our cutting speed is only 7-8 minutes for each hole on the 40CM thickness C50 concrete with 4 pcs steel bars inside.
2. Size: the segment can be suitable for drill bit of the diameter from 10mm~1200mm. special size can be customized. Cost-effective and long lifespan
3. Application for concrete, reinforced concrete with rebar and construction material

4. Laser welded technology for long life with sharp drilling speed.
Application: These diamond drill bits are used for drilling concrete, reinforced concrete, asphalt, bricks and other construction materials..

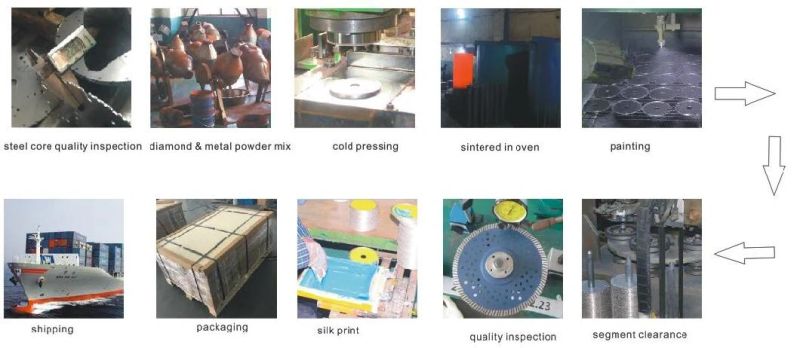

Manufacturing process

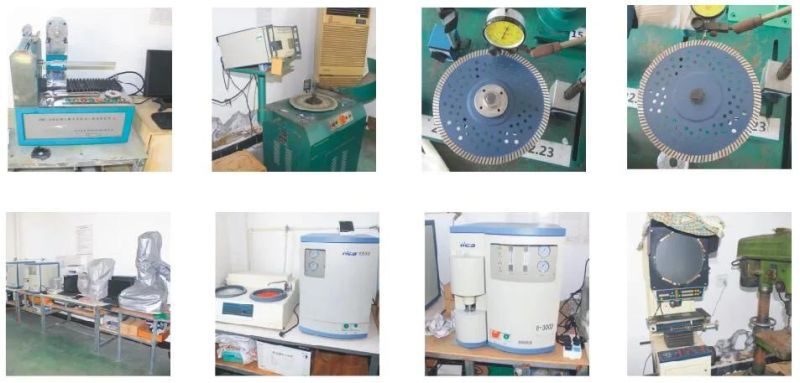

Inspection

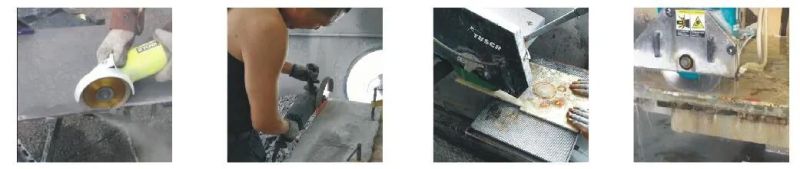

Cutting test




Why choose us





Company profile
Protec Tools Co.,Limited ,was established in 2006. As a professional and experiened diamond saw blade and drilling tools manufacturer , To give our customers best quality tools , make them work easier , more efficient and lower cost is what we always focused on . By continuous research, successful and unsuccessful experience, thousands of testing, PROTEC has developed best bonding for most of the building materials from different areas all over the world. In order to keep our products at a high level , we take the most advanced equipments in this industry,such as the automatic laser welding machine, automatic segment press and sintering machine etc.Our products are manufacted coordinate to CE/EN13236. All of these efforts leading a significant grows every year. All our customers will find it is happy to work with PROTEC for the satisfying products and service .Our products are exported to more than 30 countries all over the world and we are the OEM supplier of some world wide famous brands. Looking forward to work for you.

We export to more than 30 countries all over the world

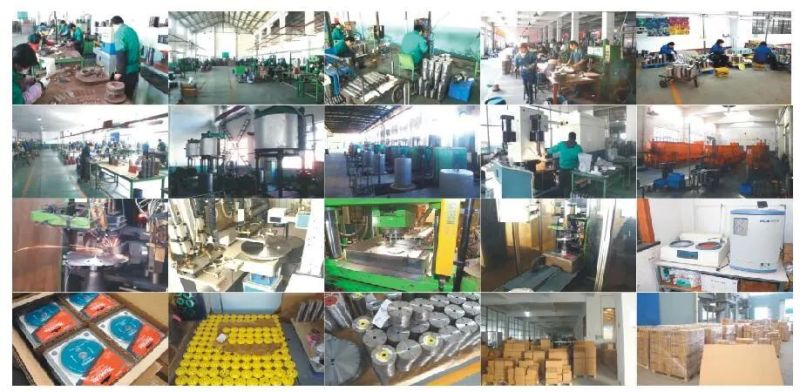

Work shop

Fairs and customer meeting



CE CERTIFICATE

Our diamond saw blades are compliant to CE/EN13236 .



Our service
a)  Good after-sale service, all questions will be replied within 12 hours.
b)  Customized design is available. ODM&OEM are welcomed.
c)  We can provide free sample.
d)  Convenient transportation and fast delivery, all available shipping ways could be applied, by express, air or sea.
e)  High quality and most competitive price.
f)  Advanced produce and inspecting equipments.

FAQ:
1. Can I order a small list?
---Yes. Of course you can.

2. What price do you offer?
---FOB, CIF, CNF, DDU, DDP and other ways according to your request.

3. How can we ship to you?
---By sea, By air, By express, By train and other transport ways according to your request.

4. What is the quality of your products guarantee?
---We have passed CE certification.

5.Do you have after-sales service?
---Certainly, you can contact us at any time.
