Basic Info.

Model NO. 120/36 Assembly Structure Separate Type Extruder Screw Twin-Screw Engagement System Full Intermeshing Screw Channel Structure Deep Screw Exhaust Exhaust Automation Automatic Computerized Computerized Screw Materia 38crmoala Screw Diameter (mm) 120 Screw L/D Ratio 36 Power (Kw) 180 Voltage Voltage: Video Outgoing-Inspection Provided Sheet Width 400-3000mm Sheet Thickness 0.25-30mm Net-Changing Hydraulic Net-Changing Mold T-Type Sheet Mold Coiling Coiling Machine Calendar Three-Roller Calendar Transport Package Sea Specification 30*2*2m Trademark TONGSAN Origin Qingdao HS Code 84772090 Production Capacity 2sets

Product Description

OUR PRODUCTS:


Product name

Plastic Sheet Extrusion Machine
ABS Sheet PRODUCTION LINE
ABS panel making machine

Plastic plate making machine
Plastic sheet extrusion line
HIPS HDPE ABS Extrusion machine
HDPE sheet production line

HIPS HDPE ABS Sheet making machine/ plastic sheet extrusion machine



Introduction for plastic sheet extrusion machine

1,, pp sheet extrusion line is capable of continuously producing mono-layer or multi-layer PVC/PP/PE/ABS/PMMA/PC/PS/HIPS plate and sheet with the width less than 3000mm and thickness of 0.25-30mm . The products are widely used in the fields of refrigerater ,air conditioner ,auto,advertisement ,and construction ,environment protection ,etc.

2, pp sheet extrusion line includes many equipments ,such as :extruder ,screen changer and mould,three-roller calendaring machine,bracket of cooling roller,landscape orientation cutting machine and the winder.

Machine list	Quantity
Raw material drying device	one set
Material auto feeding	one set
	one set
Melt dosing pumps	one set
Co-extrusion Mold & Distributor	one set
Three-roller calendaring machine	one set
Cooling bracket	one set
Hauling off device	one set
Cutting device	one set
Stainless steel stacker	one set
Electricity control system	one set

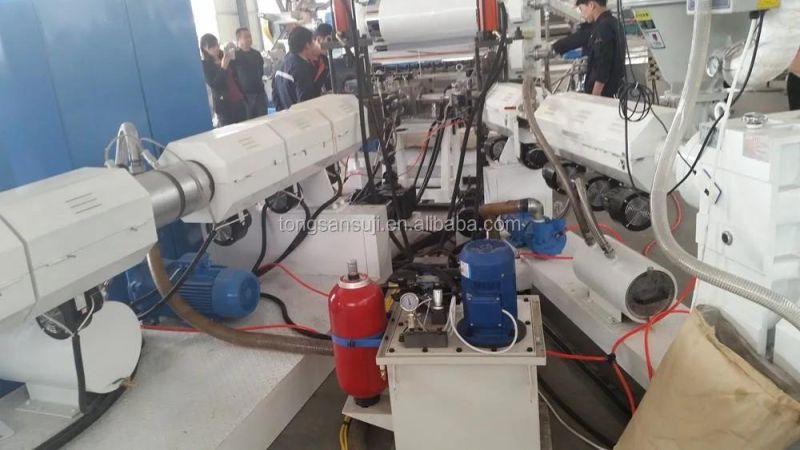

Extruder for Plastic sheet extrusion machine

Appropriate single-screw extruder (exhaust or not) should be chosen on the basis of different materials. Specially designed screw and advanced temperature controlling system ensure the good plasticization, high output and stable extruding.

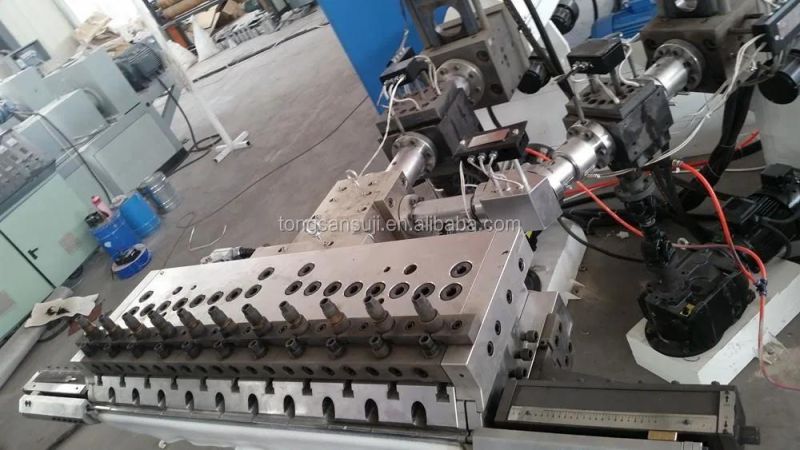

Mold for Plastic sheet extrusion machine

The quick screen changer of hydraulic system ensures the short course of screen changing without material-leakage. Reasonable structure of mould should be chosen in terms of material, whereas moulds of clothes-rack mode are widely accepted to regulate flow-distribution and guarantee even thickness of plates (sheets).

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

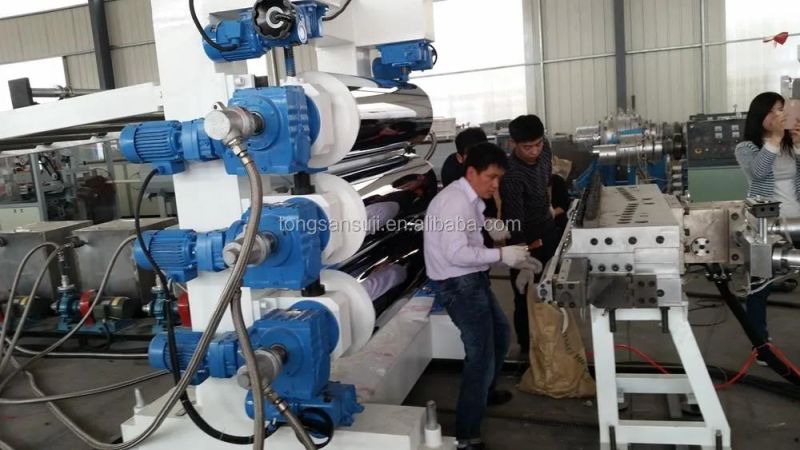

Three roller calendaring machine for Plastic sheet extrusion machine

Inclined and vertical three-roller calendaring machine should be chosen according to the thickness of the plates(sheets). Temperature controller operates separately and gap among the three rollers can be adjusted freely, and the central roller has special design of regulating angle. Both ensure the excellent calendaring effect and even thickness of plates (sheets).

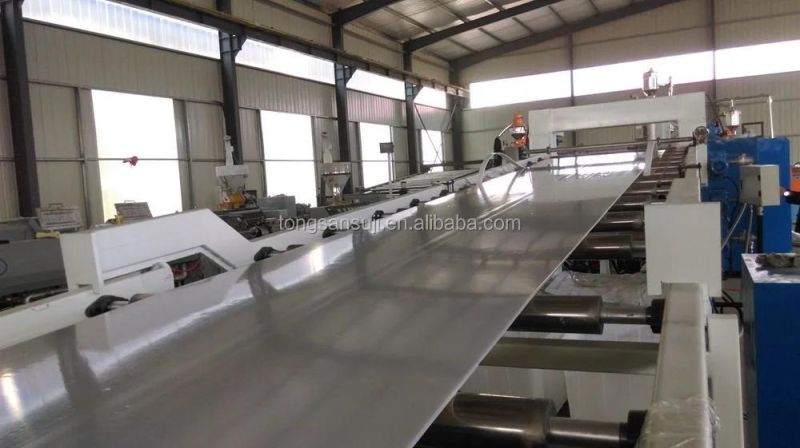

Cooling bracket for Plastic sheet extrusion machine

Equipped with corresponding guide roller, the cooling effect is better. In addition, the edge-shearing device equipped can guarantee fixed width of plates (sheets) and quality of edge.

Side cutting for plastic sheet extrusion machine

Side cutting for cutting the width of the Plastic sheet.

Cutting by: high quality alloy knives.

Quantity of Knives: two sets

Cutting edge recycling: with online crushing system

Haul off machine for plastic sheet extrusion machine

Double roller haul off machine

Roller material: rubber

roller up and down: by cylinder control

Speed control: Frequency

Cutting machine for Plastic sheet extrusion machine

It is of length-fixed cutting with cutting precision less than 2mm and adopts alloy blade or rigid alloy saw bit to ensure the good cutting effect and constantly stable performance.

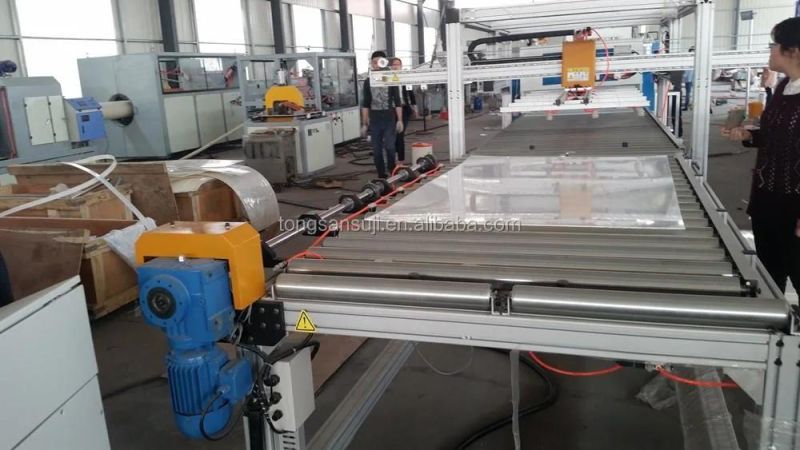

Stacker for Plastic sheet extrusion machine

Stacker width: according to sheet width

Stacker length: 3 meters

Stacker material: stainless steel

Stacker type: automatically
