Professional Manufacture WPC PVC Wall Panel Plastic Extruder Machine Extrusion Line
Ningbo Easyget Co., Ltd.Base Info
Description
150-240 kg/h
PVC ceiling and PVC wall panel making machine details1,Main extruder
PVC ceiling making process
1,Raw material mixer
Function:Mixing all raw materials together by hot mixer and so then can compound well,then cooling by the cold mixer prevent reaction.
Working process:Automatic loading feeder--6-10min hot mixing--10-15min cooling
In order to avoid pollution, the mixer needs to be alone in a room. In addition, the mixed raw materials can be stored in silos, then transported directly from the silo to the extruder.
2,PVC ceiling profiles extrusion line
Function and working process:
Automatic loading ----Conical double screw extruder ---die mould---calibrator platform cooling----haul off device---Automatic cutting machine---Productus stacker
Special design screw for PVC powder extrusion,SIEMENS brand motor,famous brand gear box,with automatic loading and feeder
In order to cooling the products well,adopt the cauum pump and water pump,two sets water tank.All parts contact with water are made by stainless steell.
The haul off device clamped the products by the rubber block, then the movement of the rubber block pulls the product forward.
Automatic cutting machine can customized cut the final products at the required length .
It has the functions of measuring cutting and accumulative counting.It adopt with the dust collector avoid pollution.
Carry and support the cutted final product, and then arrange neatly.
Made of stainless steel, the slide rail is equipped with a rubber protective layer.
3,PVC ceiling profiles mould
We can design the mold according your requirments,mould material: 3cr17,the special high-quality mold steel
We offer the mold for 60 /65/80/85 series PVC window and doors,the co-extrusion type for ASA surface and sealing rubber.
4,PVC ceiling surface treatment machine
Ceiling surface treatment mainly includes three types: film coating, rolling coating and spraying, among which the film-coated board is the best.
The surface treatment and process of the film-covered board are the same as the pre-coated board, except that the surface of the film-covered board is (PVC film). The surface of the film-covered board is adhered firmly, without wrinkles, scratches, or falling off.
5,SWP360 Plastic crusher
The crusher used to recycling the waste products ,then cutting them into small flakes.
6,SMW-500 high speed PVC Grinding machine
The high speed PVC grinding machine used to milling the PVC flakes into powder,so the waste PVC products can be recycled use.
7,20HP Water chiller :HANGKANG ANGES brand, compressor
Cooling the recycle water which used to cooling the products,
so it can increace the production speed and get good products surface.
8,30A air compressor
Provide the air to the mold,cylinder for haul off device,cutter,and stacker
Be Our Client:
Why Choose Us?

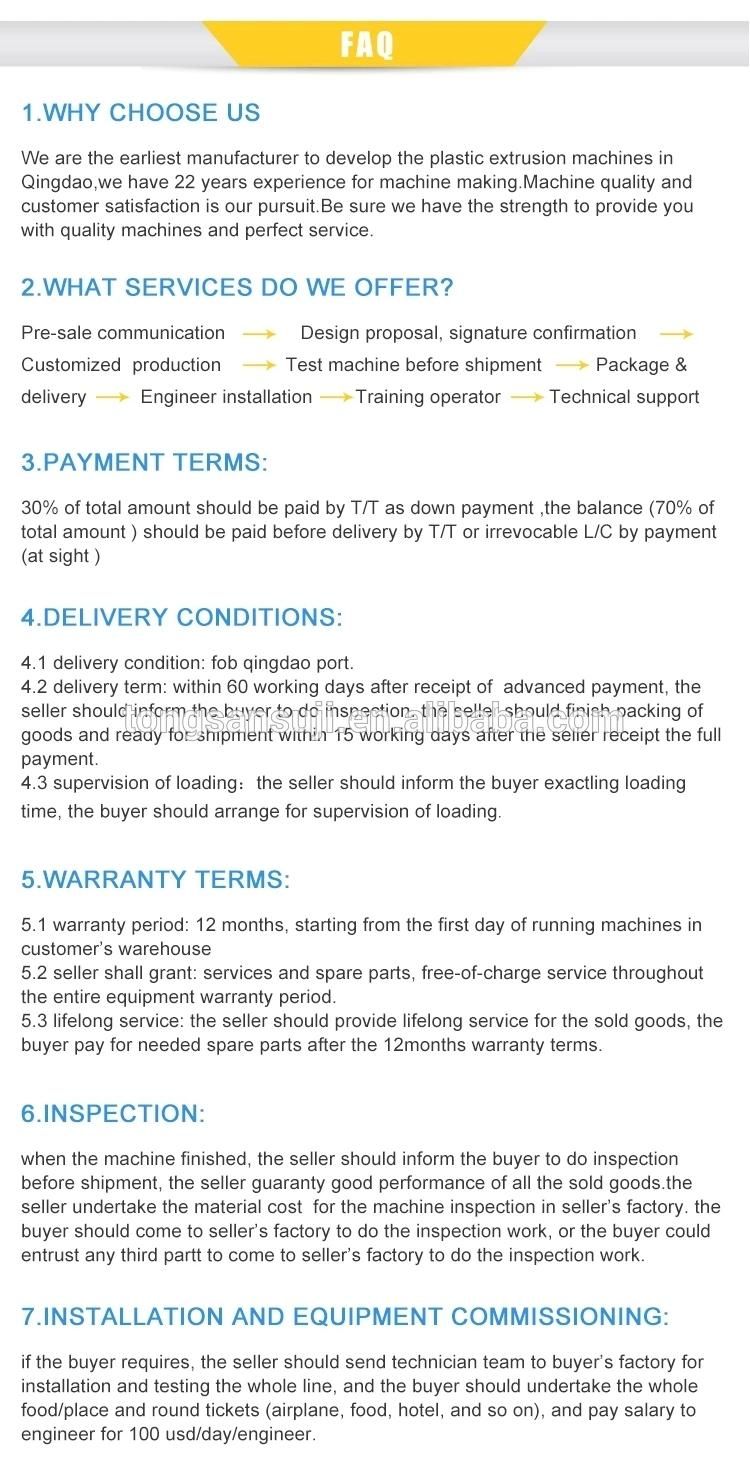

FAQ:
More questions please send the massage to me.^-^
Looking for hear from you.
PVC ceiling and PVC wall panel making machine details1,Main extruder
Extruder type: Conical double screw extruder
Model: SJMS51/105,SJMS 65/132
Motor: 22KW/37kw
feeder: Auto feeding
2,Mold for PVC ceiling profile /PVC wall panelDie head: one set
calibrators: three pieces
Mold heating: one set four pieces
water tank: one piece
3,Cooling and calibranting machineCooling type: vacuum cooling and water cooling
Cooling machine length: 6 meters
water pump: 1 set
vacuum pump: 1 set
4,Haul off machineDouble cater pillar: rubber cater pillar
Power: 2.2kw
Window glass: moveable
5,Cutting machineCutting power: 1.1kw
Cutting by automatical control
Length fixed as required, adjustable
PVC ceiling making process
1,Raw material mixer
Function:Mixing all raw materials together by hot mixer and so then can compound well,then cooling by the cold mixer prevent reaction.
Working process:Automatic loading feeder--6-10min hot mixing--10-15min cooling
In order to avoid pollution, the mixer needs to be alone in a room. In addition, the mixed raw materials can be stored in silos, then transported directly from the silo to the extruder.
2,PVC ceiling profiles extrusion line
Function and working process:
Automatic loading ----Conical double screw extruder ---die mould---calibrator platform cooling----haul off device---Automatic cutting machine---Productus stacker
Special design screw for PVC powder extrusion,SIEMENS brand motor,famous brand gear box,with automatic loading and feeder
In order to cooling the products well,adopt the cauum pump and water pump,two sets water tank.All parts contact with water are made by stainless steell.
The haul off device clamped the products by the rubber block, then the movement of the rubber block pulls the product forward.
Automatic cutting machine can customized cut the final products at the required length .
It has the functions of measuring cutting and accumulative counting.It adopt with the dust collector avoid pollution.
Carry and support the cutted final product, and then arrange neatly.
Made of stainless steel, the slide rail is equipped with a rubber protective layer.
3,PVC ceiling profiles mould
We can design the mold according your requirments,mould material: 3cr17,the special high-quality mold steel
We offer the mold for 60 /65/80/85 series PVC window and doors,the co-extrusion type for ASA surface and sealing rubber.
4,PVC ceiling surface treatment machine
Ceiling surface treatment mainly includes three types: film coating, rolling coating and spraying, among which the film-coated board is the best.
The surface treatment and process of the film-covered board are the same as the pre-coated board, except that the surface of the film-covered board is (PVC film). The surface of the film-covered board is adhered firmly, without wrinkles, scratches, or falling off.
5,SWP360 Plastic crusher
The crusher used to recycling the waste products ,then cutting them into small flakes.
6,SMW-500 high speed PVC Grinding machine
The high speed PVC grinding machine used to milling the PVC flakes into powder,so the waste PVC products can be recycled use.
7,20HP Water chiller :HANGKANG ANGES brand, compressor
Cooling the recycle water which used to cooling the products,
so it can increace the production speed and get good products surface.
8,30A air compressor
Provide the air to the mold,cylinder for haul off device,cutter,and stacker
Be Our Client:
Why Choose Us?
FAQ:
More questions please send the massage to me.^-^
Looking for hear from you.
