• Model NO.：KQ4000
• Application：Milk, Yogurt, Milk Powder, Cheese
• Customized：Customized
• Name：Heating and Mixing Tank Double Wall Tank Pressure
• Double Jacketed Tank with Mixer：Heating and Mixing Tank Double Wall Tank Pressur
• Preparation Tank for Milk ,Yogurt：Aseptic Tank Set
• Juice Preparation Tank Volume：200L to 20000L
• Mixer Speed：36rpm,60rpm,960rpm,2900rpm
• Mixer Shape：Customized
• Preparation Tank Material：SS304,SS316
• Mixing Tank Function：Storage, Heating, Cooling, Mixing, Fermentation
• Wroking Life：More Than 10years
• Delivery：10 Days
• Motor Brand：Siemens ,ABB ,China Brand
• Spare Parts：Available
• Control Box：Yes
• Leg：Legs
• Certificate：CE
• Transport Package：Plywood Box
• Specification：ISO
• Trademark：KQ
• Origin：Shanghai China
• HS Code：8479820090
• Production Capacity：100set,Month

Basic Info.

Model NO. KQ4000 Application Milk, Yogurt, Milk Powder, Cheese Customized Customized Name Heating and Mixing Tank Double Wall Tank Pressure Double Jacketed Tank with Mixer Heating and Mixing Tank Double Wall Tank Pressur Preparation Tank for Milk ,Yogurt Aseptic Tank Set Juice Preparation Tank Volume 200L to 20000L Mixer Speed 36rpm,60rpm,960rpm,2900rpm Mixer Shape Customized Preparation Tank Material SS304/SS316 Mixing Tank Function Storage, Heating, Cooling, Mixing, Fermentation Wroking Life More Than 10years Delivery 10 Days Motor Brand Siemens /ABB /China Brand Spare Parts Available Control Box Yes Leg Legs Certificate CE Transport Package Plywood Box Specification ISO Trademark KQ Origin Shanghai China HS Code 8479820090 Production Capacity 100set/Month

Product Description

Heating and Mixing Tank Double Wall Tank Pressure Tank
Aseptic Tank Double Jacketed  Tank with Mixer agitator

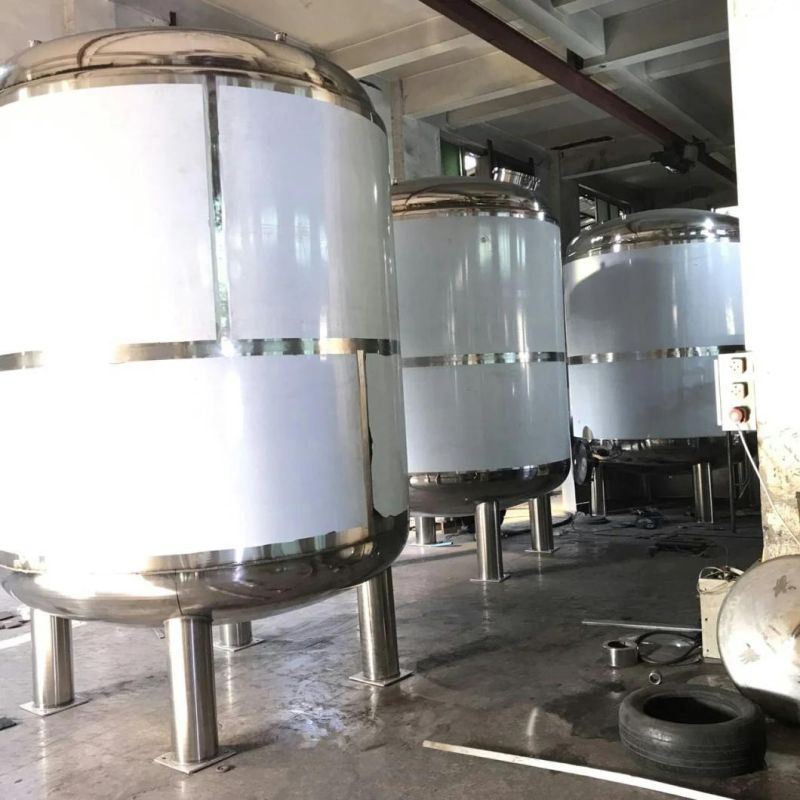

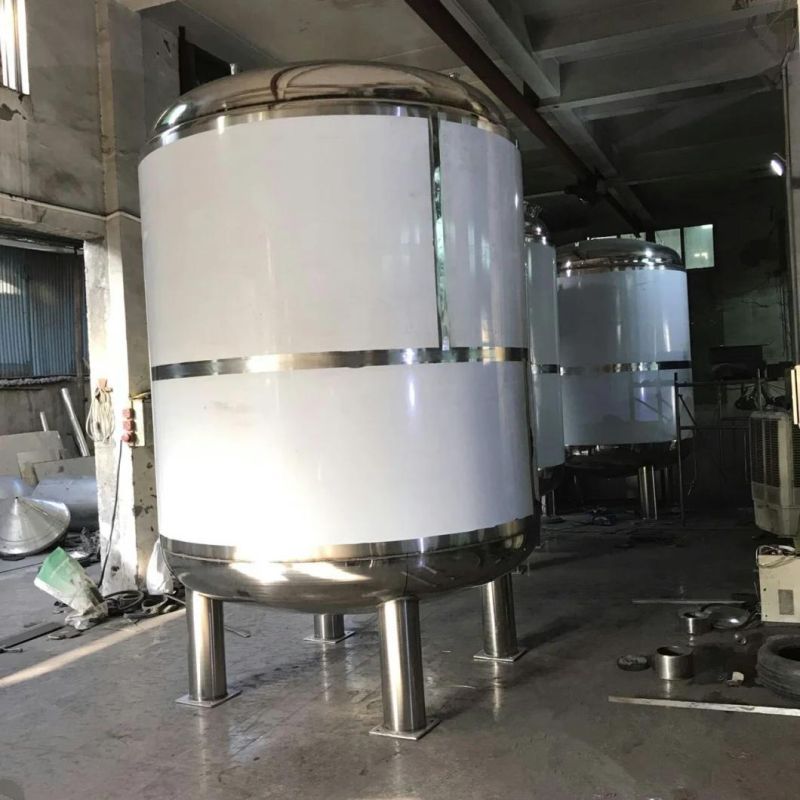

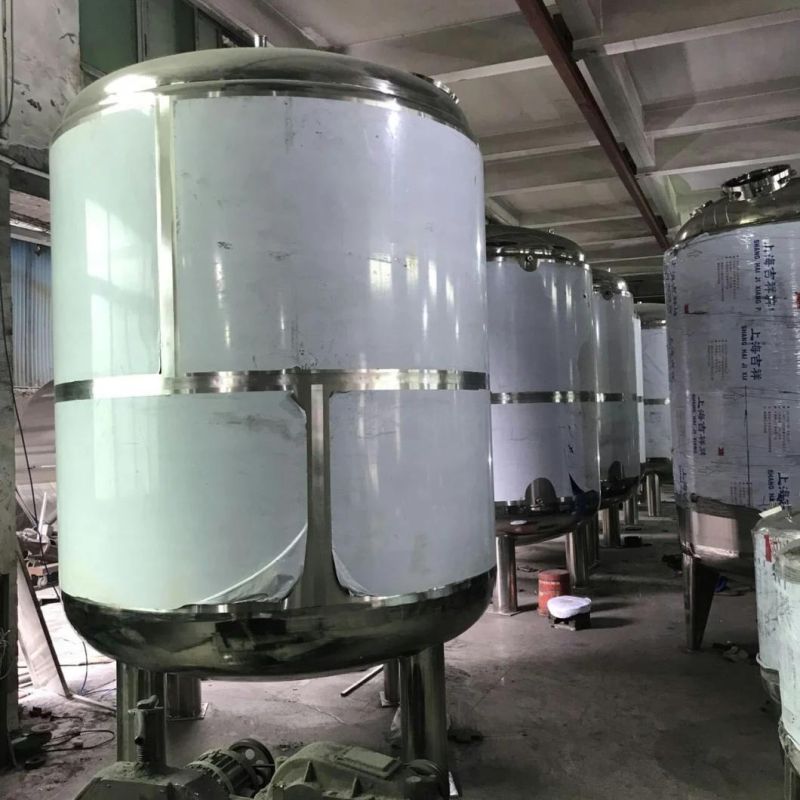

Stainless Steel Double Wall heating and mixing tank

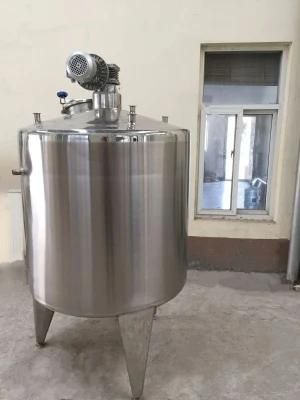

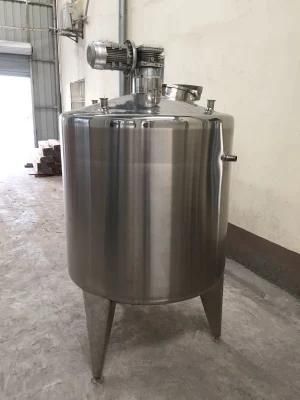

Jacketed tank with mixer,

Choice of simple jacket tank (simple skin) or of retention double jacket tank (double skin) or tank and retention :

(mm)	D1(mm)	H1(mm)	H2(mm)	H3(mm)	δ (mm)	DN(mm)
KQ 100	400	600	400	1050	250	3	32
KQ 150	400	600	400	1450	250	3	32
KQ 200	500	700	400	1450	250	3	32
KQ 300	600	800	400	1450	250	3	32
KQ 500	800	1000	500	1350	330	4	40
KQ 600	800	1000	500	1550	330	4	40
YRV1000	1000	1200	700	1750	330	5	40
YRV1200	1000	1200	700	1950	330	5	40
YRV1500	1100	1300	700	1950	330	5	40
KQ 2000	1400	1600	700	1650	3360	5	40
KQ 2500	1400	1600	800	2000	330	5	40
KQ 3000	1500	1700	800	1900	330	6	40
KQ 4000	1700	1900	900	2100	330	6	40
KQ 5000	1700	1900	900	2850	400	6	50
KQ6000	1800	2000	1000	2850	400	6	5

a jacketed vessel is a container that is designed for controlling the temperature of its contents, by using a cooling or heating "jacket" around the vessel through which a cooling or heating fluid is circulated
hot water heating tank with mixer;  hot water tank with mixer

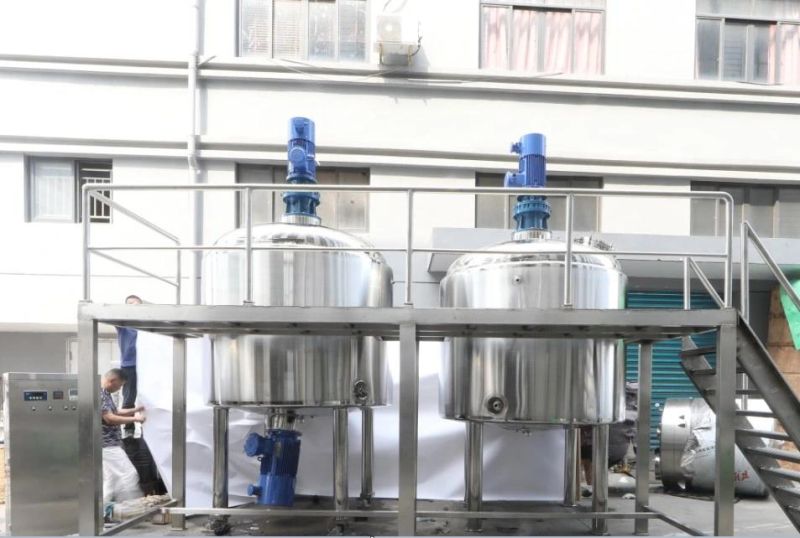

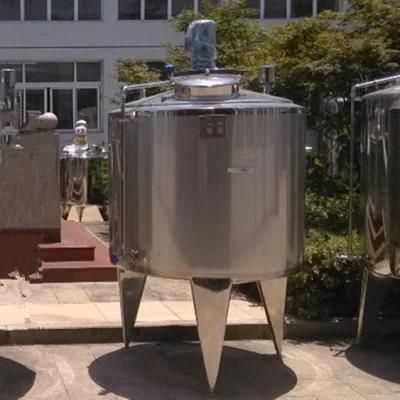

Heating and mixing tank




preparation tank/mixing tank for dairy production line,, Shanghai, China (Mainland)
The dairy preparation thus obtained is conveyed to storage tanks where it is also subjected to continuous stirring,
because a typical dairy plant might manufacture yogurts, drinks and cheeses tanks . Our sanitary dairy mixing tanks could encompass the entire plant and all products, or we could create a partition between processes if it is possible to separate resource usage, raw materials, and so on. We make the assumption here that these different processes are independent and so decide to focus on the yogurt process
1.Mixing tank(sterilizing tank /aseptic tank) is made of SUS304 Or SS316L
2.Mixing tank(sterilizing tank /aseptic tank) can used for heating or coolling using dimple jacket.
3.with perlite or PU to keep heat /cold insulate.
4.All angles is treated in special process to guarantee no dead angle
5.this tank is widely used for heating or cooling or temperature holding
6.liquid foods like milk, juice, ice cream, chemical and biological areas.
7.With agitation or no can be an option, and it can be build according to the customer detail requirement.
Mixing tank(sterilizing tank /aseptic tank) Standard configuration:
manhole, thermometer with figure display, ladder, CIP washing point, pull pole valve, controllable trestle, charging/discharging port and sampling valve etc.
Other Types are according to customer's requirement
