• Model NO.：GJB Series
• Name：High Pressure Homogenizer Small Homogenzier Homog
• Material：Stainless Steel 304 ,316
• Capacity：500L,H--10000L,H
• Pressure：250bar to 700bar
• Appication：Milk , Juice, Beverage, Butter, Honey, Cream
• Motor：Customized Electricity Motor
• Power of Motor：5.5kw-7.5kw
• Homogenizer Pressure：Two Stage
• Delivery：10 Days
• Warranty：One Year After Reach Your Side .
• Packing：Wooden Box
• MOQ：1set
• Spare Parts：Available
• OEM：Yes
• Certificate：Ce ISO
• Transport Package：Standard Wooden Box
• Specification：CE
• Trademark：KAIQUAN
• Origin：Shanghai, China
• HS Code：8479820090
• Production Capacity：100 Units,Month

Basic Info.

Model NO. GJB Series Name High Pressure Homogenizer Small Homogenzier Homog Material Stainless Steel 304 /316 Capacity 500L/H--10000L/H Pressure 250bar to 700bar Appication Milk , Juice, Beverage, Butter, Honey, Cream Motor Customized Electricity Motor Power of Motor 5.5kw-7.5kw Homogenizer Pressure Two Stage Delivery 10 Days Warranty One Year After Reach Your Side . Packing Wooden Box MOQ 1set Spare Parts Available OEM Yes Certificate Ce ISO Transport Package Standard Wooden Box Specification CE Trademark KAIQUAN Origin Shanghai, China HS Code 8479820090 Production Capacity 100 Units/Month

Product Description

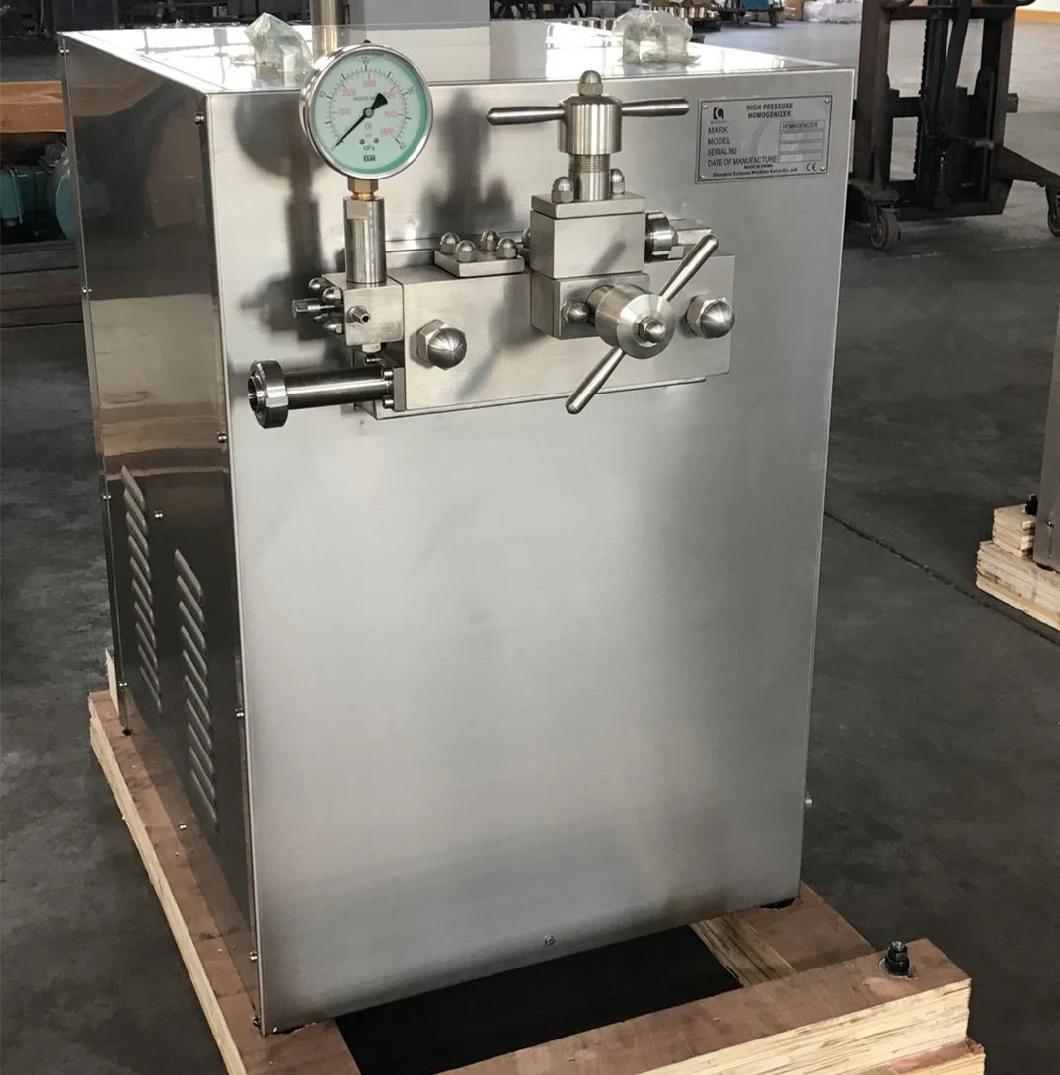

High Pressure Homogenizer Small Homogenzier Homogenizer Price Homogenzier Machine
Milk High Pressure Homogenizer, You Can Buy Various High QualityMilk High Pressure Homogenizer Products from us, the 250bar milk homogenizer.




CE CERTIFICATED HOMOGENIZER FOR MILK, JUICE, DAIRY, ICECREAM, SOYBEAN MILK, HONEY
Soybean milk homogenizer, 40MPA homogenizer
Tea drinks homogenizer, juice homogenizer
Homogenizer pumps

Model No. Technical parameter	KQ0.5-25	KQ1-25	KQ1.5-25	KQ2-25	KQ2.5-25	GJB3000-25 KQ3-25	KQ5-25
Rated pressure(MPa)	25	25	25	25	25	25	25
Rated flow ( Liters/H )	500	1000	1500	2000	2500	3000	5000
Medium temperature(C)	≤85	≤85	≤85	≤85	≤85	≤85	≤85
Feeding pipe diameter(mm)	25	25	25	25	25	32	40
Discharge pipe diameter(mm)	15	15	20	20	20	20	25
Power of motor(Kw)	5.5	7.5	11	15	18.5	22	45
Volt and Electricity Flow	220V,60HZ,3PH	380V,50HZ	380V,50HZ	380V,50HZ	220V,60HZ,3PH	380V,50HZ	380V,50HZ
Outline dimension (m) Length * width * height	1.16×0.9×1.24	1.16×0.9×1.24	1.16×0.9×1.24	1.4×1.1×1.42	1.4×1.1×1.42	1.4×1.1×1.42	2.2×1.45×1.1
Weight(Tons)	0.4	0.5	1.25	1.25	1.25	1.25	1.7

High pressure homogenization is a standard industrial process for dairy products, to improve their stability and shelf life

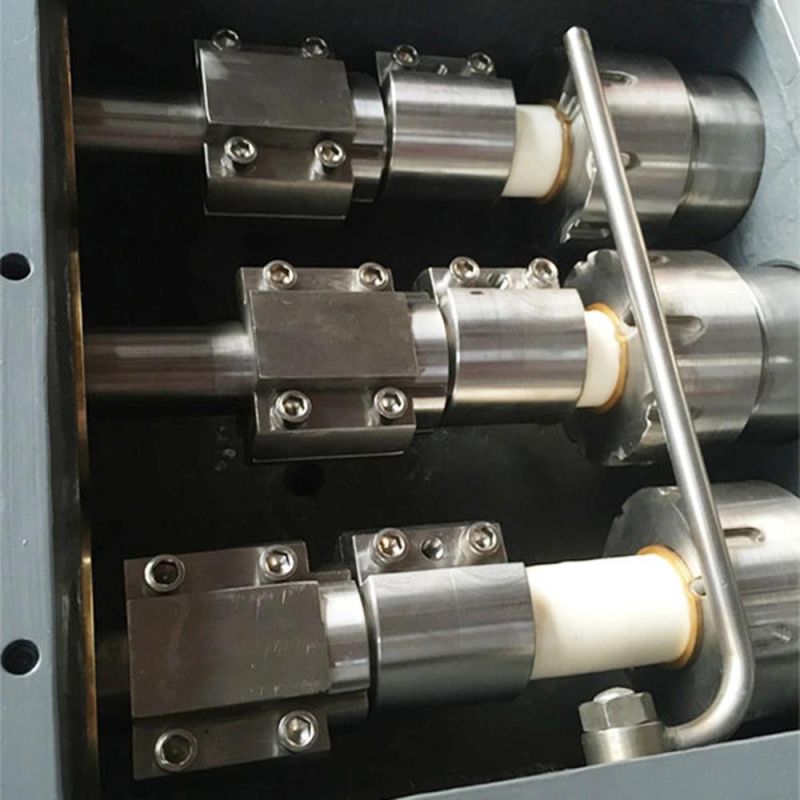

Series is the kind of equipment which can homogenize the liquid material and make it become high-pressure spray. The high pressure homogenizer pump reciprocates the pump position, high press the liquid, fully mixed and refined the material.
The high pressure homogenizer can use to homogenize the dairy product material in high pressure, refine the fat globule, prevent or decrease the stratifying of the liquid material; Make the product much more nicety, to prove the quality of the product.
The high pressure homogenizer pump also the important equipment of the powder manufacture. (Such as pharmaceutical industry, chemical industry, etc. )
High Pressure Homogenizer Small Homogenzier Homogenizer Price Homogenzier Machine
