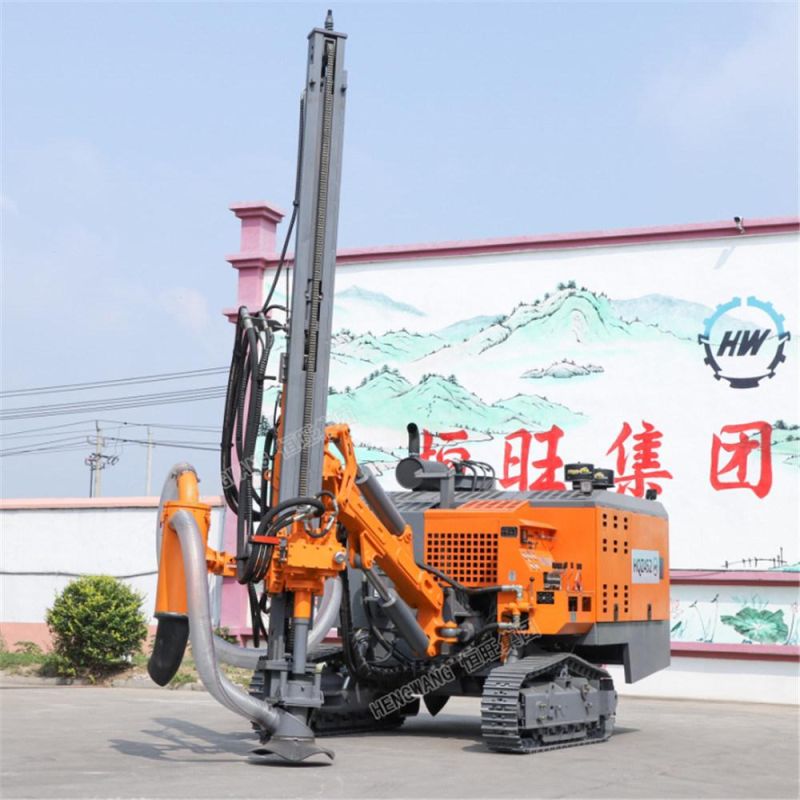

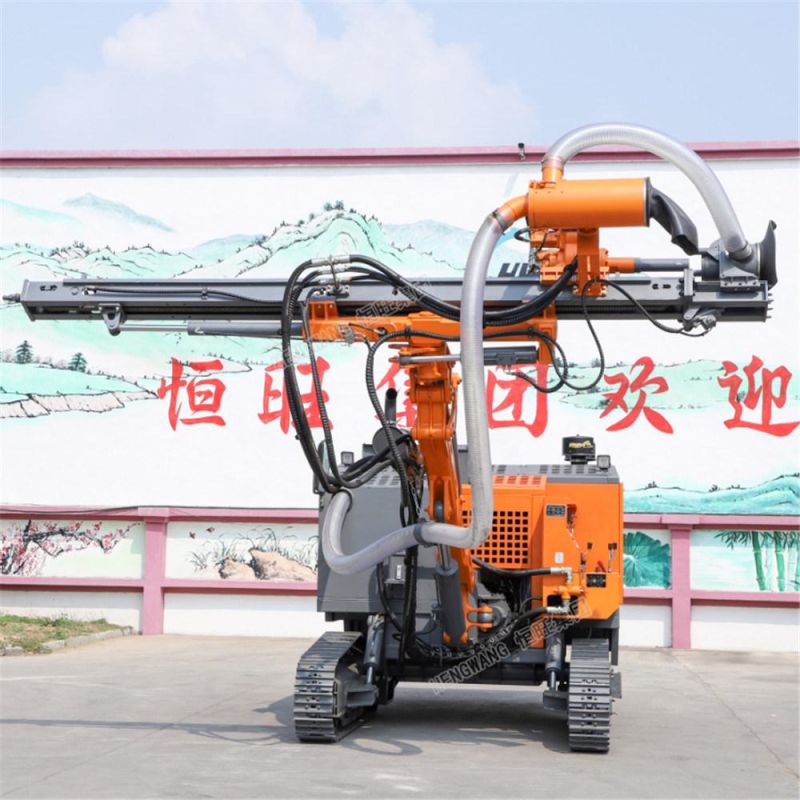

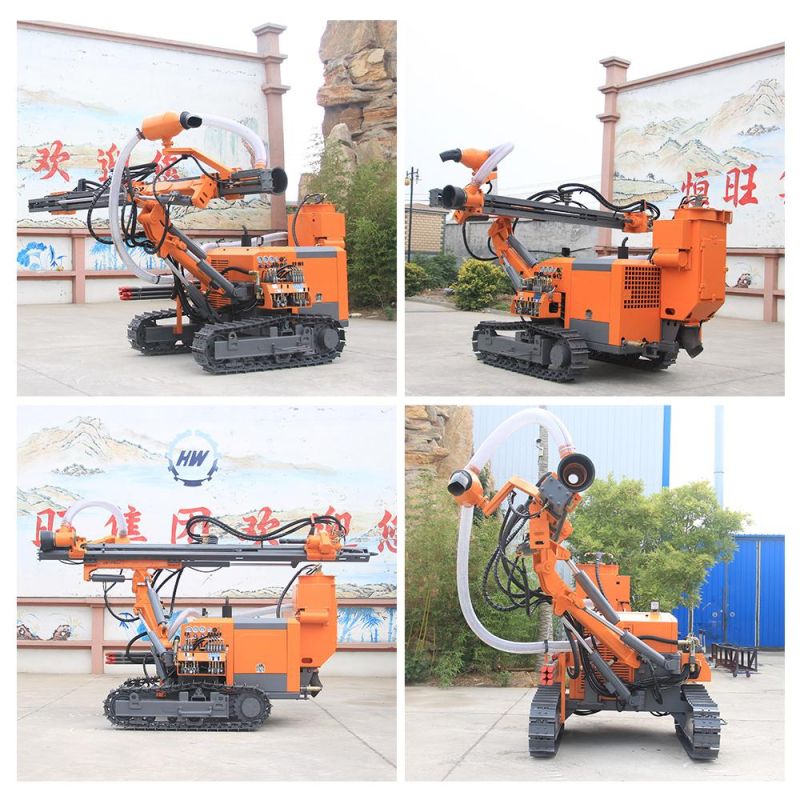

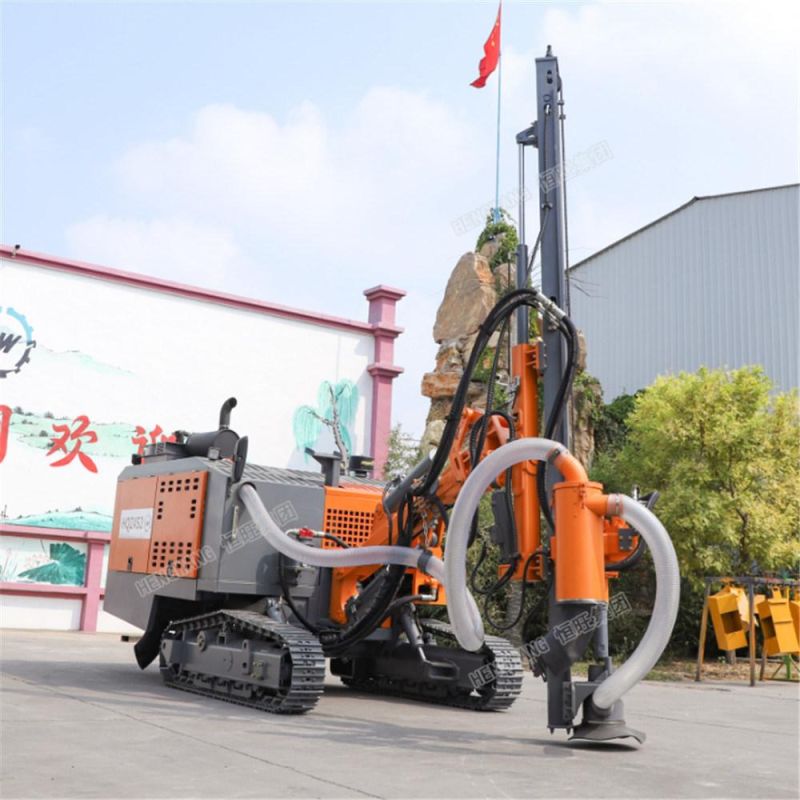

Hw423 DTH Diesel Integrated Automatic Hydraulic Crawler Mounted Drilling Rig
Kunshan Hexin Precise Machinery Co., Ltd.Base Info
Description
Model
HW423
Engine
YC6J220-T300 162kW/2,200 rpm
Yuchai YC6J220-T300 162 kW @ 2,200 rpm
Hole Range
90-115 mm
Drill Pipe Storage
7+1
Drill Pipe Diameter
Dia 68 X 3,000 mm
DTH Hammer
3.5"
Rotation Torque ( Max.)
2,540 N.m
F.A.D
12 m3/min
Working Pressure ( Max.)
15 bar
Pull Up Force ( Max.)
20 kN
Tramming Speed ( Max.)
3 km/h (High Speed)
2 km/h (Low Speed)
Gradient
30°
Track Frame Oscilation
±10°
Total Weight
13,000 kg
Transportation Dimensions
9,000X2,360X3,000 mm
