Basic Info.

Model NO. HW600 Drilling Way Rotary Type Four-Wheel trailer Usege Water Well Drill Rig Drilling Hole Depth 600m Maximum Opening Diameter 75-300mm Final Hole Diameter 75mm Drill Pipe Diameter 50mm Power 39kw Structure Weight 1150kg Size 2800*950*1800mm Vertical Reversal Speed 29-137r/Min Vertical Axis Stroke 560mm Transport Package Standard Package Specification 600m depth Trademark HW Origin Shandong HS Code 8430412100 Production Capacity 1000sets/Year

Product Description

300m Truck Mounted boring Borehole water Well Drilling Rig
1. Characteristic of wheeled core drilling machine
1.The rig is equipped with wheeled walking mechanism and hydraulic cylinder support, which is convenient for the whole machine to be relocated and easy to adjust the level of the drilling rig.
2.Using the ball card holding mechanism to replace chuck,can implement non-stop down rod,convenient operation,safe and reliable.
3.With oil pressure feeding mechanism to improve drilling efficiency
4.The pressure gauge is provided with the pressure gauge of the bottom of the hole, so it is easy to master the hole in the hole.
5.The lifting and falling tower is hydraulic operation, which is convenient and reliable.
6.The diesel engine uses electric start to reduce the labor intensity of the workers

Model	HWXY-160	HWXY-230	HWXY-3
Drilling depth	160m	230m	600m
Drilling  diameter	75mm-160mm	75-273mm	75mm-325mm
Drill rod diameter	42mm,50mm	42mm,50mm,60mm	50mm,60mm
Drill angle	90-75	90-75	90-75°
Engine power	15kw	18KW	39kw
Machine Dimension	2.4*0.8*1.3m	2.7*0.9*1.5	2.6*0.9*1.75m
Drill mast height	1m	4.5M	6.5m
mud pump flow	95l/min	145l/min	250l/min
Mud pump max. pressure	1.2Mpa	2 mpa	3mpa

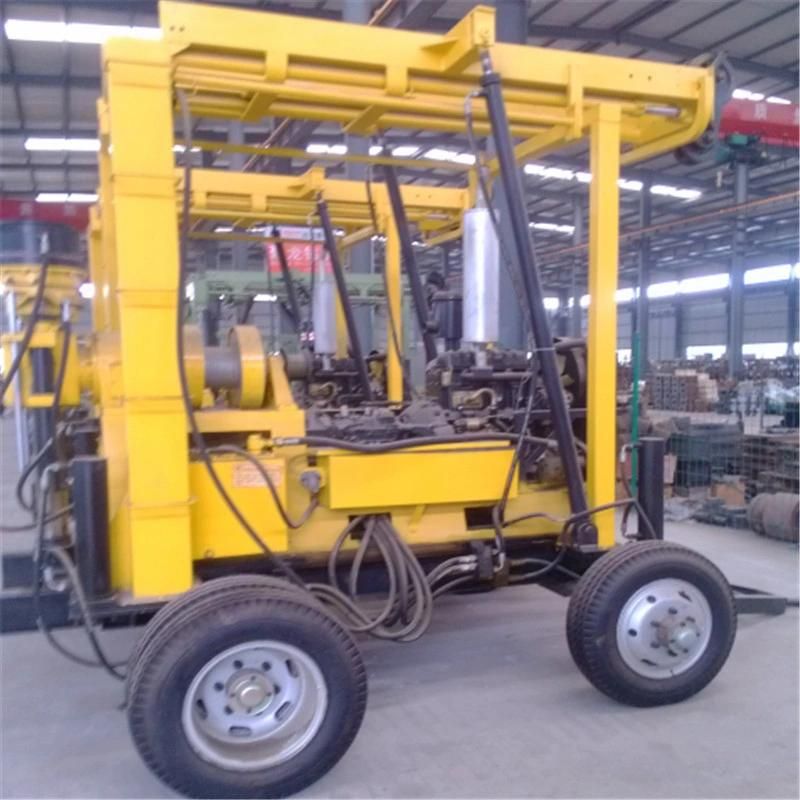

                         600m depth Truck mounted rotary water well drilling rig

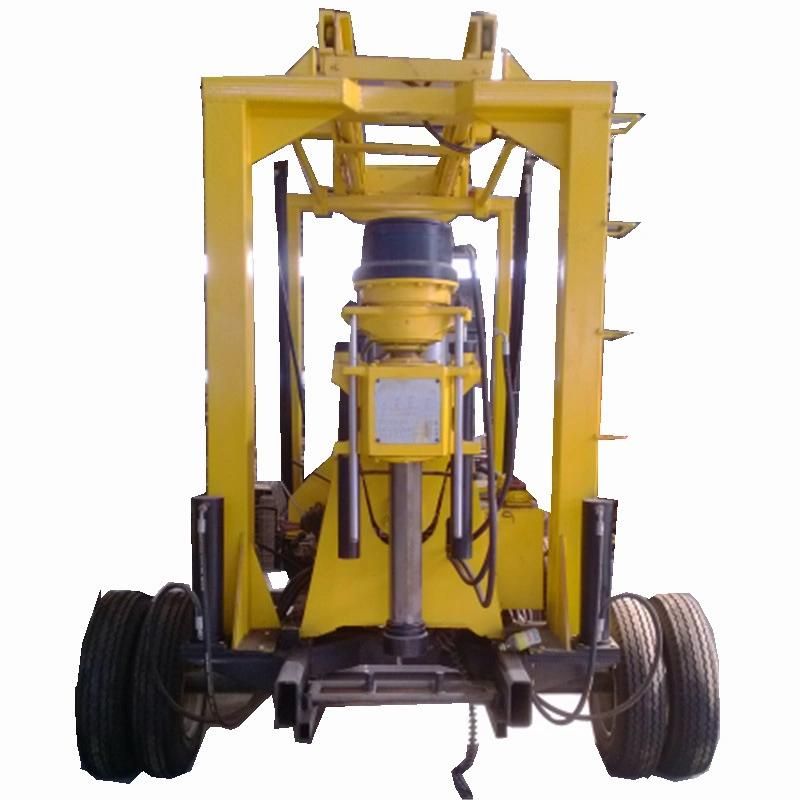

                       600m depth Truck mounted rotary water well drilling rig

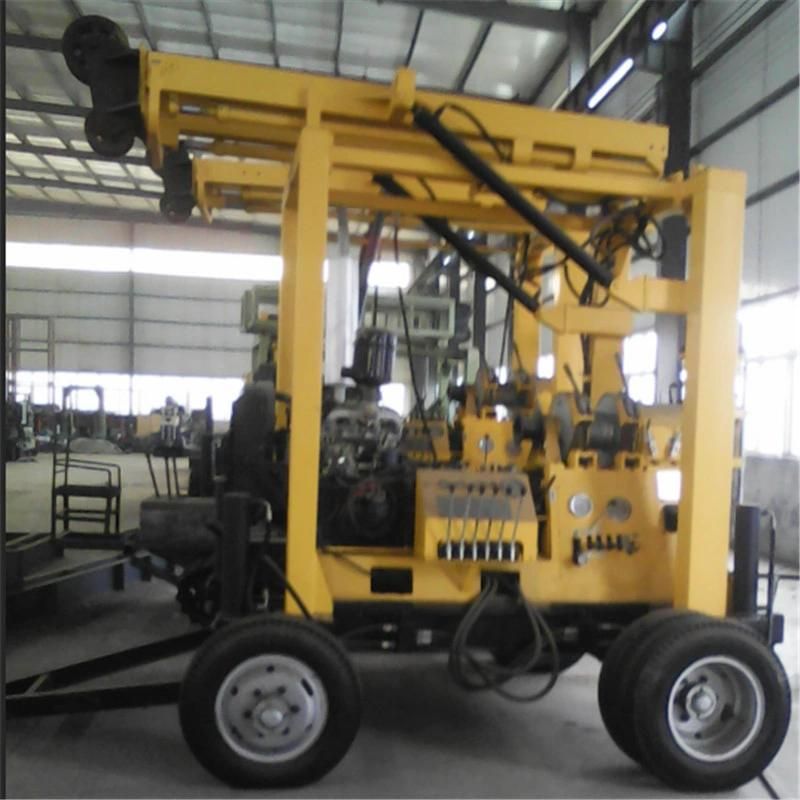

                         600m depth Truck mounted rotary water well drilling rig

             We are a professional manufacturer of drilling equipment and pile machine equipment. Our company has been established for more than ten years, our products are well-known at home and abroad. In terms of service, we provide customer needs and solve customer problems with the concept of customer first. In the product, we strive to innovate while consolidating the quality of our products, and provide customers with high quality and low price machines. Welcome all new and old customers who need the construction machine  contact us



                Jining Hengwang Mining Machinery Co., Ltd.
