Basic Info.

Model NO. FT500, FT1000 Engagement System Full Intermeshing Screw Channel Structure Deep Screw Exhaust Don′t Exhaust Automation Automatic Computerized Computerized Transport Package wooden case Specification CE Trademark fangtai Origin china HS Code 84478000 Production Capacity 1 set/ month

Product Description

use

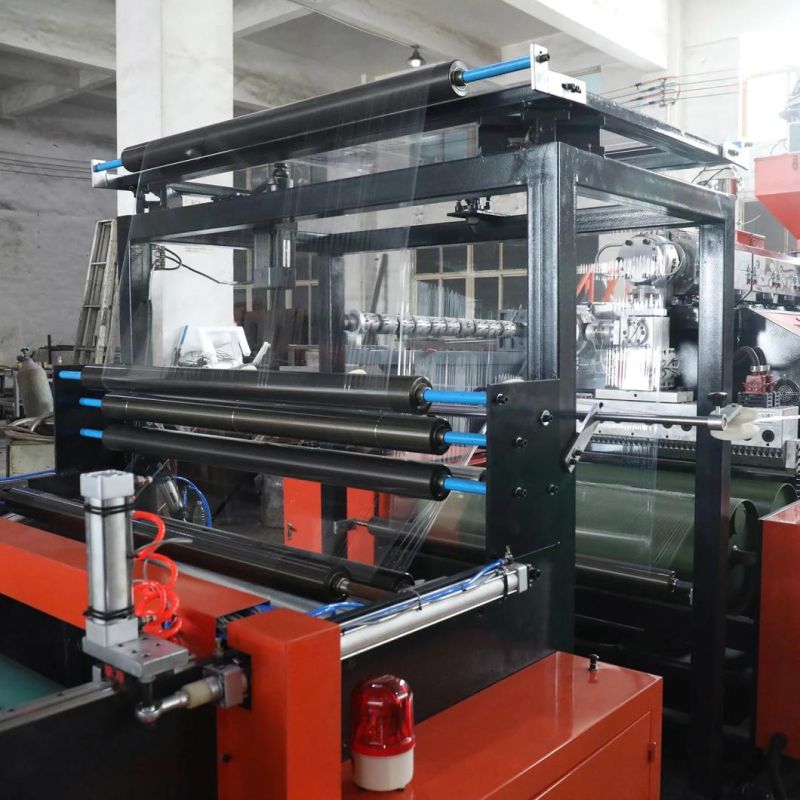

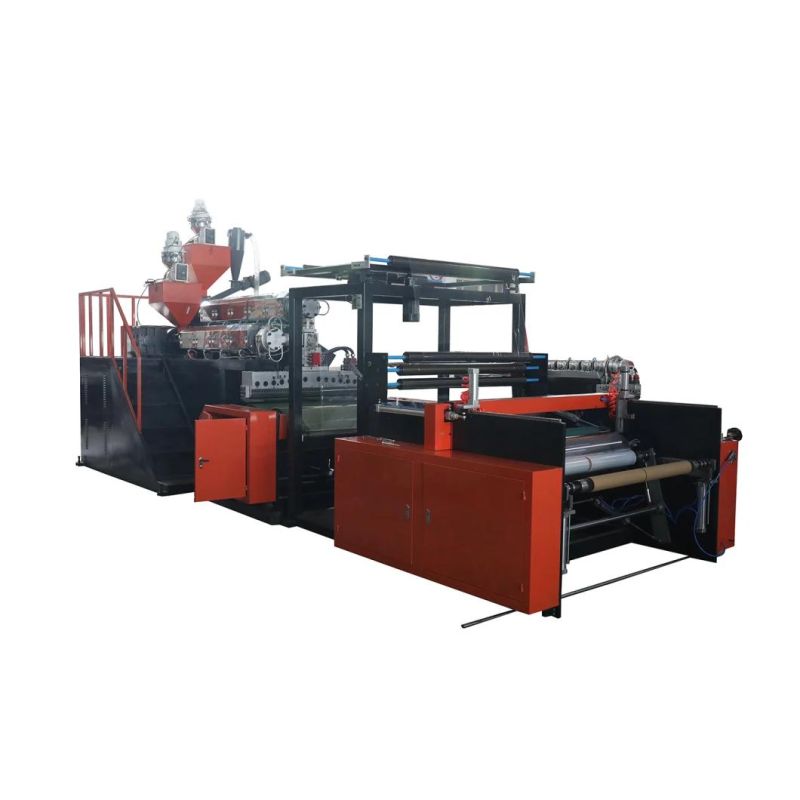

This machine uses LDPE and LLDPE to produce casting stretch film(could produce one-side sticky film and the other side normal), adopting double screws and double two hoppers. This co-extrusion stretch film is widely used in packing area for architecture, auto parts, hardware parts,etc.

Characteristics
1.    Screw and cylinder are all made of 38 CrMoALA after nitrogen treatment, which has an advantage of corrosion resistance and endurance, etc.
2.    The cooling device adopts cycle water cooling which provide the best transparent effect of the stretch film

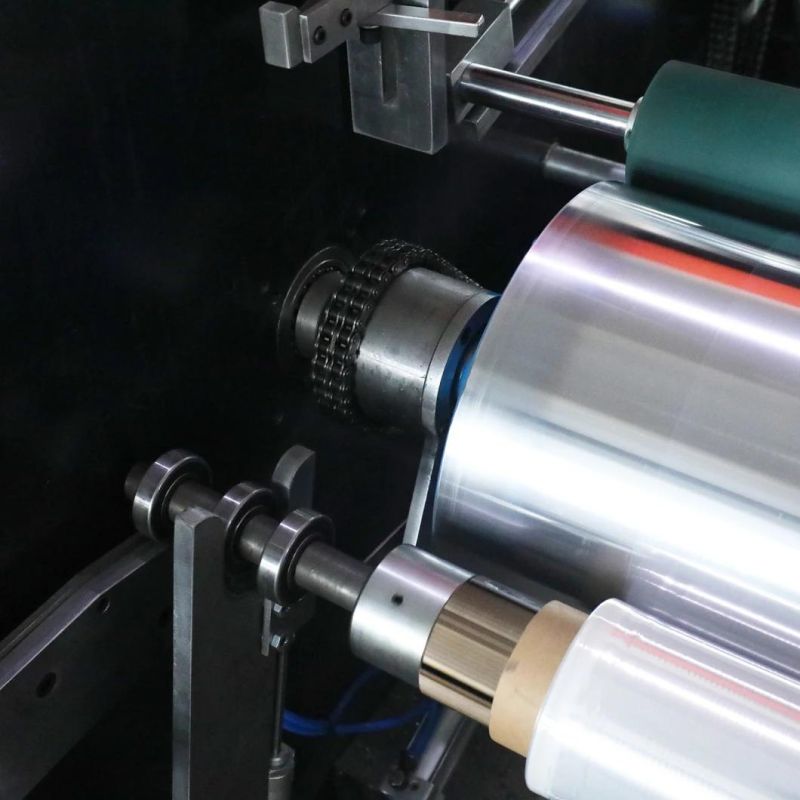

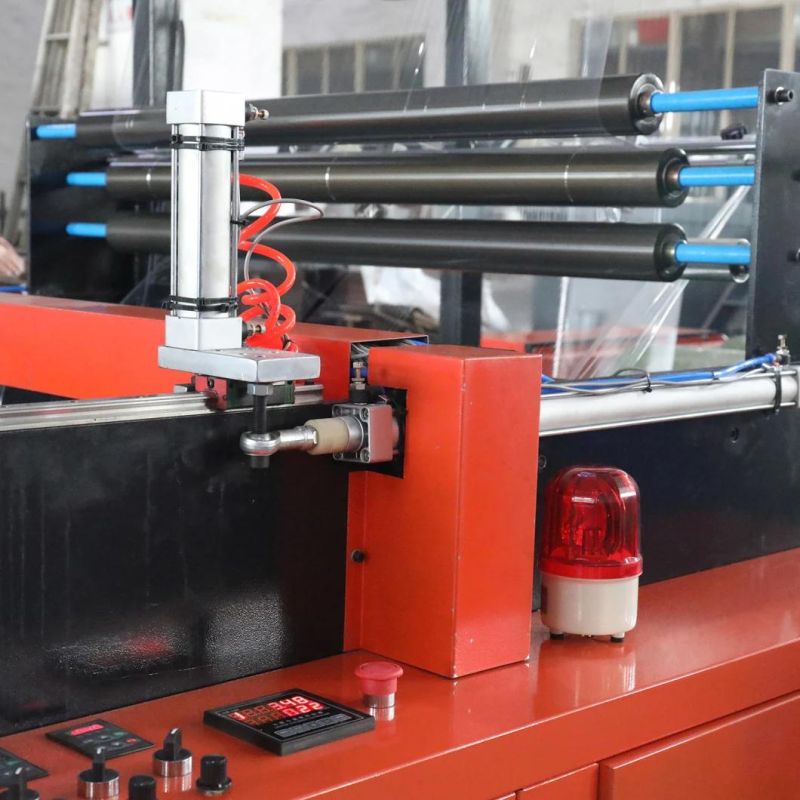

3.    Rewinder adopts with friction-rewinding-type, with cutter device for edge correcting.



OPTIONAL EQUIPMENT
1) AUTO LOADER
2) AIR SHAFT
3) AUTO DRY HOPPER
4) ELECTRIC CHANGE
5) HYDRAULIC NET CHANGER
6) GLUE PUMP
7)AUTO CHANGER

Model	FT-1000double-layer	FT-1500double-layer
Diameter of Screw Stem	φ65mm*2	φ75mm*2
L/D Ration of Screw	28:1	28:1
Material of Screw & Barrel	38 CrMoALA	38 CrMoALA
Rational Speed of Screw Stem	10-120rpm	10-120rpm
Width of T-die Head	1250 mm	1800 mm
Heating Way	Casting-aluminum heating device	Casting-aluminum heating device
Width of Traction Roller	1250 mm	1800 mm
Width of Products	1000mm	1500mm
Thickness	0.015-0.05mm	0.015-0.05mm
Main motor power	18.5kw*2	22kw*2
Heating Power	51kw	72kw
Max. output(kg/h)	100	150
Machine weight	5.5T	7T
Overall Dimensions (L*W*H)	7500*4500*3200mm	10000*6000*5000mm
