One Stage Pet Bottle Blowing Machine, Full Automatic Bottle Blowing Making Machine, ...
Changzhou Wujin Anwei Hydraulic Parts Manufacturing Co., Ltd.Base Info
Description

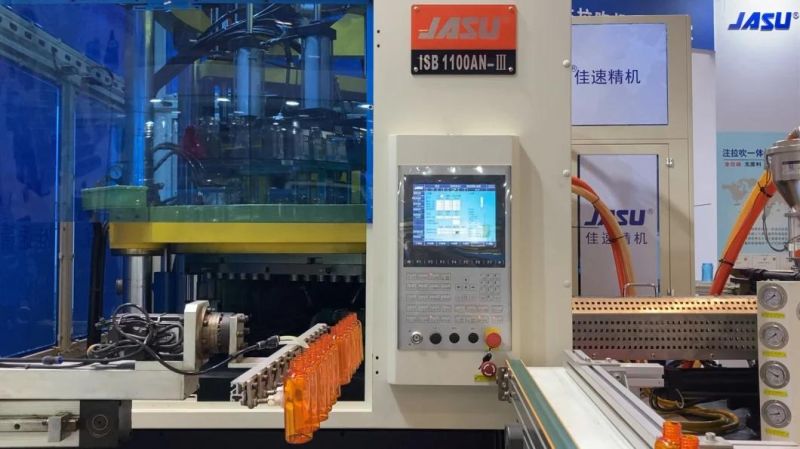

ItemUnit Machine Type ISB 800N-3 ISB 800AN-3 ISB 1100N-3 ISB 1100AN-3 ISB 1100AN-100T-3 Injection Part Screw Diameter mm 40 50 40 50 50 Screw L/D Ratio L/D 20.5:1 20.5:1 20.5:1 20.5:1 24:1 Screw Speed r/min 0-190 0-150 0-190 0-150 0-150 Theoretical Injection Capacity cm3 238 481 238 481 481 Injection Pressure MPa 174 176 174 176 176 Max. Hydraulic Pressure Kg/cm 140 140 140 140 140 The Actual Injection Quantity g(ps) 225 452 225 452 452 Oz 8 16 8 16 16 Screw Stroke mm 190 245 190 245 245 Clamping Part Blow Clamping Force KN 80 80 150 150 150 Clamp Tonnage KN 400 400 600 600 1000 Wheel Diameter mm 800 800 1100 1100 1100 Max. Height PP, PET, PETG, Tritan, PS, PC mm 200 200 200 200 200 PC, PETG, Tritan, PS 220 220 220 220 220 Open Vertical Mode Trip mm 570 570 570 570 600 Others Max. Pump Pressure MPa 16 16 16 16 16 Servo Motor Kw 22 22 22 22 22 Molde Opening & Molde Locking Motor
(Double Pump) Kw 22 22 22 22 22 Electric Power Kw 8.9 12.2 8.9 12.2 12.2 Tank Volume L 420 420 420 420 420 Dimension of Machine m 4.2*1.75*3.4 4.2*1.75*3.4 4.5*1.95*3.4 4.5*1.95*3.4 4.5*1.95*3.4 Machine Weight T 5.5 6 8.5 9 9.5 --Parameters are subject to change without prior notice.
--Providing PC, PET, PP, PS, PETG, TRITAN screw barrels according to customers' requirements.
Click to learn more
Q6: What about warranty and do the engineers available to overseas?
A6: One year warranty. During this period, if you need any support on installation, adjustment , operation or maintenance, our engineers can go abroad to fix for you.
Q7: Others?
A7: We will request the working voltage and power frequency at the buyer's side when he placing the order.
Each order will be fulfilled as a turn-key project of machine.
(Double Pump)
--Providing PC, PET, PP, PS, PETG, TRITAN screw barrels according to customers' requirements.
Click to learn more
Q6: What about warranty and do the engineers available to overseas?
A6: One year warranty. During this period, if you need any support on installation, adjustment , operation or maintenance, our engineers can go abroad to fix for you.
Q7: Others?
A7: We will request the working voltage and power frequency at the buyer's side when he placing the order.
Each order will be fulfilled as a turn-key project of machine.
- Contact us to share more videos and details.
