• Model NO.：GJB Series
• Name：Good Price Small Scale Ice Cream Homogenizer Machi
• Product Material：Food Grade Stainless Steel 304 ,316
• Appications：Milk, Juice, Beverage, Butter, Honey, Cream
• Capacity：500L,H--10000L,H
• Pressure：250bar to 700bar
• Certificate：Ce Certificate
• Motor：15-75kw
• Stage：Two Stage,Three Stage
• Voltage .Hz,Phase：Make It to Your Order
• Working Life：More Than 10years

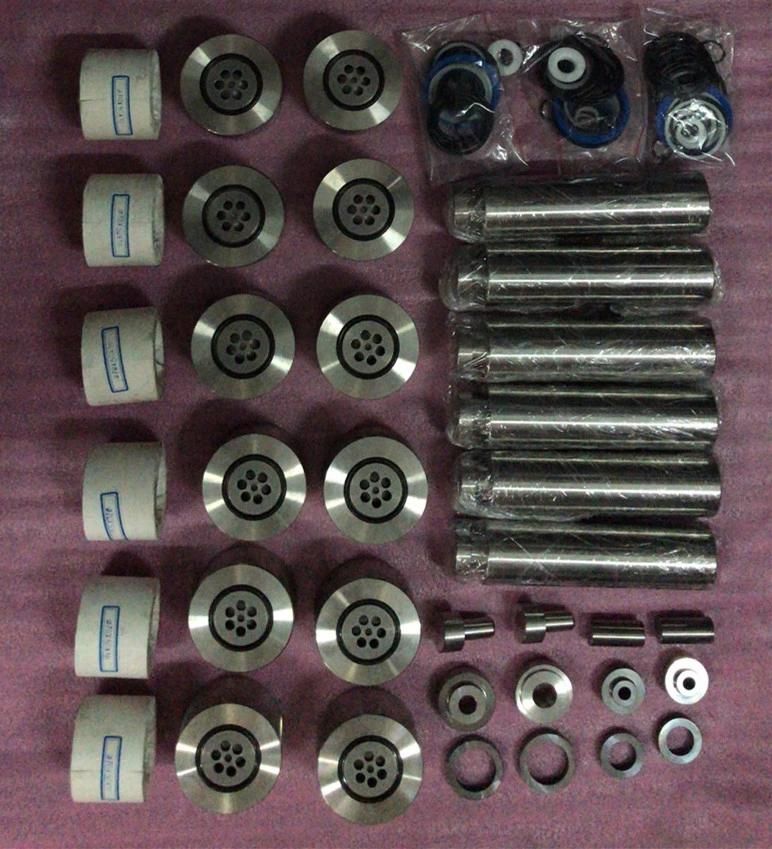

• Spare Parts：Provide
• Piston：2 Piston , 3piston
• Packing：Wooden Box
• OEM：Yes
• Circulation Water：Yes
• Transport Package：Standard Wooden Box
• Specification：CE
• Trademark：KAIQUAN
• Origin：Shanghai, China
• HS Code：8479820090
• Production Capacity：100 Units,Month

Basic Info.

Model NO. GJB Series Name Good Price Small Scale Ice Cream Homogenizer Machi Product Material Food Grade Stainless Steel 304 /316 Appications Milk, Juice, Beverage, Butter, Honey, Cream Capacity 500L/H--10000L/H Pressure 250bar to 700bar Certificate Ce Certificate Motor 15-75kw Stage Two Stage/Three Stage Voltage .Hz,Phase Make It to Your Order Working Life More Than 10years Spare Parts Provide Piston 2 Piston / 3piston Packing Wooden Box OEM Yes Circulation Water Yes Transport Package Standard Wooden Box Specification CE Trademark KAIQUAN Origin Shanghai, China HS Code 8479820090 Production Capacity 100 Units/Month

Product Description

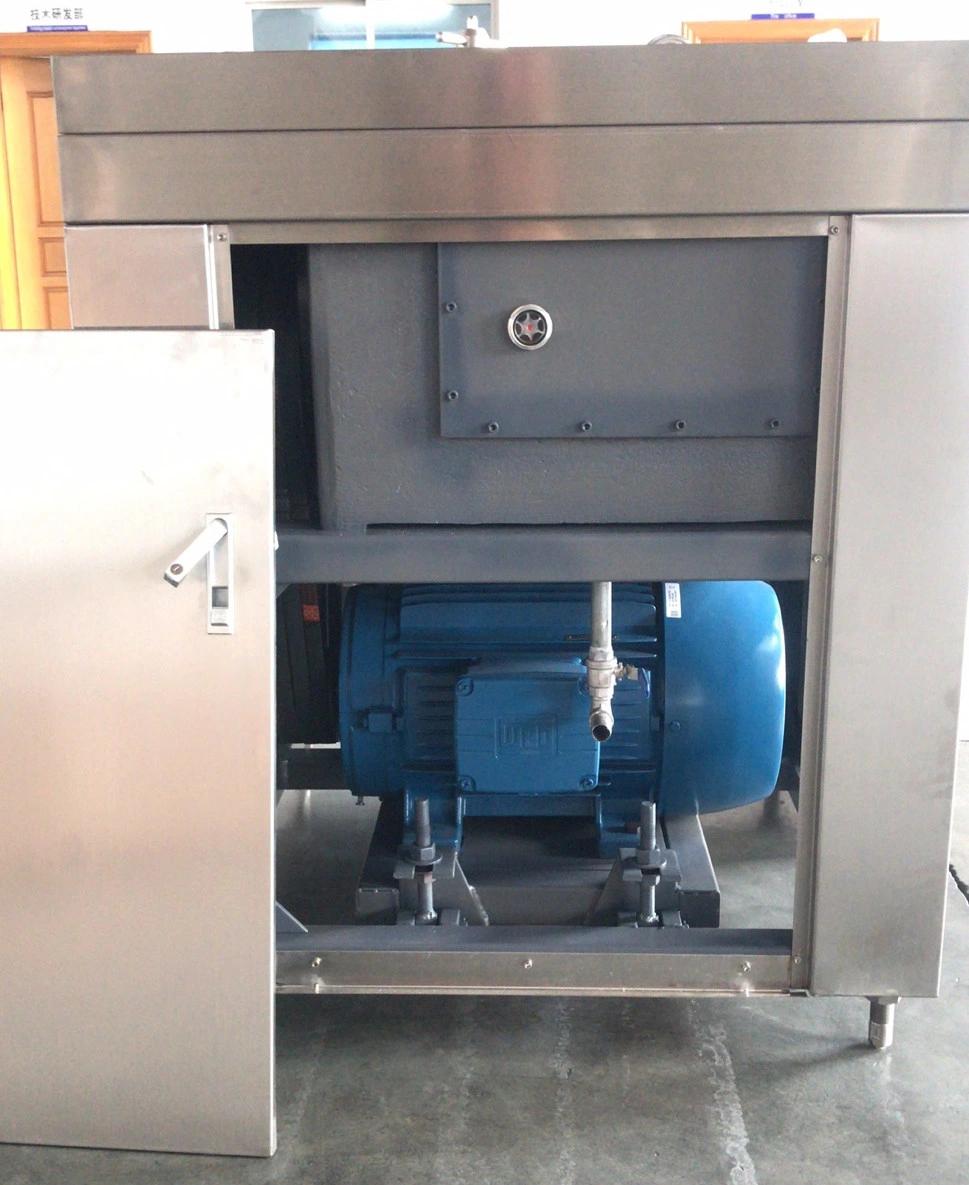

Good Price Small Scale Ice Cream Homogenizer Machine For Plant .





Liquid Homogenizer Juice Homogenizer Cream Homogenzier Chemistry Homogenizer Homogenizer Price
Milk High Pressure Homogenizer, You Can Buy Various High QualityMilk High Pressure Homogenizer Products from us, Milk Cheese High Speed Mixer, Homogenizer Manufacturer .

Model No. Technical parameter	KQ0.5-25	KQ1-25	KQ1.5-25	KQ2-25	KQ2.5-25	GJB3000-25 KQ3-25	KQ5-25
Rated pressure(MPa)	25	25	25	25	25	25	25
Rated flow ( Liters/H )	500	1000	1500	2000	2500	3000	5000
Medium temperature(C)	≤85	≤85	≤85	≤85	≤85	≤85	≤85
Feeding pipe diameter(mm)	25	25	25	25	25	32	40
Discharge pipe diameter(mm)	15	15	20	20	20	20	25
Power of motor(Kw)	5.5	7.5	11	15	18.5	22	45
Volt and Electricity Flow	220V,60HZ,3PH	380V,50HZ	380V,50HZ	380V,50HZ	220V,60HZ,3PH	380V,50HZ	380V,50HZ
Outline dimension (m) Length * width * height	1.16×0.9×1.24	1.16×0.9×1.24	1.16×0.9×1.24	1.4×1.1×1.42	1.4×1.1×1.42	1.4×1.1×1.42	2.2×1.45×1.1
Weight(Tons)	0.4	0.5	1.25	1.25	1.25	1.25	1.7

High pressure homogenization is a standard industrial process for dairy products, to improve their stability and shelf life
series is the kind of equipment which can homogenize the liquid material and make it become high-pressure spray. The high pressure homogenizer pump reciprocates the pump position, high press the liquid, fully mixed and refined the material.
The high pressure homogenizer can use to homogenize the dairy product material in high pressure, refine the fat globule, prevent or decrease the stratifying of the liquid material; Make the product much more nicety, to prove the quality of the product.
The high pressure homogenizer pump also the important equipment of the powder manufacture. (Such as pharmaceutical industry, chemical industry, etc. )
