• Model NO.：MAN-20
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Min.Character Size：0.15mm
• Laser Power：20W 30W 50W 100W
• Production Time：7-15 Working Days
• Control：CNC
• Wavelength：1064nm
• Repeat Frequency：20-100kHz
• Current：AC
• Laser Repeat Frequency：<=100kHz
• Wave Length：1060nm
• Software：Ezcad
• Transport Package：Wooden
• Specification：1CBM
• Trademark：CNMANLASER
• Origin：Shandong
• HS Code：8456110090
• Production Capacity：5000 Sets,Year

Basic Info.

Model NO. MAN-20 Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Min.Character Size 0.15mm Laser Power 20W 30W 50W 100W Production Time 7-15 Working Days Control CNC Wavelength 1064nm Repeat Frequency 20-100kHz Current AC Laser Repeat Frequency <=100kHz Wave Length 1060nm Software Ezcad Transport Package Wooden Specification 1CBM Trademark CNMANLASER Origin Shandong HS Code 8456110090 Production Capacity 5000 Sets/Year

Product Description

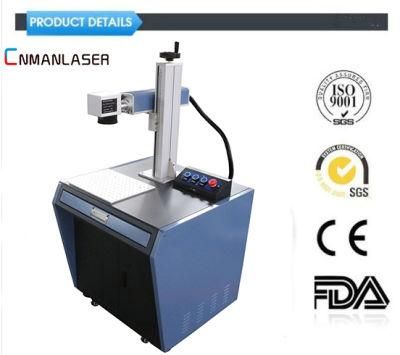

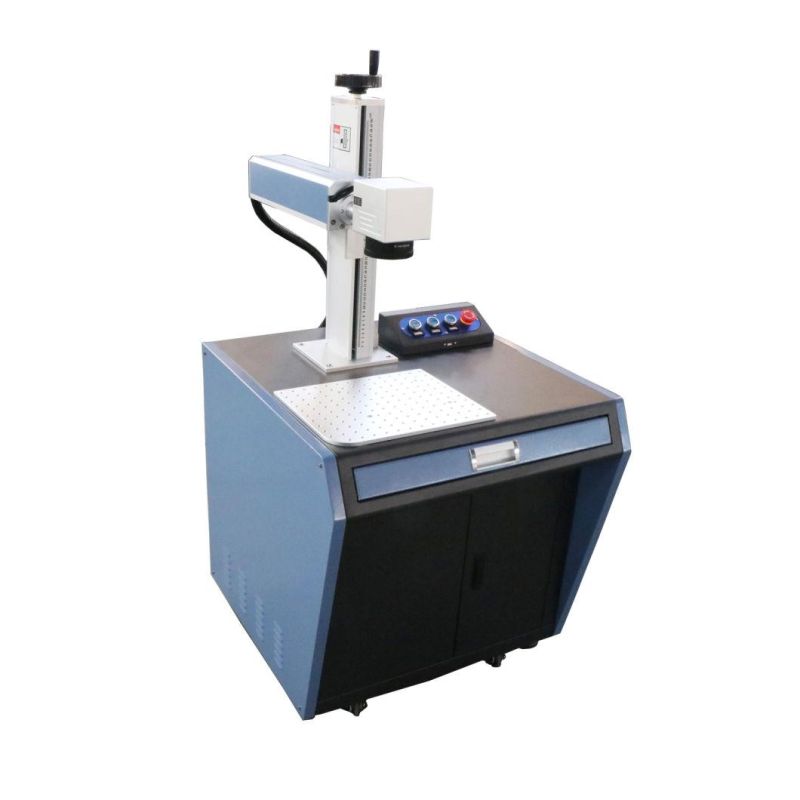

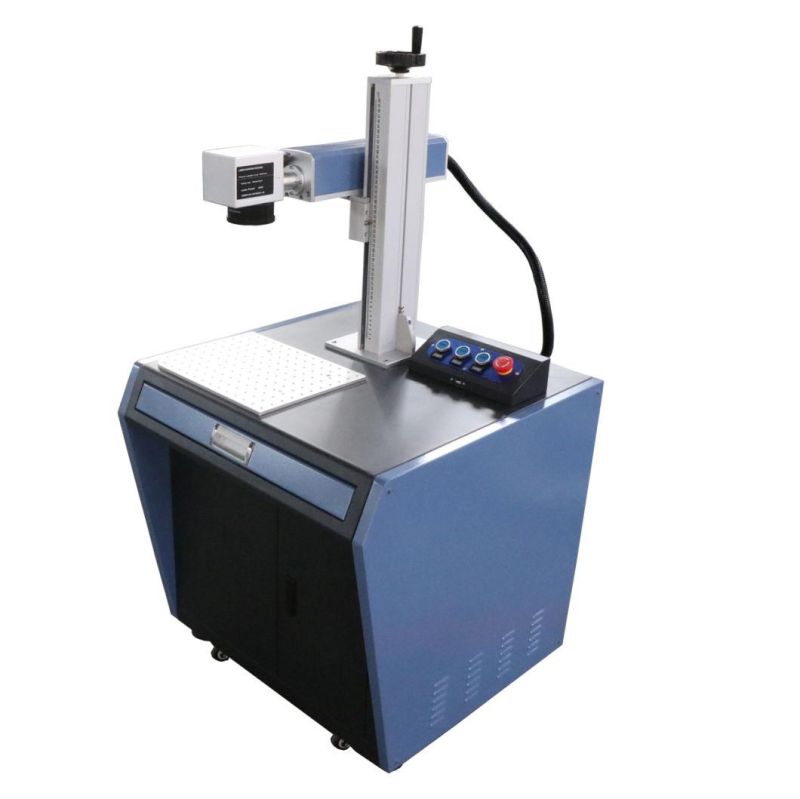

20W Fiber Laser Marking Machine for Stainless Steel /Laser Marker
(Model:Man-20)

Product Introduction:
Fiber Laser Marking Machine is the latest generation of laser marking system, resulting from our own research using the world's most advanced laser technology.
Adoption of fiber laser system for outputting laser, and then achieve marking functions by high-speed scanning galvanometer mirror system.
The electro-optical conversion efficiency of fiber laser marking can reach to 90% or above, it has higher beam quality in comparison to semiconductor laser marking machine.
The machine is designed for long-time maintenance-free.

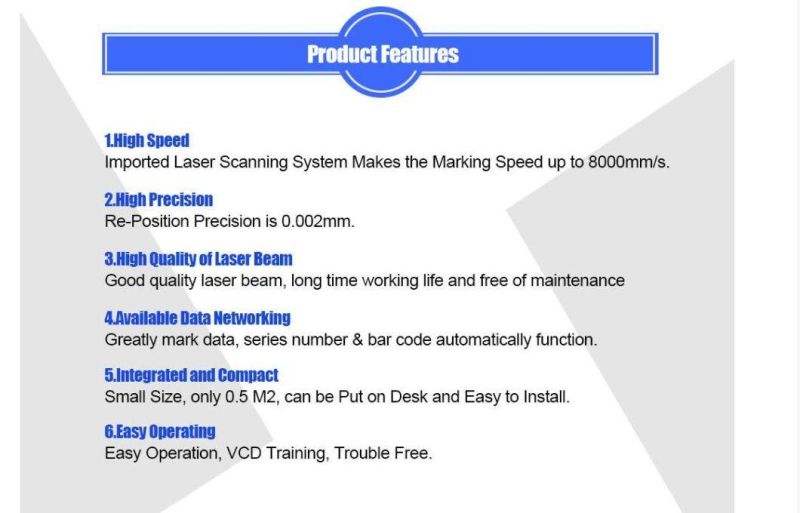

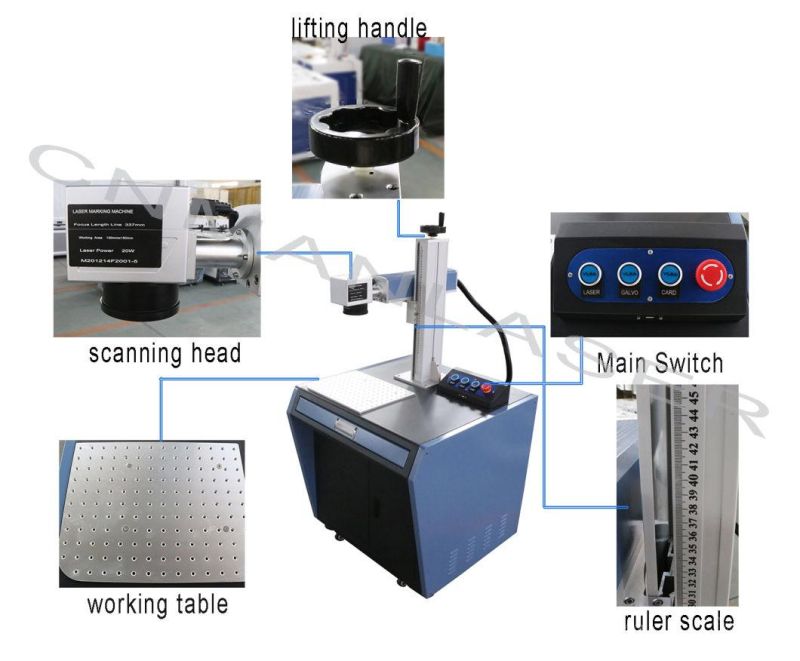

Product Features:
Extremely fast, with high-speed galvanometer.
Small volume, light weight.
No consumables, low power consumption, less than 500W.
Completely air cooled, do not need water chiller, lower power consumption.
.
Low product depreciation cost. Ability to meet customers' mass and stable production.

Product Application:
The machine is assembled with fiber laser from Germany or Britain, or RAYCUS. The working time can reach 100,000 hours or above, competent in different work locations.

Model	CNMANLASER-10w/20w/30w/50w
Laser power	10W/20W/30W/50W
Laser Wavelength	1064±10nm
Q-frequency	20KHz~100KHz
Divergence	0.3mard
Marking range	110*110mm/200*200mm/300*300mm
Minimum line width	0.01mm
Minimum character	0.1mm
Marking speed	7000mm/s
Marking depth	0 ~1mm
Engraving line speed	≤7000mm/s
Repeatability accuracy	±0.001mm
Beam quality	M2:1.2~1.8
Marking Format	Graphics, text, bar codes, two-dimensional code, automatically marking the date, batch number, serial number,frequency,etc.
Graphic format supported	bmp,jpg,gif,tga,png,tif,ai,dxf,dst,plt,etc.
working voltage	220V±10%/50Hz/4A110v60HZ
Unit power	0.5kw
Working environment	Clean and dust free or dust less
Working (Humidity)	5%-75%

Fiber laser marking machines are used in a wide variety of applications such as in the marking of gold, silver diamond and other jewelries, sanitary tools, food packaging, tobacco packaging, beer and beverage packaging, pharmaceutical packaging, medical equipments, watches & glassware, automotive parts, plastic & paper material, electronic hardware, gold bullion, and also in other areas such as aviation, aircraft manufacturing, projectile body and explosion proof material





Packing&Shipping:






Company Profile:

Shandong Mann Machinery Equipment Co., Ltd. was founded in 2008. Its factory and headquarters are located in Shandong, China. It has 7000 square meters of factory buildings and more than 300 workers. Professional production and export of laser engraving machine, laser cutting machine, laser marking machine, CNC engraving machine and other state-level high-tech enterprises, the company has independent import and export rights, products in the United States market have passed CE,SGS, FDA certification. We have also achieved tremendous success in the international market. The main foreign markets are more than 30 countries and regions, such as the United States, Germany, Spain, Russia, Singapore and so on. We warmly welcome you to visit our factory.
