• Model NO.：PEDB-400D
• Laser Wavelength：Fiber Laser
• Laser Classification：Solid Laser

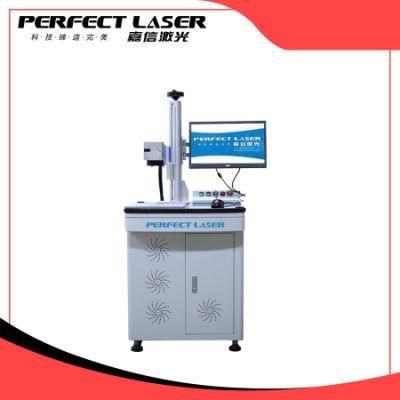

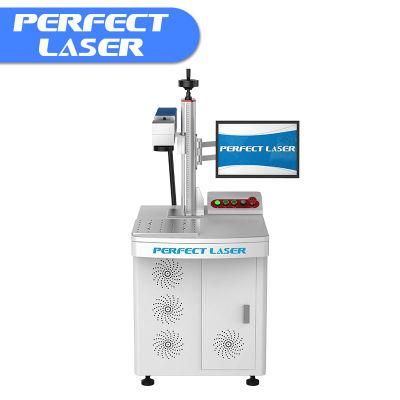

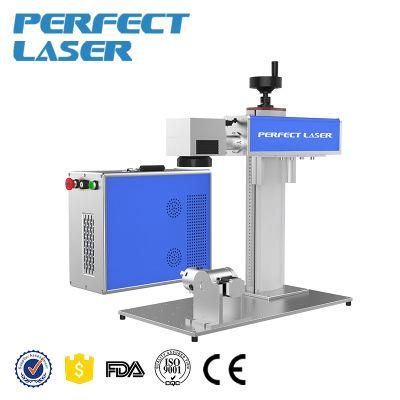

• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Emission Bandwidth (Fwhm)：<10 Nm
• Long-Term Average Power Instability：<5%
• Pulse Width, (Fwhm)：100 Ns
• Laser Switching on Time：180 μsec
• Laser Switching off Time：180 μsec
• Pulse Repetition Rate* kHz：20-80 kHz
• Energy Per Pulse (Prr = 20 kHz)：0.95 Mj
• Typical Beam Quality, M2：<1.8
• Output Fiber Delivery Length：3m
• Operating Voltage：220V
• Transport Package：Wood Crafcase
• Specification：75kg
• Trademark：Perfect Laser
• Origin：Hubei
• HS Code：8456110090
• Production Capacity：1000 Units Per Month

Q-switched operation

Output power adjustment range

10%-100%

Nominal average output power W

20W

Central emission wavelength

1060-1070 nm

Emission Bandwidth (FWHM)

<10 nm

Long-term average power instability

<5%

Pulse width, (FWHM)

100 ns

Laser switching ON time

180 μsec

Laser switching OFF time

180 μsec

Pulse Repetition Rate* kHz

20-80 kHz

Energy per pulse (PRR = 20 kHz)

0.95 mJ

Typical beam quality, M2

<1.8

Output fiber delivery length

3m

Operating voltage

220V

Max. Power consumption

600W

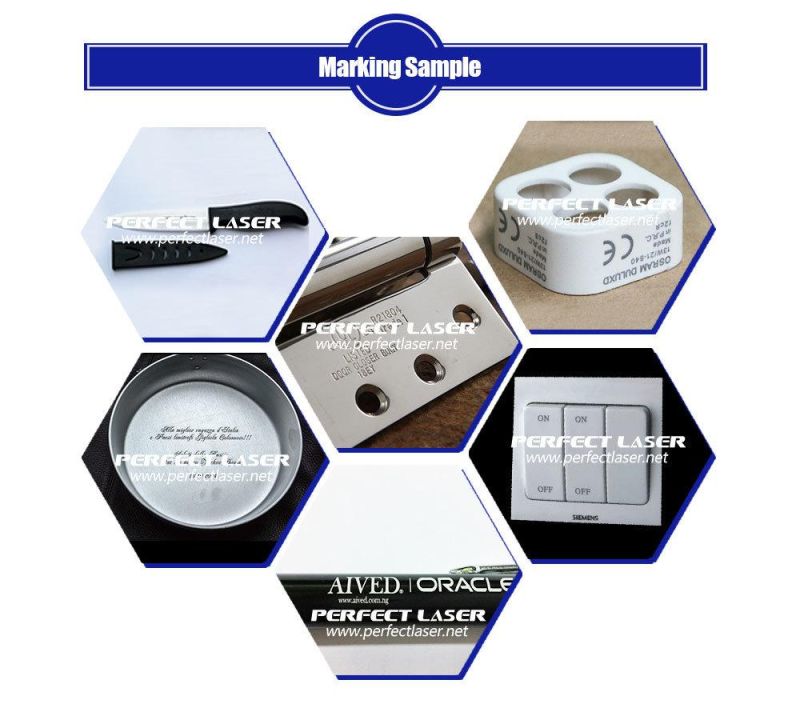

Samples:


Before making quotation, could you provide us more information:
1. What's your marking material?(stainless steel, aluminum, plastic, mechanical tool, ring...)
2. What's your marking area?(110*110mm, 175*175mm, 200*200mm, 220*220mm, 300*300mm)
3. What kind of marking effect do you want?
4. Are you reseller or end user?
5. Do you use on production line?
6. Do you have any idea about other aspects? Such as shipment, payment, warranty, training etc.
Detailed information will be sent to you asap upon receipt of your inquiry!
