Basic Info.

Model NO. HSD Engagement System Full Intermeshing Screw Channel Structure Deep Screw Exhaust Don′t Exhaust Automation Automatic Computerized Computerized Product Width Max 3000mm Product Thickness 0.1-30mm Transport Package Standard Package Specification ISO9001: 2008 Trademark HSD Origin Qingdao HS Code 8477109000 Production Capacity 30 Units/Year

Product Description

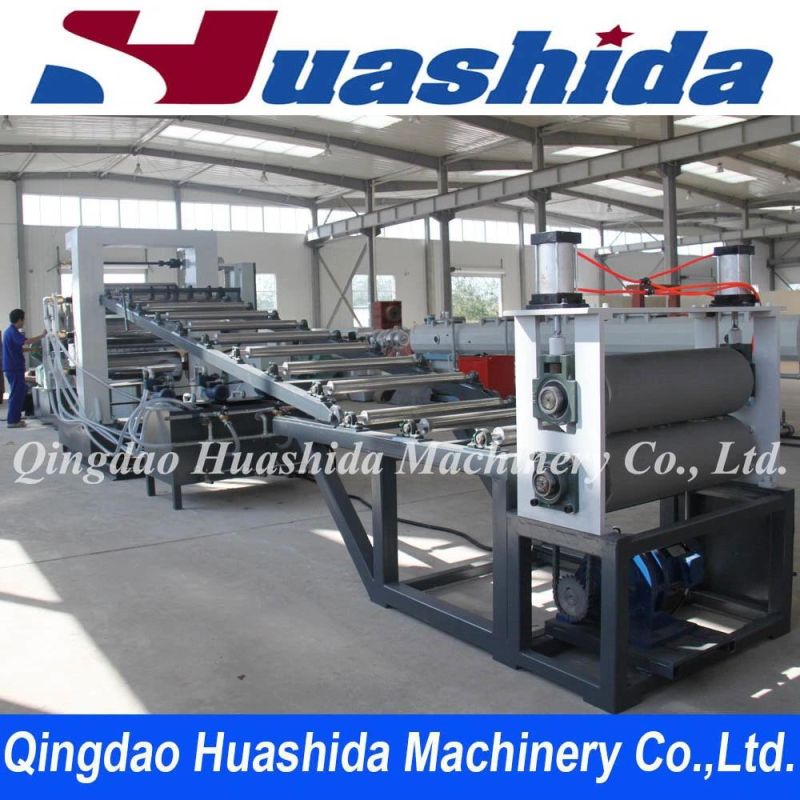

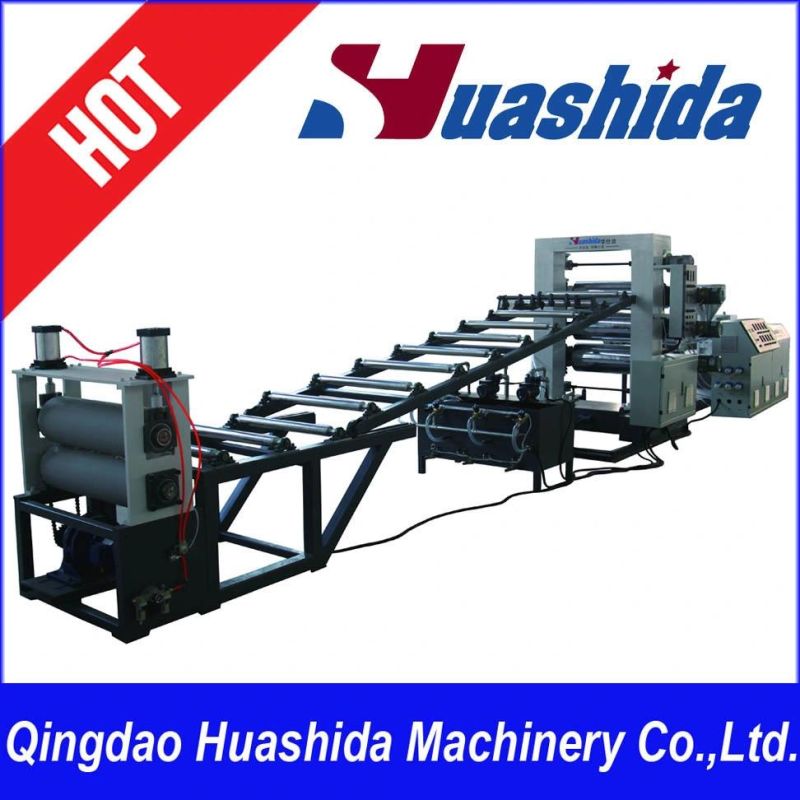

Pp/Ps/Pre/Abs Sheet Extruder Plastic Sheet Extruder


The sheet extrusion line is the  complete, high performance, reliable sheet extrusion  line. We offer them as complete systems in 3 sizes: With a 65mm, 90mm, or 120mm  single extruder to produce just the capacity what you need.
The single screw extruder with good motor, digital controls, vacuum venting, screen changer, gear box, and a flexible lip die. The extrusion line  also can be equipped with the PLC/PCC control system,


The sheet take-offs (Three rolls calendar) feature three hard surface polishing rolls with flawless mirror chrome plating, designed for the highest efficiency heat transfer. Each roll is equipped with an individual, built-in, high volume pressurized water temperature control system. The sheet take-offs also includes two shaft winder.

Character of the PE,PP board:
1.Low density,good sanitaton performance
2.Erosion resistance and heat resisitance


Application:
ABS board is widely used in refrigerator industry  such as  the fridge drawer and gallbladder,Ps board is manily used in semi-conductor electron, computer communication.


Extruder	Sheet Width	Sheet Thickness	Capacity	Total Power	Dimension
SJ65/30	Max. 800mm	0.2-3mm	150Kg/h	100Kw	18× 2× 2.5
SJ90/30(33)	Max. 1200mm	3-15mm	280-300Kg/h	150Kw	24× 2× 2.5
SJ120/30(33)	Max. 3000mm	0.5-2.0mm	500Kg/h	250Kw	20× 4× 2.5
