Pet Strap Band Production Line Pet Strap Band Machine

Zibo Dongchen Abrasives Co., Ltd.

Base Info

Description

MaterialExtruderwidth mmStrap QuantityOutput kg/hPETSJ 759-192150PETSJ 909-192200PETSJ 1109-254350-400PETSJ 1209-324-8500-600PETSJ 1509-328-12800-900

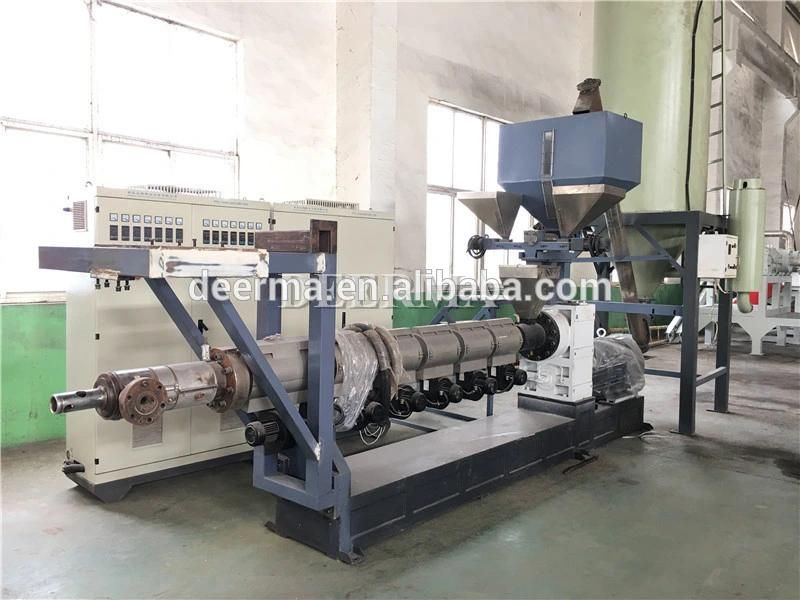

Machine ListNameQty1. PET dehumidifing & crystallization system one set2.PET-SJ90 single extruderone set3.Filter Exchanger one set4.Machine head mouldone set5.Water cooling tank one set6.Drying system one set7.First pre heating machineone set8.First tensile pre heating machineone set9.Second tensile embossing cooling machineone set10.Tight hot calibration machineone set11.Third haul-off machineone set12.Shortwave infrared ray heating tankTwo sets13.Double winderone set14.Electric control system one set 1Extruderequipped with automatic loading& drying machine2Die head and mouldIt adopts high quality mould steel which features high speed production, even extruding, low pressure on the die head, high precision, long life span, etc. One mould can produce two pieces, high efficiency

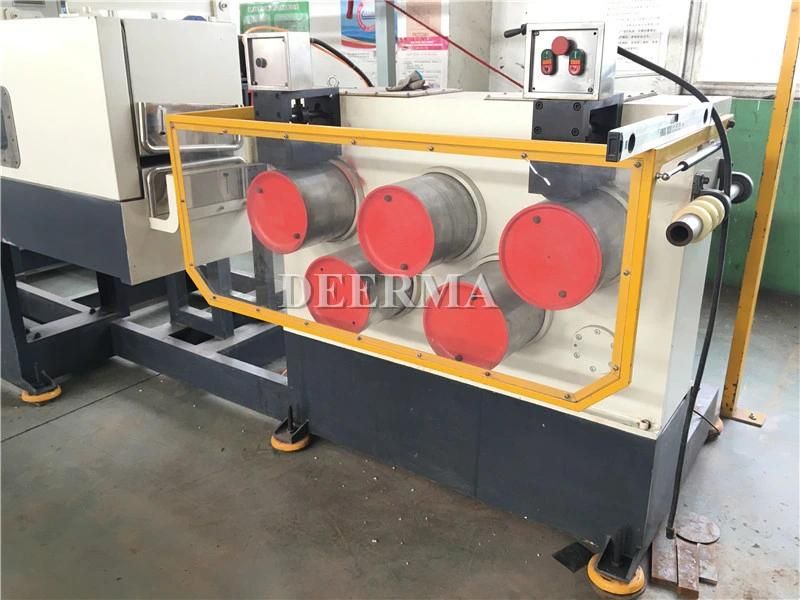

 3Cooling water tankStainless steel cooling water tank controls the crystallization degree to the plastic, and guarantees the extension ratio of belt blank.4First haul off machineIt is used for the first hauling after extruding and cooling. It consists of electrical motor, speed reducer, hauling roller, etc5Thermal ovenIt is used for heating of raw band, and realizes the second hot extension
Second haul off machine: Consisted by the second hauling tension, electrical motor and
the traction roller, etc6Second haul off machineConsisted by the second hauling tension, electrical motor and

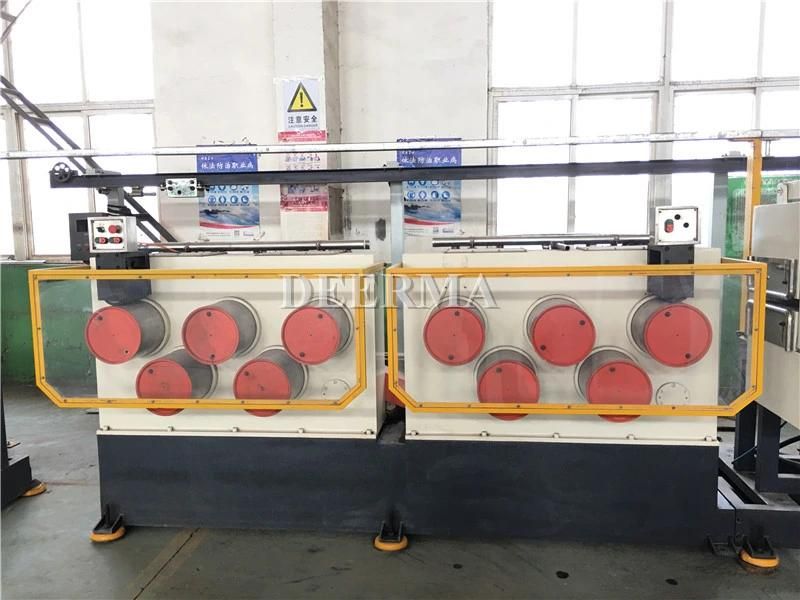

the traction roller, etc7Embossing machineThe raw band reaches primary shaping and accepts embossment on its surface, which improves the transverse orientation intensity and surface friction8Calibrating device:Used to the further fixed cooling to prevent it from distortion of the production.9Third haul off machineThe after forming traction is consisted by the second hauling, tension, electrical motor and the traction roller, etc10Winding machineCan be used to the coiling of the production ,and the center coiling type
is automatic .And it is consisted by the coiling roller, coiling core and the stander, the
coiling roller is consisted of electrical motor, reducer and the transmission system
Feature 1:
•     Raw material process and extrusion system.
•     High performance crystallizing and drying system.
•     Production can use 100% recycled material to obtain a high add value strapping band.
Feature 2:
•    Continuous back-flush screen changer operating technology (Europe technology).
•    100% full automatic self-cleaning screen changer.
•    Double column 4 screen cavities.
•    PLC Control , change screen without production interrupted , not influence the production quality
Feature 3:

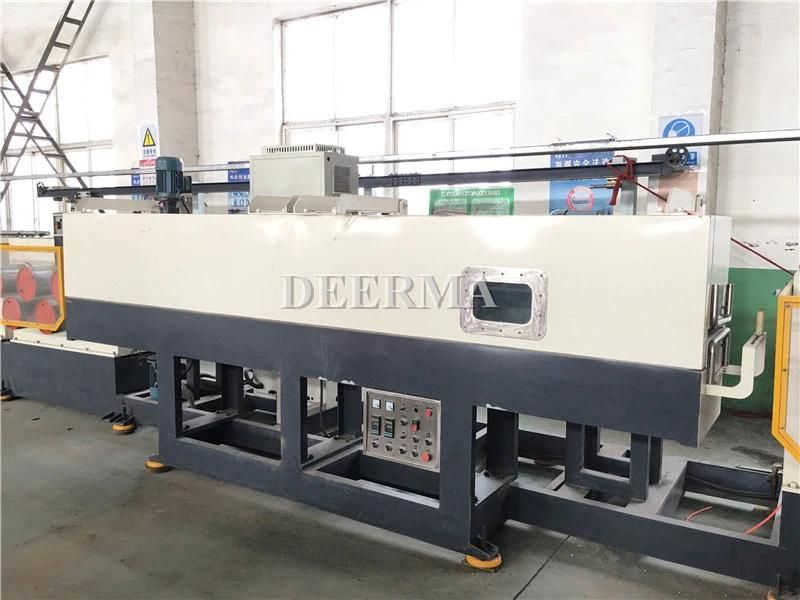

•    Special designed hot air stretching oven.
•    Configured with heating unit and automatic temperature control system.High performance heat insulating layer.
•    Better on strip stretching and heating, rapid heating, complete strip orientation stretching.
Feature 4:
•    Heating oven for sizing
•    Special designed technology, make sure the strip forming rapidly • Prevent the strip from un-orientation after orientation, eliminate internal stress,make sure the quality of strip accuracy and quality.
Machine Pictures
Pet Strap Band Production Line Pet Strap Band Machine
Pet Strap Band Production Line Pet Strap Band Machine
Pet Strap Band Production Line Pet Strap Band Machine
Pet Strap Band Production Line Pet Strap Band Machine
Pet Strap Band Production Line Pet Strap Band Machine
Pet Strap Band Production Line Pet Strap Band Machine
APPLICATION FOR PET STRAPS
Pet Strap Band Production Line Pet Strap Band Machine
Packaging & Shipping
Pet Strap Band Production Line Pet Strap Band Machine

CERTIFICATION
Pet Strap Band Production Line Pet Strap Band Machine


Service & Warranty
Execellent Service-Turnkey Project
DEERMA is committed to providing full support for its local and international clients and dealers and will always provide a prompt response to customer enquiries.
A. Free training for maintenance personnel;
B. Installation service& commissioning by porfessional;
C.The  establishment of user fles, a long-term follow-up service and regular return visits;
D. A 24-hour hot-line service ensures the timeliest solution to your faulty equipment.
E.Calling or Door to Door service
F.One year guarantee for whole machine
