Basic Info.

Model NO. BX2-1000 Knife Roll Solid Knife Roller Automation Automatic Computerized Computerized Certification CE, ISO9001:2008, QS, UL, GMP Plastic Type PVC, Pet, ABS, PP/PE, PE, PP, PC, PMMA, PA, PS Machine Type Plastic Shredder Production Capacity (Kg/H) 500 - 3000 Kg/H Use Waste Plastic Shredding Blades Material Skdii Keyword Plastic Shredding Machine Feature High Efficiency Shredded Flake Size 20mm-50mm Main Motor Power 15+15kw Knife Holder Material 9crsi Gearbox 2 Sets Rigid Face Gearbox Transport Package Wood Package Suit for Shipping Specification According to the actual requirement to configure Trademark Boxin Brand Origin Jiangsu, China HS Code 8477800000 Production Capacity 200-3000kg/H

Product Description

Product Advantage
Dual-shaft/dual-rotor design with differential shaft speeds
Heavy duty internal gearbox
Custom blade widths to match your required sizing
High Alloy blades materials with optional hard-facing to increase cutting effectiveness
Recirculation systems for multi-pass processing if needed to meet required size reduction
Choice of drive system (hydraulic or electric)


Applications:
-Tire: car tire, Debeaded Truck Tires
-Computer hard disk
-Scrap WEEE Products - Copy machine, Printer etc.
-Hollow plastic containers: Drums, buckets, barrels, Tubs etc.
-Wood: Pallets, Crates etc
-Film, Woven bags

Features:
-Blades are superior quality alloy steel(SKD11 or D2)
-Electronic components :Siemens and Schneider
-Microcomputer technology incorporating rotator speed variations with start, stop and reverse features
-Automatic reverse sensors to protect the machine against over loading and jamming
-Engineered using split bearing block technology so the blades can be changed quickly and efficiently
-Utilizes high torque at low speed to maximize power and minimize noise
-Machinery protection, accord with the European CE standard



Single Shaft Shredder
Main Technical Parameter:


Model	BXS1-600	BXS1-800	BXS1-1000	BXS1-1200	BXS1-1500
Push Power(kw)	1.5	2.2	2.2	5.5	7.5
Main Motor Power (kw)	30	37	37	55	22*2
Rotating Blades (pcs)	28	36	58	68	72
Fixing Blades (pcs)	1	1	2	2	2
Shaft Diameter (mm)	230	400	400	420	600
Capacity(kg/h)	200-300	500-700	800-1000	900-1100	1200-1800

Double Shaft Shredder
Main Technical Parameter


Model	BXD2-600	BXD2-800	BXD2-1000	BXD2-1200	BXD2-1500
Main Motor Power (kw)	15*2	18.5*2	22*2	30*2	37*2
Rotating Blades (pcs)	12	18	20	24	30
Fixing Blades (pcs)	12	18	20	24	30
Shaft Diameter (mm)	260	320	350	350	400
Thickness of Blade(mm)	50	50	50	50	50
Capacity(kg/h)	600-1000	800-1500	1500-2000	1800-2500	2000-3000

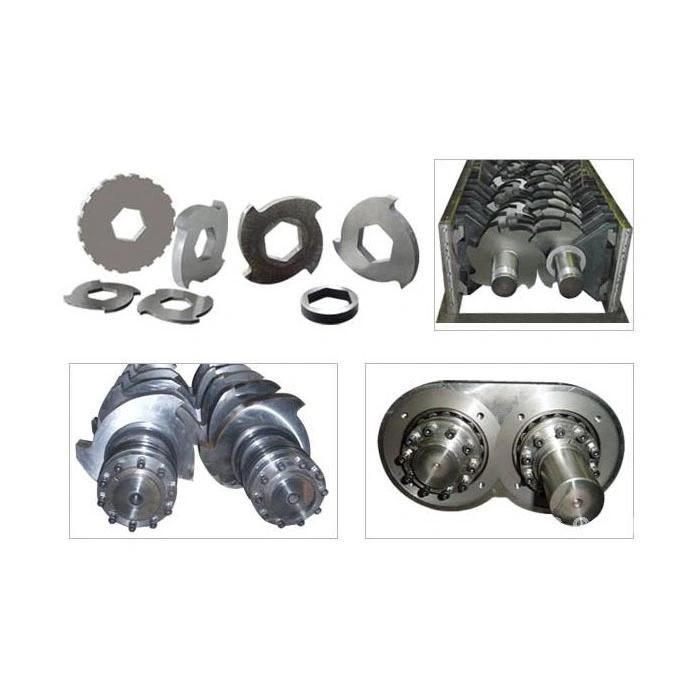

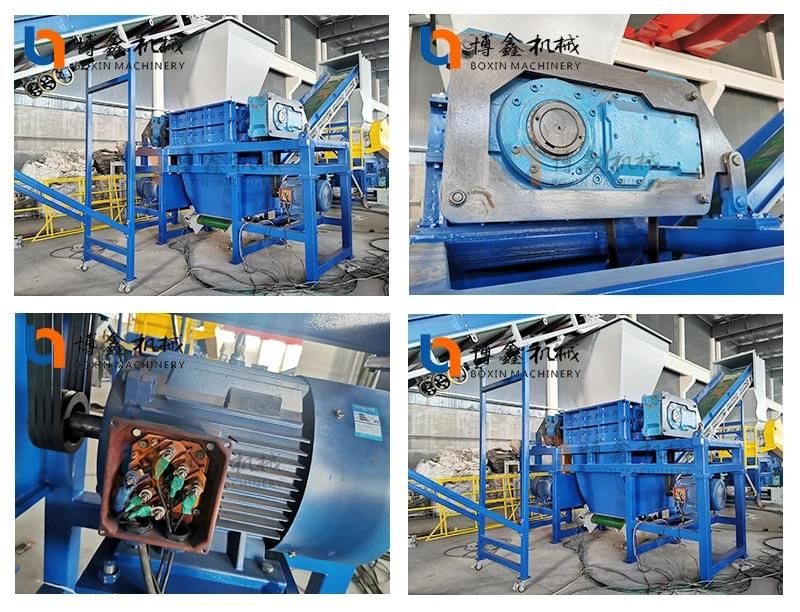

More Photos of Double shaft shredder for your reference:

We also can supply Plastic bottles/bags/films crusher machine
