Vulcanization Tablet Press Machine for Polymers, Masterbatches Testing

Dongguan Koves Precision Tools Co., Ltd.

Base Info

Description

XH-406BE-30 Technical ParameterCapacity selection30 ton or customizeTemperature controlnormal temperature~300ºCPrecision of the control temp+ -2ºCHeating ModeElectrical HeatingTimepieceLED 0~99(min)Area of electric board300*300mm designatedArea of cooling plate300*300mm designatedCooling modeCompressor water cooling or running water coolingPlate spacing0~70mm designatedVolume1100*650*1600mmWeightAbout 750kgPower supply3Ø, AC380V, 20A

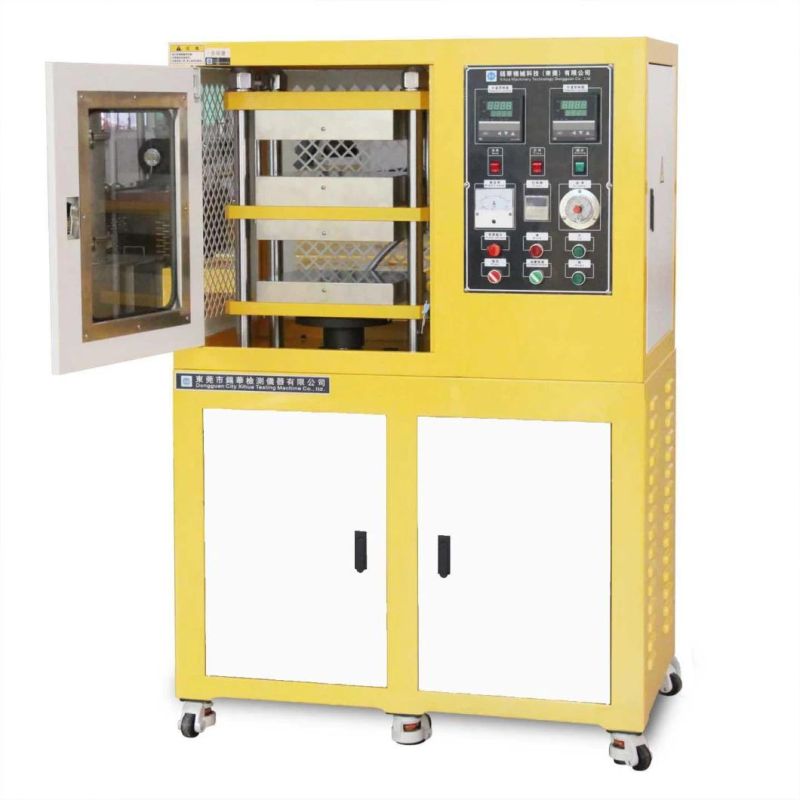

Vulcanization Tablet Press Machine for Polymers, Masterbatches Testing
Small Hydraulic Press Machine Features

(1) XH-406BE-30 tablet press machine is applicable to R & D in laboratory because of its compact size, complete functions, stable temperature, low noise, easy operation and material saving.

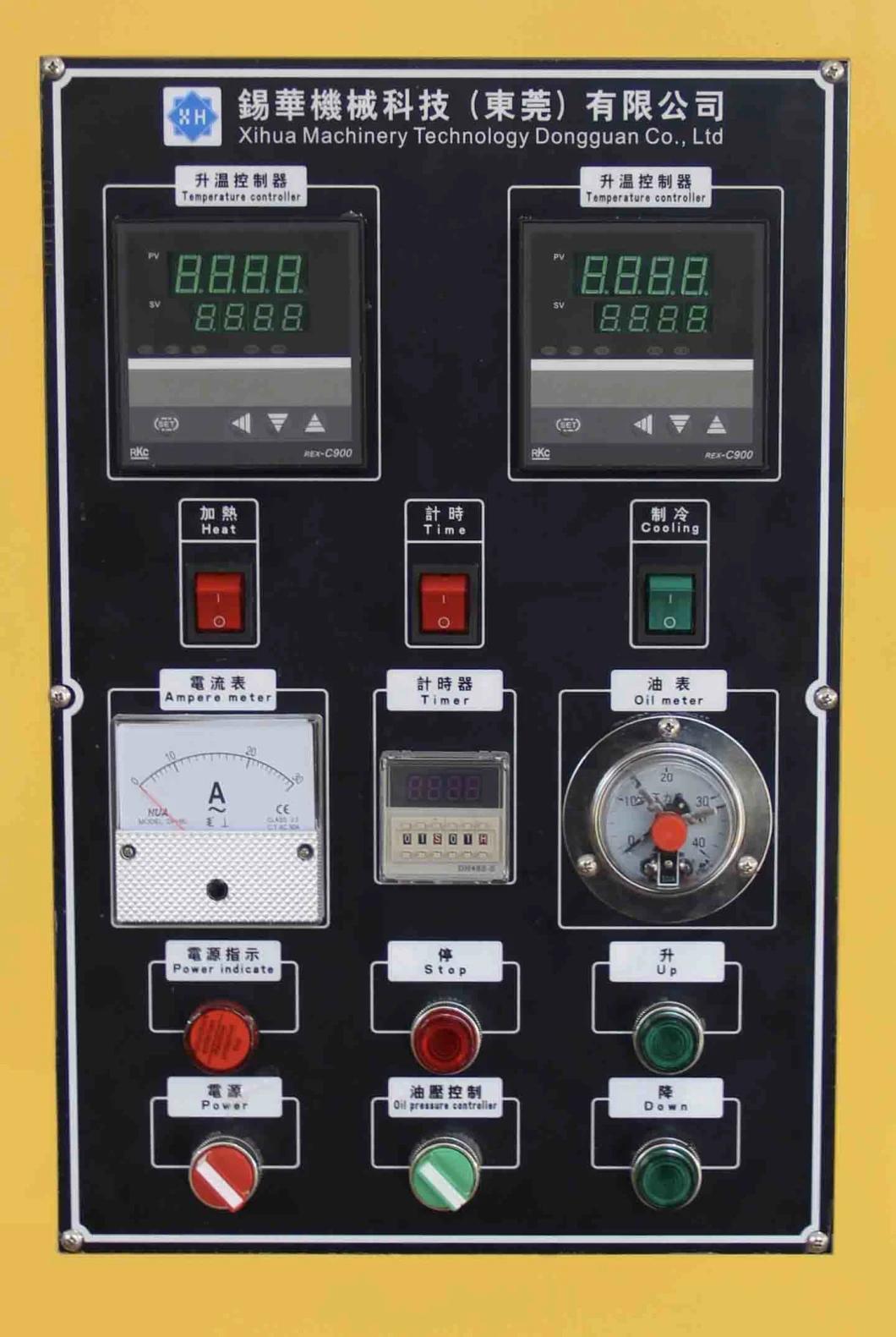

(2) High-precision temperature sensor, together LED temperature controller, built-in dense-point heating wire and tubular condenser, has the temperature range from normal temperature to 300ºC.
(3) Imported KDB electric board features high-temperature resistance, abrasion resistance, fast thermal transmission and strenghthen against deformation.
(4) Single heating can be designed according to the requirements.
(5) Oil hydraulic system: the pressure range: 30 ton, the maximum stroke of the cylinder: 180mm.

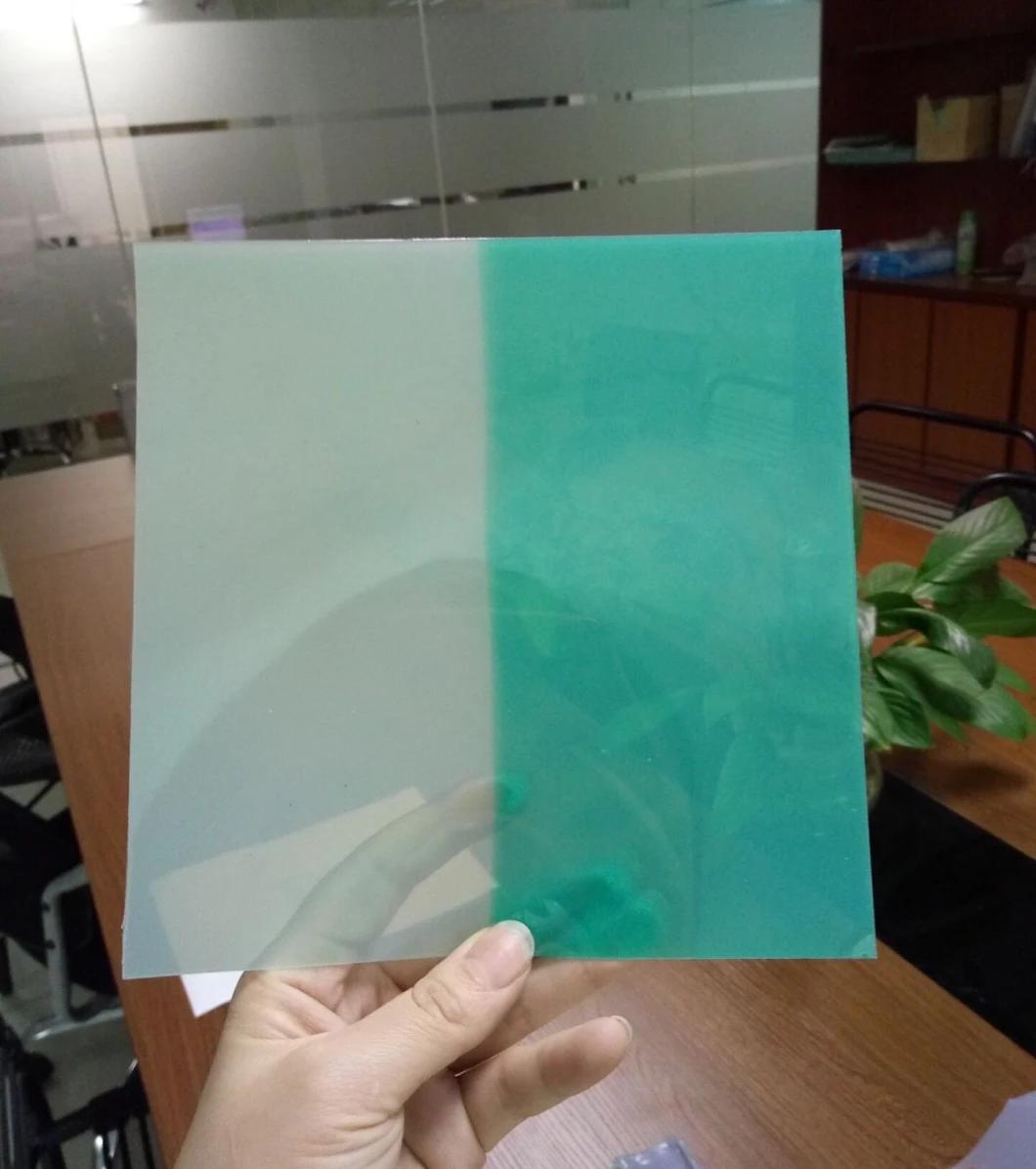

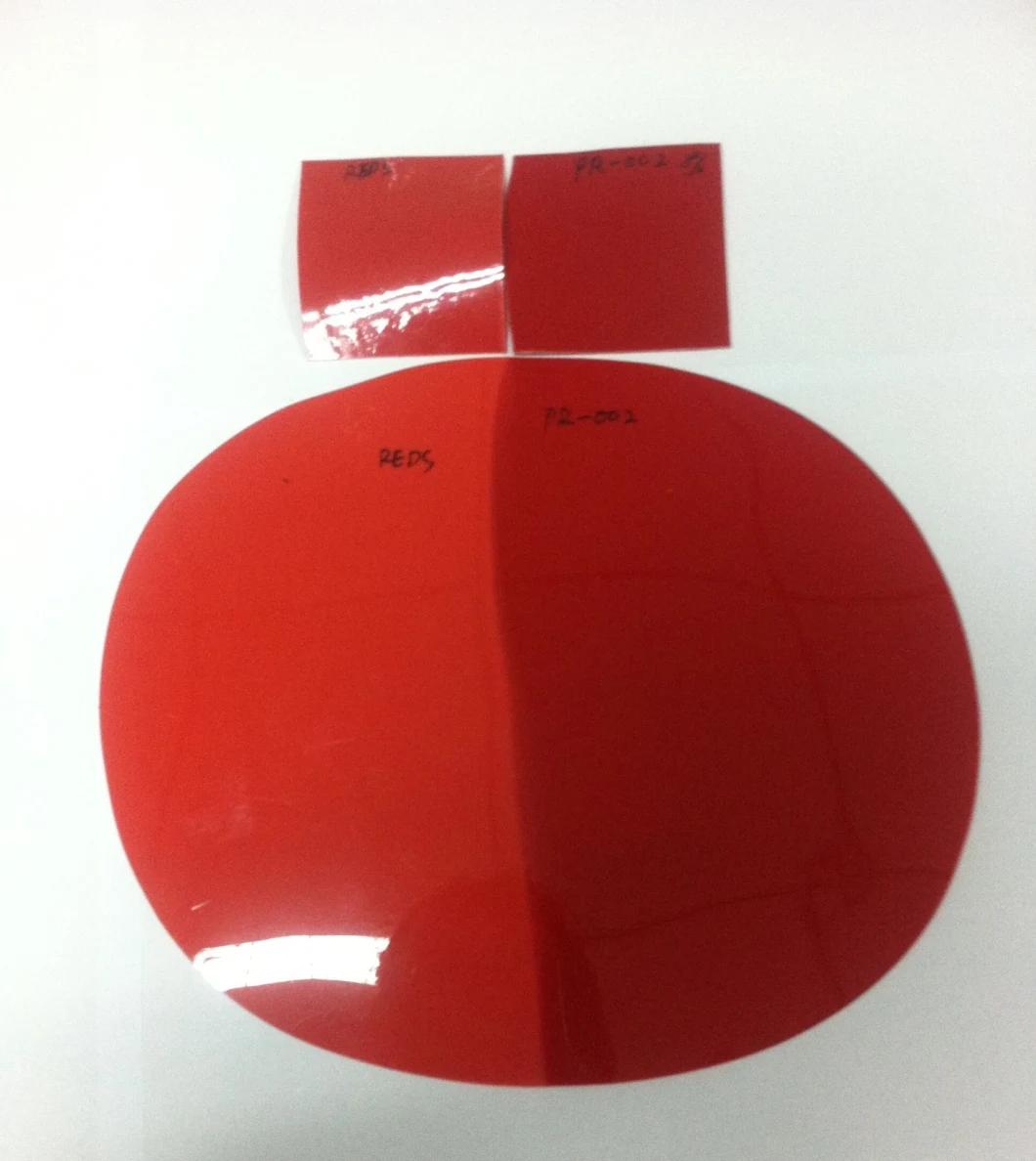

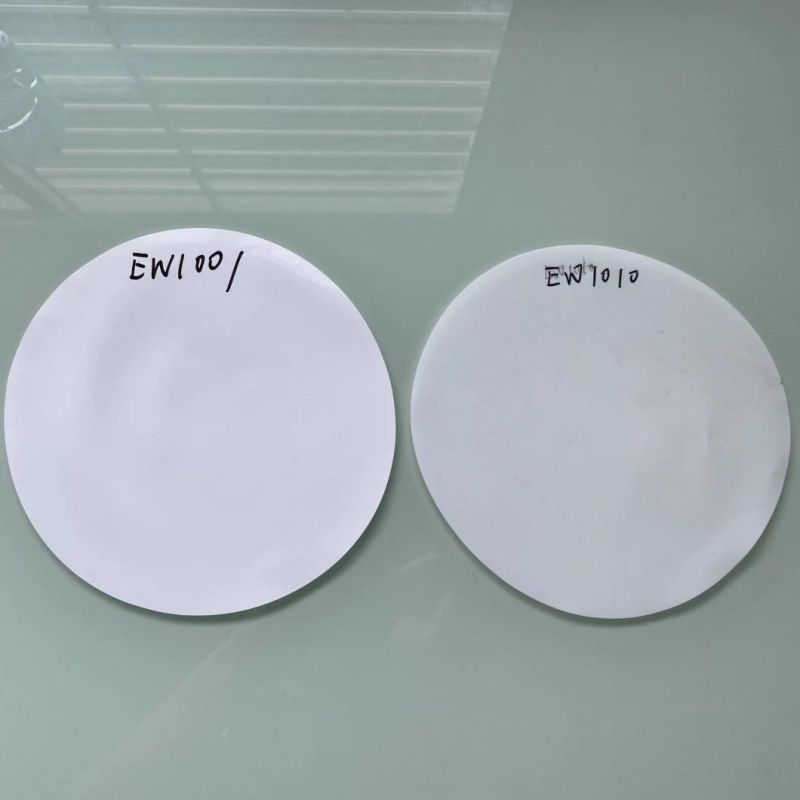

Testing sample
 Vulcanization Tablet Press Machine for Polymers, Masterbatches TestingVulcanization Tablet Press Machine for Polymers, Masterbatches TestingVulcanization Tablet Press Machine for Polymers, Masterbatches Testing

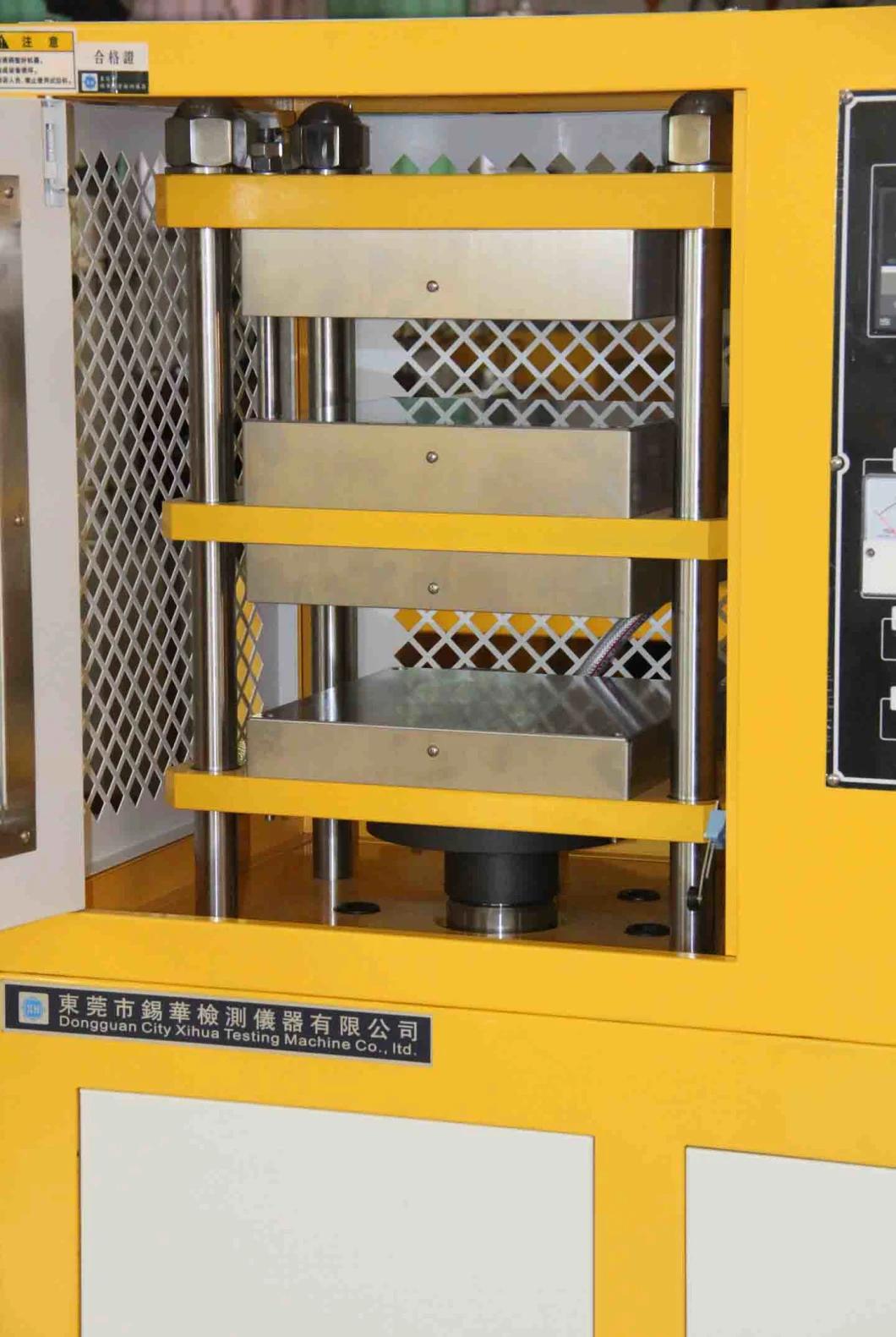

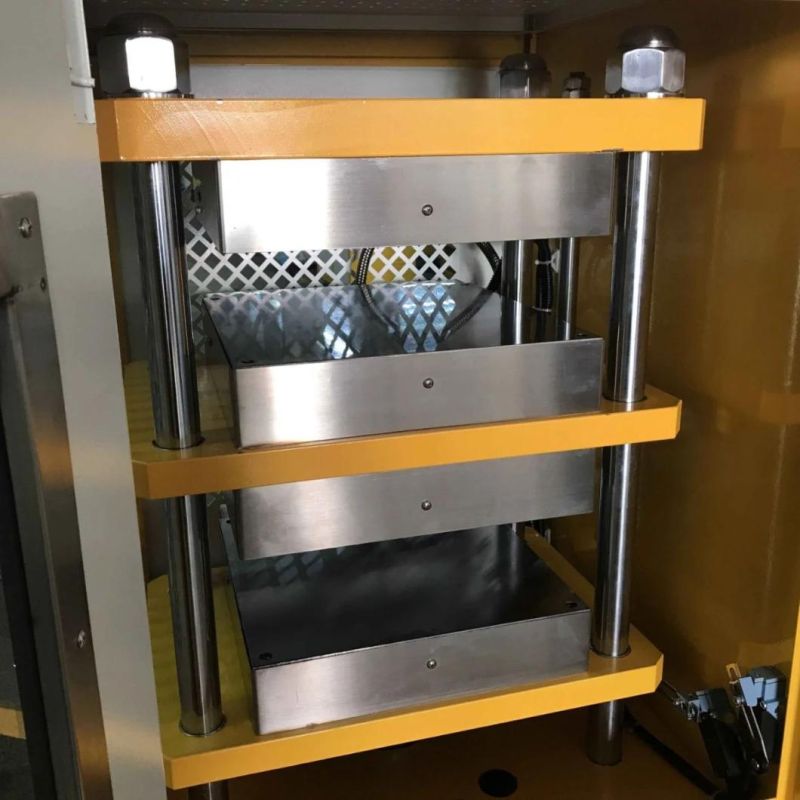

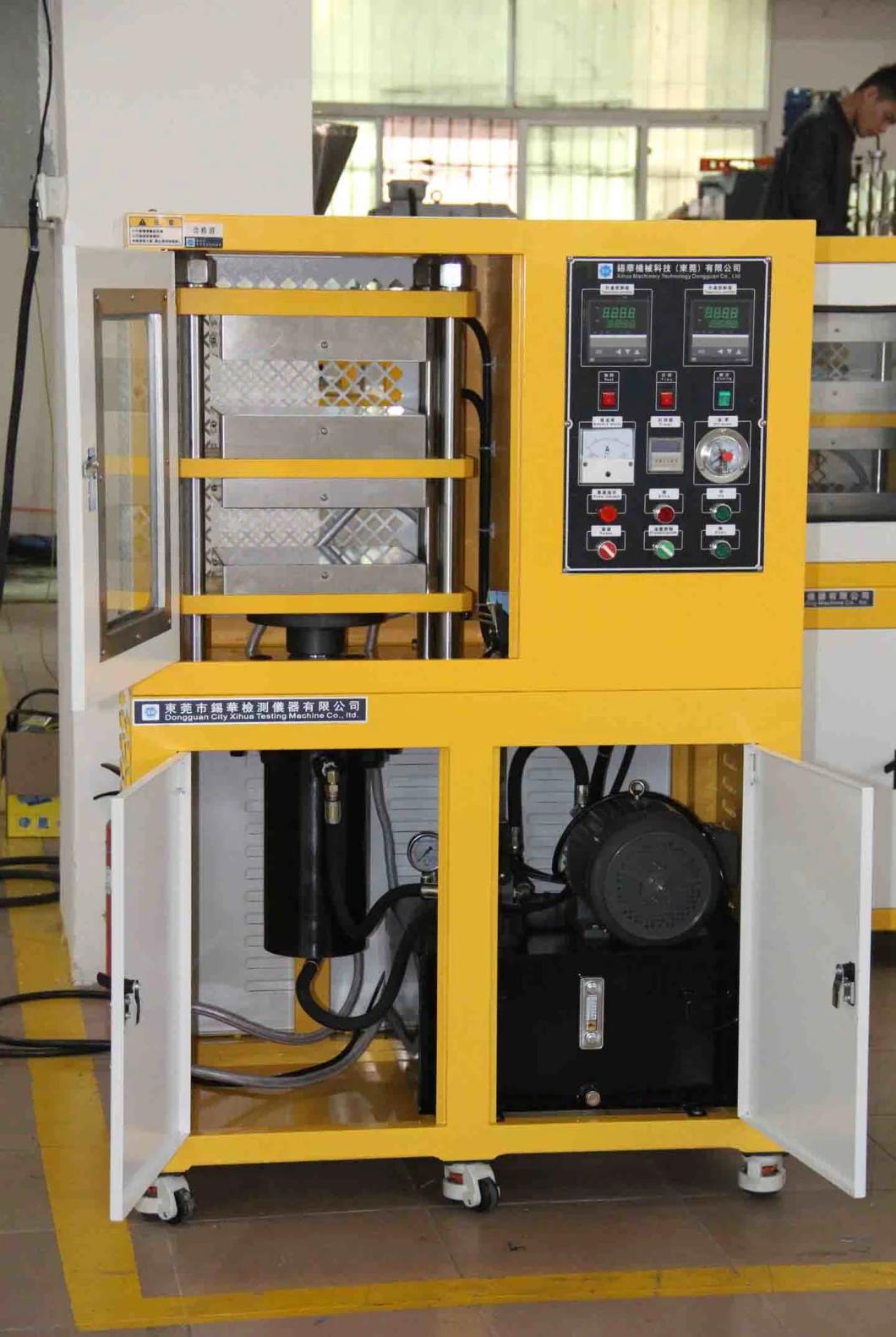

Details images
 Vulcanization Tablet Press Machine for Polymers, Masterbatches TestingVulcanization Tablet Press Machine for Polymers, Masterbatches Testing
Vulcanization Tablet Press Machine for Polymers, Masterbatches TestingVulcanization Tablet Press Machine for Polymers, Masterbatches Testing
