• Model NO.：KQ100L -30000
• Application：Milk, Dairy, Milk, Juice, Beverage
• Customized：Customized
• Name：CE Certificated Hot Sale Homogenizing Machine Hom
• Material：Sanitary Stainless Steel 304,316,316L
• Pressure：25MPa .30MPa ,40MPa
• Capacity：300L--2000L
• Performance：0.2um
• Stage：Two Stage
• Certificate：CE Certificate
• Usage：Milk ,Yogurt .Ice Cream ,Paste
• MOQ：1 Set
• Delivery：10 Days
• Packing：Wooden Box
• Spare Parts：Available
• OEM：Yes
• Voltage ,Hz,Phase：Make It to Your Order
• Cooling：Tap Water
• Transport Package：Standard Wooden Box
• Specification：Follow your request
• Trademark：KAIQUAN
• Origin：Shanghai, China
• HS Code：8479820090
• Production Capacity：100 Units,Month

             Model No.
Technical
parameter
KQ0.5-25
KQ1-25
KQ1.5-25
KQ2-25
KQ2.5-25GJB3000-25
KQ3-25
KQ5-25Rated pressure(MPa)25252525252525Rated flow(Liters/H)500100015002000250030005000Medium temperature(ºC)≤85≤85≤85≤85≤85≤85≤85Feeding pipe diameter(mm)25252525253240Discharge pipe diameter(mm)15152020202025Power of motor(Kw)5.57.5111518.52245
 Volt and Electricity Flow380V,50HZ,3PH380V,50HZ,3PH380V,50HZ 380V,50HZ220V,60HZ,3PH380V,50HZ380V,50HZOutline dimension (m)
Length * width * height1.16×0.9×1.241.16×0.9×1.24
 1.16×0.9×1.24
 1.4×1.1×1.421.4×1.1×1.421.4×1.1×1.422.2×1.45×1.1
 Weight(Tons)0.40.51.251.251.251.251.7Unit price FOB Shanghai(USD)USD$3300USD$3,500USD$3,700USD$6,800USD$7,500USD$7,700USD$12,300

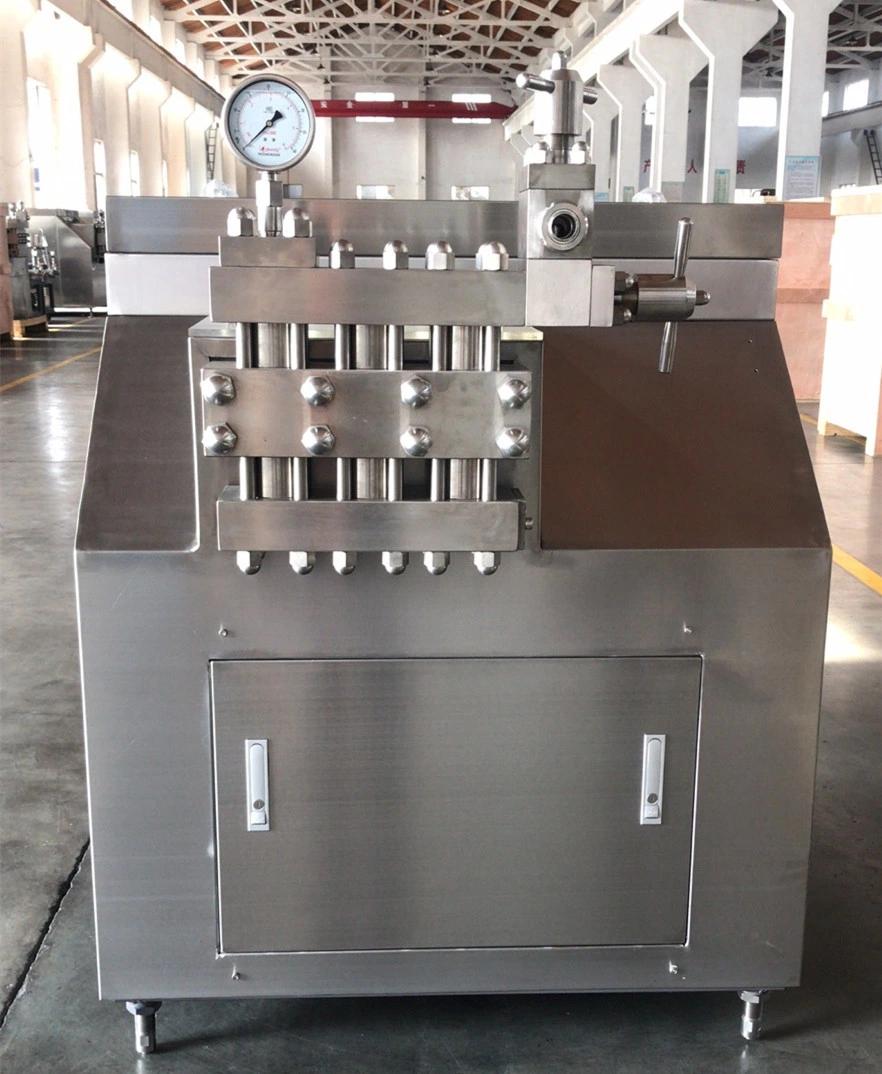

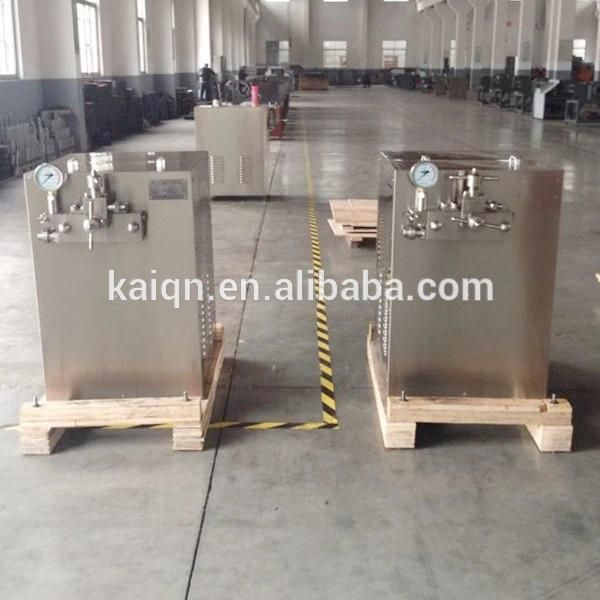

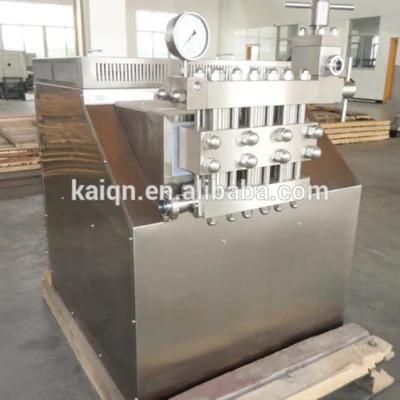

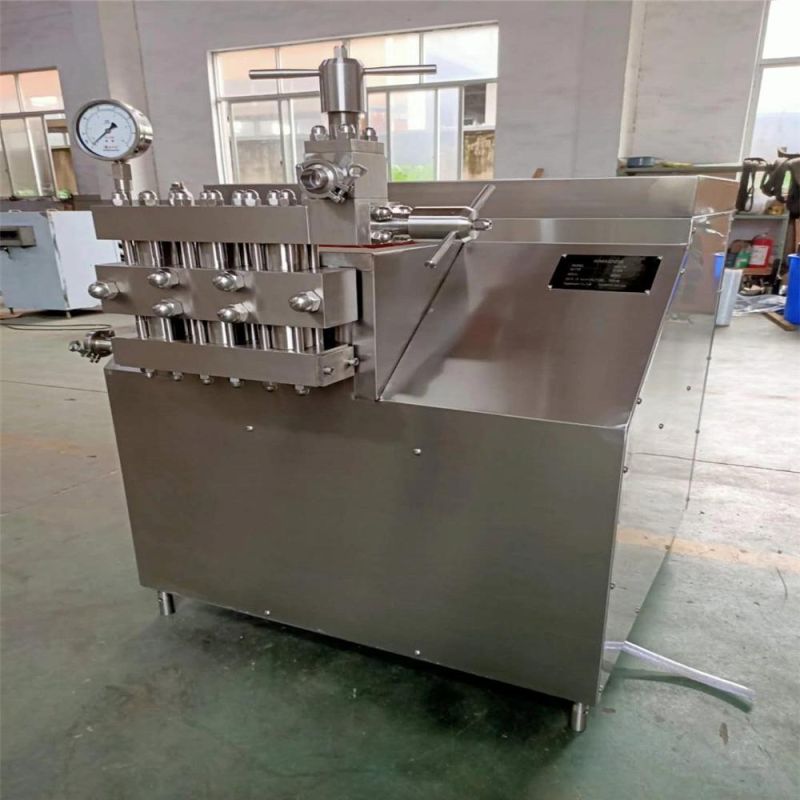

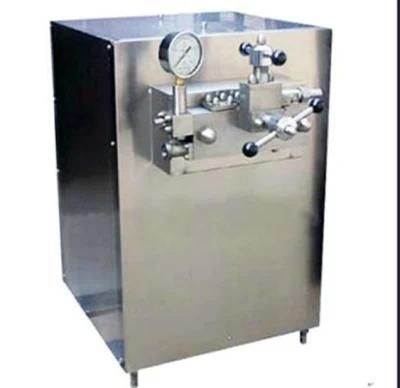

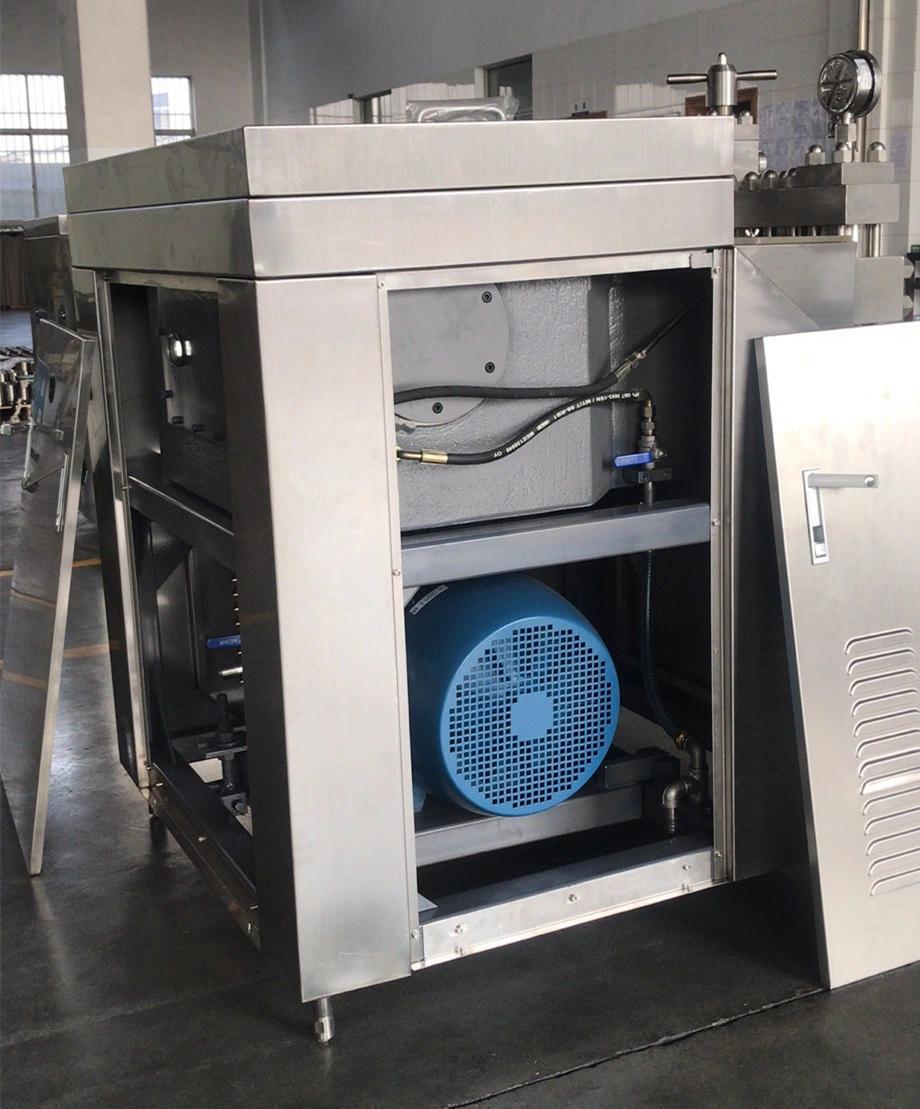

series is the kind of equipment which can homogenize the liquid material and make it become high-pressure spray. The high pressure homogenizer pump reciprocates the pump position, high press the liquid, fully mixed and refined the material.






The high pressure homogenizer can use to homogenize the dairy product material in high pressure, refine the fat globule, prevent or decrease the stratifying of the liquid material; Make the product much more nicety, to prove the quality of the product.
The high pressure homogenizer pump also the important equipment of the powder manufacture. (Such as pharmaceutical industry, chemical industry, etc. )

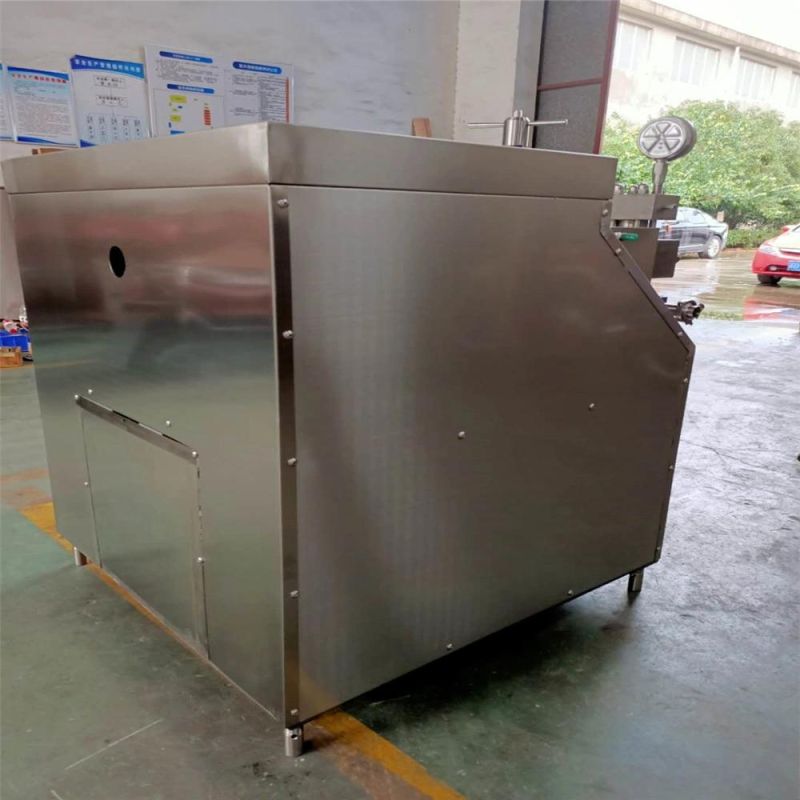

CE Certificated Hot Sale Homogenizing Machine Homogenizer
