High Speed Two Layers Rotary Die Head Film Blowing Machine

Xiamen Jinfu Trade Co., Ltd.

Base Info

Description

Model

SJ-45×2D/FM1000

SJ-50×2D/FM1200

SJ-55×2D/FM1500

Screw Diameter

2×45mm

2×50mm

2×55mm

Screw Ratio

L/D30:1

L/D30:1

L/D30:1

Screw Speed

12-120r/min

12-120r/min

12-120r/min

Output of Single-desk Extrude Machine

75kg/h

100kg/h

120kg/h

Power of Main Motor

2×11kw

2×15kw

2×15kw

Caliber of Film Head

Φ200-250mm

Φ250-300mm

Φ300-350mm

Rotational Mode of Machine Head

Continuous rotate

Continuous rotate

Continuous rotate

Single-sided Thickness of Film

0.02-0.10mm

0.02-0.10mm

0.02-0.10mm

Max. Folding Width of Film

1000mm

1200mm

1500mm

Total Power

42kw

53kw

65kw

Weight of Machine

3500kg

4500kg

5200kg

Overall Dimensions(L×W×H)

4200×2200×4600mm

4600×2400×5000mm

5200×2700×6000mm



If you need other film bolwing machine. Please click here


Machines in details:High Speed Two Layers Rotary Die Head Film Blowing Machine
High Speed Two Layers Rotary Die Head Film Blowing Machine
High Speed Two Layers Rotary Die Head Film Blowing Machine

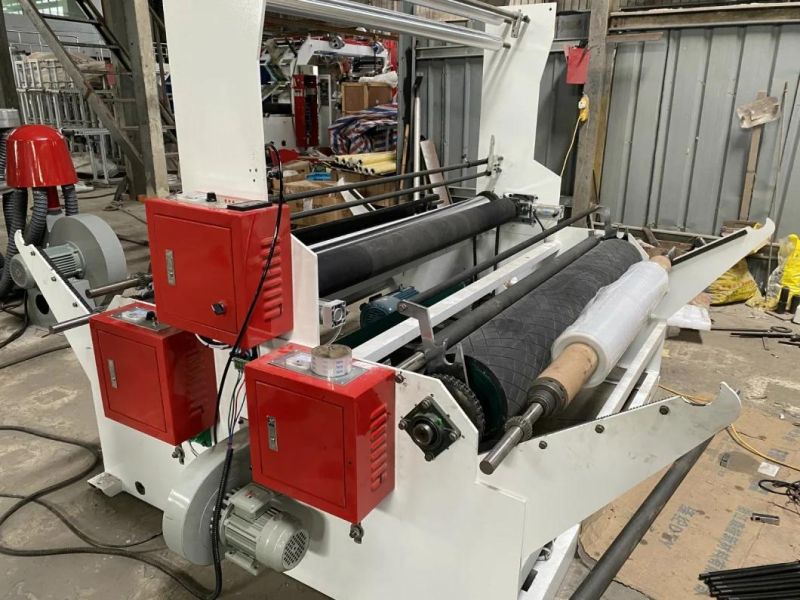

Double layer film blowing machine can equip with rotary die head and manual or automatic double rewinder.
High Speed Two Layers Rotary Die Head Film Blowing Machine
High Speed Two Layers Rotary Die Head Film Blowing Machine
High Speed Two Layers Rotary Die Head Film Blowing Machine

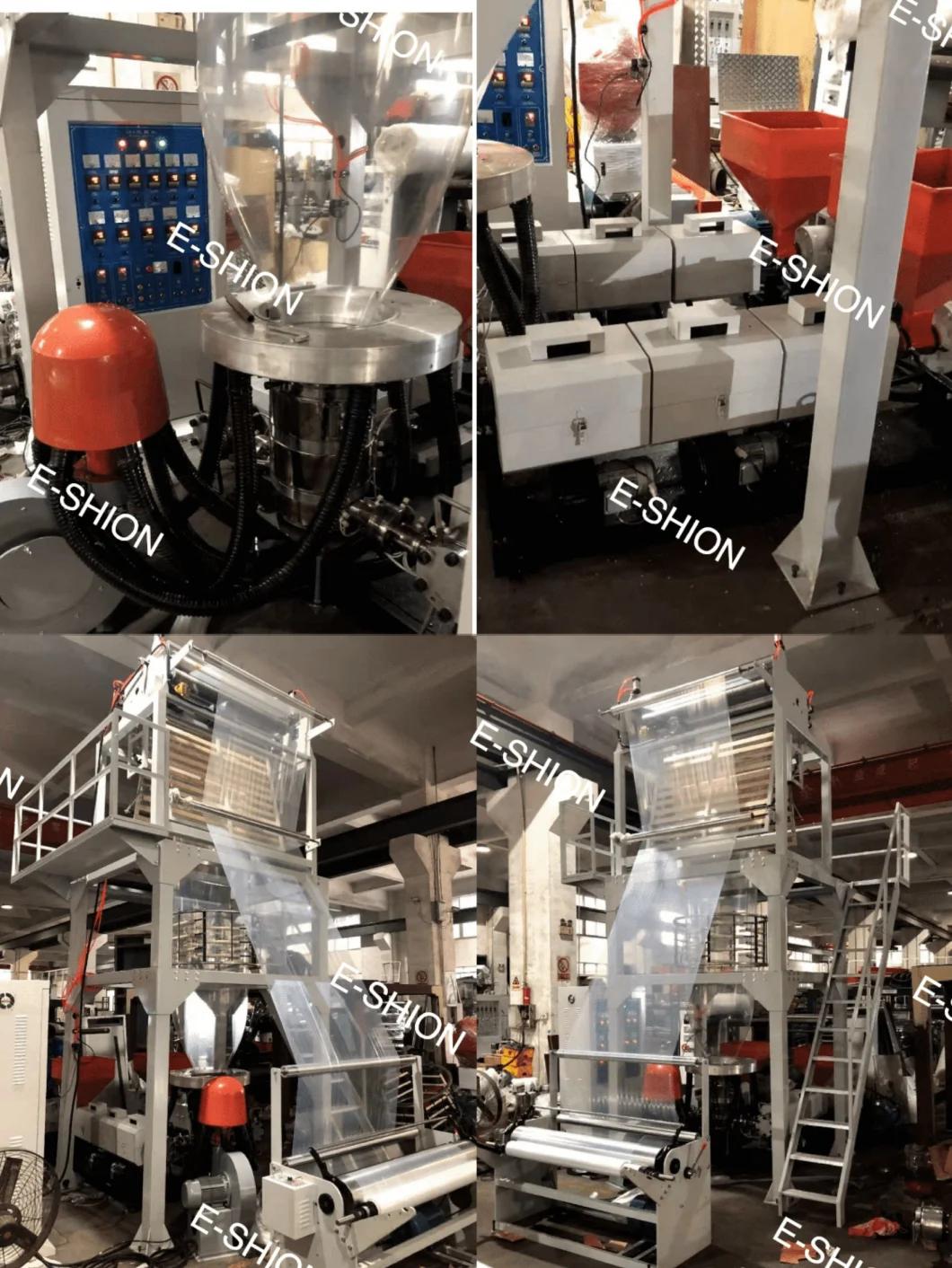

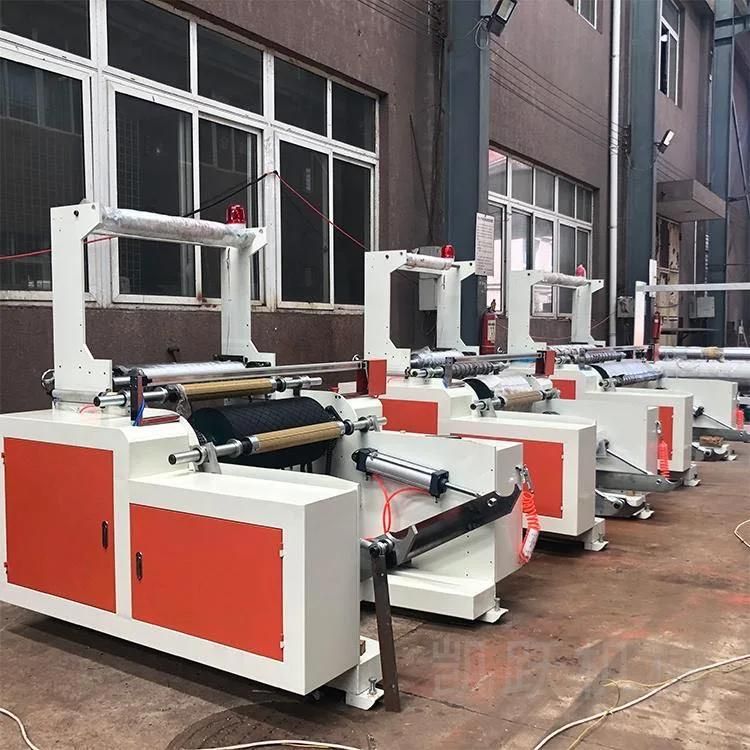

Machines in our workshop :




High Speed Two Layers Rotary Die Head Film Blowing Machine
High Speed Two Layers Rotary Die Head Film Blowing Machine
High Speed Two Layers Rotary Die Head Film Blowing Machine
High Speed Two Layers Rotary Die Head Film Blowing Machine
