Model

SJ-45×2D/FM1000

SJ-50×2D/FM1200

SJ-55×2D/FM1500

Screw Diameter

2×45mm

2×50mm

2×55mm

Screw Ratio

L/D30:1

L/D30:1

L/D30:1

Screw Speed

12-120r/min

12-120r/min

12-120r/min

Output of Single-desk Extrude Machine

75kg/h

100kg/h

120kg/h

Power of Main Motor

2×11kw

2×15kw

2×15kw

Caliber of Film Head

Φ200-250mm

Φ250-300mm

Φ300-350mm

Rotational Mode of Machine Head

Continuous rotate

Continuous rotate

Continuous rotate

Single-sided Thickness of Film

0.02-0.10mm

0.02-0.10mm

0.02-0.10mm

Max. Folding Width of Film

1000mm

1200mm

1500mm

Total Power

42kw

53kw

65kw

Weight of Machine

3500kg

4500kg

5200kg

Overall Dimensions(L×W×H)

4200×2200×4600mm

4600×2400×5000mm

5200×2700×6000mm

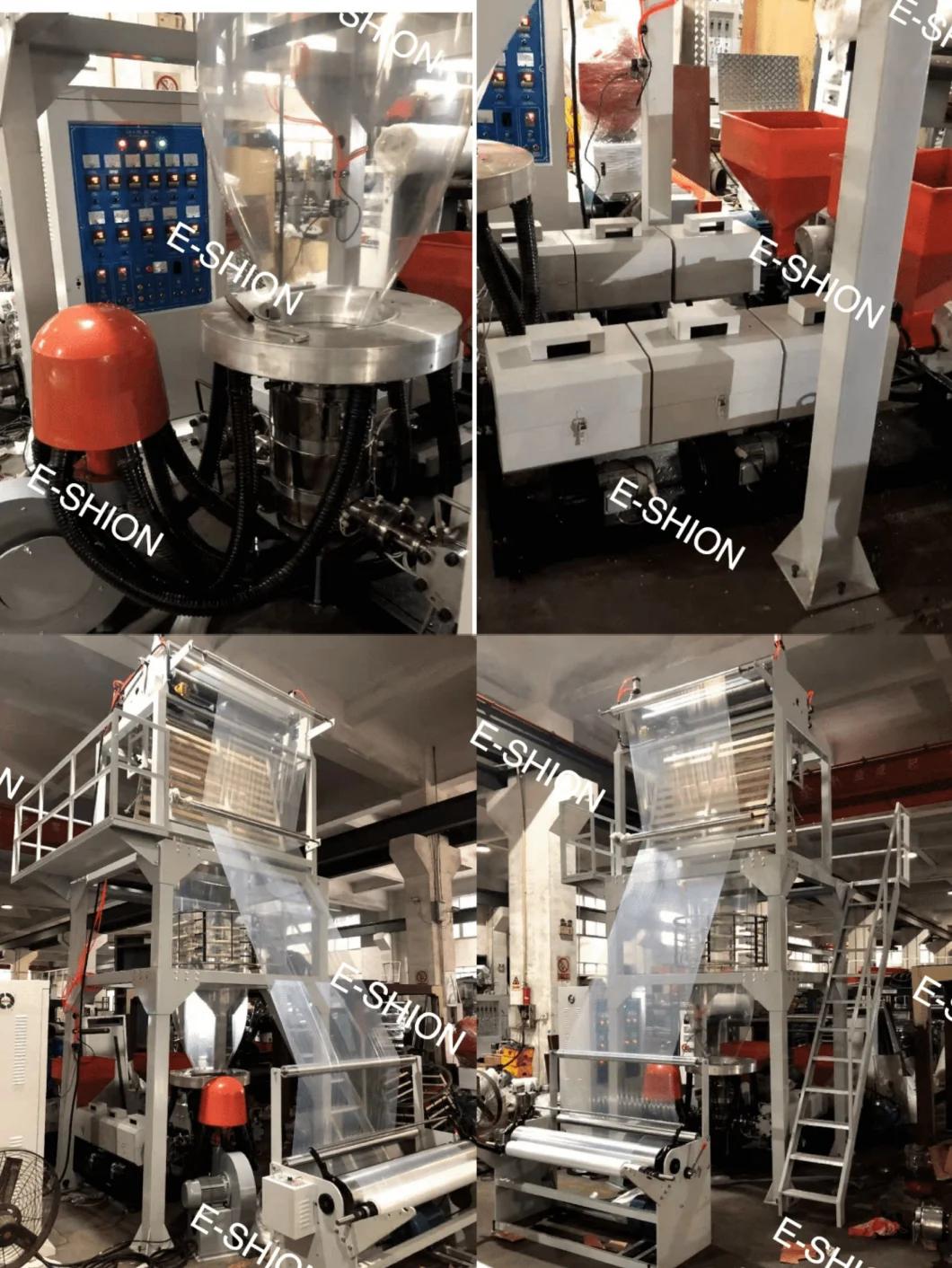

Machines in details:

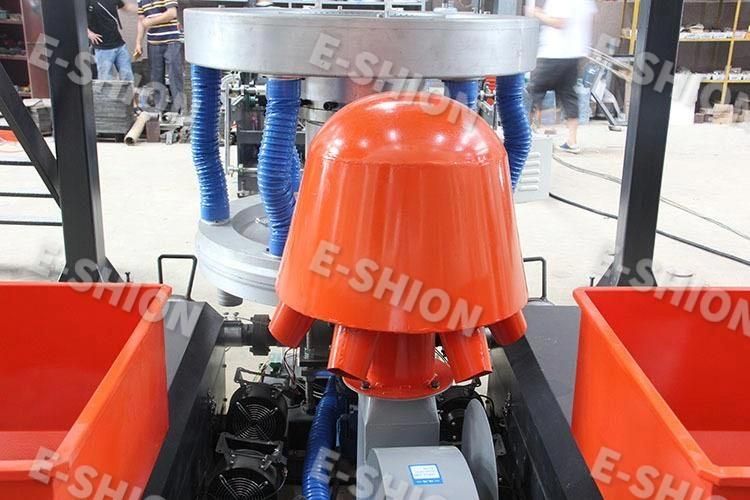

Double layer film blowing machine can equip with rotary die head and manual or automatic double rewinder.
