• Model NO.：8000L
• Material：Ss34
• Function：Beer Ferment
• Design：Conical 60 Degree
• Cooling Way：Dimple Cooling Jacket
• Inner Shell：Thickness 3mm
• out Layer：Thickness 2mm
• Temperature Test：PT100 Temperature Sensor
• Inner Surface：Pickled and Passivation
• Insulation：PU Foam
• Welding：Argon Arc TIG 100%
• Transport Package：Steel Frame
• Specification：500L
• Trademark：Zunhuang
• Origin：China
• Production Capacity：200piece

Basic Info.

Model NO. 8000L Material Ss34 Function Beer Ferment Design Conical 60 Degree Cooling Way Dimple Cooling Jacket Inner Shell Thickness 3mm out Layer Thickness 2mm Temperature Test PT100 Temperature Sensor Inner Surface Pickled and Passivation Insulation PU Foam Welding Argon Arc TIG 100% Transport Package Steel Frame Specification 500L Trademark Zunhuang Origin China Production Capacity 200piece

Product Description

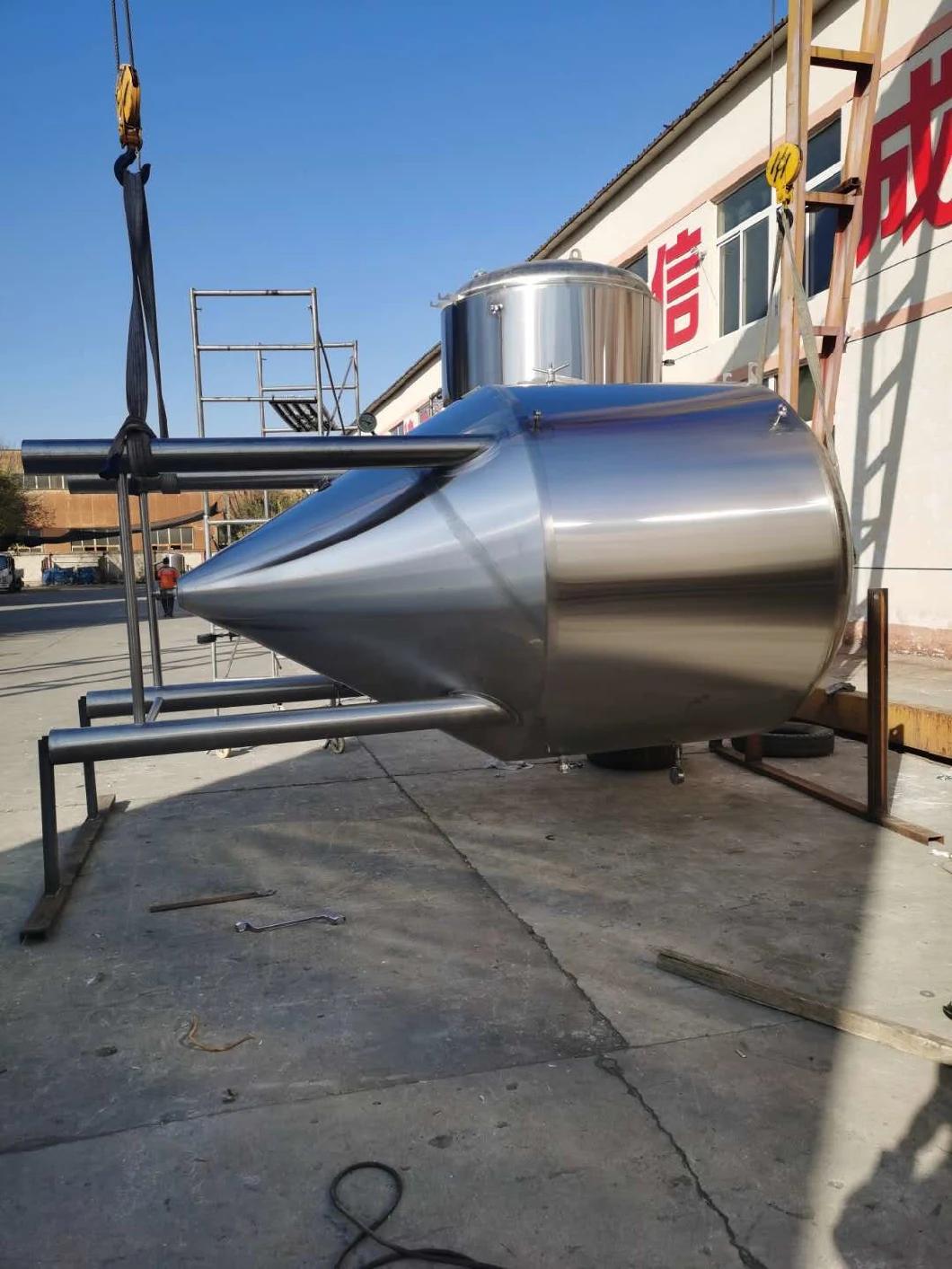

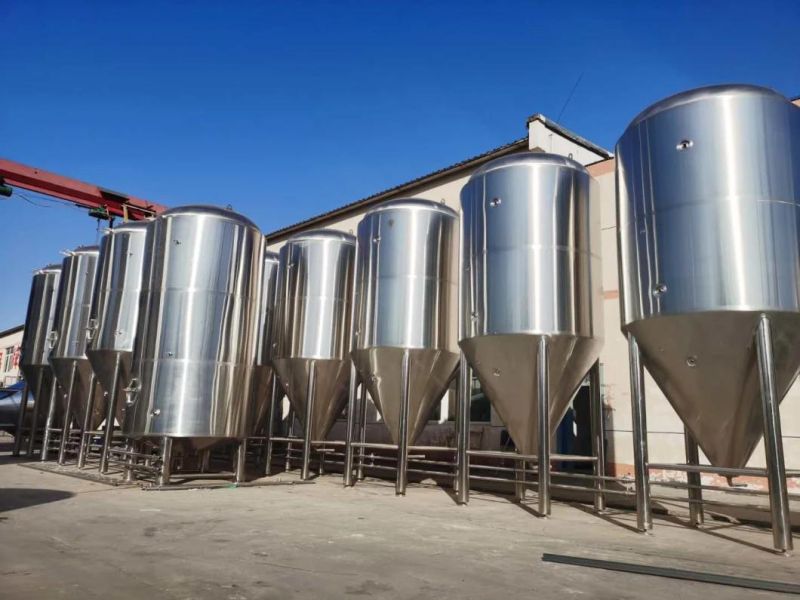

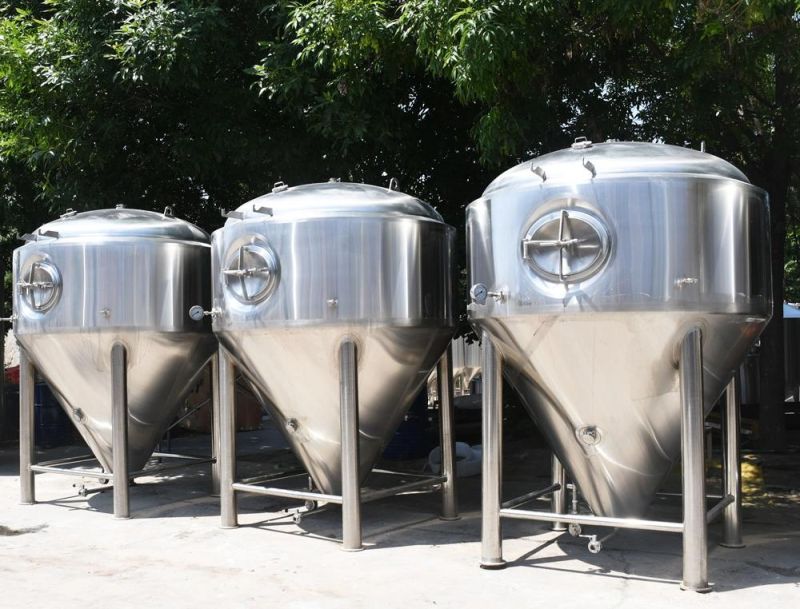

Stainless Steel 304 Food Grade Zunhuang Conical Cooling Tank for Brewery Beer Fermentation

Description:
Fermentation Unit
Fermentation system:
1. Capacity: 50L-30000L, 1bbl-100bbl, +25% Head space
2. Interior shell thickness 3-6mm, Exterior shell=2mm
3. 100% TIG welding with pure argon gas shield
4. Interior finish: pickled and passivated, external polished, 80mm insulated
5. Test pressure 3 bar, working pressure 1.5 bar
6. Glycol zones (Both on side and concial/bottom)
7. 60°conical bottom for Fermener, Shadow less side man way
8. Racking arm, Sample valve, Pressure relief valve on the top, Dry hopping on the top
9. Mechanical relief valve 3 bar on CIP arm with pressure gauge
10.Adjustable tank leveling pads.

Production capacity	500	1000	2000	5000	10000	20000
Volume Effective/Total	500/660	1000/1330	2000/2660	5000/6600	10000/ 13300	20000/ 26600
Inner shell diameter(mm)	1400	1600	2000	2800	3000	3500
Cooling area m2	2.2	4.4	8.7	14	25	48
Working pressure	0.14	0.14	0.14	0.14	0.14	0.14
Cooling method	Dimple plate jacket	Dimple plate  jacket	Dimple plate jacket	Dimple plate  jacket	Dimple plate  jacket	Dimple plate jacket
Conical angle	60	60	60	78	78	78

Package and delivery:
Steel frame or wooden case
