• Model NO.：GJB Series
• Name：3000L 5000L Shanghai Food Grade High Pressure Hom
• Material：Stainless Steel 304,316
• Power：5.5-110kw.
• Pressure：25~100MPa
• Life Time：More Than 10years
• Warranty：in One Year
• Spare Parts：Provided
• Packing：Plywood Box
• Voltage /Hz /Hz：220V,380V,415V,440V
• Certificate：Ce
• Delivery：10 Years
• Motor：Siemens ,ABB ,China Brand
• OEM：Yes
• Stage：Two Stage
• Plunger：4set ,5 Sets
• Transport Package：Standard Wooden Box
• Specification：CE
• Trademark：KAIQUAN
• Origin：Shanghai, China
• HS Code：8479820090
• Production Capacity：100 Units,Month

Basic Info.

Model NO. GJB Series Name 3000L 5000L Shanghai Food Grade High Pressure Hom Material Stainless Steel 304/316 Power 5.5-110kw. Pressure 25~100MPa Life Time More Than 10years Warranty in One Year Spare Parts Provided Packing Plywood Box Voltage /Hz /Hz 220V,380V,415V,440V Certificate Ce Delivery 10 Years Motor Siemens /ABB /China Brand OEM Yes Stage Two Stage Plunger 4set /5 Sets Transport Package Standard Wooden Box Specification CE Trademark KAIQUAN Origin Shanghai, China HS Code 8479820090 Production Capacity 100 Units/Month

Product Description

                                                                  Milk Yogurt Homogenizer Dairy Equipment

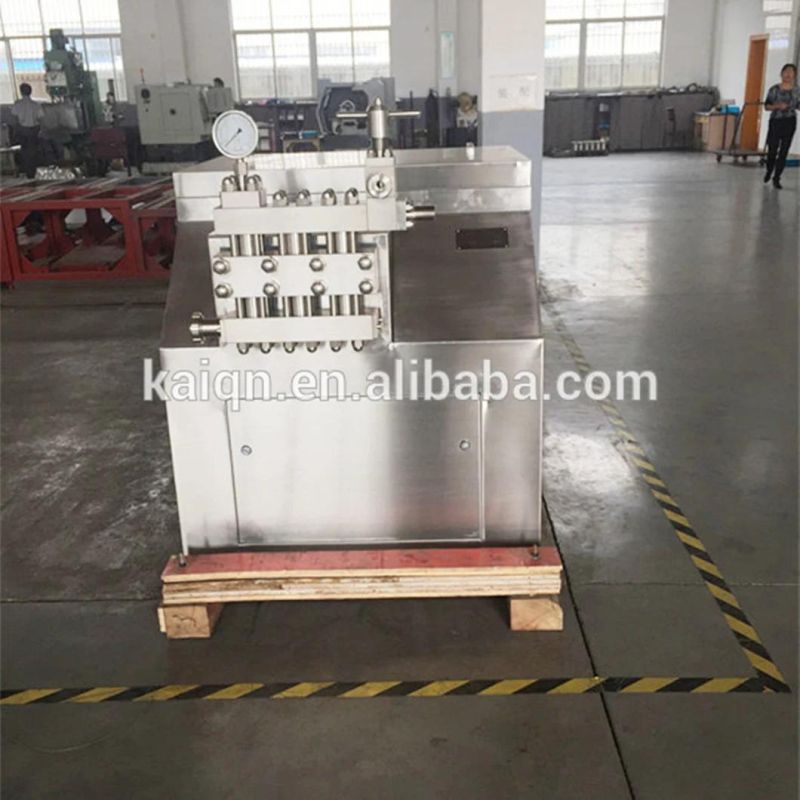

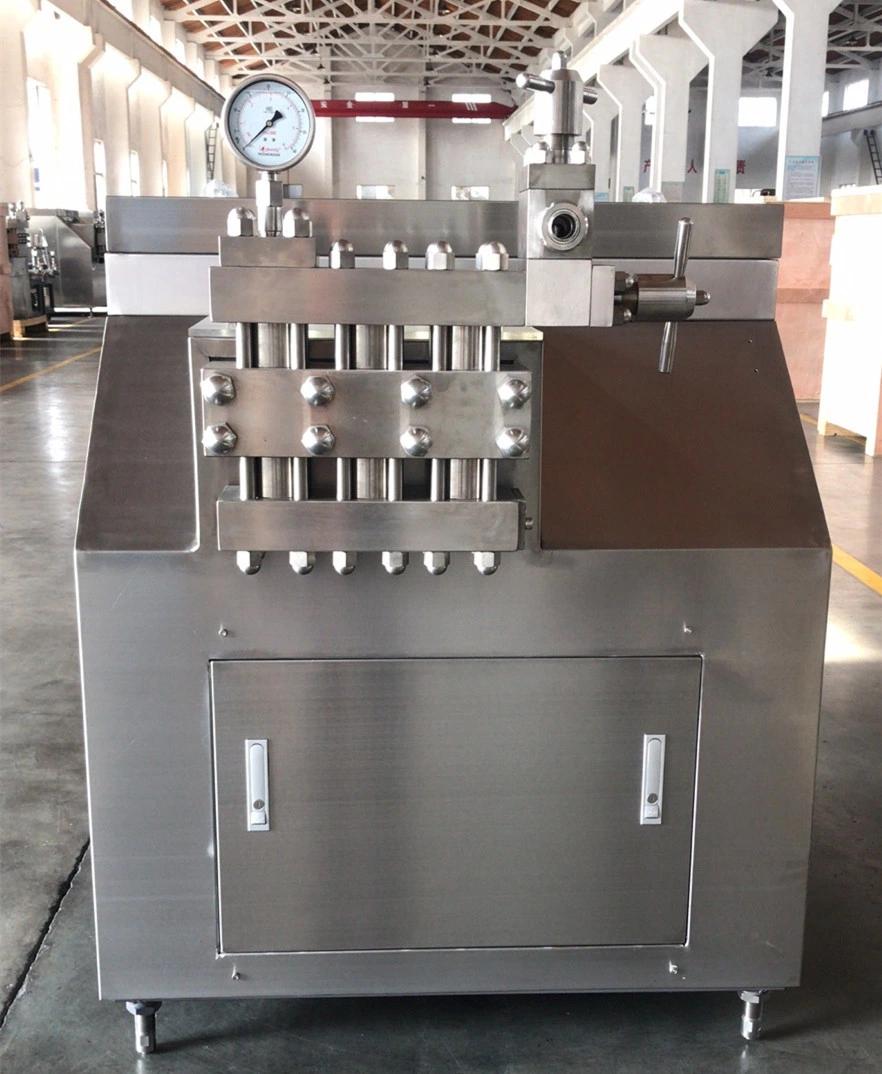

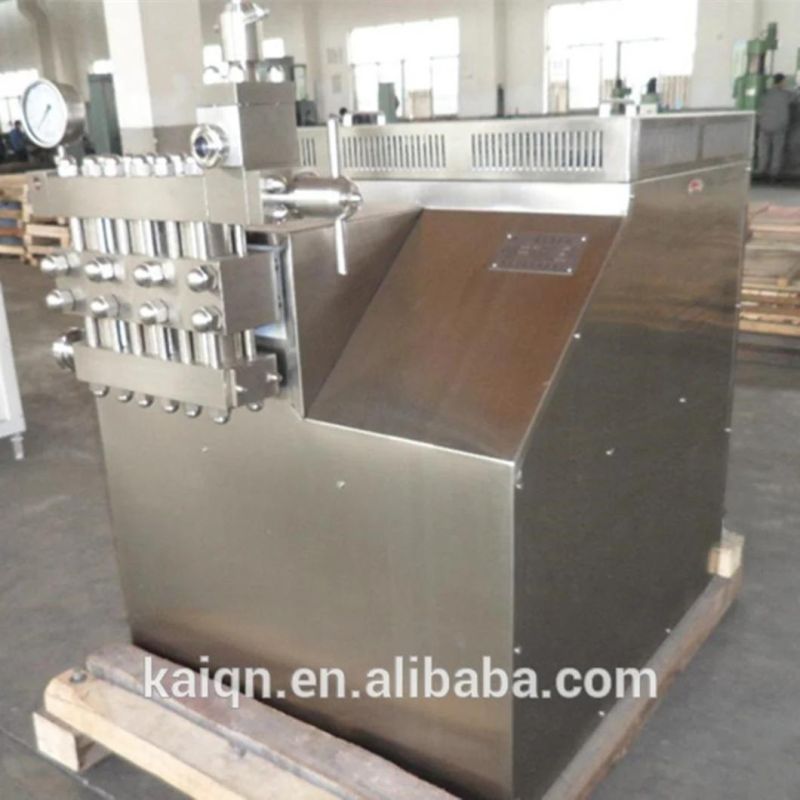

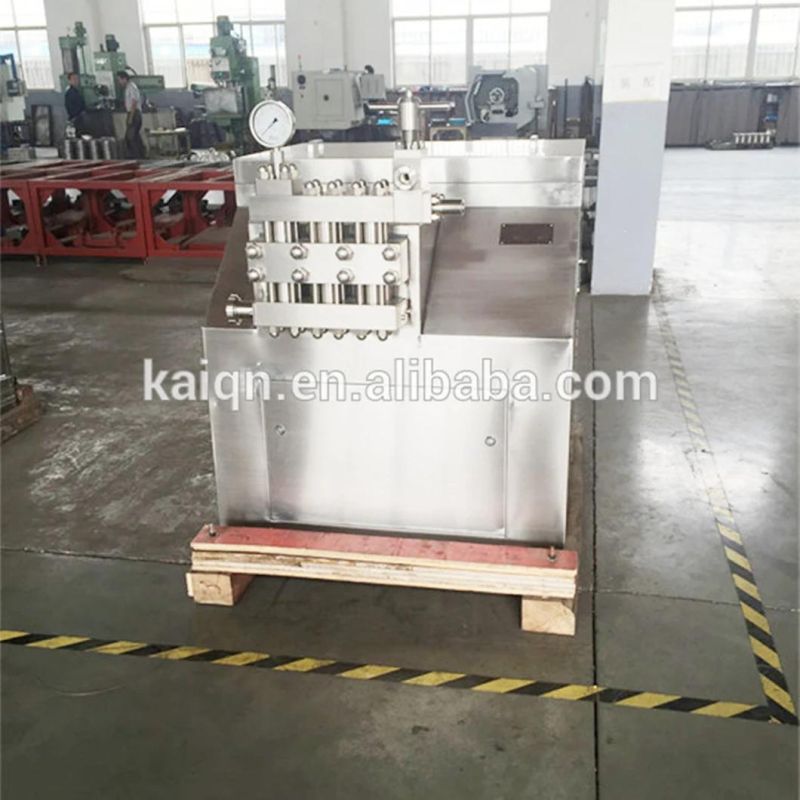

3000L 5000L Shanghai Food Grade High Pressure Homogenizer Supplier




Model No. Technical parameter	KQ0.5-25	KQ1-25	KQ1.5-25	KQ2-25	KQ2.5-25	GJB3000-25 KQ3-25	KQ5-25
Rated pressure(MPa)	25	25	25	25	25	25	25
Rated flow ( Liters/H )	500	1000	1500	2000	2500	3000	5000
Medium temperature(C)	≤85	≤85	≤85	≤85	≤85	≤85	≤85
Feeding pipe diameter(mm)	25	25	25	25	25	32	40
Discharge pipe diameter(mm)	15	15	20	20	20	20	25
Power of motor(Kw)	5.5	7.5	11	15	18.5	22	45
Volt and Electricity Flow	220V,60HZ,3PH	380V,50HZ	380V,50HZ	380V,50HZ	220V,60HZ,3PH	380V,50HZ	380V,50HZ
Outline dimension (m) Length * width * height	1.16×0.9×1.24	1.16×0.9×1.24	1.16×0.9×1.24	1.4×1.1×1.42	1.4×1.1×1.42	1.4×1.1×1.42	2.2×1.45×1.1
Weight(Tons)	0.4	0.5	1.25	1.25	1.25	1.25	1.7

High pressure homogenization is a standard industrial process for dairy products, to improve their stability and shelf life

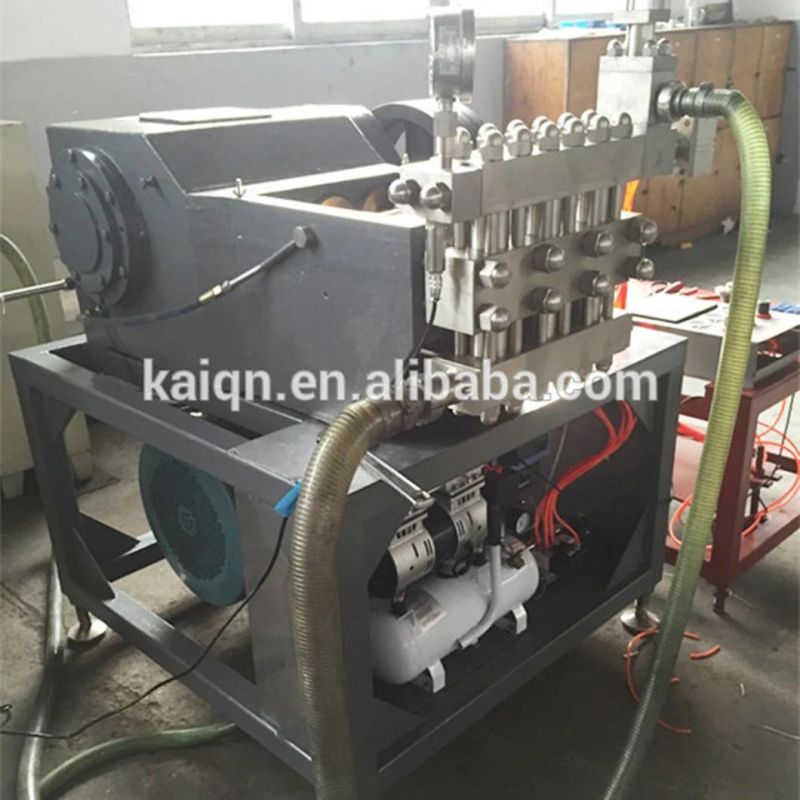

Series is the kind of equipment which can homogenize the liquid material and make it become high-pressure spray. The high pressure homogenizer pump reciprocates the pump position, high press the liquid, fully mixed and refined the material.
The high pressure homogenizer can use to homogenize the dairy product material in high pressure, refine the fat globule, prevent or decrease the stratifying of the liquid material; Make the product much more nicety, to prove the quality of the product.
The high pressure homogenizer pump also the important equipment of the powder manufacture. (Such as pharmaceutical industry, chemical industry, etc. )




3000L 5000L Shanghai Food Grade High Pressure Homogenizer Supplier .
