• Model NO.：KQ Series
• Name：Stainless Steel Cold Cylindrical Milk Cooling Chi
• Material：Stainless Steel 304 ,316
• Outside Shape：Vertical and Horinzontal
• Refrigerant Liquid：R404A ,R22
• Compressor：USA Copeland
• Fresh Bulk Milk Cooling and Storage：300to 10000L
• PU Insulation Wall Thickness：70mm
• Milk Tank Function：Cooling and Storage Fresh Milk
• Control Box：Yes

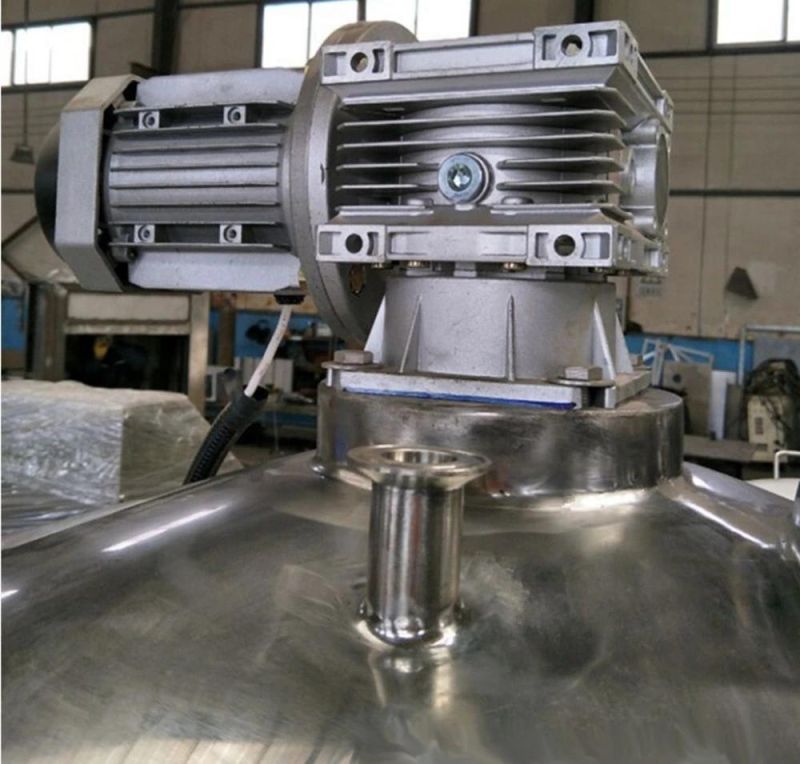

• Mixer：Equiped
• Packing：Wooden Box
• Warranty：One Year
• Motor Brand：Siemens ,ABB ,China Brand
• Cleaning：CIP Spray Ball
• Voltage ,Hz,Phase：Make It to Your Order
• Transport Package：Standard
• Specification：ISO
• Trademark：KQ
• Origin：China
• HS Code：841869909
• Production Capacity：1000

TypeKQ-1T
Vertical typeKQ-2T
Laying typeKQ-3T
Laying typeKQ-5T
 Laying typeKQ-6T
 Laying typeKQ-8T
 Laying typeKQ-10T
 Laying typeCapacity(L)10002000300050006000800010000LRefrigerating Output(W)9000150002200037000380005500074000Refrigerating  Fluid(R)R22R22R22R22R22R22R22Insulating Property≤1ºC/4h≤1ºC/4h≤1ºC/5h≤1ºC/5h≤1ºC/5h≤1ºC/5h≤1ºC/6hAgitator Speed36r/min36r/min36r/min36r/min36r/min36r/min36r/minPower (Kw)3.85.97.510.5111319.2Voltage380V/50Hz,3phases380V/50Hz,3phases380V/50Hz,3phases380V/50Hz,3phases380V/50Hz,3phases380V/50Hz,3phases380V/50Hz,3phasesDimension(mm)1800*1200*15003400*1550*17503600*1700*19003900*2050*21504500*2050*21506300*2050*22508000*2100*2400Weight(Approximately)0.6T 0.75T0.9T1.1T1.3T1.8T2.05T

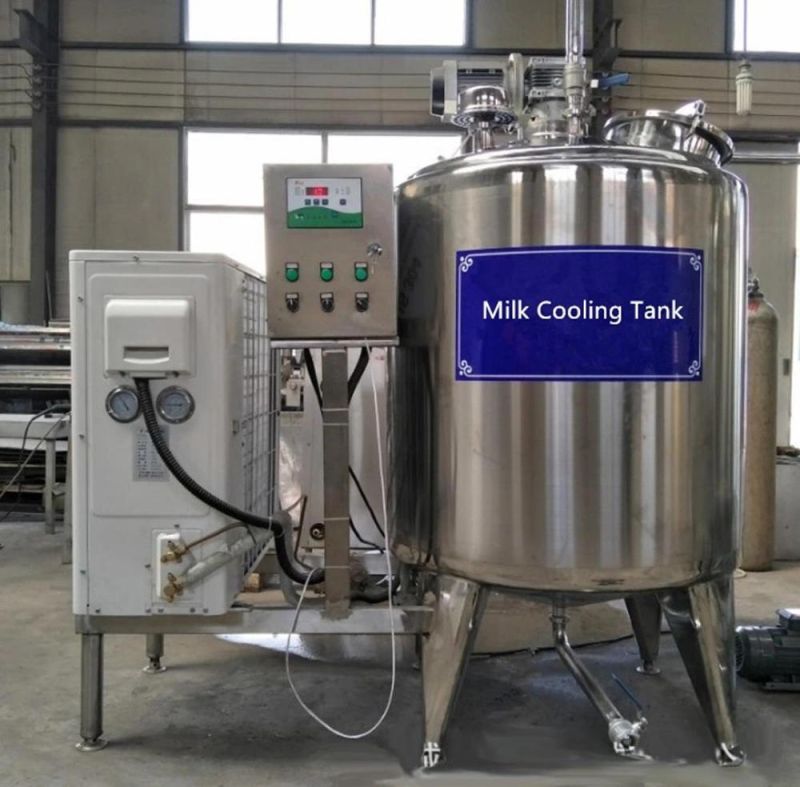

Stainless Steel Cold Cylindrical Milk Cooling Chilling Tank Price .
