• Model NO.：25Mpa
• Name：Stainless Steel High Pressure Juice Milk Homogeni
• Appications：Milk , Juice, Beverage, Butter, Honey, Cream
• Material：Stainless Steel 304 , 316
• Capacity：500L,H--10000L,H
• Pressure：250bar to 700bar
• Certificate：Ce,ISO
• High Pressure Homogenizer：Customized Electricity Motor
• Voltage ,Hz ,Phase：Make Them to Your Order .
• Plunger：Four , Five Plungers
• Working Life：More Than 10years
• Homogenizer Spare Parts：Provide
• Packing：Wooden Box
• OEM：Yes
• MOQ：1set
• Spare Part：Available
• Transport Package：Standard Wooden Box
• Specification：CE
• Trademark：KAIQUAN
• Origin：Shanghai, China
• HS Code：8479820090
• Production Capacity：100 Units,Month

Basic Info.

Model NO. 25Mpa Name Stainless Steel High Pressure Juice Milk Homogeni Appications Milk , Juice, Beverage, Butter, Honey, Cream Material Stainless Steel 304 / 316 Capacity 500L/H--10000L/H Pressure 250bar to 700bar Certificate Ce,ISO High Pressure Homogenizer Customized Electricity Motor Voltage ,Hz ,Phase Make Them to Your Order . Plunger Four / Five Plungers Working Life More Than 10years Homogenizer Spare Parts Provide Packing Wooden Box OEM Yes MOQ 1set Spare Part Available Transport Package Standard Wooden Box Specification CE Trademark KAIQUAN Origin Shanghai, China HS Code 8479820090 Production Capacity 100 Units/Month

Product Description

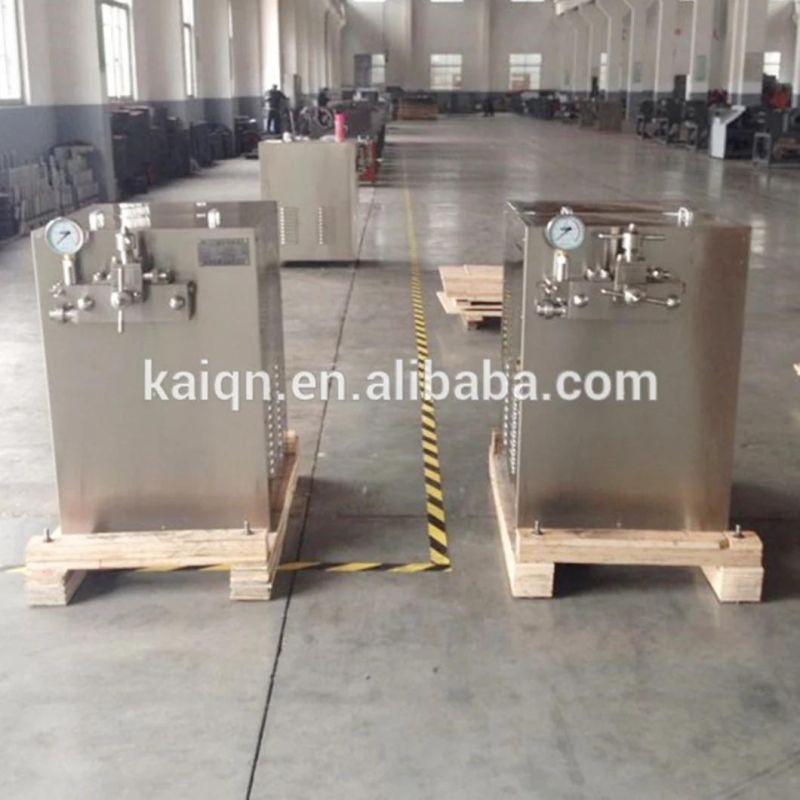

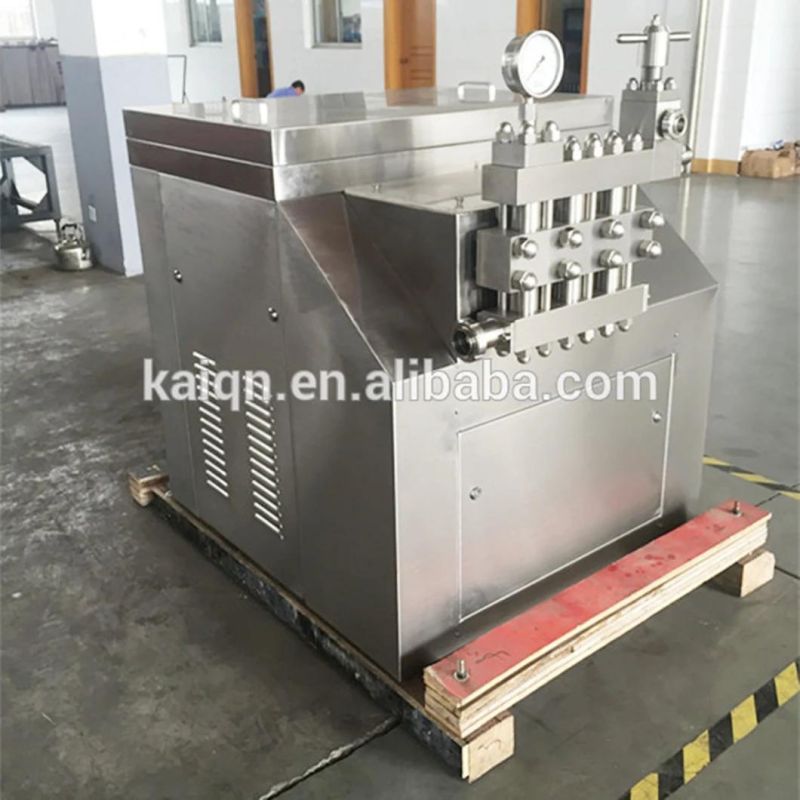

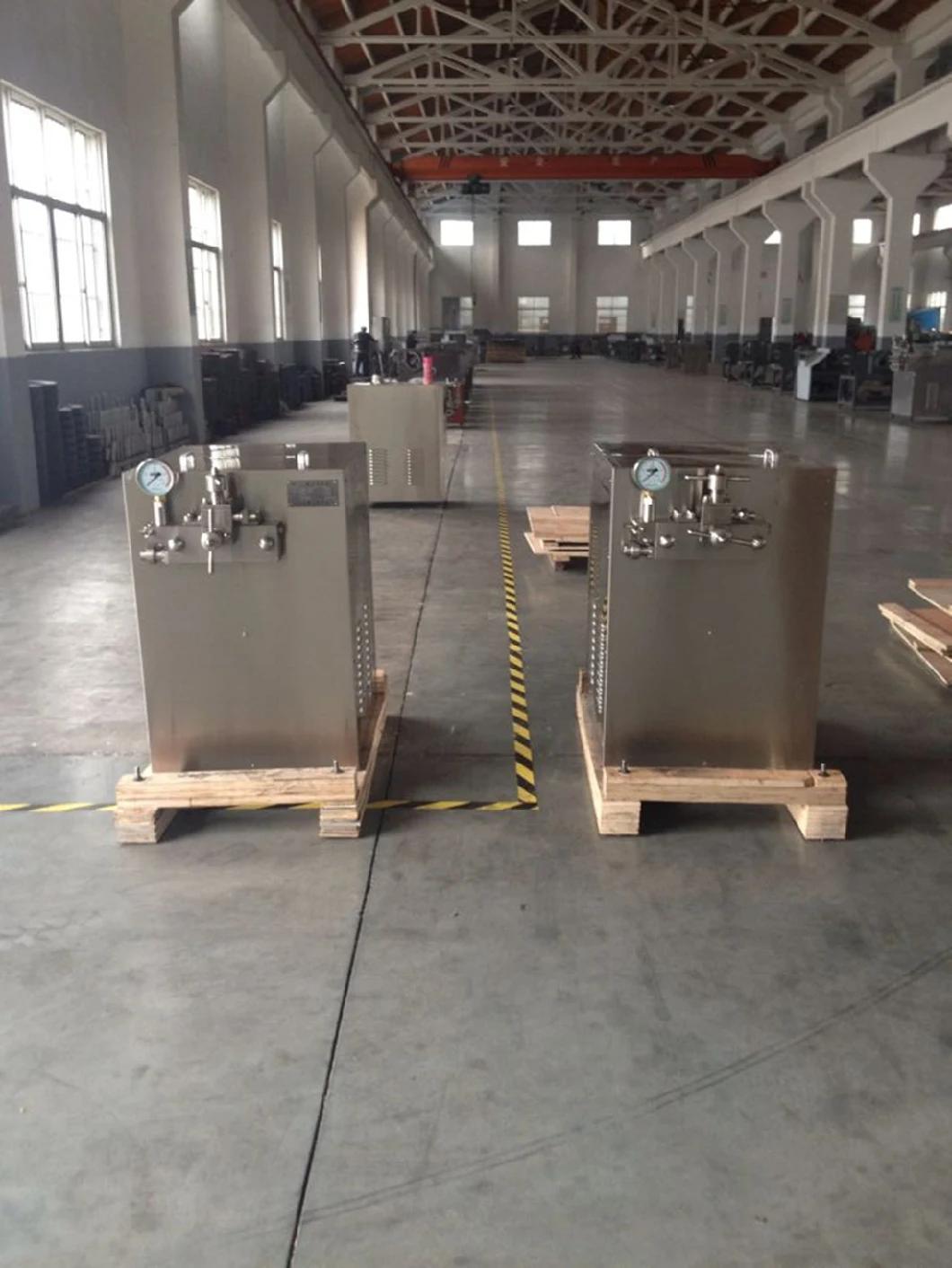

Stainless Steel High Pressure Juice Milk Homogenizer for Industry

CE Certificated Best Price Shanghai High Pressure Homogenizer/Milk Homogenizer
GJB high pressure homogenizer
Milk High Pressure Homogenizer, You Can Buy Various High QualityMilk High Pressure Homogenizer Products from us,  the 250bar milk homogenizer,

Model No. Technical parameter	KQ0.5-25	KQ1-25	KQ1.5-25	KQ2-25	KQ2.5-25	GJB3000-25 KQ3-25	KQ5-25
Rated pressure(MPa)	25	25	25	25	25	25	25
Rated flow ( Liters/H )	500	1000	1500	2000	2500	3000	5000
Medium temperature(C)	≤85	≤85	≤85	≤85	≤85	≤85	≤85
Feeding pipe diameter(mm)	25	25	25	25	25	32	40
Discharge pipe diameter(mm)	15	15	20	20	20	20	25
Power of motor(Kw)	5.5	7.5	11	15	18.5	22	45
Volt and Electricity Flow	220V,60HZ,3PH	380V,50HZ	380V,50HZ	380V,50HZ	220V,60HZ,3PH	380V,50HZ	380V,50HZ
Outline dimension (m) Length * width * height	1.16×0.9×1.24	1.16×0.9×1.24	1.16×0.9×1.24	1.4×1.1×1.42	1.4×1.1×1.42	1.4×1.1×1.42	2.2×1.45×1.1
Weight(Tons)	0.4	0.5	1.25	1.25	1.25	1.25	1.7

CE CERTIFICATED HOMOGENIZER FOR MILK, JUICE, DAIRY, ICECREAM, SOYBEAN MILK, HONEY
Soybean milk homogenizer,  40MPA homogenizer
Tea drinks homogenizer,  juice homogenizer
homogenizer pumps
High pressure homogenization is a standard industrial process for dairy products, to improve their stability and shelf life
series is the kind of equipment which can homogenize the liquid material and make it become high-pressure spray. The high pressure homogenizer pump reciprocates the pump position, high press the liquid, fully mixed and refined the material.

The high pressure homogenizer can use to homogenize the dairy product material in high pressure, refine the fat globule, prevent or decrease the stratifying of the liquid material; Make the product much more nicety, to prove the quality of the product.

The high pressure homogenizer pump also the important equipment of the powder manufacture. (Such as pharmaceutical industry, chemical industry, etc. )

Stainless Steel High Pressure Juice Milk Homogenizer for Industry .
