• Model NO.：JK1000
• Name：Steam Kettle Industry Kettle Jackete Kettle Cookin
• Capacity Range：200L,300L ,500L, 600L, 1000L
• Heating：Steam ,Electric ,Gas
• Mixer：Scrapper Mixer, Normal Mixer
• Material：Food Grade Stainless Steel 304 ,316 ,316L
• Temperature：Above 90 Degree
• Kettle Type：Vertical ,Tilting
• Warranty：One Year
• Application：Food Industry
• Packing：Plywood Box
• Transport Package：Standard Export Wooden Box
• Specification：ISO
• Trademark：KQ
• Origin：Shanghai, China
• HS Code：8479820090
• Production Capacity：2000 Set ,Year

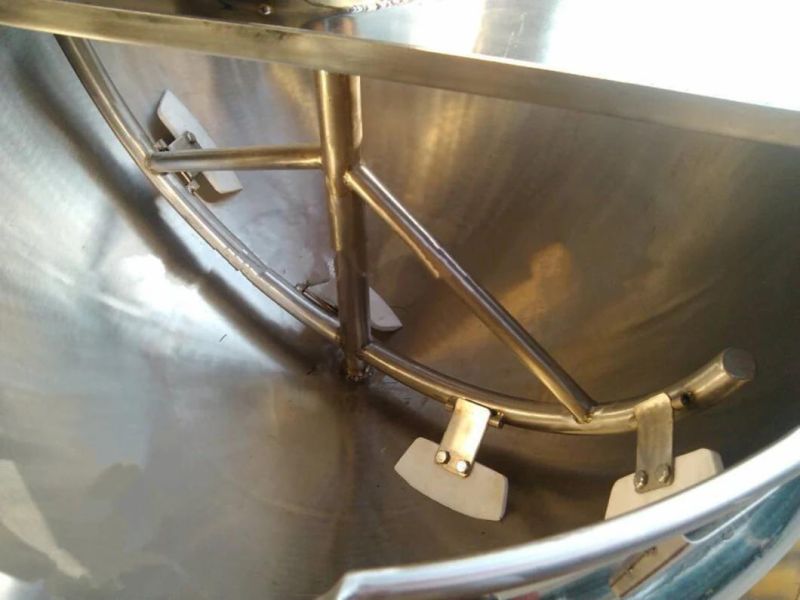

Product Name:Stainless steel jacket kettleDescription:Designed according to 3A standard, widely used for transfer viscous media in the food-processing, cosemtics and pharmaceutical industriesConstruction: vertical jacketed kettle,tilting jacketed kettleHeating mothedBy electricity (oils or water), by steam, by gasMaterial:SS304/SS316L/1.4301/1.4404Capacity:50L-1000LAgitator Type:With PTFE scraperMechanical seal:SIC/SiC/EPDM(Standard)Motor power:0.55kw, 1.1kw, 1.5kw, 2.2kw, 3kw, 7.5KWSealing option:Sanitary single mechanical seal/Double mechanical seal with cooling systemVoltage:220V, 380V,415VMotor:ABB, MADE IN CHINA,50hz/ 60hzSurface treatment:Inner polished and outside polishedAvailably connection:Clamp, Thread Butt weld, FlangeAvailably standard:DIN, SMS, 3A, RJT, ISO/IDFOperated:ElecticApplication scope: Dairy, food, beverage, pharmacy, cosmetic, etcPackaging Details:Plywood case or customerized. Or as per the request of customersDelivery details:Usually within 20 days after receiving T/T down payment


 KQ-50
KQ100
KQ150
KQ200
KQ300
KQ400
YT500
Capacity L
 50
100
150
200
300
400
500
Jacketed pressure
 Mpa
                            < 0.2
Evaporation capacity
kg/h

40
50
65
75
100
150
Heat area
 m 2
 0.3
0.45
0.76
1.0
1.15
1.44
1.90
Energy consumption
 kg/h

44
55
72
90
110
165
N.W.
 kg
 150
190
210
230
320
360
485
LxWxH
 mm
 500X650X83
800X650X830
1350X650X1100
1400X700X1100
1450X800X1
Steam Kettle Industry Kettle Jackete Kettle Cooking Kettle Jacketed Kettle
