Mining Y24 Handheld Pneumatic Rock Drill Machine for Drilling Vertically
Jiangsu Ketchview Machinery Technology Co., Ltd.Base Info
Description
Basic Info.
Model NO. Y24 Drilling Way Rotary Machine Length 604mm Cylinder Diameter 70mm Piston Stroke 70mm Working Air Pressure 0.4-0.63MPa Shank Size 22* 108+/-1mm Delivery Time Within 2-3days Transport Package Cartons Packing Specification 24kg Trademark better onward Origin China HS Code 8430390000 Production Capacity 2000sets/MonthProduct Description
Introduction of Mining Y24 Handheld Pneumatic Rock drill machineHand-held Rock Drill is widely use for dry drilling in the medium-hard and hard rock.
Parameter of Mining Y24 Handheld Pneumatic Rock drill machine
| Model | Y24 handheld rock drill |
| Machine weight | 24kg |
| Machine length | 604mm |
| Cylinder diameter | 70mm |
| Piston stroke | 70mm |
| Working air pressure | 0.4-0.63Mpa |
| Compact frequency | ≥27Hz |
| Air consumption | ≤50L/S |
| Air pipe diameter | 19mm |
| Bore diameter | 34-42mm |
| Shank size | 22* 108+/-1mm |

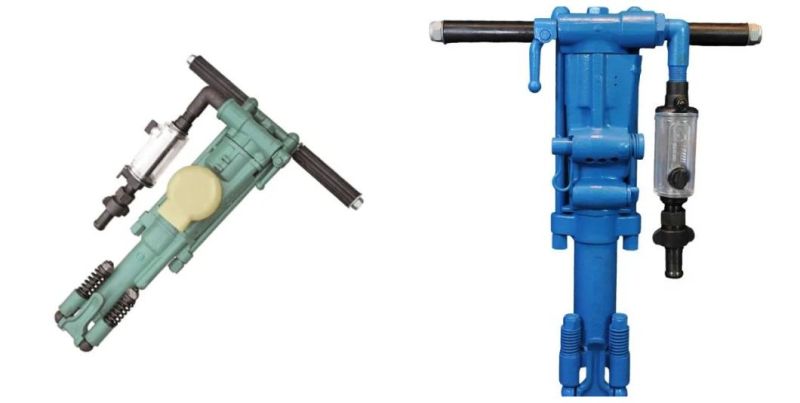

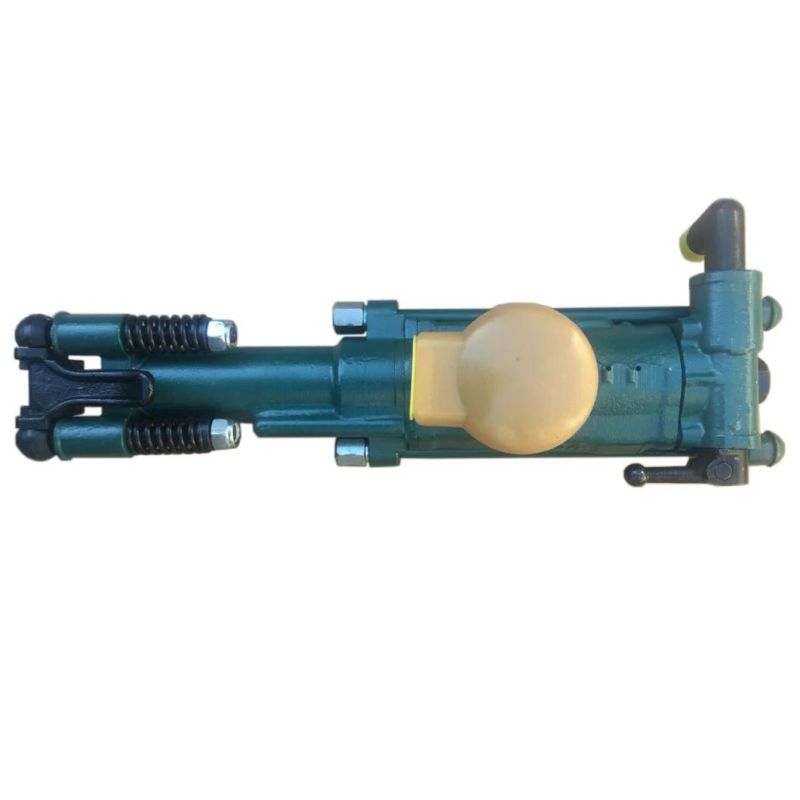

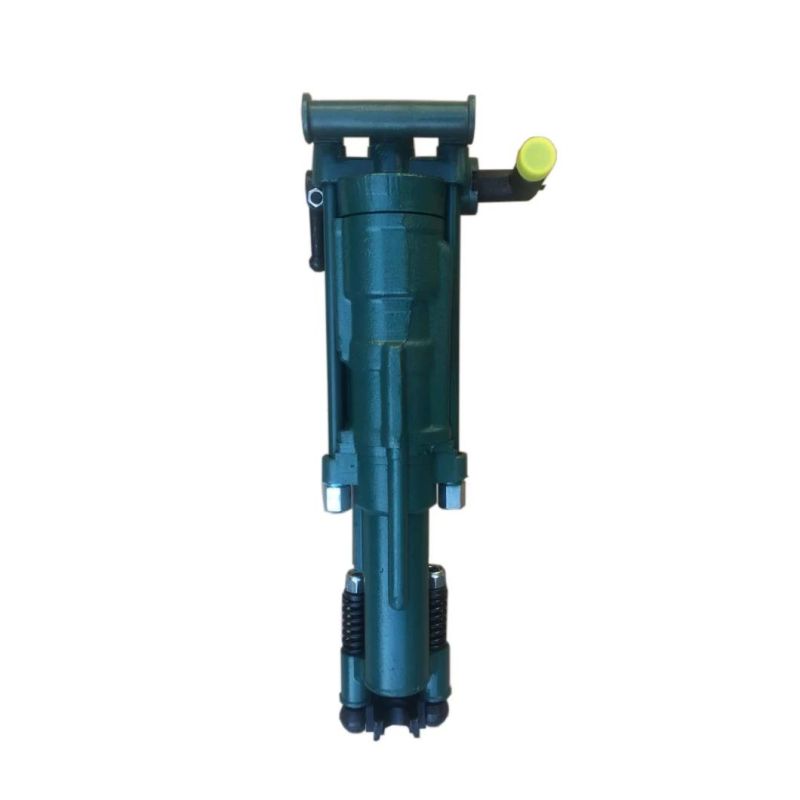

Images of Mining Y24 Handheld Pneumatic Rock drill machine
