Basic Info.

Model NO. YT24 Drilling Way Rotary State New Shank Size H22* 108+/-1mm Cylinder Diameter 70mm Air Pipe Inner Diameter 19mm Water Pipe Inner Diameter 13mm Delivery Time Within 2-3 Days Transport Package Cartons Packing Specification 24kg Trademark better onward Origin China HS Code 8430390000 Production Capacity 5000sets/Month

Product Description

Introduction of YT24 rock drill

YT24 air leg rock drill with the characteristics of high efficiency and low consumption.

It is especially suitable for railway, highway, water and electricity construction.
It is also the replacement product of mine tunnel excavation and various rock drilling operations in metallurgy, coal and other mines.

YT24 Air leg rock drill is suitable for drilling horizontal and inclined holes on medium hard and hard rocks (f=8~18), and also could drill bolt holes upward, the drill hole diameter is 34-42mm, effective drill hole depth is 5m.

Parameter of YT24 rock drill


Machine weight	24kg
Machine length	678mm
Cylinder diameter	70mm
Piston structure stroke	70mm
Working pressure	0.40-0.63Mpa
Impact Frequency	≥31Hz
Air comsumption	≤66.7L/s
Air pipe inner diameter	19mm
Water pipe inner diameter	13mm
Drill hole diameter	34-42mm
Max. drill hole depth	5m
Shank size	H22* 108+/-1mm

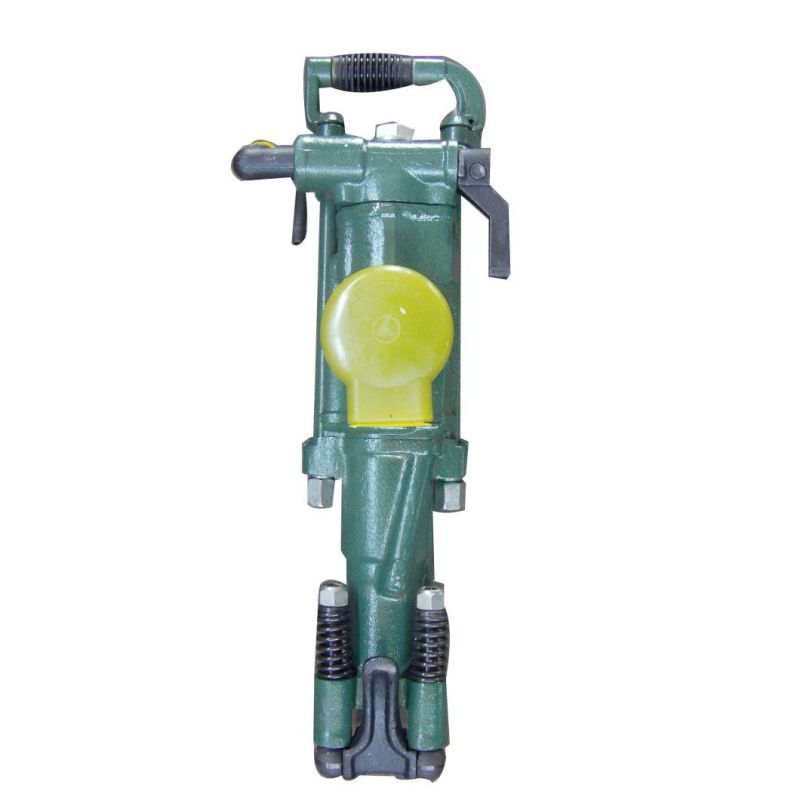

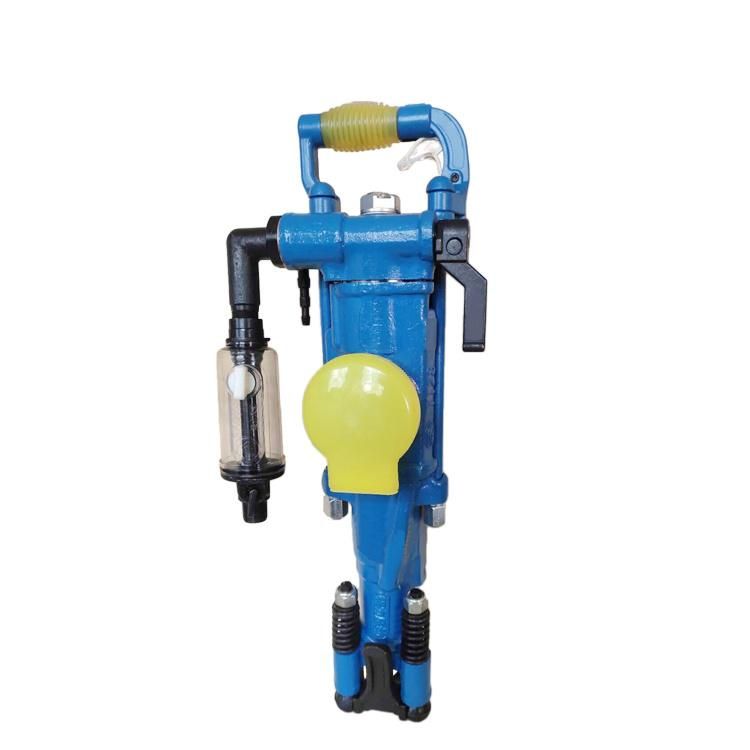

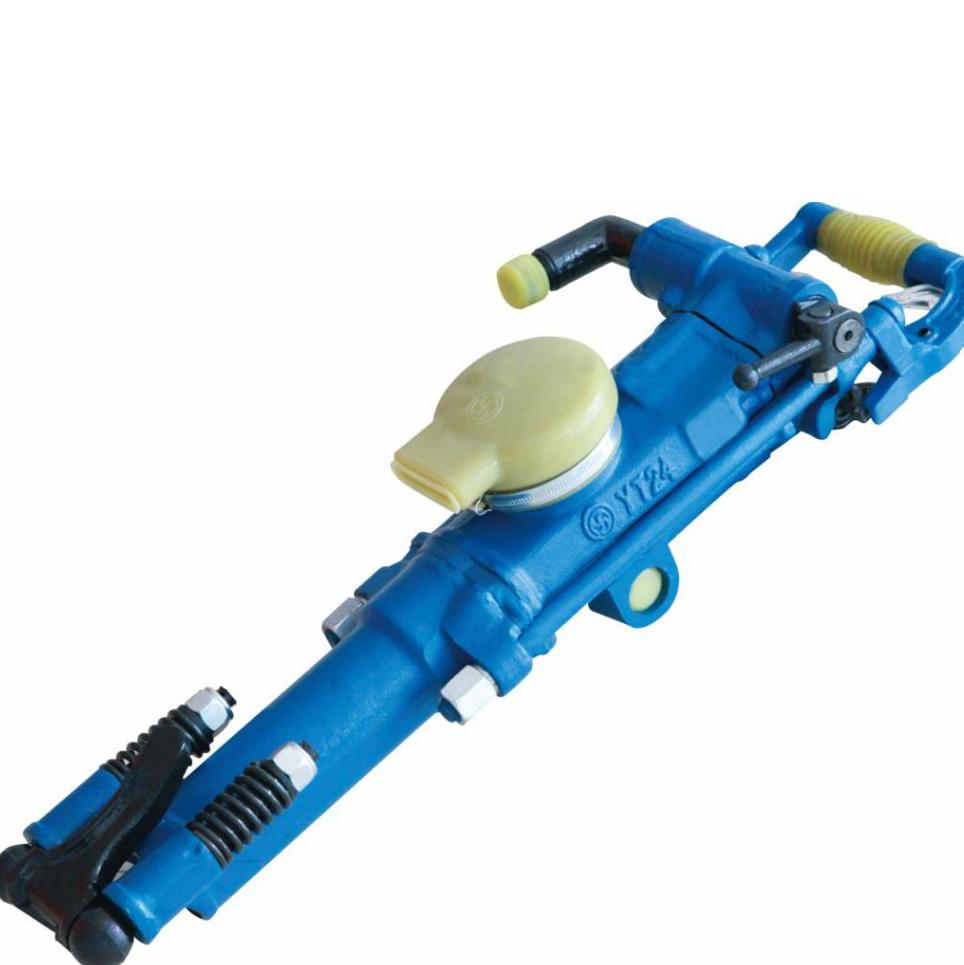

Images of YT24 rock drill
