Basic Info.

Model NO. BY-110-850 Engagement System Intermeshing Screw Channel Structure Deep Screw Exhaust Don′t Exhaust Automation Automatic Computerized Computerized Raw Material PP/PS Application PP/PS Sheet Roll Driven Type Electrical, Pneumatic& Mechanical Screw Model 110mm Thickness of Sheet 0.3-2.0 mm Sheet Width 850mm Warranty 1 Year Power Supply AC 380V, 50/60 Hz Capacity 150-250kg/Hr Transport Package Wooden Case Specification 110 Trademark HONGYIN Origin Ruian HS Code 847780000 Production Capacity 10set

Product Description

We are leading manufacturing of a scientific and technological enterprise focusing on Plastic Production and Processing Machinery, specialize in the production in plastic fully automation thermoforming machine, plastic vacuum forming machine, in line extruder forming machine , in line cutting machine, sheet extruder, three sides folding machine, sealing machine, four station forming machine line, etc.

    HONGYIN---Continuously working to become a feasible partner for your company.

HOT SALES

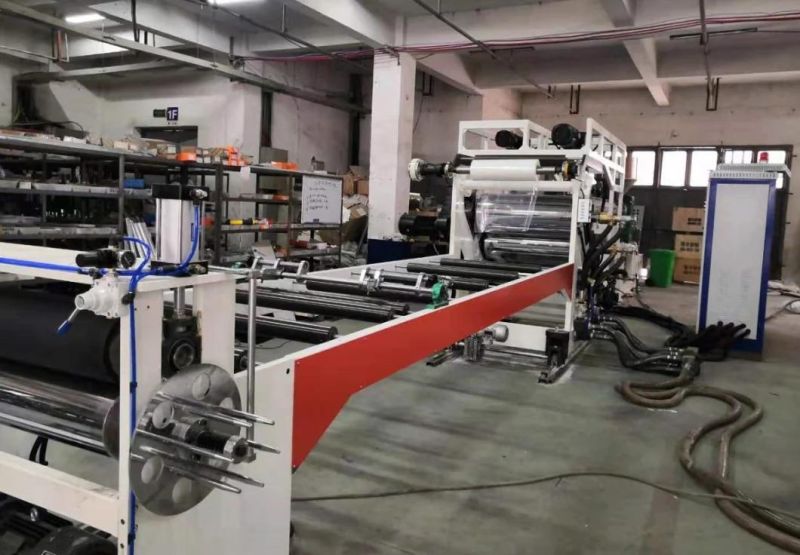

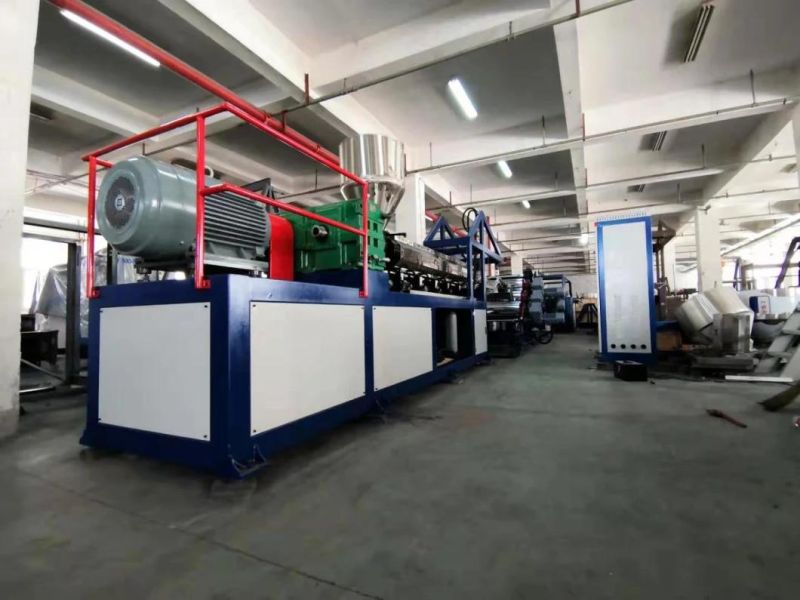

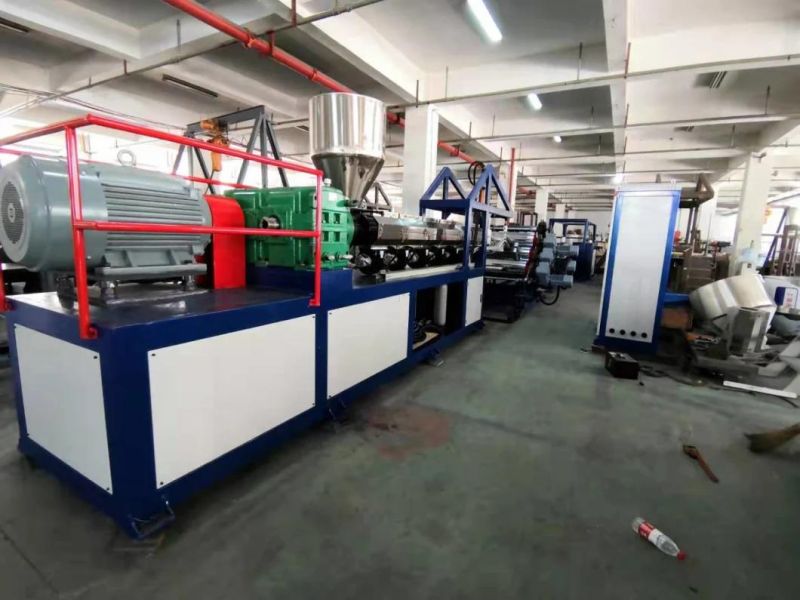

1.singel layer plastic extrusion machine Introduction

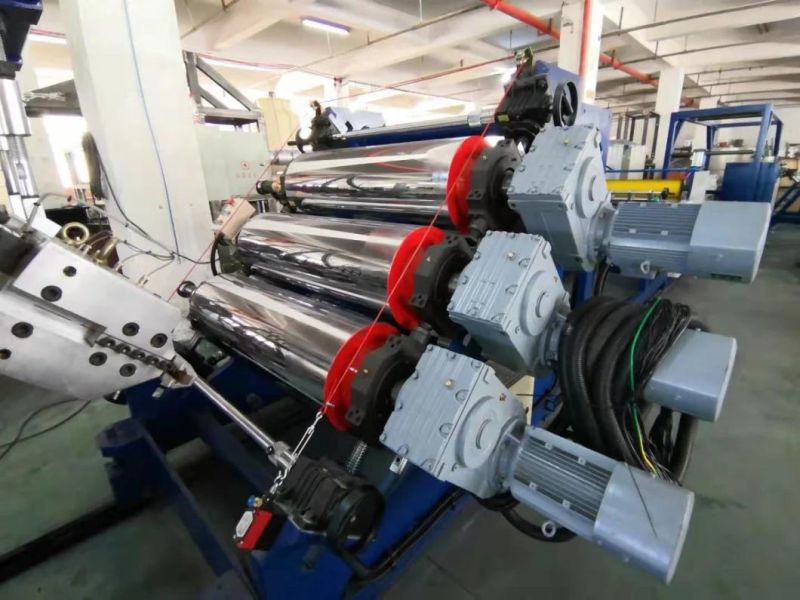

This machine is designed to produce plastic sheet for thermoforming/vacuum forming purpose or stationery use, which is composed of 7 parts  extruder part, filter part, Die-head part, 3 rollers part, traction part, winding part and side trimming part.

Applicable Material:
It is used for produce various plastic sheet of PS (polystyrene) or PP/HIPS (polypropylene), which can be widely used for produce plastic cup, plastic bowl, plastic tray and blister, stationery packing manufacture forming.

Name	Parameter
Screw dia.	Φ110mm
L/D	34:1
Screw run speed	80(rpm)
Effective sheet width	850 mm
Sheet thickness	0.2-3mm
Max output	160-250 kg/h
Heating zone	7zone
Heating power	120kw






please contact with me
Michael Rao
+86 15158704325
 About Ruian Hongyin Machinery Co., Ltd Service.

1. Purchase Service
Ruian Hongyin Company has a specialized and efficient working team. If you are new on the printing and packing area, some samples of your products shown to us will be appreicated, and we will give you professional suggestions of whole work.

2. Installation Service
Hongyin company will assigned 1 technician to coordinate installation, commissioning and training. Cost for return flight and suitable accommodation will be charged, and the allowance is USD100 per day.

3. Warranty Service
12 months limited warranty.
Starting from the date of machine arrival buyer's place excluding wear parts.
Shipping cost for easy broken parts to be replaced during warranty period have to be borne by the customer.

If you are interested in our machine, please feel free and contact me.
Contacter: Michael Rao
Tel: +86 15158704325
