Basic Info.

Model NO. SJ-PP Certification CE, ISO9001:2008 Transport Package Wrapping Film Specification CE, ISO9001: 2000 Trademark Changyin Origin China HS Code 84773090 Production Capacity 1000sets/Year

Product Description

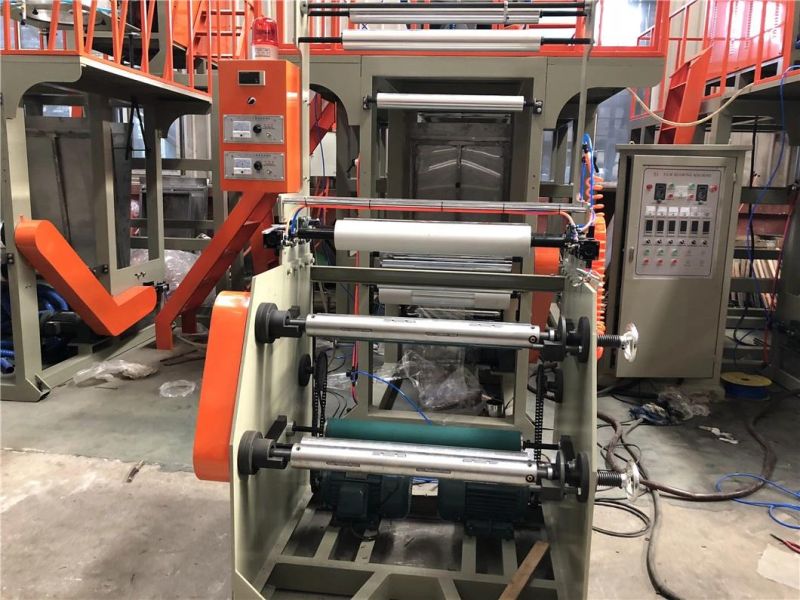

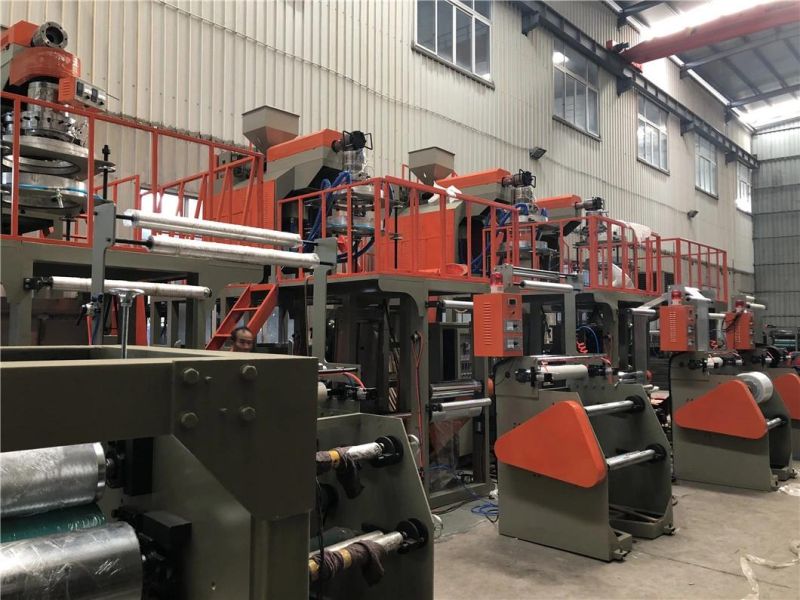

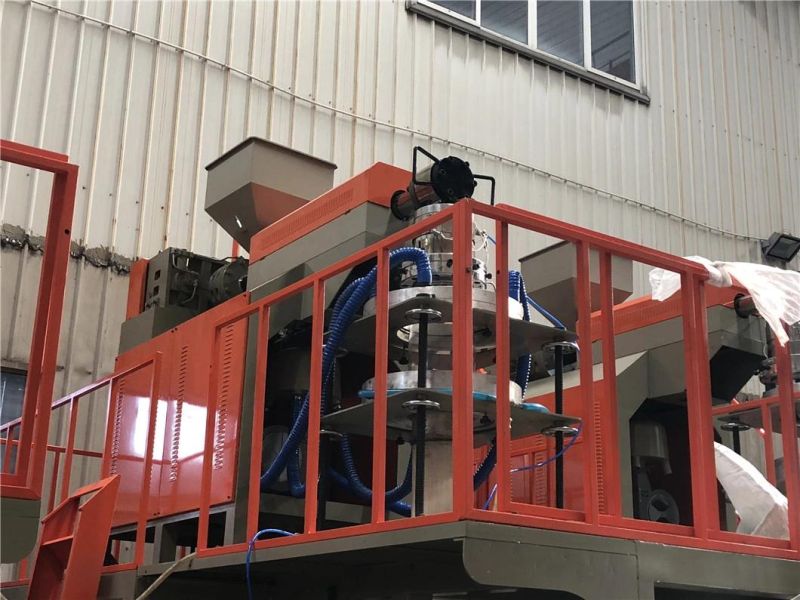

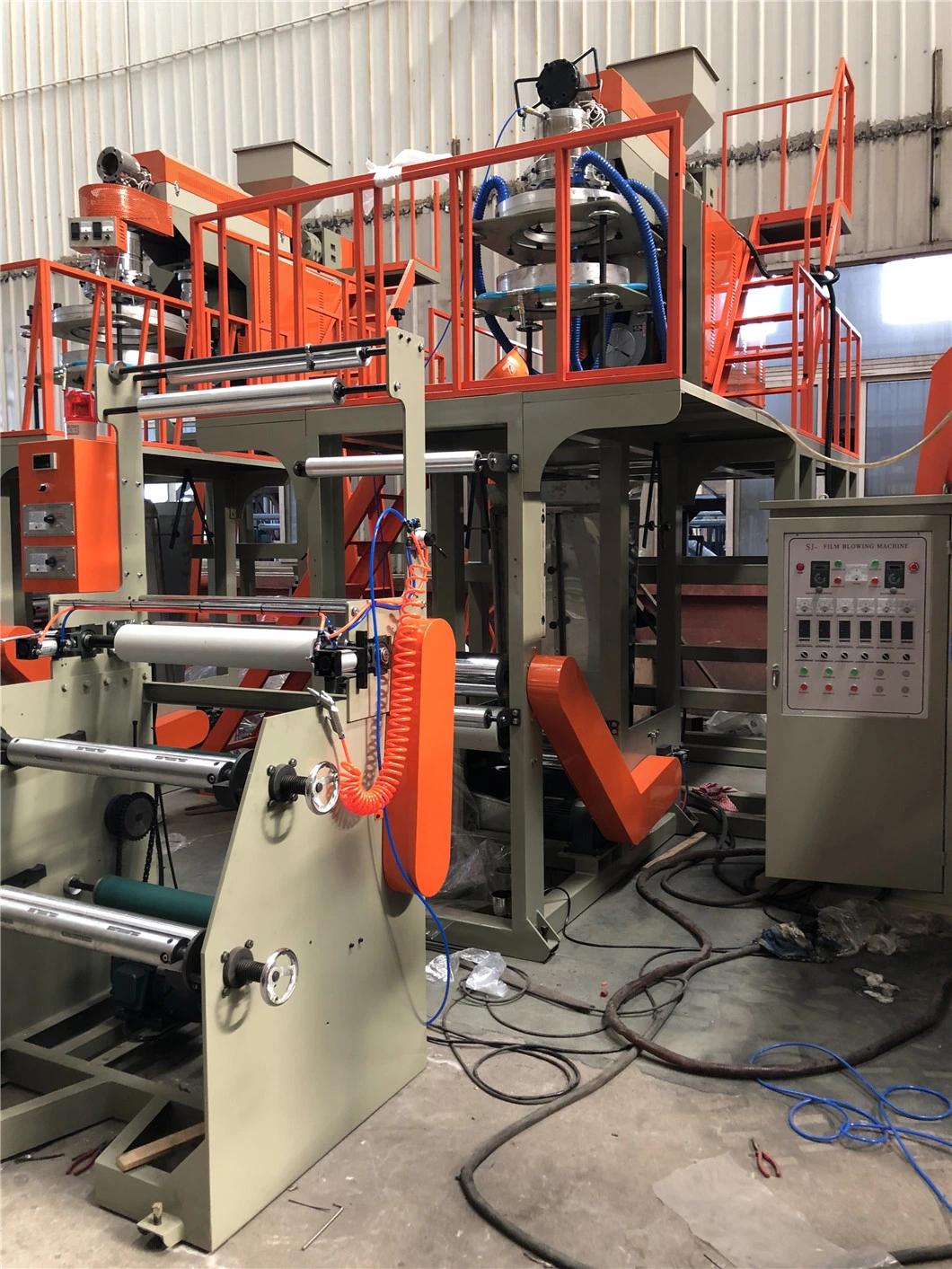

PP film blowing machine
Material: Polypropylene or PP

Model: SJ-PP45
Suitable Material: PP
Film width: 100-500mm
Film thickness: 0.03-0.11mm
Max Extrusion output: 30kg/hr
Screw diameter: φ 45
Screw L/D Length: 28: 1
Cylinder cooling: 370W x 2
Driving Motor: 11kw

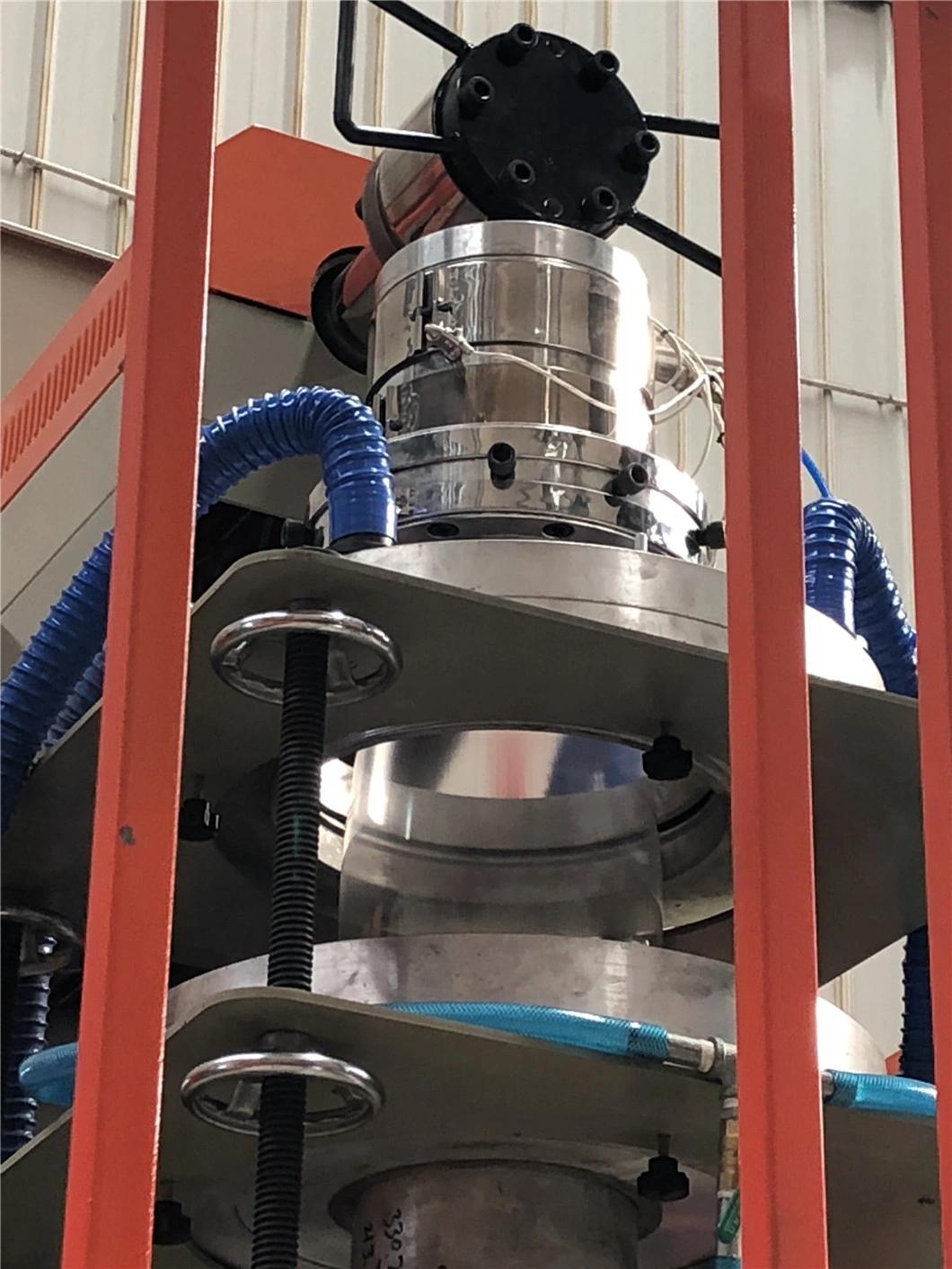

Die size: φ 150

Air blower: 1.5kw
Pinch Roller (Dia. Width): φ 165x550
Take-up speed: 5-60m/min
Take-up motor: 0.75kw
Winding speed: 5-60 m/min
Winding motor(n. M): 5
Outline diameter (L*W*H): 3.2*2.0*3.5m
Voltage: 380V, 3phase, 50Hz

Model: SJ-PP55
Suitable Material: PP
Film width: 100-500mm
Film thickness: 0.03-0.11mm
Max Extrusion output: 45kg/hr
Screw diameter: φ 55
Screw L/D Length: 28: 1
Cylinder cooling: 370W x 2
Driving Motor: 15kw
Die size: φ 250

Air blower: 1.5kw
Pinch Roller (Dia. Width): φ 165x650
Take-up speed: 5-60m/min
Take-up motor: 0.75kw
Winding speed: 5-60 m/min
Winding motor(n. M): 5
Outline diameter (L*W*H): 4.2*2.5*34m
Voltage: 380V, 3phase, 50Hz

Model: SJ-PP65
Suitable Material: PP
Film width: 200-800mm
Film thickness: 0.03-0.11mm
Max Extrusion output: 60kg/hr
Screw diameter: φ 65
Screw L/D Length: 28: 1
Cylinder cooling: 370W x 3
Driving Motor: 18.5kw
Die size: φ 300

Air blower: 2.2kw
Pinch Roller (Dia. Width): φ 165x850
Take-up speed: 5-60m/min
Take-up motor: 0.75kw
Winding speed: 5-60 m/min
Winding motor(n. M): 6
Outline diameter (L*W*H): 4.6*2.8*4.5m
Voltage: 380V, 3phase, 50Hz
