Basic Info.

Model NO. GL-IIA Drilling Way Compound Type Rotary Drilling Rig Item Gl-Iia Truck Mounted Drilling Rig Hole Diameter (mm) 90-1200 Hole Depth (M) 250 Run of Rod (M) 34 Drill Rod Diameter (mm) 60738995133 Drill Head Inside Diameter (mm) 36080120 Rig Mass (Kg) 9100 Drilling Technology Normaland Reverse Circulation for Both Mud and Air Down-The-Hole Hammers Middle-High-Pressure Air Drill Head Lifting Speed (M/S) 0.37 0.16 Usage Water Well Power Type Diesel Transport Package Seaworthy Packing Specification / Trademark Glorytek Origin Beijing, China

Product Description

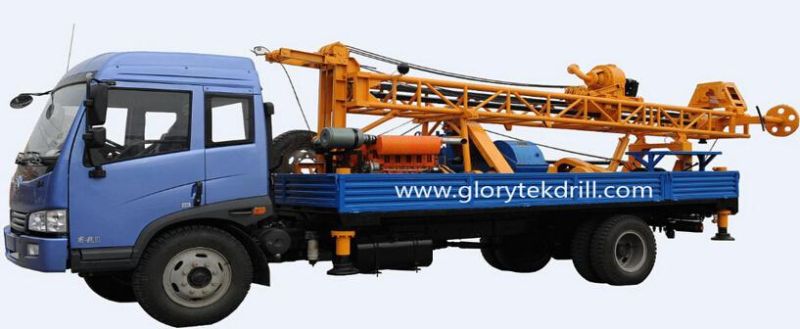

GL-IIA Truck Mounted Drilling Rig



Main Application

  Drilling wells for urban and rural life

  Drilling wells for agricultural irrigation and industries

  Drilling for geotechnical survey

   Drilling construction engineering holes

   Drilling geothermal pump wells

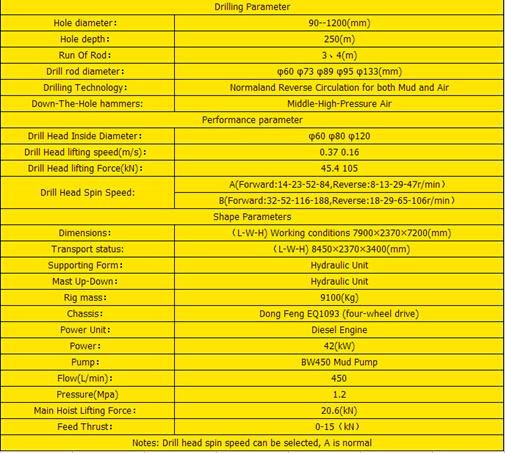

Main Specification
