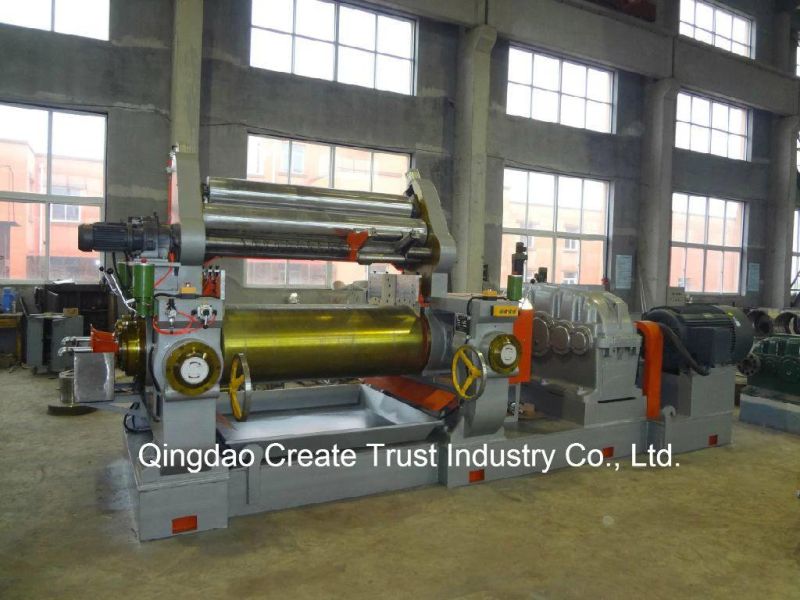

High Technical PVC Mixing Mill (TOP QUALITY)
Hebei Diacutex Diamond Tools Technology Co., Ltd.Base Info
Description
ModelXK-160 XK-250 XK-360 XK-400 XK-450 XK-550 XK-560 XK-660
Roll diameter mm 160 250 360 400 450 550 560-510 660
Roll working length 320 620 900 1000 1200 1500 1530 2130
Front roll linear speed m/min 9 16.3 16.7 19.3 21.8 22.5 27.2 28
Speed ratio of rolls 1:1.35 1:1.1 1:1.25 1:1.27 1:1.27 1:1.2 1:1.2 1:1.24
Max roll space mm 4.5 8 10 10 12 16 15 0.5-15
Compound feeding capacity kg 1-2 10-15 20-25 18-35 50 50-65 50-65 165
Motor power kW 5.5 18.5 30 45 55 110 90 240
Dimensions
L mm 1133 2722 4200 4920 5405 6646 6270 7280 W mm 920 1115 1780 1780 1740 2736 2282 3400 H mm 1394 1345 1760 1800 1790 2105 2000 2530 Gross weight t ~2 ~3.2 ~6.5 ~8 ~11.4 ~22 ~22.5 ~49
Service of us:
The production of all products are follow ISO9001:2008 organization system, from raw material processing to assembe and finally test running. even the packing, and delivery. Also we track the use of machine,installation, products producing technical ect.
All we do is for longterm cooperation , " CREATE TURST" !
Roll diameter
Roll working length
Front roll linear speed
Speed ratio of rolls
Max roll space
Compound feeding capacity
Motor power
Dimensions
Service of us:
The production of all products are follow ISO9001:2008 organization system, from raw material processing to assembe and finally test running. even the packing, and delivery. Also we track the use of machine,installation, products producing technical ect.
All we do is for longterm cooperation , " CREATE TURST" !
