28/1
 Screw   Material
 38CRMOALA
 Cylinder Material
 38CRMOALA
 Cylinder Cooling
 370 w × 2
 370w × 2
 Driving   Motor
 15kw
 18.5kw
 Temperature Control
 3+3
 3+3
 Average Power-consume
 20kw
 28kw
 Type of die

 Die size mm
 70
 100
 Temperature   control
 2
 Air     ring
 1
 Air   blower
 2.2kw
 Center steady   stick(HD)
 1
 Take-upunit

 Roller   width
 165 × 650
 1658 × 50
 Take-up   speed
 10 -100m /min
 10 -100m /min
 Take-up motor
 0.75kw
 1.5kw
 Height   adjustable   type
 700mm
 700mm
 Winding   unit

 Type
 Surface friction type
 Winding   motor
 6kw
 6kw
 Wingding   speed
 100m /min
 100m /min
 Outline   diameter(L*W*H)
 5.0 × 2.0 × 4.1
 5.5 × 2.0 × 4.1












Single Screw Film Blowing Machine


Main Technical Parameters For Plastic Film Blow Machine

 BH-SJ60BH-SJ65Film Width (mm)200-600300-800400-1000600-1300Film Thickness(mm)HD:0.009-0.08          LD:0.02-0.15Max.Extrusion Output(HD)35kg/hr40kg/hr65kg/hr70kg/hr      (LD)45kg/hr45kg/hr70kg/hr75kg/hrScrew DiameterΦ45Φ50Φ55Φ65Screw L/D Length28:1Screw MaterialSACM-645/38CRMOALAOverall dimension
(L×W×H) mm5000x2000x45005000x2200x50005000x2500x55005000x2800x6500

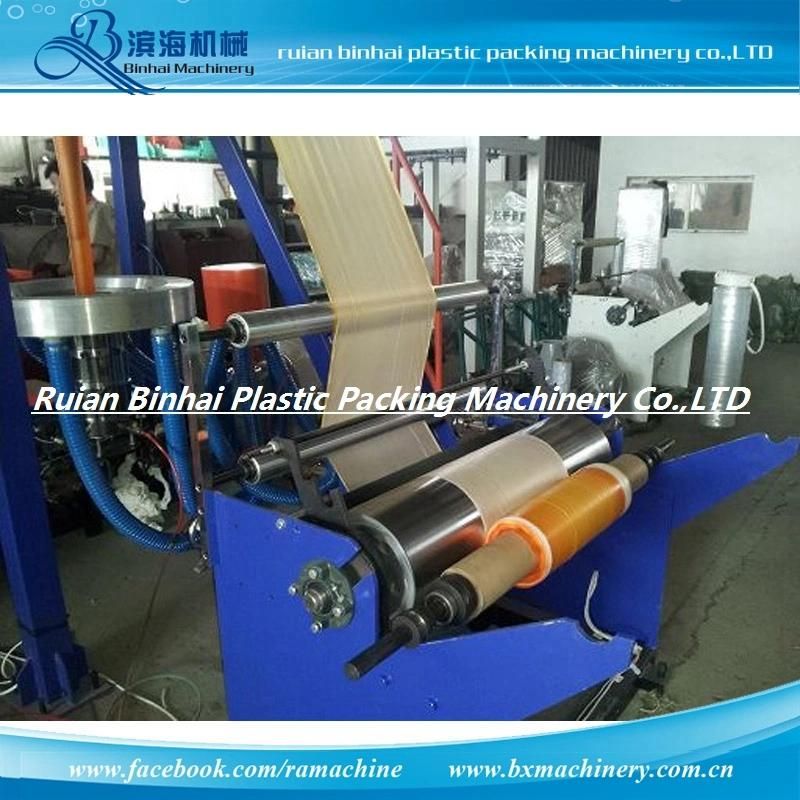

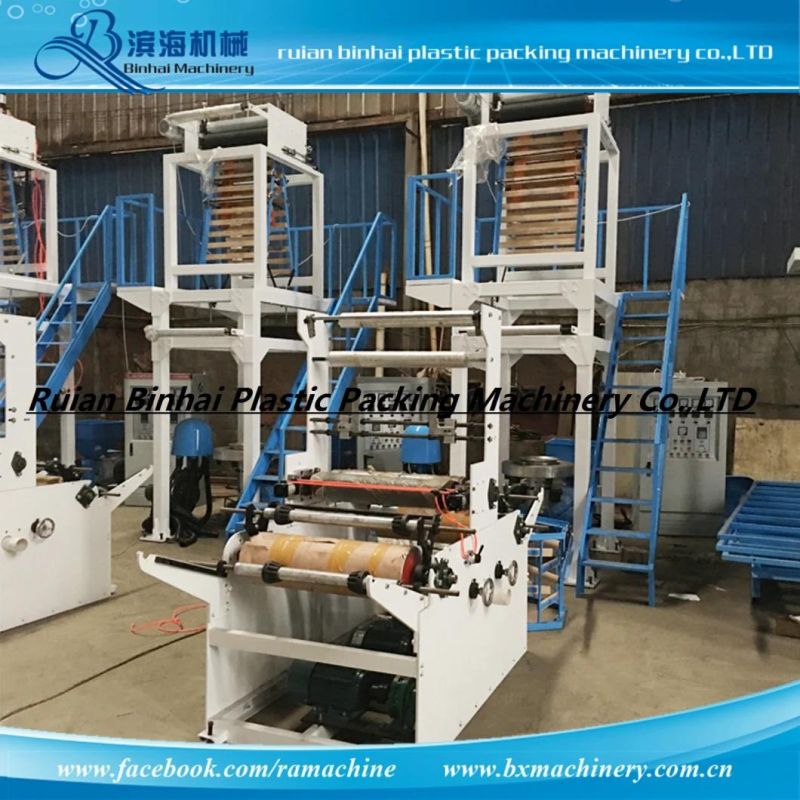

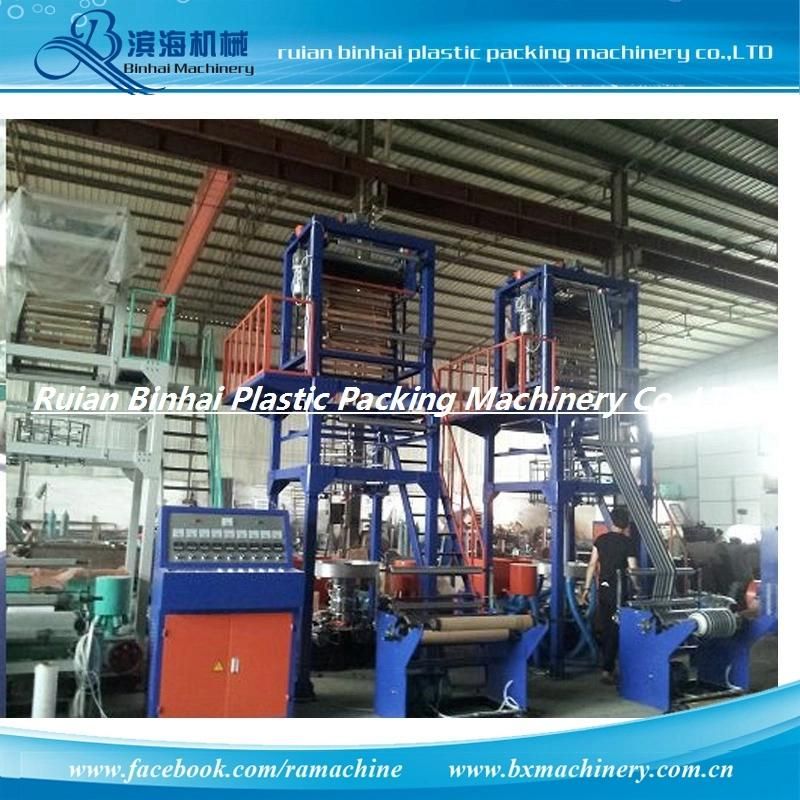

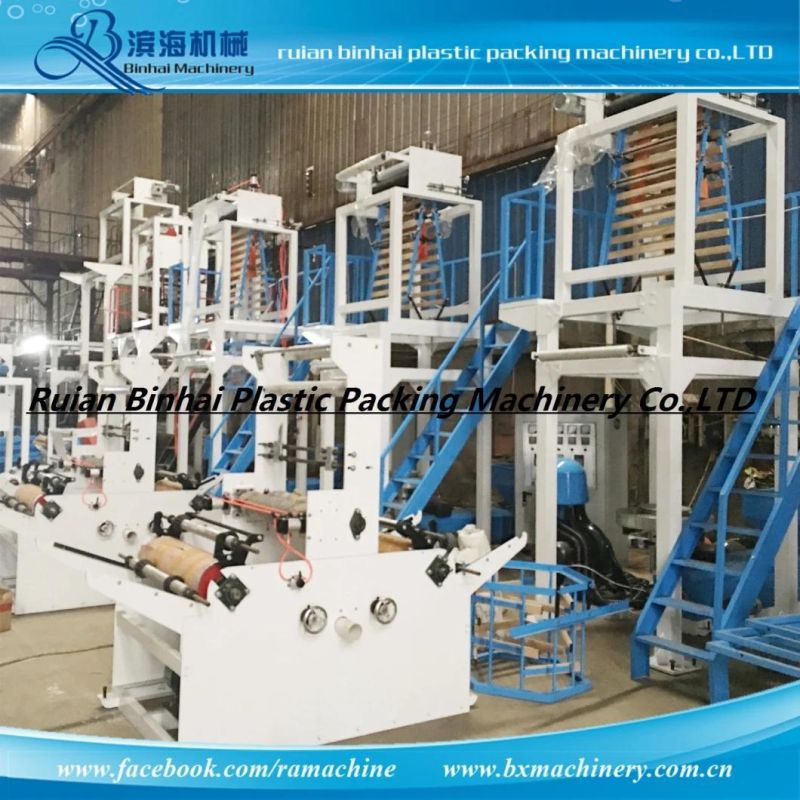

Pictures are 800mm , 50 # Screw For HDPE Film, LDPE Film Blowing Machine .
----Make Tube Film Rolls

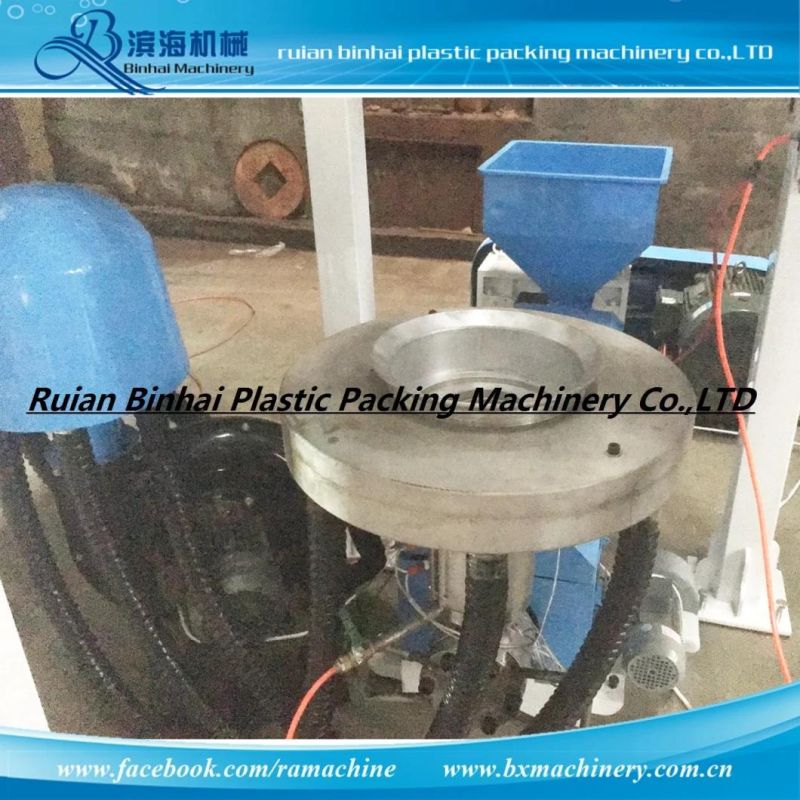

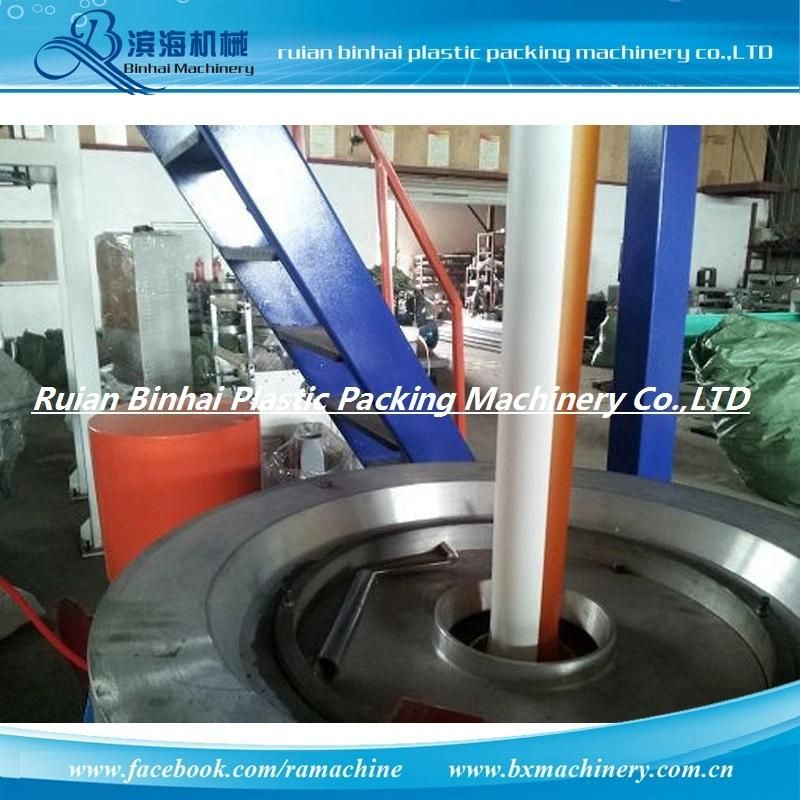

----If your Film is HDPE , Suggest Rotary Head Die (Optional )

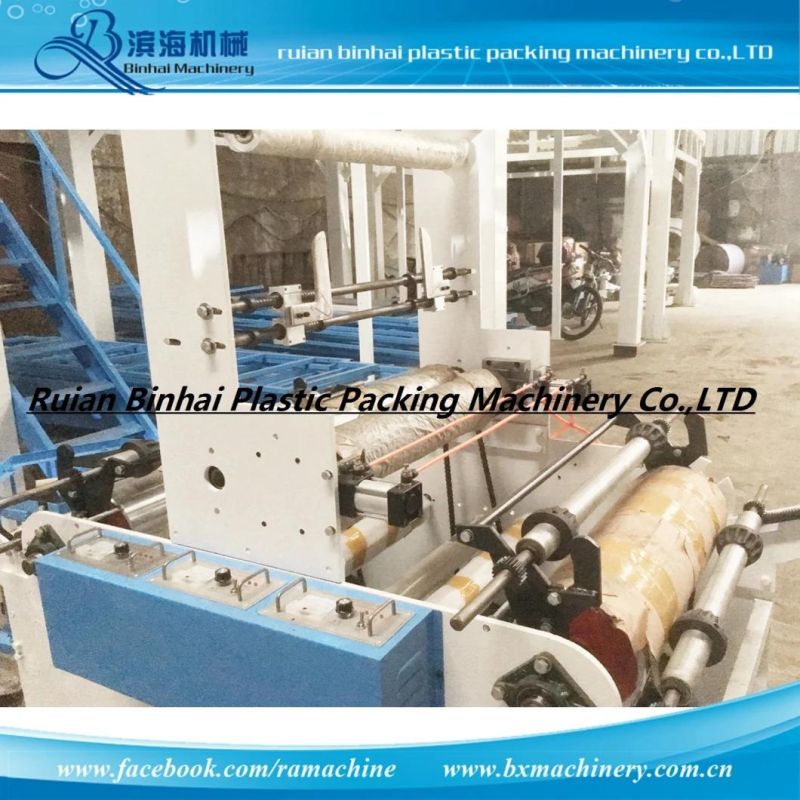

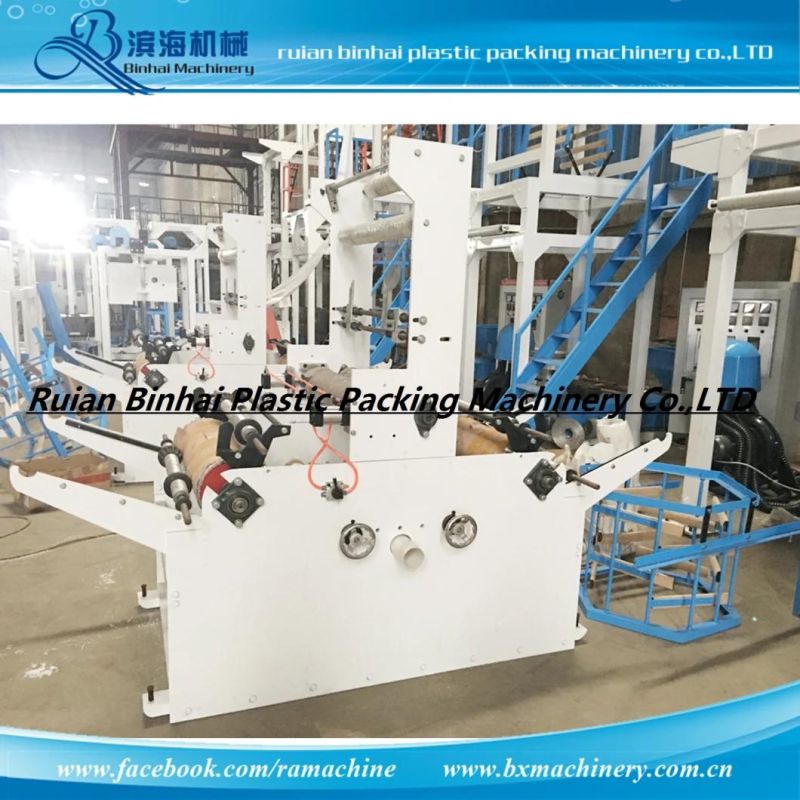

---If your film is Single Layer For Side Seal bags, suggest Double Winders+Slitter. (Optional )
-- If Your Film need Printing , need Corona treatment . (Optional)

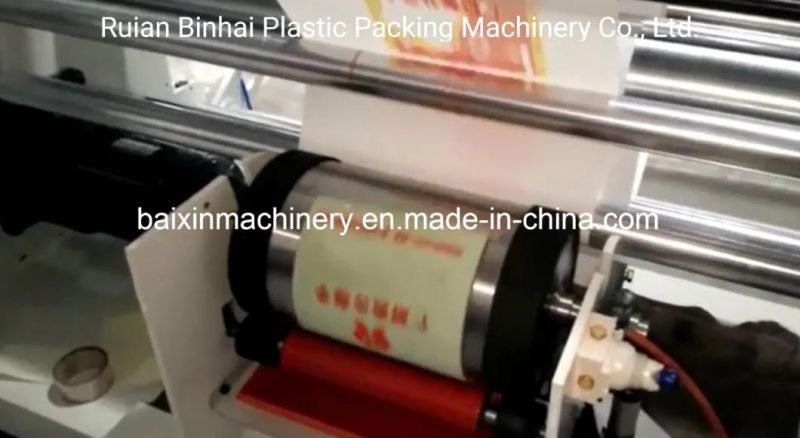

 This is mini printer we installed on Film blowing machine.

  ---Single Color
----- 300mm














Welcome to click learn more information from AMY  Yu , thanks
