Basic Info.

Model NO. SJSZ-51 Customized Customized Condition New After-sales Service Installing in Customer′s Factory Length(M) 20 Width(M) 2 Height(M) 3.5 Contactor Siemens Converter ABB Relay Omron Temperature Controller Delta Product PVC Pipe Extrusion Equipment Transport Package Wooden Packing Specification 50-110mm Trademark Trusty Origin Qingdao HS Code 84772090 Production Capacity 20 Sets/Month

Product Description

Low Fluid Resistance Sjsz-51 PVC Water Pipe Production extrusion Equipment Manufacturer

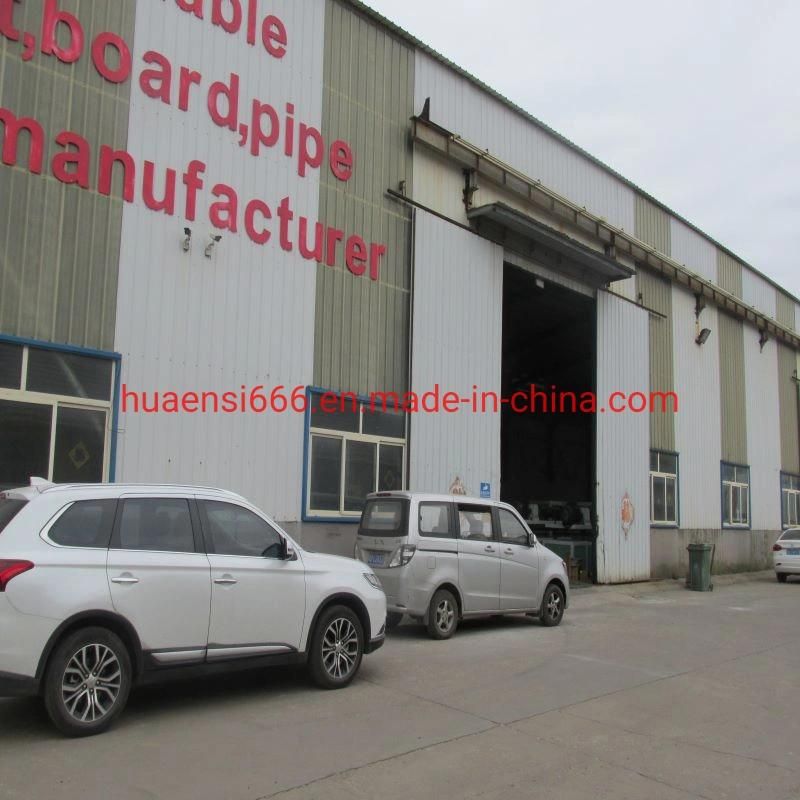

1.Company Profile Qingdao Trusty Plastic Machinery Company develops new products constantly, the products sell well all over the country,so we  won the trust of customers from all sides.The products are in the leading position.Our company always adhere to the "integrity-based, quality, innovation and development" theme of the purpose, adhere to quality commitment to the customers.
 2.Production Introduction

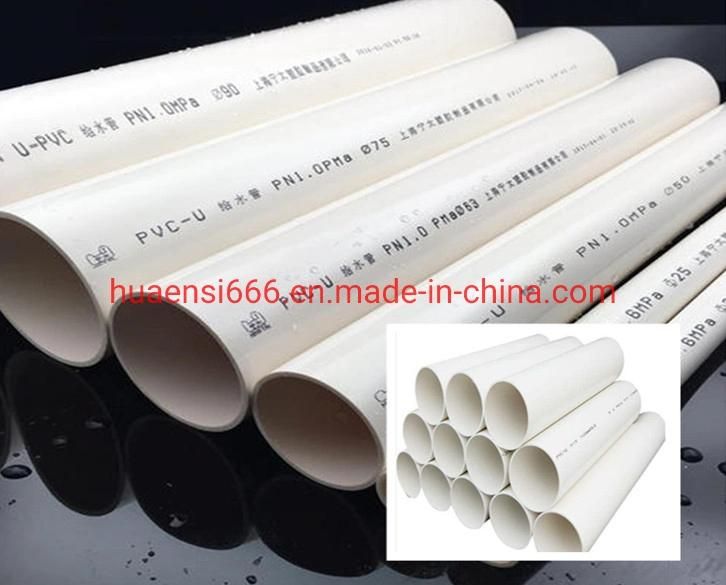

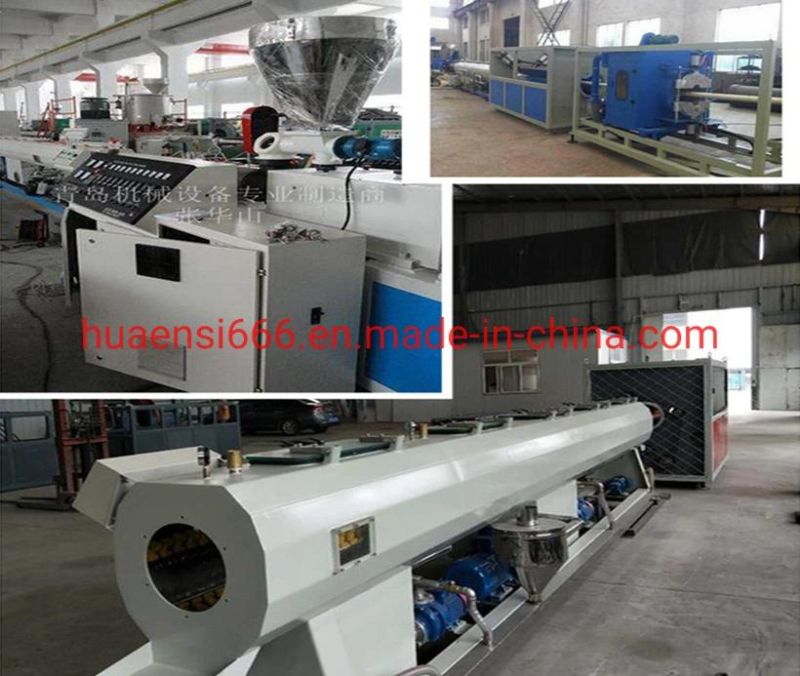

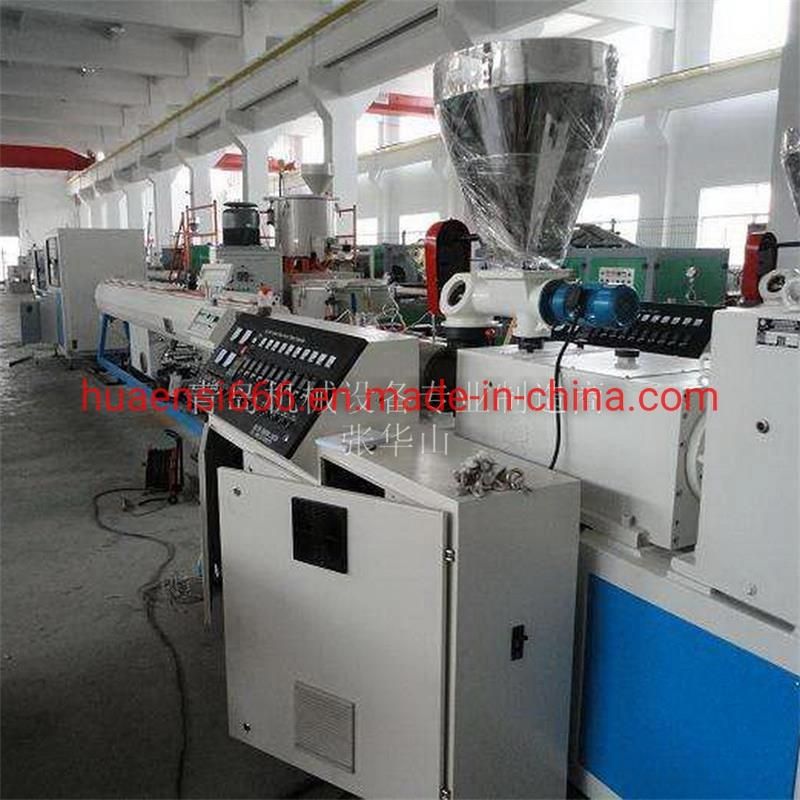

 PVC water supply pipe extrusion equipment is mainly used for producing the pipes,which diameter from 50mm to 110mm.This production line consists of mixer,feeder,twin screw extruder,extruding mould,shaper , vacuum tank, haul-off with caterpillar,automatic cutter, roll over table,crusher and mill.

The high-quality haul off with caterpillar pulls the pipe at a constant speed.The automatic cutter saves the labour.This production line produces pipes with  reliable and guaranteed quality .

3.Machine List for PVC pipe extrusion equipment

Name	Quantity(set)
Mixer300/600	1
Feeder	1
Twin screw extruder	1
Extruding mould	1
Shaper	1
Vacuum tank	1
Haul off with caterpillar	1
Automatic cutter	1
Roll over table	1
Crusher	1
Mill	1

4.Technical Parameter

Model	SJSZ-51
Total installation power(kw)	125
Transformer (kw)	100
Actual electricity consumption(kw)	50
Capacity (kgh)	120-140
Line speed (mmin)	2-5
Pipe Diameter(mm)	50-110
Motor Power(kw)	22

5.PVC pipe making Process

Mix the material→Feed→Extrude→Customize→Haul off→Cut→Stack the material →Crush→Mill

6.After sales service
(1)After the machines are finished, the seller will test all machines before shipment. If the buyer can not come to test the machine, we will test the machines and send the sample to buyer.
(2)After shipment, the seller will send one or two technicians to the buyer' s factory to help the buyer install the machine and train workers for buyer.
(3)We will supply all electricity drawing, machine installation drawing.
(4)When make shipment, we will put some spare electricity parts for free, like the barrel hearers, thermcouples, breakers, relays, and other items which is easier broken.
