Two-Way Movable Dual Head Auto Feeding Fabric CO2 Laser Cutting Machine 300W 1600*1000mm
Shenzhen Fortress Industry Co., Ltd- Warranty：1 Year
- Application：Home Appliance, Environmental Equipment, Petroleum Machinery Manufacturing, Agriculture Machinery, Textile Machinery, Food Machinery, Aerospace Industry, Automotive Industry, Shoemaking Industry, Woodwork Industry, Advertising Industry
Base Info
- Model NO.：UG-1610L-2
- Cooling System：Water Cooling
- Technical Class：Continuous Wave Laser
- Applicable Material：Nonmetal
- Structure Type：Lathe Bed
- Laser Classification：Gaseous Laser
- Laser Technology：Laser Control Fault Cutting
- Working Area：1600*1000mm
- Rated Laser Power：Slw Brand, 300W, Folding CO2 Laser Tube

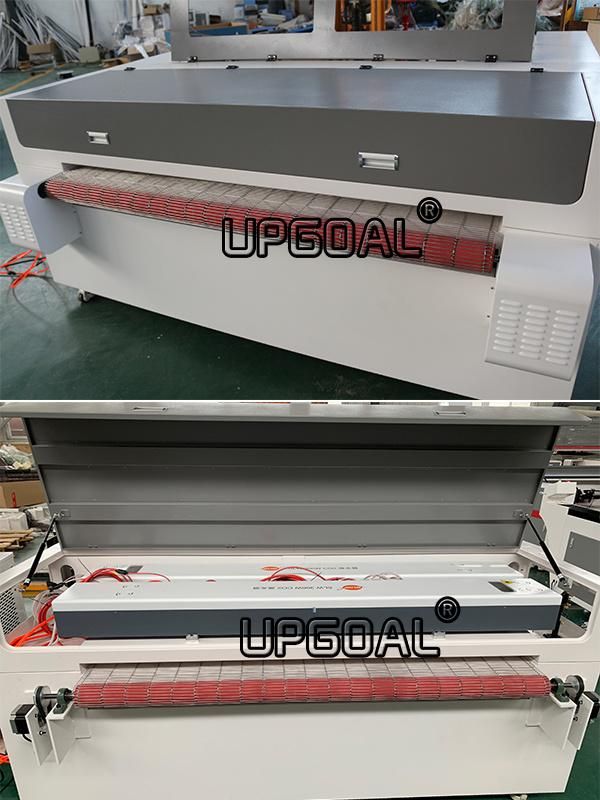

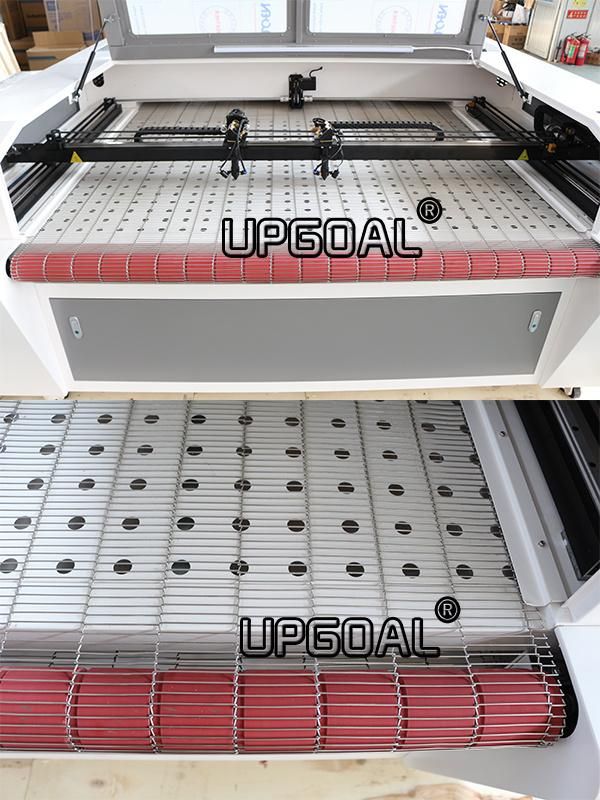

- Working Table：SUS304 Stainless Steel Strip Auto Feeding Working
- Driver and Motor Type：Leadshine Three Phases Stepper Motor and Driver
- Guide Rail：Linear Square Guide Rail, Csk, Taiwan
- Transmission Type：3m Belt Transmission
- Laser Tube：Dual, Two-Way Movable Type
- Control System：Ruida Rdc 6445g
- Software：Rdworks V8
- Cooling：Cw-6000 Industrial Chiller
- Deviating Correcting：Optional

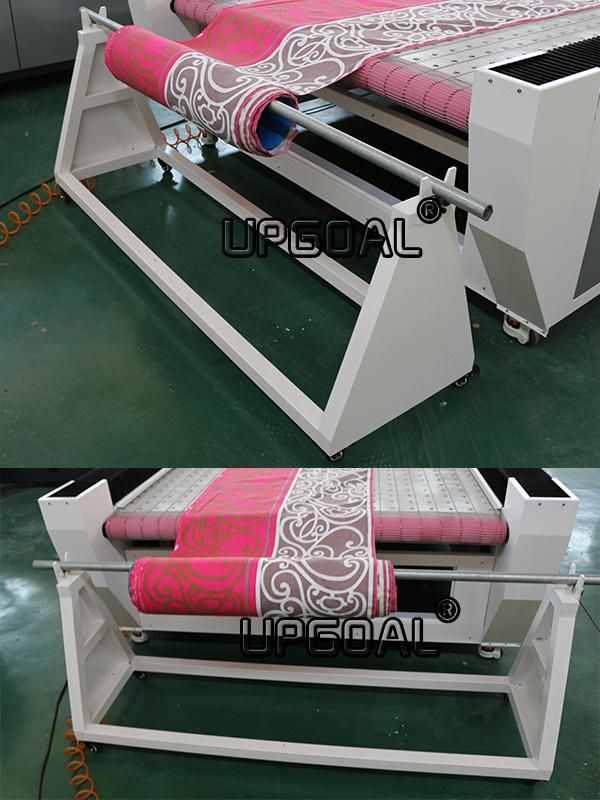

- Compression Roller：with
- Cutting Speed：0-10000mm,Min
- Transport Package：Plywood Case
- Specification：232*169*129cm, 600kgs, one plyood case
- Trademark：UPGOAL
- Origin：China
- HS Code：8456110090
- Production Capacity：150set Per Month
- Package size per unit product：232.00cm * 169.00cm * 129.00cm
- Gross weight per unit product：600.000kg
Description

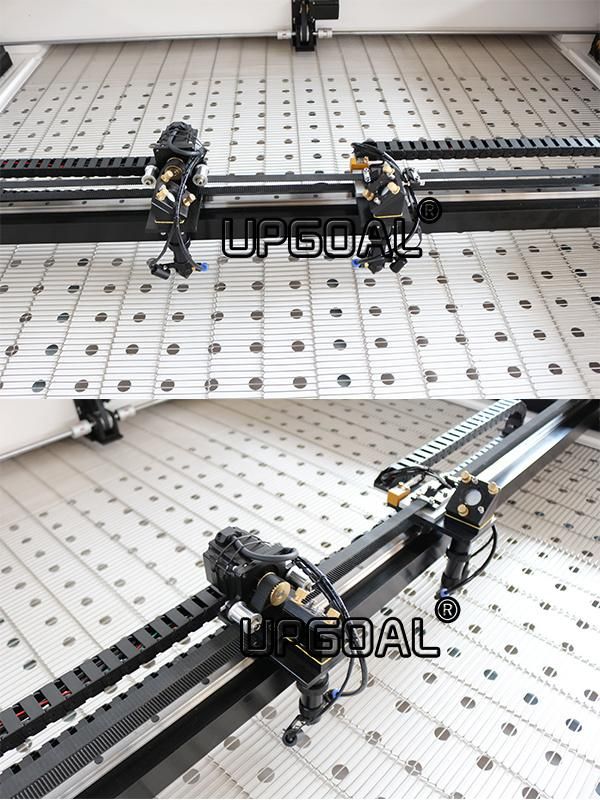

Laser Head
Newly design, More in according with mechanical engineering. Safe and Durable. Simple Operation with high engraving/cutting speed and high laser power convert ratio.
Two-way moval dual Co2 laser head, automatic adjusting distance, two head working together, much improving working efficiency.
Laser Tube
Adopted high quality 2 pcs SLW brand 300W folding Co2 laser tube, long working time time and stable
Beam Path System
Adopting imported focus lens with high lusciousness and mirror with high reflective ensure stable power transference.

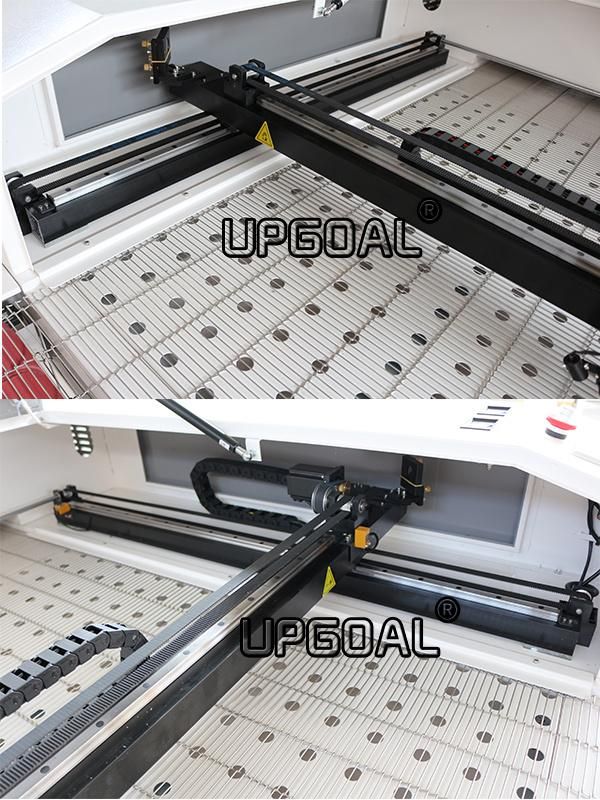

Motion System
Imported High precision,low friction force and stand wear and tear CSK Taiwan linear square guide rails and blocks with 3M belt ensured stable transmission, lower noise.

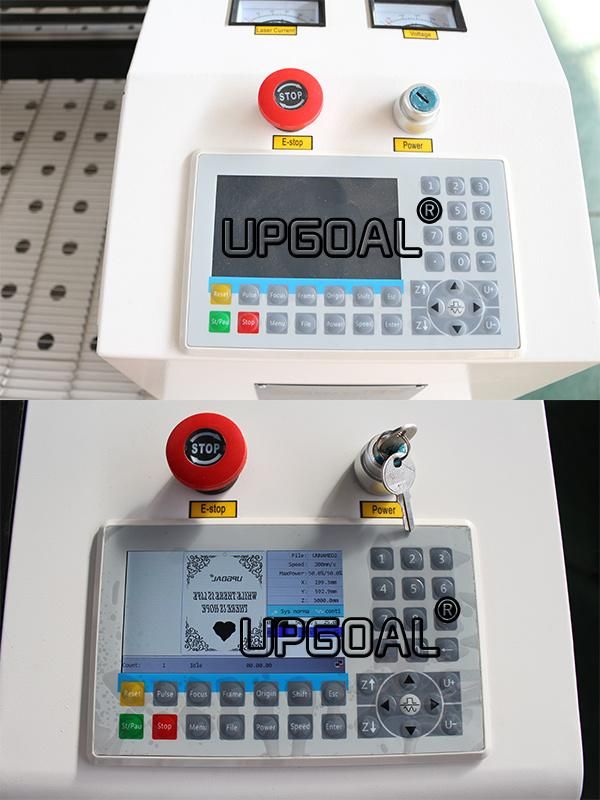

Operation System
Advanced USB port RuiDa RDC 6445G special auto feeding control system with large inner memory device and Fast rectilinear cutting and Optimized shortest path function, Greatly improved the working efficiency .
With full-process automatic laser power attenuation compensation , ensuring the performance consistency of engraving/cutting. The High speed motion control program with pre-buffering function enhances productivity more.
Completely compatible with various CAD&CAM softwares such as AuotCAD, CorelDAW, Tajima embroidery software, etc supporting the desgins directly exporting. With advanced Color management and defining the working turns with different colors , All or a part work can done in one time.Rationalized placement of the electronic parts , optimized heat dissipation effect.

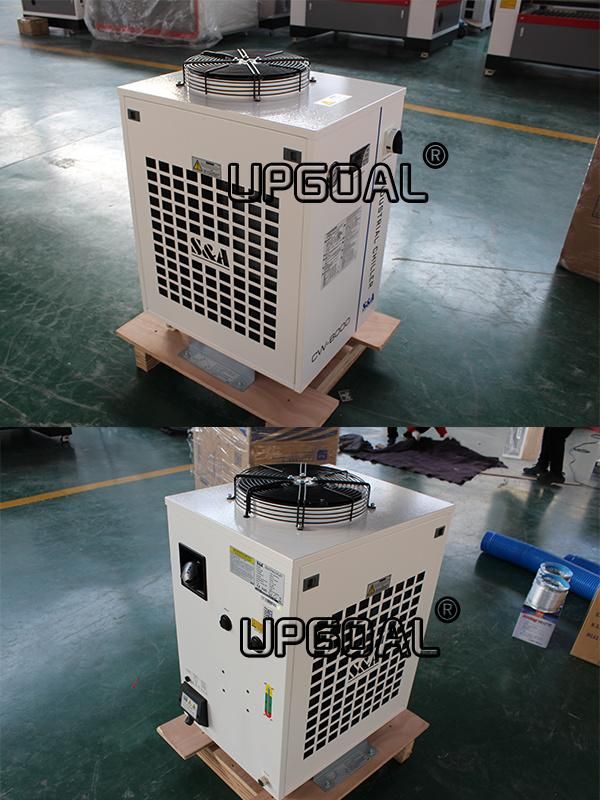

Cooling system
Industrial chiller CW-6000, cooling the glass laser tube, ensuring long time continious working.
Technical Parameters
Effective working area | 1600*1000mm |
Laser Type | Co2 sealed-off laser tube |
Laser tube power | SLW brand, 300W, folding Co2 laser tube , 2 pcs |
Laser head | Two-way movable two laser head |
Working table | SUS304 stainless steel strip auto feeding working table |
Driver mode | 3 phases stepper motor and driver,Leadshine brand |
Guide rail | Linear square guide rail ( CSK,Taiwan) |
Transmission | 3M belt transmission |
Control panel | English |
Laser output control | 1-100% software setting |
Engraving speed | 0-60000mm/min |
Cutting speed | 0-10000mm/min |
Control system | RuiDa RDC 6445G |
Control software | RDWorks V8 |
Design software when delivery | CorelDraw |
Control panel | DSP offline |
Resolution accuracy | < 0.01mm |
Location precision | < 0.01mm |
Highest scanning accuracy | 2500DPI |
Type of cooling | Industrial chiller CW-6000 |
Water protection system | Yes |
Blow-off system | air blower( 3sets) and air pump |
Biggest scanning accuracy | 2500DPI |
Working temperature | 0-45 °C |
Operating humidity | 5-95% (without condensed water) |
Voltage | AC 220V /110V, 50/60Hz, single phase |
Supporting picture format | PLT,DST,DXF,BMP, DWG,AI,LAS,etc |
Certificate | CE/FDA |
Reference Working Videos
https://youtu.be/L5eo15r8bZg
Applications
Professional for clothing proofing, large-format cutting, sofa leather fabric, garment leather carving, cutting, hollowing, trademark cutting, plush toy cutting, model making industry, etc.
Applicable materials:
Apparel textile fabrics, flexible textile fabrics, oxford cloth, flame retardant fabrics, nylon silk, air mold cloth, canvas, PC/PVC composite materials, filter cloth bags, silk, cotton, polyester, decorative, chemical fiber, pure linen and other fabrics and leather , artificial leather, soft leather and other leather materials.
