• Model NO.：UG-1390ML
• Laser Technology：Laser Control Fault Cutting
• Total Working Area：1300*900mm
• Rated Laser Power：Reci W6 130W
• Working Table：Knife Strip
• Driver and Motor Type：Yako Three Phases Stepper Motor and Driver
• Guide Rail：Linear Square Guide Rail
• Transmission Type：Belt Transmission
• Control System：Leetro Mpc6585
• Software：Lasercut 6.1
• Cooling：Industrial Chiller Cw-5000
• Oxygen Control System：Has
• Transport Package：Plywood Case
• Specification：2010*1590*1280mm, 400kgs
• Trademark：UPGOAL
• Origin：Jinan City, Shandong Province, China
• HS Code：8456110090
• Production Capacity：250set Per Month

Basic Info.

Model NO. UG-1390ML Laser Technology Laser Control Fault Cutting Total Working Area 1300*900mm Rated Laser Power Reci W6 130W Working Table Knife Strip Driver and Motor Type Yako Three Phases Stepper Motor and Driver Guide Rail Linear Square Guide Rail Transmission Type Belt Transmission Control System Leetro Mpc6585 Software Lasercut 6.1 Cooling Industrial Chiller Cw-5000 Oxygen Control System Has Transport Package Plywood Case Specification 2010*1590*1280mm, 400kgs Trademark UPGOAL Origin Jinan City, Shandong Province, China HS Code 8456110090 Production Capacity 250set Per Month

Product Description

Economic 1390 Size Metal and Non Metal Co2 Laser Cutting Engraving Machine





Features

1. Welding machine bed with quenching treatment to remove away the stress .Milled by Large precision gantry milling machine ensured the accuracy.

2. Equipped with metal&non-metal cutting head. Stainless steel, carbon steel, acrylic and wood can be cut.



3. Reci W6 seal Co2 laser tube, strong cutting ability and long working life.



4. Adopting imported focus lens with high luminous and mirror with high relativity ensure stable power transference and laser beam consistency.

5. Adopt 3 phases Yako stepper driver with high dynamic response performance and loading capacity.

6. Belt transmission, high speed and precision with smooth cutting surface.



7. Rationalized placement of the electronic parts. Optimized heat dissipation effect. Ensured system stability and anti jamming capability.

8. With advanced embedded Leetro  DSP real-time laser cutting control system, running faster, laser intensity and speed automatic matching, perfectly realized the consistency of the corner cutting effect high strength cutting table, applicable for metal and non-metal cutting.



9. Industrial water chiller CW-5000 is equipped to ensure the machine can work last long time.

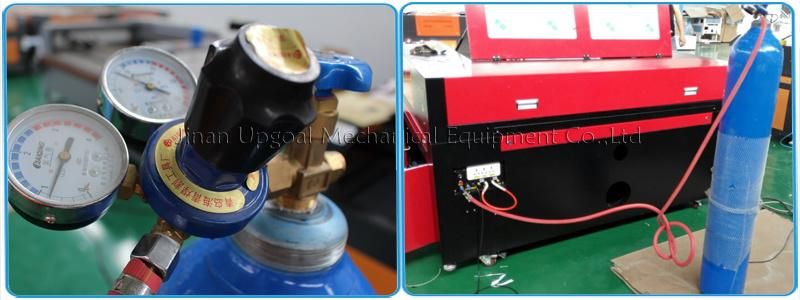

10. Has the oxygen control system when cutting metal materials.





Technical Parameters


Effective working area	1300*900mm
Laser Type	Co2 sealed-off laser tube

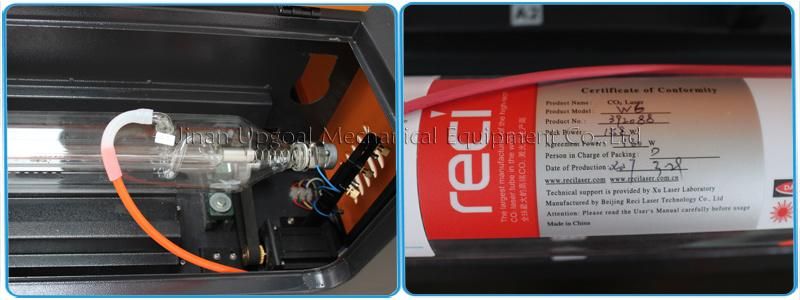

Laser tube power	W6 series, Reci, Beijing (Rated power: 130W, max. Power: 160W)

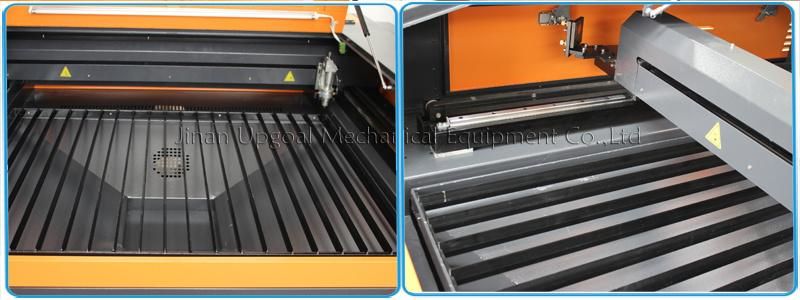

Working table	High strength knife strip
Oxygen control system	Yes

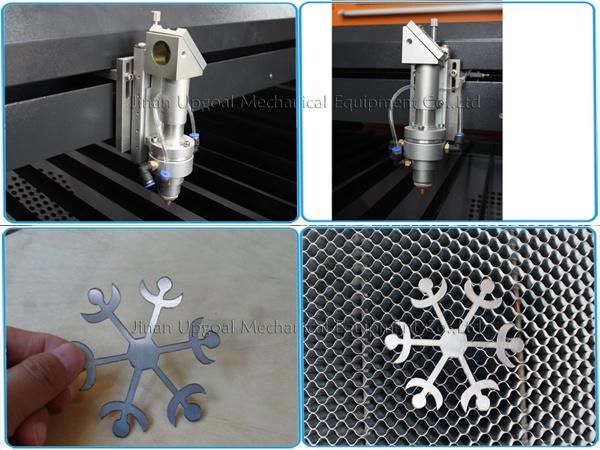

Laser head	For metal and non-metal
Driver mode	3 phase stepper motor and Driver, Yako brand
Guide rail	Linear square guide rail ( Hiwin,Taiwan)
Transmission	Belt transmission

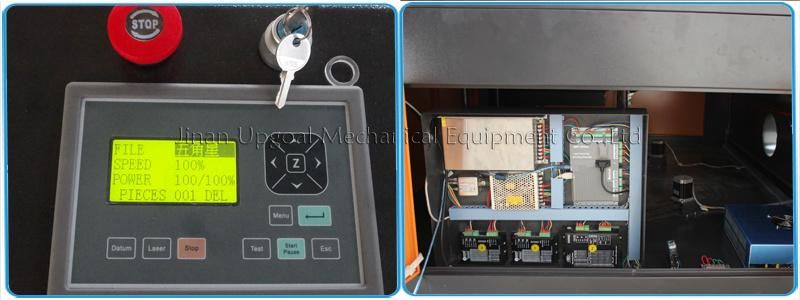

Control panel	English
Laser output control	1-100% software setting
Engraving speed	0-60000mm/min
Cutting speed	0-10000mm/min
Control system	Leetro MPC6585
Control software	Lasercut 6.1
Design software when delivery	CorelDraw
Control panel	DSP offline
Resolution accuracy	< 0.01mm
Location precision	< 0.01mm
Biggest scanning accuracy	2500DPI
Blow-off system	Air pump for the laser head Air blower for the machine
Working temperature	0-45 °C
Operating humidity	5-95% (without condensed water)
Voltage	AC 220V±10%, 50/60Hz, single phase or AC 110V±10%, 50/60Hz, single phase
Supporting picture format	PLT,DST,DXF,BMP, DWG,AI,LAS,etc
Certificate	CE/FDA

Applications

Applied to a certain of metal and non-metal materials Professional engraving/cutting such as stainless steel,carbon steel,wood,organic glass,plastic, cloth.

Widely used in the industry of Advertising, craft gift, shose, toys, garment, model, construction, package, paper and computerized embroidery &lipping.

Reference Sample Photos





Reference Working Videos
