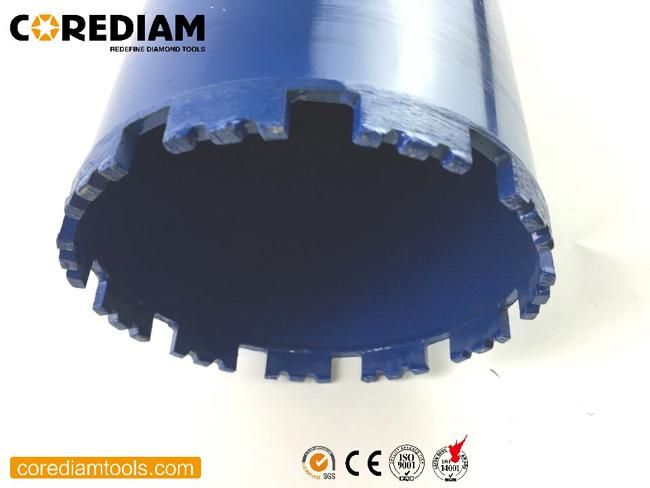

Brazed Diamond Reinforced Concrete Core Drill in 102mm/Diamond Tool
Pinghu Kaixin Plastic Industry Co., Ltd.- Type：Core Drill
- Usage：Masonry Drilling, Reinforced Conrete Drilling
- Manufacturing Technology：Copper Brazed
- Segment Height：10mm
- Transport Package：Carton, Case, Pallet
- Specification：102x10x450mm
Base Info
- Model NO.：CWDE
- Trademark：COREDIAM
- Origin：China
- HS Code：82071910
- Production Capacity：2000 Pieces Per Month
Description
Basic Info.
Model NO. CWDE Trademark COREDIAM Origin China HS Code 82071910 Production Capacity 2000 Pieces Per MonthProduct Description
1. introductionThis type of core drill is copper brazed, it can be widely used in drilling concrete, reinforced concrete, masonry with superior efficiency. The segment sharp is great wall segments. It can be installed on Stand Core Driller, Hand-Held Drillers. The quality level is standard.
2. Features
Manufacturer technology: copper brazed
Suitable: wet drilling concrete, reinforced concrete, masonry with superior efficiency.
Advantage: very good sharpness achieve fast drilling, especially very fast when cutting steels meanwhile, wet core drill have a reasonable lifespan.
3.Specification
| Item No. | Diameter | Segment Height | Arbor | Effective Length |
| CWDE02545010 | 25mm | 10 | 1 1/4"-7 | 450mm |
| CWDE03245010 | 32mm | 10 | 1 1/4"-7 | 450mm |
| CWDE03645010 | 36mm | 10 | 1 1/4"-7 | 450mm |
| CWDE04245010 | 42mm | 10 | 1 1/4"-7 | 450mm |
| CWDE05245010 | 52mm | 10 | 1 1/4"-7 | 450mm |
| CWDE06245010 | 62mm | 10 | 1 1/4"-7 | 450mm |
| CWDE06645010 | 66mm | 10 | 1 1/4"-7 | 450mm |
| CWDE07245010 | 72mm | 10 | 1 1/4"-7 | 450mm |
| CWDE07645010 | 76mm | 10 | 1 1/4"-7 | 450mm |
| CWDE08245010 | 82mm | 10 | 1 1/4"-7 | 450mm |
| CWDE09245010 | 92mm | 10 | 1 1/4"-7 | 450mm |
| CWDE10245010 | 102mm | 10 | 1 1/4"-7 | 450mm |
| CWDE11245010 | 112mm | 10 | 1 1/4"-7 | 450mm |
| CWDE12745010 | 127mm | 10 | 1 1/4"-7 | 450mm |
| CWDE13245010 | 132mm | 10 | 1 1/4"-7 | 450mm |
| CWDE15245010 | 152mm | 10 | 1 1/4"-7 | 450mm |
| CWDE16245010 | 162mm | 10 | 1 1/4"-7 | 450mm |
| CWDE17245010 | 172mm | 10 | 1 1/4"-7 | 450mm |
| CWDE18245010 | 182mm | 10 | 1 1/4"-7 | 450mm |
| CWDE20045010 | 200mm | 10 | 1 1/4"-7 | 450mm |
| CWDE25045010 | 250mm | 10 | 1 1/4"-7 | 450mm |
| CWDE30045010 | 300mm | 10 | 1 1/4"-7 | 450mm |
| CWDE35045010 | 350mm | 10 | 1 1/4"-7 | 450mm |
4.Delivery time
2 weeks for samples after order confirmed.
3 weeks for batch order after payment confirmed.
5.Corediam service
We accept customized lengths and segments for wet core drills.
Also, we help to design the total solution of core drilling projects.
6. Packing and Delivery
Core drill barrel quality control system

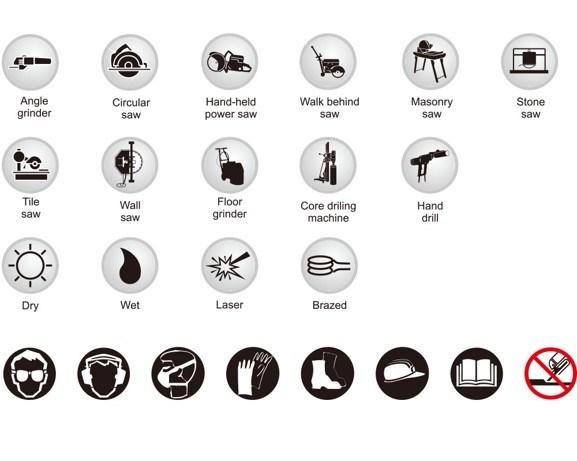

Type of equipment and safety symbol
Corediam sales network
