• Model NO.：CGLA
• Application Equipment：Handheld Power Saw, Floor Saw, Masonry Saw
• OEM Service：Available
• Customized：Customized
• Transport Package：Carton, Pallet
• Specification：230x10x22.23mm
• Trademark：Corediam
• Origin：China
• HS Code：82023910
• Production Capacity：500PCS,Day
• Package size per unit product：25.00cm * 25.00cm * 5.00cm
• Gross weight per unit product：2.000kg

Basic Info.

Model NO. CGLA Application Equipment Handheld Power Saw, Floor Saw, Masonry Saw OEM Service Available Customized Customized Transport Package Carton, Pallet Specification 230x10x22.23mm Trademark Corediam Origin China HS Code 82023910 Production Capacity 500PCS/Day

Packaging & Delivery

Package size per unit product 25.00cm * 25.00cm * 5.00cm Gross weight per unit product 2.000kg

Product Description

1. Product Introduction

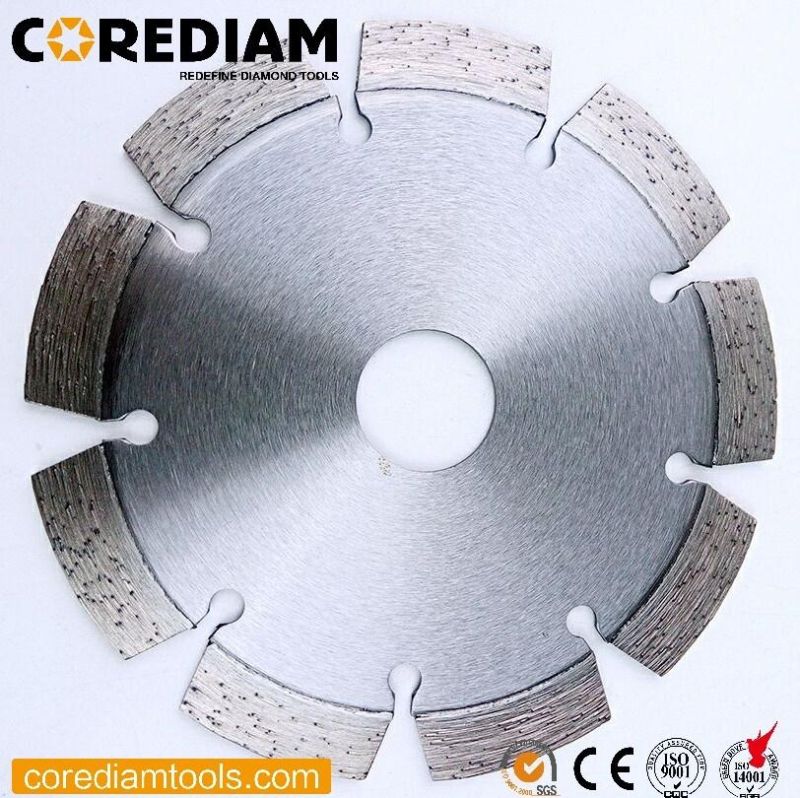

This type of saw blade is laser welded, is laser welded by the full-automatic laser welding production line. The diameter is 230mm. Segments height is 10mm. We can also supply 7mm segment height. The laser welded concrete saw blade is designed for universally dry and wet cutting for concrete, cured concrete, reinforced concrete, masonry, asphalt, green concrete and other kinds of construction materials. It can be installed on a handled circular saw, angle grinder, table saw. We can supply OEM service.

2.Feature:
- It can offer fast, smooth, safe cutting during your projects, having a high-performance ratio.
- It won't be out of sharp after using for a long time.
- Suitable for dry and wet cut
- Light and easily-carried.
- Diameter is ranging from 4 inches to 16 inches.



3. Specification(other specifications are based on your request.)

Item No.	Diameter	Segment Height	Segment Width	Arbor
CGLA10507	105mm	7mm	2.0mm	22.23mm
CGLA11507	115mm	7mm	2.0mm	22.23mm
CGLA12507	125mm	7mm	2.0mm	22.23mm
CGLA15007	150mm	7mm	2.0mm	22.23mm
CGLA18007	180mm	7mm	2.3mm	22.23mm
CGLA23007	230mm	7mm	2.5mm	22.23mm
CGLA30007	300mm	7mm	3.2mm	20/25.4mm
CGLA35007	350mm	7mm	3.2mm	25.4mm
CGLA40007	400mm	7mm	3.2mm	25.4mm

OEM service offered.

4. Delivery time
Sample delivery: If we have stock, the delivery time is within one week after we got your sample payment.If we don't have stock, the delivery time will depend on the sample production.
For batch order, delivery time is usually 3-4 weeks after order confirmation and payment.

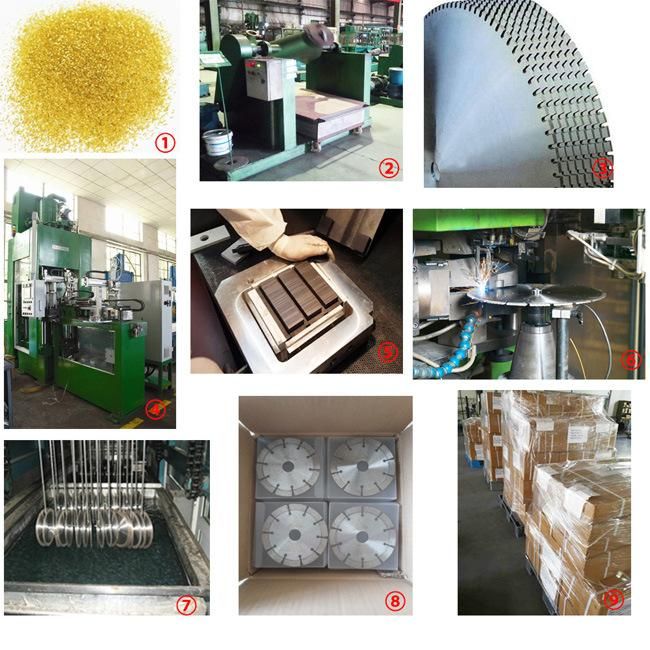

5. Laser Welded Diamond Saw Blade Manufacturing Technique
Raw material→ powder mixing → Steel core process → cold press → segment sintering → welding → surface treatment → package → dispatch

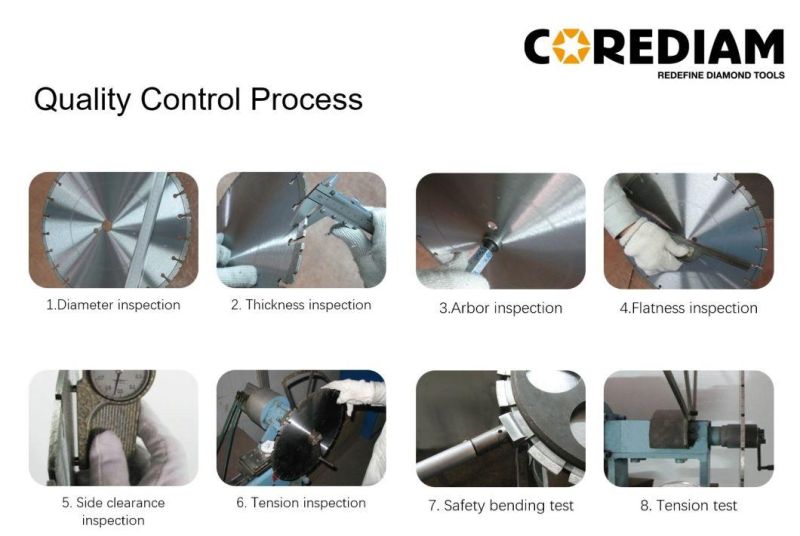

6. Corediam quality control




Types of equipment

Corediam sales network
