• Model NO.：OH200
• Laser Classification：No Needed
• Type：Oxygen and Hydrogen Gas
• Gas Output：200L,H
• Welding Type：Oxyhydrogen Welding Machine
• AC Voltage Requirement：110,220V
• Max. Working Pressure (Kg/Cm2)：2
• Max. Flame Modifier Consumption (L/H)：0.05
• Rated Power：800W
• Color：Green
• Water Feed：Manual
• Dimension：450*250*510mm
• Feature：Cost Saver,Water Fuel Saving,Safety,Eco-Friendly
• Transport Package：Standard Export Package; 1set,Carton
• Specification：gas capacity 200L,h
• Trademark：Okay Energy
• Origin：Changsha, China
• HS Code：8405100000
• Production Capacity：500sets,Month

Basic Info.

Model NO. OH200 Laser Classification No Needed Type Oxygen and Hydrogen Gas Gas Output 200L/H Welding Type Oxyhydrogen Welding Machine AC Voltage Requirement 110/220V Max. Working Pressure (Kg/Cm2) 2 Max. Flame Modifier Consumption (L/H) 0.05 Rated Power 800W Color Green Water Feed Manual Dimension 450*250*510mm Feature Cost Saver,Water Fuel Saving,Safety,Eco-Friendly Transport Package Standard Export Package; 1set/Carton Specification gas capacity 200L/h Trademark Okay Energy Origin Changsha, China HS Code 8405100000 Production Capacity 500sets/Month

Product Description

Jewelry machine portable mini hydrogen gas gold welding machine



The data sheet

Model Number	OH100	OH200	OH300	OH400	OH600
AC Voltage Requirement (V)	220/110	220/110	220/110	220/110	220/110
Phase	single	single	single	single	single
Rated Power(KW/h)	0.4	0.8	1	1.4	2
Max Gas Output	100L/h	200L/h	300L/h	400L/h	600L/h
Max. Working Pressure (kg/cm 2 )	2	2	2	2	2
Max. Water Consumption (L/h)	0.06	0.1	0.16	0.21	0.33
Water Feed	manual	manual	manual	manual	manual
Max. Flame Modifier Consumption (L/h)	0.05	0.1	0.15	0.17	0.15
Flame Modifier Feed	manual	manual	manual	manual	manual
Dimensions - L*W*H (mm)	390*250*510	450*250*510	590*250*510	710*250*510	930*250*510
Gross Weight (kg)	15	20	25	35	45
Ventilation Space Requirement (mm)	200 in each direction	200 in each direction	200 in each direction	200 in each direction	200 in each direction

Product Description
1.What is oxy-hydrogen welding machine?
Oxy-hydrogen jewelry welder machine is able to separate clean soft water (H2O) into hydrogen and oxygen gases, using a small amount of electric power through a special process. These gases are then mixed and delivered for use in a wide variety of applications, such as jewelry welding, which currently use arc,laser welding.For jewelry work,it features welding fast,safety,smooth welding spot etc.


 Why I use oxy-hydrogen portable jewelry welder machine?
 1. Easy and safety operation
It produce oxy-hydrogen gas by automatic way as yourequired.
Machine will shut down automatically when the gas pressure is too high
 2. Welding fast
The oxy-hydrogen flame temperature is high up to 2800 degree, it can heat the welding spot to melting
point fast in about 1 second to finish welding.
 3. Welding precisely
The flame is concentrated, it can achieves welding of precise devices.
 4. Smooth welding spot
Oxy-hydrogen flame combustion doesn't form carbide, so there is no black spot, avoid the second
treatment of cleaning and polishing.
 5. Environment friendly
Oxyhydrogen welding machine 's fuel comes from water.There is water vapor after combustion.No harm to environment.
 6. Energy saving
water fuel oxyhydrogen generator saves energy cost over 30% compared with other gas welding way.
Adding the oxygen cost, it will save cost over 40%.

Machine accessories
Torch and nozzle: 1 set
Soft pipe: 2m
Flame arrester: 1 unit

Video demonstrations
1)Videos for welding demo: jewelry welding,electric motor welding and brazing,copper welding  http://okayenergy.en.made-in-china.com

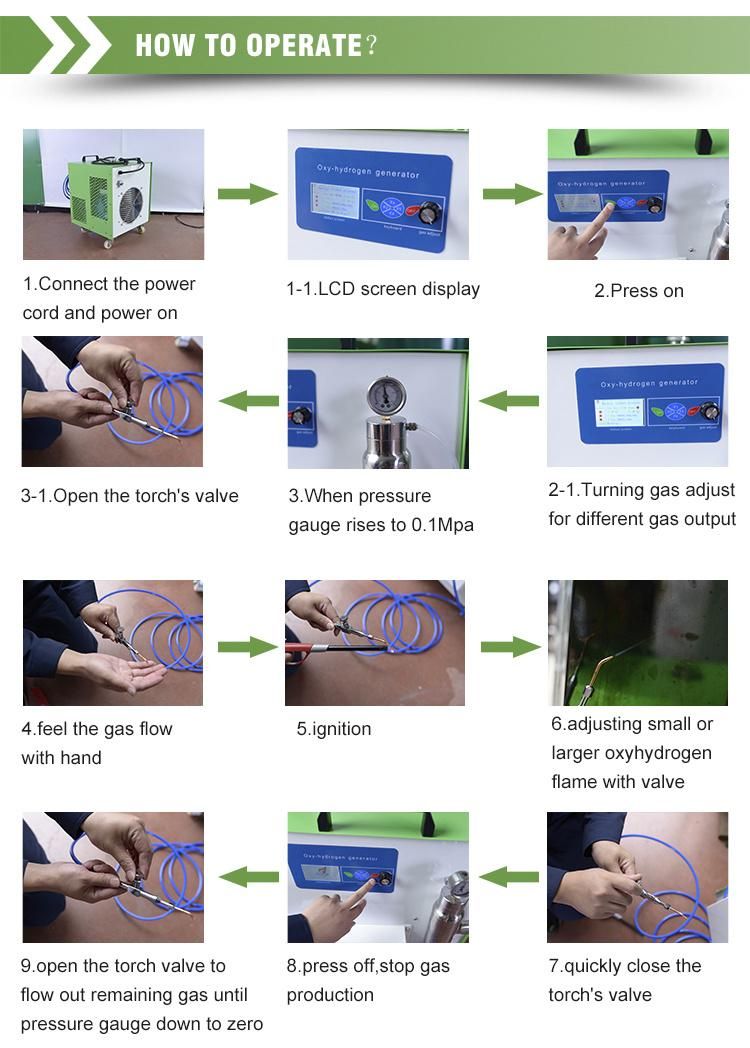

2)How to install our OH machines?
click or copy the link for video play: http://okayenergy.en.made-in-china.com
