Basic Info.

Model NO. SJ75/38 Customized Customized Condition New After-sales Service Provide Total Power 110kw Output 150-180kg/H Splitting Machine Automatic Scrfp Edge Self-Motion Adjustable Transport Package Nude Packing Specification 22*2.5*3 Trademark weier Origin Shandong HS Code 84772090 Production Capacity 20set Per Month

Product Description

HDPE PP PPR pipe extrusion line---Produce Application---
        Extruder adopts big L/D and multi mixing structure, which is more suitable for the PE low temperature extrusion production.
   Specially-designed spiral moulds for PE pipes, with inside oil controlling temperature system.
   Beautiful and practical stainless steel body for the vacuum calibration and spray cooling system, unique multi-section vacuum system ensures the stable sizing and cooling for pipes; special spray cooling system improves the cooling efficiency ; special water position, water temperature system make the machine more intelligent.
   Hauling-off unit adopts particular pedrail structure, which is easy and convenient for operation; pedrail clamping uses mechanical and pneumatic combining system, which is more reliable.
   Cutting system adopts saw blades and planetary cutting means; sumping uses hydraulic system , which ensures the smooth cross section; equipped with dust-collecting unit, which ensures the clean working environment.

Process of HDPE PPR pipe production line:

Raw material preparation→ vacuum feeding machine → hopper dryer → single screw extruder → color code extruder → mould and calibrator → vacuum forming machine → cooling tank → haul-off machine → cutting machine → discharging rack.→ electrical control system

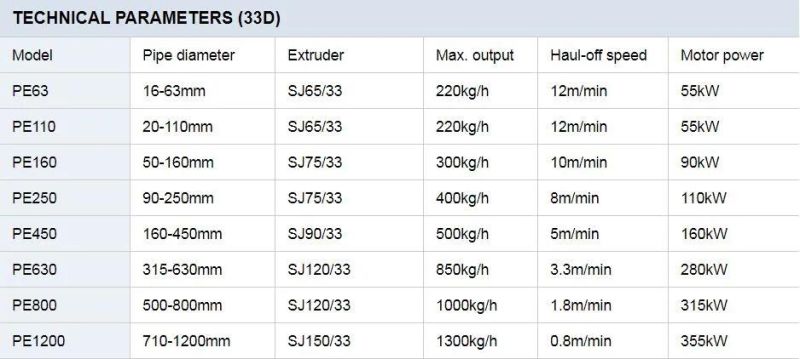

---Main technical parameter---

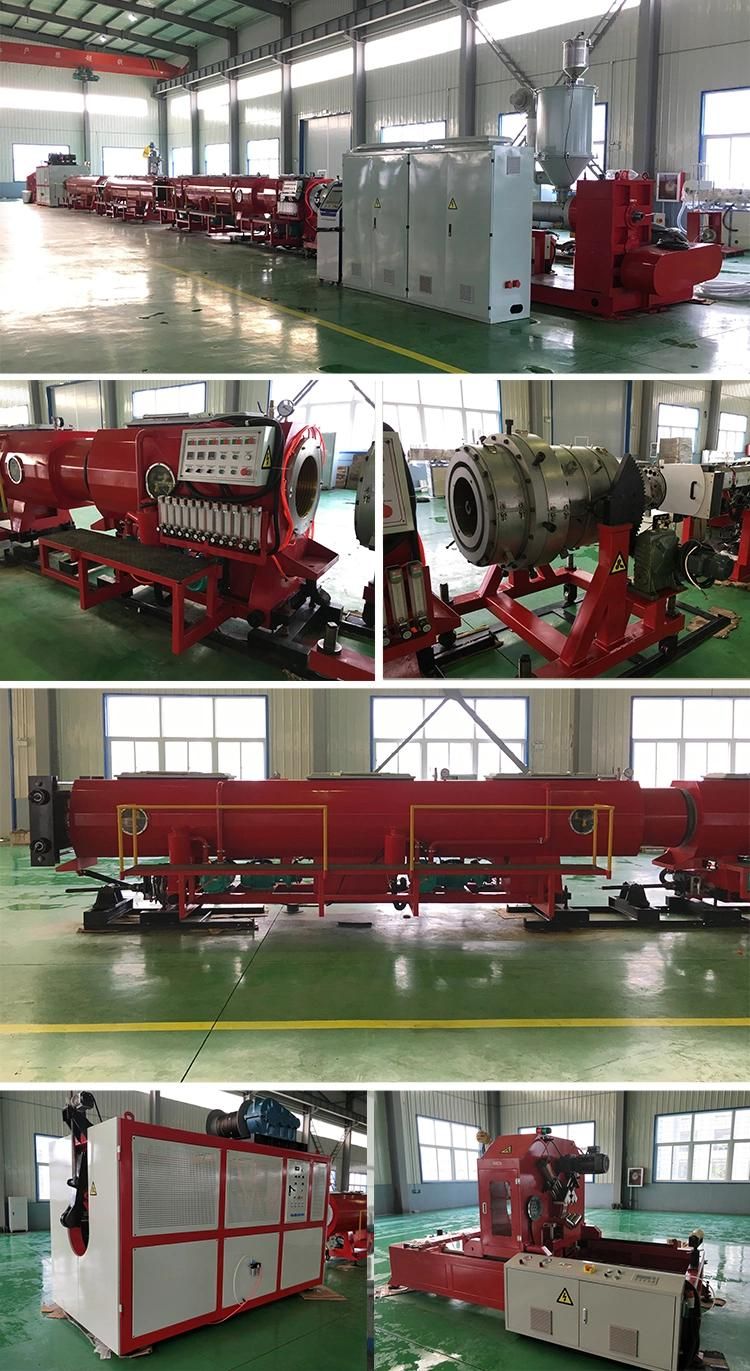

---Pictures of our machines and products---

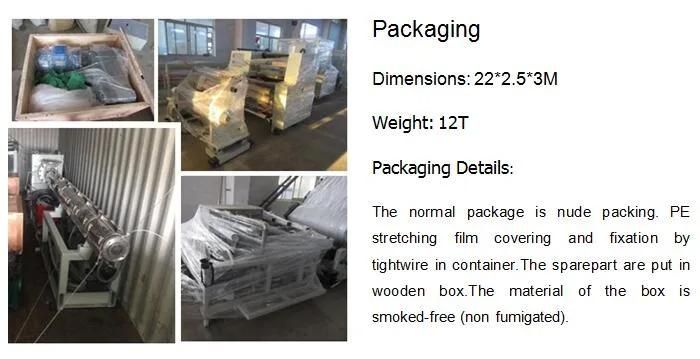

---Packing & Delivery---


---Exhibition Certificate ---
