• Model NO.：KQ 1000L 25Mpa KQ 2000L 25Mpa
• Application：Milk, Dairy, Milk, Juice, Beverage
• Customized：Customized
• Name：3000lph Homogenizer for Milk, Juice, Chemical Liqu
• Product Material：Stainless Steel 304,316
• Applications：Milk ,Dairy ,Ice Cream
• Capacity：500L,H--10000L,H
• Pressure：250 Bar to 700 Bar
• Voltage /Hz /Phase：Follow Your Request
• Customize：Accept
• Performance：0.2um
• Motor Brand：Siemens ,ABB,China Brand
• Circulation Water：Yes
• MOQ：1set
• Packing：Wooden Box
• OEM：Yes
• Stage：Two Stage
• Cooling：Tap Water
• Transport Package：Standard Wooden Box
• Specification：Based on special size
• Trademark：KAIQUAN
• Origin：Shanghai, China
• HS Code：8479820090
• Production Capacity：100 Units,Month

Basic Info.

Model NO. KQ 1000L 25Mpa KQ 2000L 25Mpa Application Milk, Dairy, Milk, Juice, Beverage Customized Customized Name 3000lph Homogenizer for Milk, Juice, Chemical Liqu Product Material Stainless Steel 304/316 Applications Milk ,Dairy ,Ice Cream Capacity 500L/H--10000L/H Pressure 250 Bar to 700 Bar Voltage /Hz /Phase Follow Your Request Customize Accept Performance 0.2um Motor Brand Siemens /ABB/China Brand Circulation Water Yes MOQ 1set Packing Wooden Box OEM Yes Stage Two Stage Cooling Tap Water Transport Package Standard Wooden Box Specification Based on special size Trademark KAIQUAN Origin Shanghai, China HS Code 8479820090 Production Capacity 100 Units/Month

Product Description

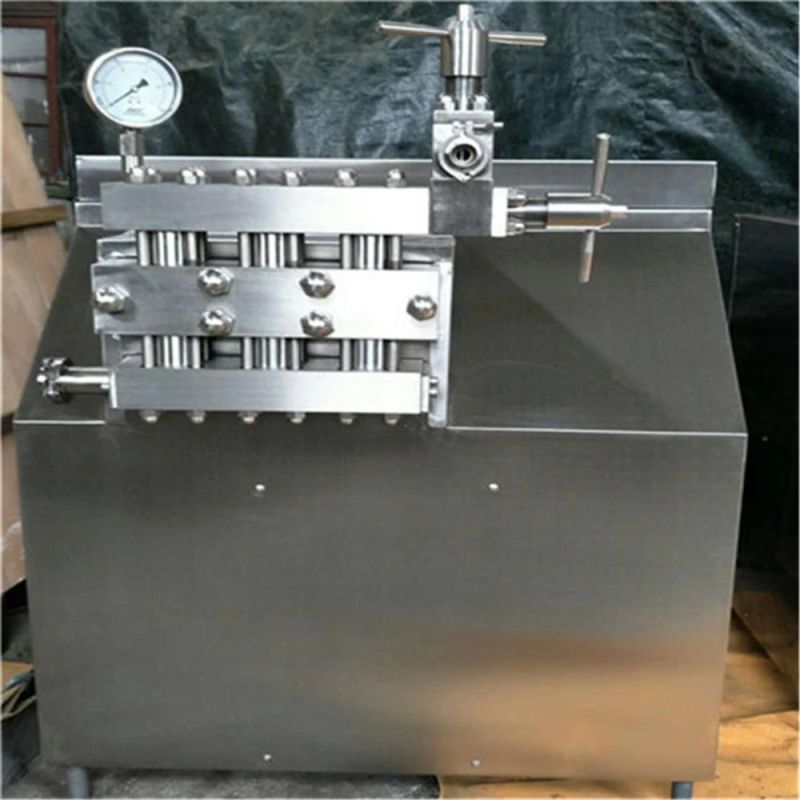

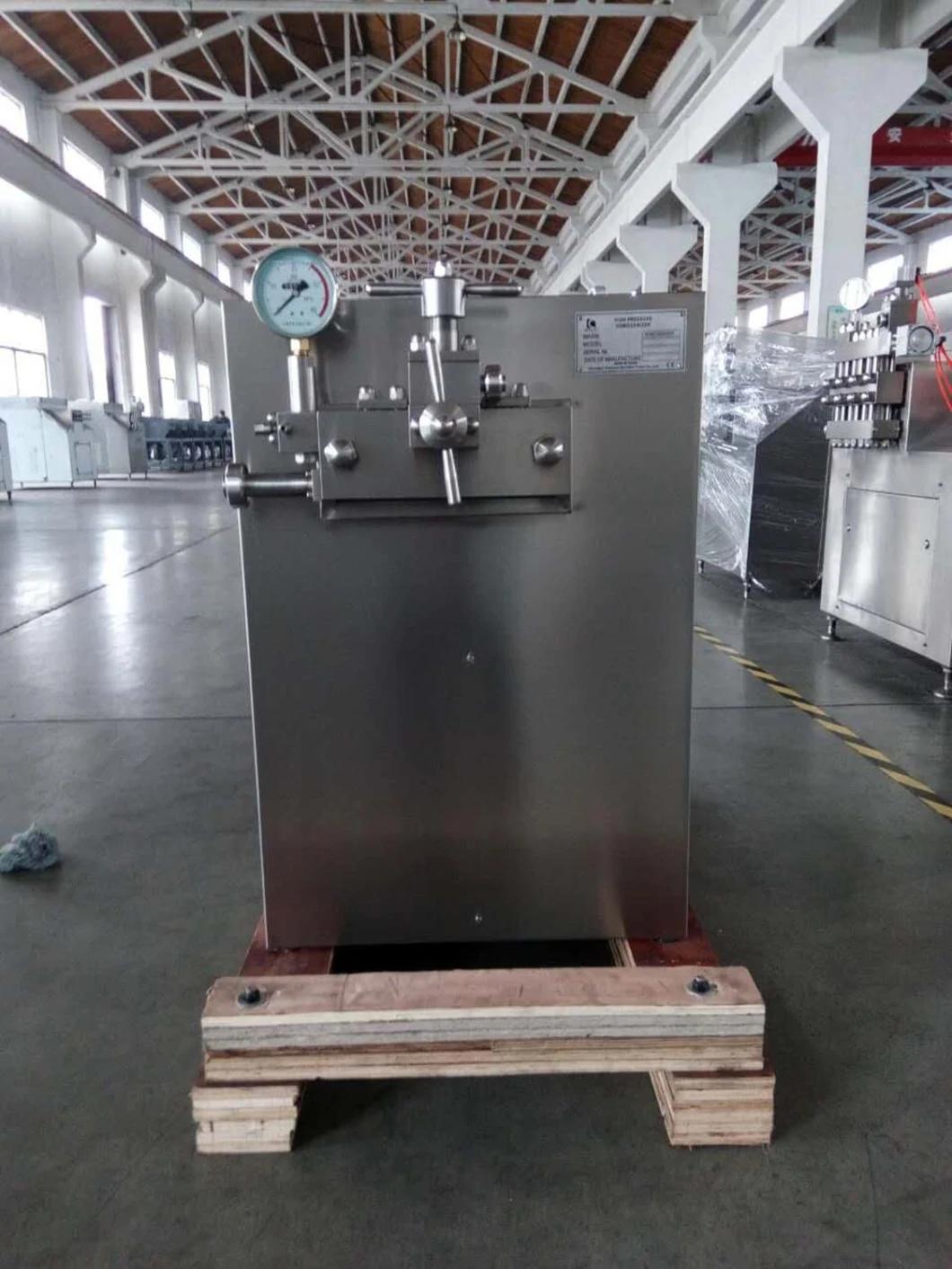

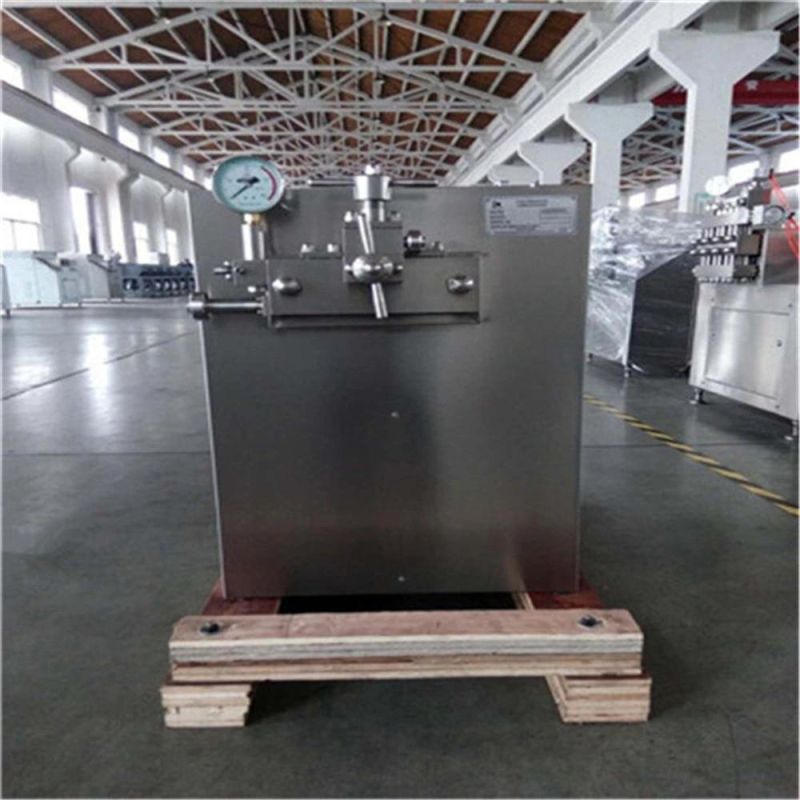

GJB high pressure homogenizer
Application :


3000 lph Homogenizer for Milk, Juice, Chemical Liquid
Milk High Pressure Homogenizer, You Can Buy Various High QualityMilk High Pressure Homogenizer Products from us, the 250bar milk homogenizer,
CE CERTIFICATED HOMOGENIZER FOR MILK, JUICE, DAIRY, ICECREAM, SOYBEAN MILK, HONEY
Soybean milk homogenizer, 40MPA homogenizer
Tea drinks homogenizer, juice homogenizer

Model No. Technical parameter	KQ0.5-25	KQ1-25	KQ1.5-25	KQ2-25	KQ2.5-25	GJB3000-25 KQ3-25	KQ5-25
Rated pressure(MPa)	25	25	25	25	25	25	25
Rated flow ( Liters/H )	500	1000	1500	2000	2500	3000	5000
Medium temperature(C)	≤85	≤85	≤85	≤85	≤85	≤85	≤85
Feeding pipe diameter(mm)	25	25	25	25	25	32	40
Discharge pipe diameter(mm)	15	15	20	20	20	20	25
Power of motor(Kw)	5.5	7.5	11	15	18.5	22	45
Volt and Electricity Flow	220V,60HZ,3PH	380V,50HZ	380V,50HZ	380V,50HZ	220V,60HZ,3PH	380V,50HZ	380V,50HZ
Outline dimension (m) Length * width * height	1.16×0.9×1.24	1.16×0.9×1.24	1.16×0.9×1.24	1.4×1.1×1.42	1.4×1.1×1.42	1.4×1.1×1.42	2.2×1.45×1.1
Weight(Tons)	0.4	0.5	1.25	1.25	1.25	1.25	1.7

High pressure homogenization is a standard industrial process for dairy products, to improve their stability and shelf life
Series is the kind of equipment which can homogenize the liquid material and make it become high-pressure spray. The high pressure homogenizer pump reciprocates the pump position, high press the liquid, fully mixed and refined the material.
The high pressure homogenizer can use to homogenize the dairy product material in high pressure, refine the fat globule, prevent or decrease the stratifying of the liquid material; Make the product much more nicety, to prove the quality of the product.



The high pressure homogenizer pump also the important equipment of the powder manufacture. (Such as pharmaceutical industry, chemical industry, etc. )
3000 lph Homogenizer for Milk, Juice, Chemical Liquid
