• Model NO.：KQ-1000
• Name：Small Homogenizer Homogenizer Machine Homogenizer
• Product Material：Stainless Steel 304 ,316
• Capacity：500L,H--10000L,H
• Pressure：250bar to 700bar
• Warranty：in One Year
• Homogenizer Spare Parts：Provided
• Packing：Wooden Case
• Electricity：Make Them Based on Your Order

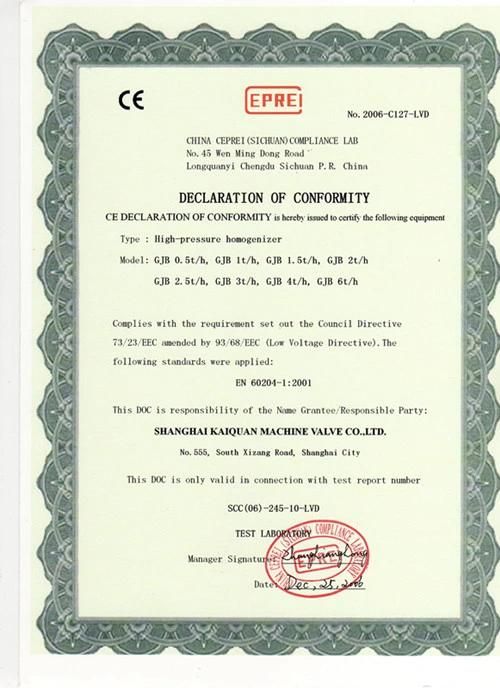

• Certificated：Ce
• MOQ：1set
• Motor Brand：Soemens ,ABB ,China Brand
• Homogenizer Life Time：More Than 10years
• Stage：Two Stage
• Plunger：4set, 5set
• Usage：Milk ,Juice ,Beverage
• Transport Package：Standard Wooden Box
• Specification：CE
• Trademark：KAIQUAN
• Origin：Shanghai, China
• HS Code：8479820090
• Production Capacity：100 Units,Month

Basic Info.

Model NO. KQ-1000 Name Small Homogenizer Homogenizer Machine Homogenizer Product Material Stainless Steel 304 /316 Capacity 500L/H--10000L/H Pressure 250bar to 700bar Warranty in One Year Homogenizer Spare Parts Provided Packing Wooden Case Electricity Make Them Based on Your Order Certificated Ce MOQ 1set Motor Brand Soemens /ABB /China Brand Homogenizer Life Time More Than 10years Stage Two Stage Plunger 4set/ 5set Usage Milk ,Juice ,Beverage Transport Package Standard Wooden Box Specification CE Trademark KAIQUAN Origin Shanghai, China HS Code 8479820090 Production Capacity 100 Units/Month

Product Description

Small Homogenizer Homogenizer Machine Homogenizer Factory Homogenizer Price


The high pressure homogenizer can use to homogenize the dairy product material in high pressure, refine the fat globule, prevent or decrease the stratifying of the liquid material; Make the product much more nicety, to prove the quality of the product.
The high pressure homogenizer pump also the important equipment of the powder manufacture. (Such as pharmaceutical industry, chemical industry, etc. )

Model No. Technical parameter	KQ0.5-25	KQ1-25	KQ1.5-25	KQ2-25	KQ2.5-25	GJB3000-25 KQ3-25	KQ5-25
Rated pressure(MPa)	25	25	25	25	25	25	25
Rated flow ( Liters/H )	500	1000	1500	2000	2500	3000	5000
Medium temperature(C)	≤85	≤85	≤85	≤85	≤85	≤85	≤85
Feeding pipe diameter(mm)	25	25	25	25	25	32	40
Discharge pipe diameter(mm)	15	15	20	20	20	20	25
Power of motor(Kw)	5.5	7.5	11	15	18.5	22	45
Volt and Electricity Flow	220V,60HZ,3PH	380V,50HZ	380V,50HZ	380V,50HZ	220V,60HZ,3PH	380V,50HZ	380V,50HZ
Outline dimension (m) Length * width * height	1.16×0.9×1.24	1.16×0.9×1.24	1.16×0.9×1.24	1.4×1.1×1.42	1.4×1.1×1.42	1.4×1.1×1.42	2.2×1.45×1.1
Weight(Tons)	0.4	0.5	1.25	1.25	1.25	1.25	1.7

Small Homogenizer Homogenizer Machine Homogenizer Factory Homogenizer Price .
