Basic Info.

Model NO. LSJ-80/156+65/30 Customized Customized Condition New Name PVC Bamboo Roofing Sheet Extruding Machine Sheet Width 720, 880, 1050mm Sheet Thickness 1-3mm T-Die Head Jc-Times Calibrating Board Hydraulic Control Main Electrical Components ABB, Omron, Rkc, Schneider, FUJI, Delix etc. Guaranteed Time 1 Year Quality Control Customers Come to Our Factory to Check Transportation 2 Sets of 40gp Containers Transport Package Wooden Pallets with Stretching Films Specification ISO9001-2000 Trademark LEADER Origin Qingdao China HS Code 8477209000 Production Capacity 30set/Year

Product Description

pvc+pmma(asa) bamboo roofing sheet extruding machine

PART 1: INTRODUCTION AND APPLICATION:
This pvc bamboo roofing sheet, is also named 3 layers composite tiles,synthetic resin tiles,bamsheets etc.This line consists of extruder, T-die,and accessory machines,like two rollers calendars, forming machine, cutting and ridge tiles forming machines. It can continuously extrude single layer pvc glazed tiles, PVC+PMMA,and PVC+ASA composite multi-layer glazed tiles. This glazed tiles are widely used in pavilions, hotels, galleries, resorts, family building etc.

PART 2: SHEET SPECIFICATION:
1. Width: 720, 880, 1050mm
2. Thickness: 1-3mm
3. Can be co-exrtusion ABA, AB, ABC
4. ASA or PMMA co-extrusion

PART 3: PRODCUTION FLOWS:
High speed mixer--conical twin screw extruder--co-extruder--co-extrusion die head--embossing and cooling rollers--forming machine--saw cutting machine--stacker--pneumatic pressing machine for ridge tiles moulds

Extruder model	SJSZ80/156 + SJ65/30
Capacity	350kg/h+50kg/h
Sheet specifications	Width: 720/880/1040mm Wave pitch:160mm Wave length:220mm Wave height:30mm Thickness:1-3mm
Emboss rollers	1400mm*Φ300mm
T-die head	JC-Times brand
Corrugation forming machine max haul off power	20KN
Haul off speed	0.3-5m/min
Cutting machine	Pneumatic saw cutting
Stacker	6m
Ridge tiles forming machine	With end cover, slope ridge for step roof, T ridge for step roof, top ridge for step roof
Other accessory machines	High speed mixer, plastic crusher, plastic pulverizer etc

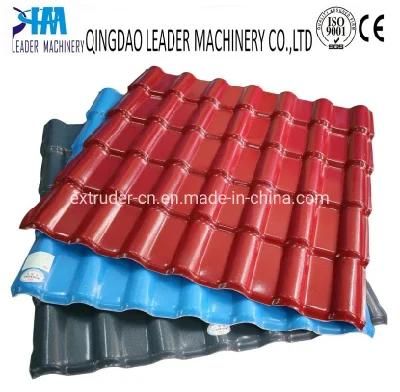

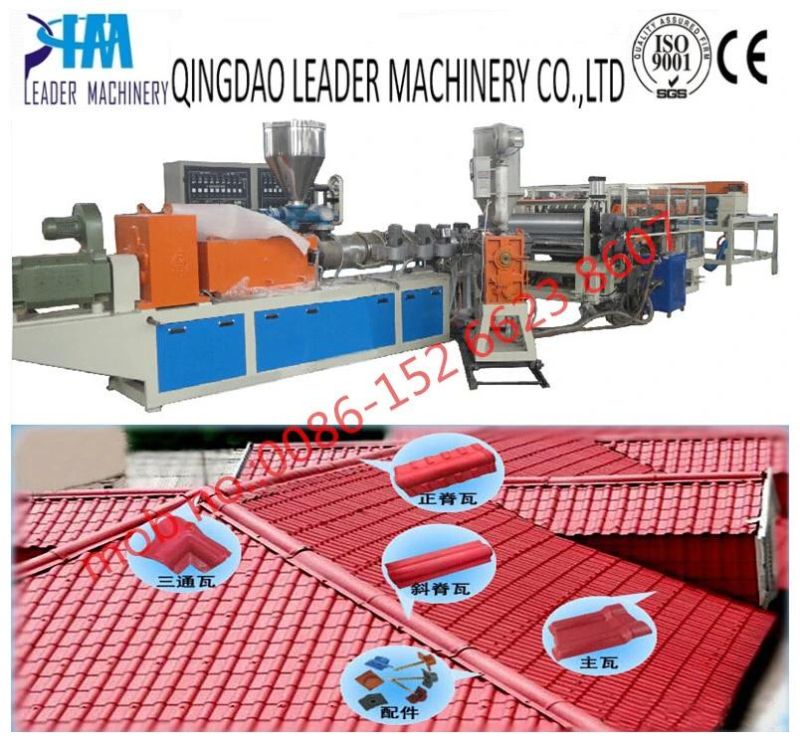

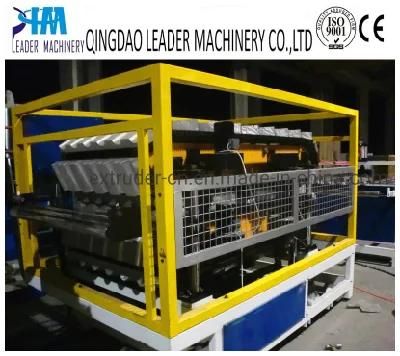

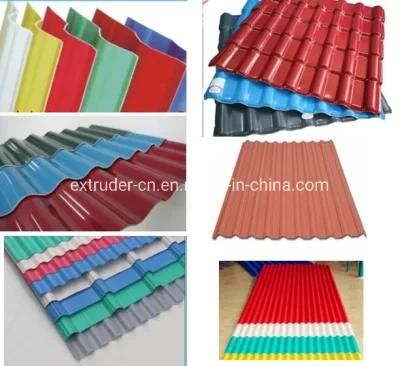

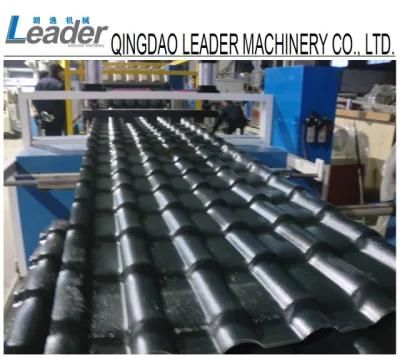

PART 4 MACHINE AND ROOFING TILES SAMPLES:





PART 5 DELIVERY, PAYMENT AND OTHERS SERVICES
1.   delivery time: 80 days after receiving the deposit
2.   payment terms:30% for the prepayment by T/T and 70% for the downpayment by T/T before delivery or irrevocable L/C at sight can be available, too.
3.   Guaranteed time: 18 months for the machenical parts and 12 months for the electrical parts.
4.   Service: we will send engineers to customers' factory to help them install, test the machine.


PART 6 COMPANY INFORMATION AND MAIN PRODUCTS:




PART 7 COMPANY CERTIFICATIONS:

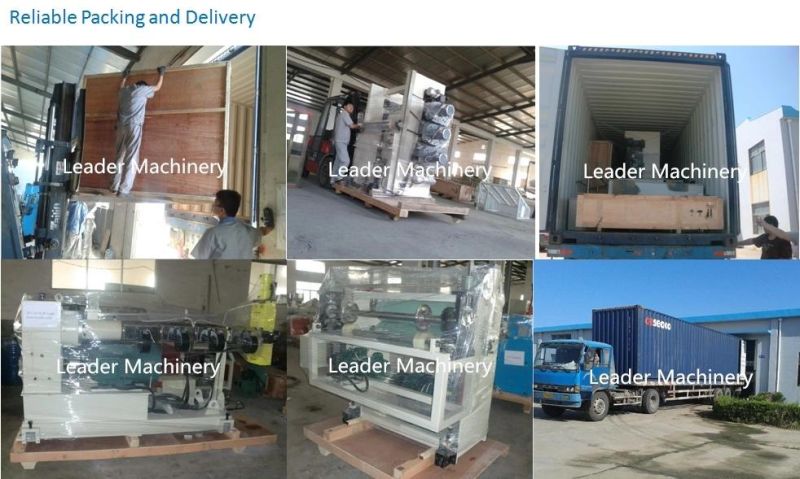

PART 8 MACHINE PACKING AND DELIVERY
All the machine parts will be packed in wooden cases or pellets with stretching films on machine body.



PART 9 COMPANY OVERSEA SHOWS

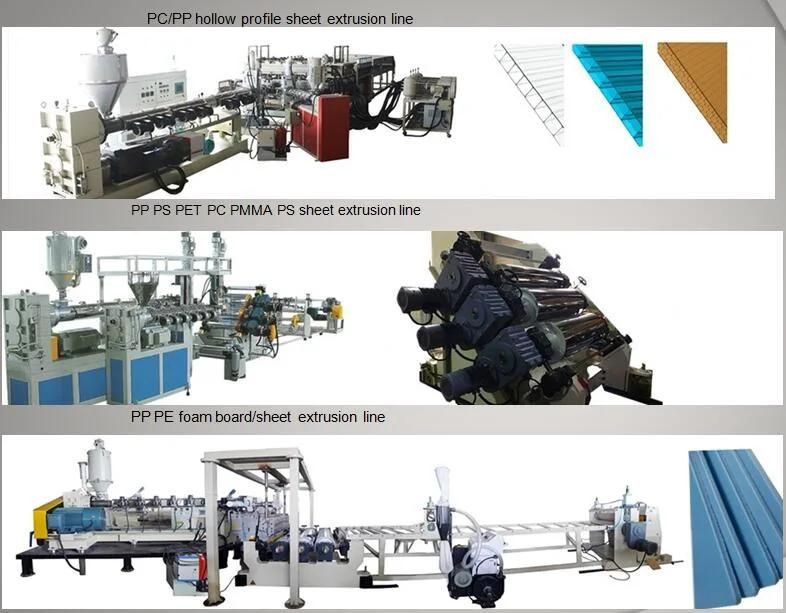

PART 10 OTHER KINDS OF PLASTIC SHEETS/PLATES EXTRUSION LINE RECOMMENDATION :

1. PET sheet extrusion machine:
Processing material: PET virgin pellets(APET or PETG) plus flakes; Or 100% flakes
Thicknes range: 0.2-1.5mm
Net sheet width: 650mm-1500mm(or as per cusotmer's requirement)
Layer structure: Signle layer or multi-layer
Capacity: 150-650kg/h
Application: Thermoforming(cup, bowel, etc. ), stationery, printing sheet, packaging, etc.

2. PP/PS sheet extrusion machine:
Processing material: PP/PS virgin pellets plus recycle material;
Thickness range: 0.15-2mm
Net sheet width: 650mm-720mm-1000mm-1300mm-1500mm(or as per customer's requirement)
Layer structure: Single layer or multi-layer
Capacity: 200kg/h-1000kg/h
Application: Thermoforming(cup, bowel, etc. ), stationery, printing sheet, packaging, etc.

3. ABS/HIPS sheet extrusion machine:
Processong material: ABS/HIPS virgin pellets plus recycle material
Thickness range: 1-6mm
Net Sheet width: 1200mm-1600mm-2100mm(or as per customer's requirement)
Layer Structure: Single layer or multi-layer
Capacity: 300-800kg/h
Application: Vacuum forming, thermoforming, refrigerator inner layer, suitcase, etc.

4. ABS/PMMA sheet extrusion machine:
Processing material: ABS/PMMA virgin pellets plus recycle material
Thickness range: 1-8mm
Net sheet width: 1200mm-1600mm-2100mm(or as per customer's requirement)
Layer structure: Single layer or multi-layer
Capacity:300-800kg/h
Application: Vacuum forming, bathtube, etc.

5. PE sheet extrusion machine:
Processing material: HDPE/LDPE/LLDPE virgin pellets plus recycle material
Thickness range: 1-2.5mm, 3-35mm
Net sheet width: 1200mm-1600mm-1800mm-2500mm-3000mm-40000mm-6000mm-8000mm
Layer structure: Single layer or multi-layer
Capacity: 200kg/h-1200kg/h
Application: Packaging, construction, water-proof, water-drainage, Geomembrane film, etc.

6. PC/GPPS/PMMA sheet extrusion machine:
Processing material: PC/GPPS/PMMA virgin pellets plus recycle material
Thickness range: 1-12mm
Net sheet witdh: 600mm-1220mm-2100mm(or as per customer's requirement)
Layer Structure: Single layer or multi-layer
Capacity: 200-600kg/h
Application: Ads., decoration, roofing, etc.

7. PC/PP/PE hollow profile sheet/ sunshine roofing panel machine:
Processing material: PC/PP/PE virgin material plus recycle material
Thickness range: 2mm-4mm-6mm-8mm-10mm-12mm
Net sheet width: 1220mm-2100mm
Layer structure: Single layer or multi-layer
Capacity:200-600kg/h
Application: Ads. Decoration, roofing, packaging, printing, etc.

8. PVC sheet/edge banding sheet/marble sheet machine:
Processing material: PVC power plus other additive
Thickness range: 0.15-1mm; 1-3mm; 3-12mm
Net sheet width: 650mm-2000mm-3000mm( or as per customer's requirements)
Layer structure: Single layer or multi-layer
Capacity: 200kg/h-500kg/h
Application: Thermoforming, stationery, printing, payment card, SIM card, construction, etc.

9. PVC free foam/celuka foam board extrusion line
board width: 1220mm, thickness: 1-10mm, 3-25mm
board application: decoration board, advertising boards, exhibition boards
extruder model: SJ-80/156 conical twin screw extruder
max capacity: 350kg/h
certifications: CE, ISO9001-2008

10. EVA car interior decoration sheet extrusion line
Processing material: EVA and other additives
Thickness range: 1-8mm
Width range: 1000-1800mm
Layer  strcuture: single layer
Capacity: 700-800kg/h
Application: automotive sealing strips, sound insulation cushion, sound absorption sheets,
automobile tail box, fenders, car interior and exterior decoration parts etc.

11. PVC+PMMA Glazed roofing tiles/corrugated sheet extrusion machine
Processing material: PVC, PMMA and other additives
Thickness range: 1-8mm
Width range: 720mm, 880mm, 1040mm
Layer structure: A/B, A/B/A, A/B/C
Capacity: 400kg/h
Application: garden-style factory, tourist scenic spots, pavillions, hotels, family building etc.
