Basic Info.

Model NO. LSJ-80/156+65/30 Customized Customized Condition New Name PVC Bamboo Roofing Sheet Making Plant Sheet Width 720, 880, 1050mm Sheet Thickness 1-3mm T-Die Head Jc-Times Calibrating Board Hydraulic Control Main Electrical Components ABB, Omron, Rkc, Schneider, FUJI, Delix etc. Guaranteed Time 1 Year Quality Control Customers Come to Our Factory to Check Transportation 2 Sets of 40gp Containers Transport Package Wooden Pallets with Stretching Films Specification ISO9001-2000 Trademark LEADER Origin Qingdao China HS Code 8477209000 Production Capacity 30set/Year

Product Description

pvc+pmma(asa) bamboo roofing sheet making plant

PART 1: INTRODUCTION AND APPLICATION:
This pvc bamboo roofing sheet, is also named 3 layers composite tiles,synthetic resin tiles,bamsheets etc.This line consists of extruder, T-die,and accessory machines,like two rollers calendars, forming machine, cutting and ridge tiles forming machines. It can continuously extrude single layer pvc glazed tiles, PVC+PMMA,and PVC+ASA composite multi-layer glazed tiles. This glazed tiles
are widely used in pavilions, hotels, galleries, resorts, family building etc.

PART 2: SHEET SPECIFICATION:
1. Width: 720, 880, 1050mm
2. Thickness: 1-3mm
3. Can be co-exrtusion ABA, AB, ABC
4. ASA or PMMA co-extrusion

PART 3: PRODCUTION FLOWS:
High speed mixer--conical twin screw extruder--co-extruder--co-extrusion die head--embossing and cooling rollers--forming machine--saw cutting machine--stacker--pneumatic pressing machine for ridge tiles moulds

Extruder model	SJSZ80/156 + SJ65/30
Capacity	350kg/h+50kg/h
Sheet specifications	Width: 720/880/1040mm Wave pitch:160mm Wave length:220mm Wave height:30mm Thickness:1-3mm
Emboss rollers	1400mm*Φ300mm
T-die head	JC-Times brand
Corrugation forming machine max haul off power	20KN
Haul off speed	0.3-5m/min
Cutting machine	Pneumatic saw cutting
Stacker	6m
Ridge tiles forming machine	With end cover, slope ridge for step roof, T ridge for step roof, top ridge for step roof
Other accessory machines	High speed mixer, plastic crusher, plastic pulverizer etc

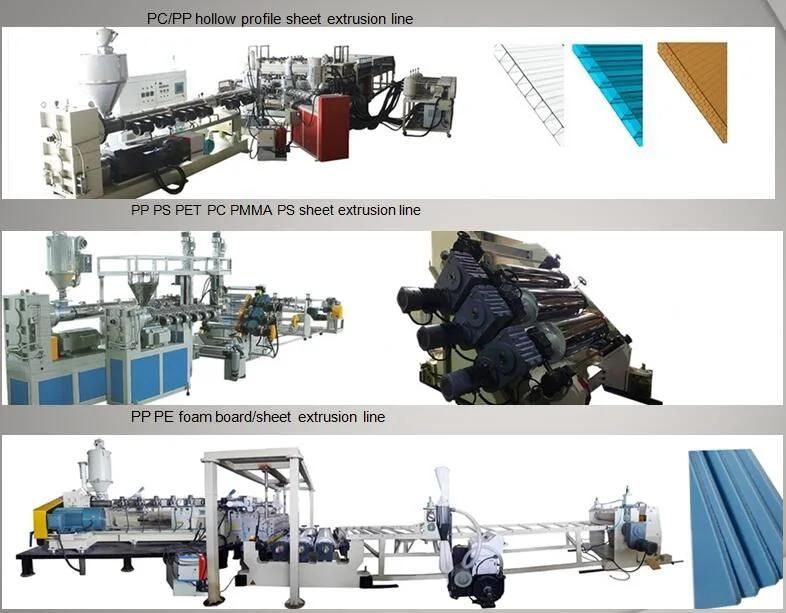

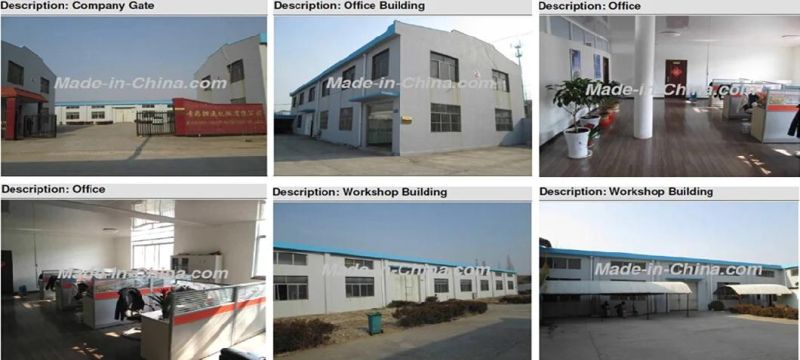

PART 5 COMPANY INFORMATION AND MAIN PRODUCTS:




PART 6 COMPANY CERTIFICATIONS:

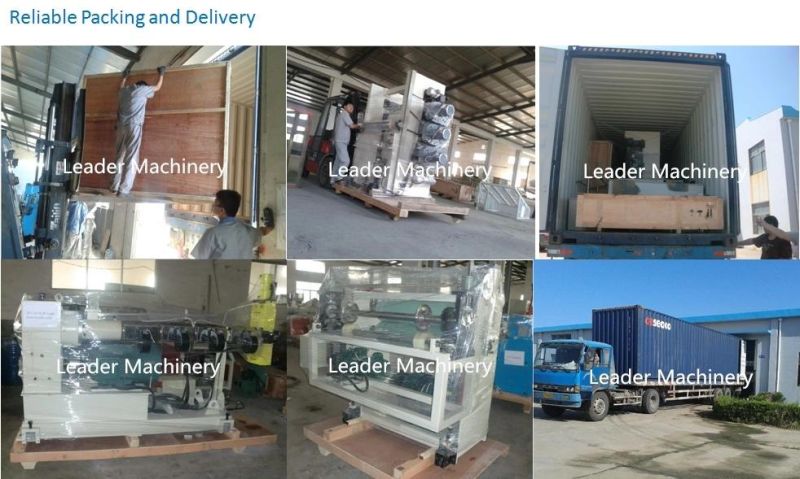

PART 7 MACHINE PACKING AND DELIVERY
All the machine parts will be packed in wooden cases or pellets with stretching films on machine body.
