• Model NO.：MAN-20
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Model：20W,30W
• Marking Area：110mmx110mm;
• Repeat Frequency：10kHz- 100kHz
• Voltage：220V,50Hz
• Markingspeed：7000mm
• Marking Depth：0-0.5mm
• Positioning Way：Red Light
• Cooling Mode：Air Cooling
• Software：Ezcad Software
• Certification：Ce FDA
• Transport Package：Wooden Box
• Specification：750*450*750mm
• Trademark：CNMANLASER
• Origin：Shandong
• HS Code：8456110090
• Production Capacity：500 Set,Month

Basic Info.

Model NO. MAN-20 Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Model 20W/30W Marking Area 110mmx110mm; Repeat Frequency 10kHz- 100kHz Voltage 220V/50Hz Markingspeed 7000mm Marking Depth 0-0.5mm Positioning Way Red Light Cooling Mode Air Cooling Software Ezcad Software Certification Ce FDA Transport Package Wooden Box Specification 750*450*750mm Trademark CNMANLASER Origin Shandong HS Code 8456110090 Production Capacity 500 Set/Month

Product Description

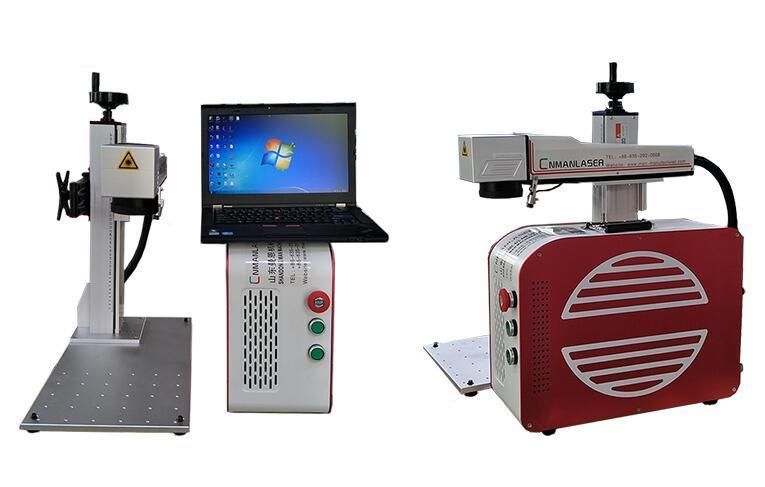

air cooling small size 20w 30w fiber laser marking machine
1.High electro-optical conversion efficiency, small size, good beam quality, stable performance.

2.Especially suitable for precision, fine marking.

3.Low cost.

4.Maintenance free operation.

5.Long service life.

6.Processing speed.

TECHNICAL  PARAMETER :

Model	CNC fiber laser marking machine
Laser  Power	20w. (10w/30w/50w, etc for option)
Working  Area	110*110mm/150*150mm
Cooling Mode	Air Cooling
Laser Wavelength	10.64um
Response Time	0.5ms
Frequency of pulse	20-100KHz
Marking Depth	≤0.4mm
Marking Speed	≤8000mm/s
Marking Lines	1-10 lines
Minimum Line Width	0.01mm
Minimum Character	0.15mm
Repeatability Accuracy	±0.002mm
Resolution Ratio	0.1mm
Marking Content	Text, pattern, date, bar code, etc
Operation System	Microsoft Windows XP or Windows 2000
Control Software	EZCAD Control Software
Graphic Format Supported	BMP, JPG, GIF, TGA, Ai, DXF, PLT, PNG, TIF, ai, DXF, DST,  etc.
Unit Power	≤1.2KW
Operation Temperature	5°C-40°C
Relative Moisture	≤ 90%, no fog
Supply Voltage	220V/50Hz/10A

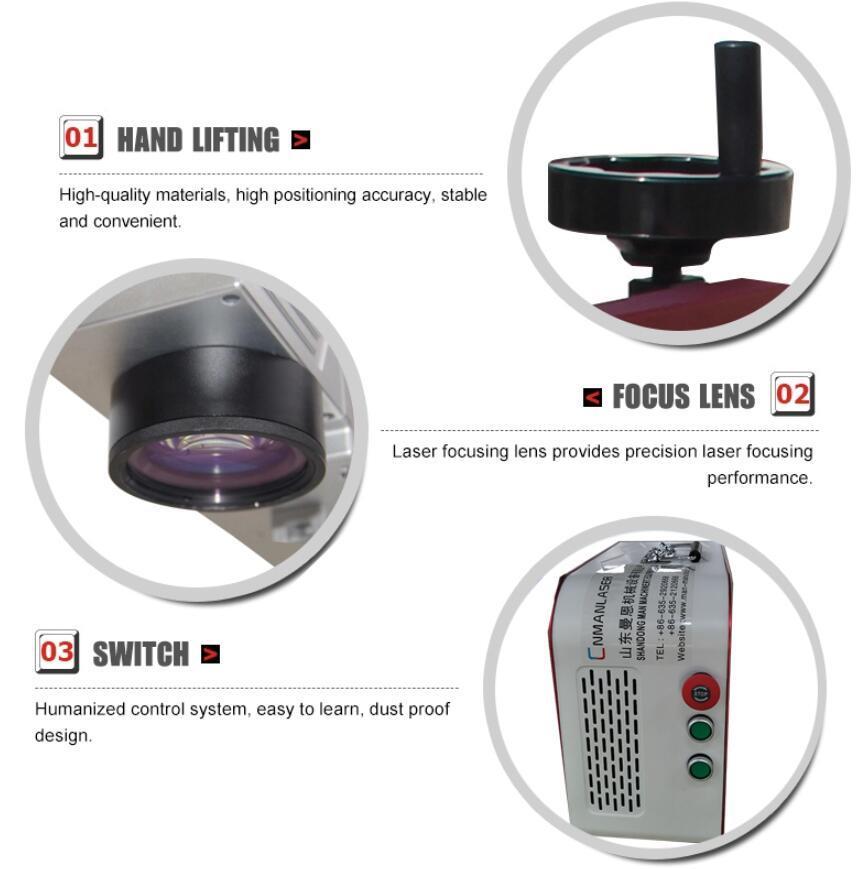

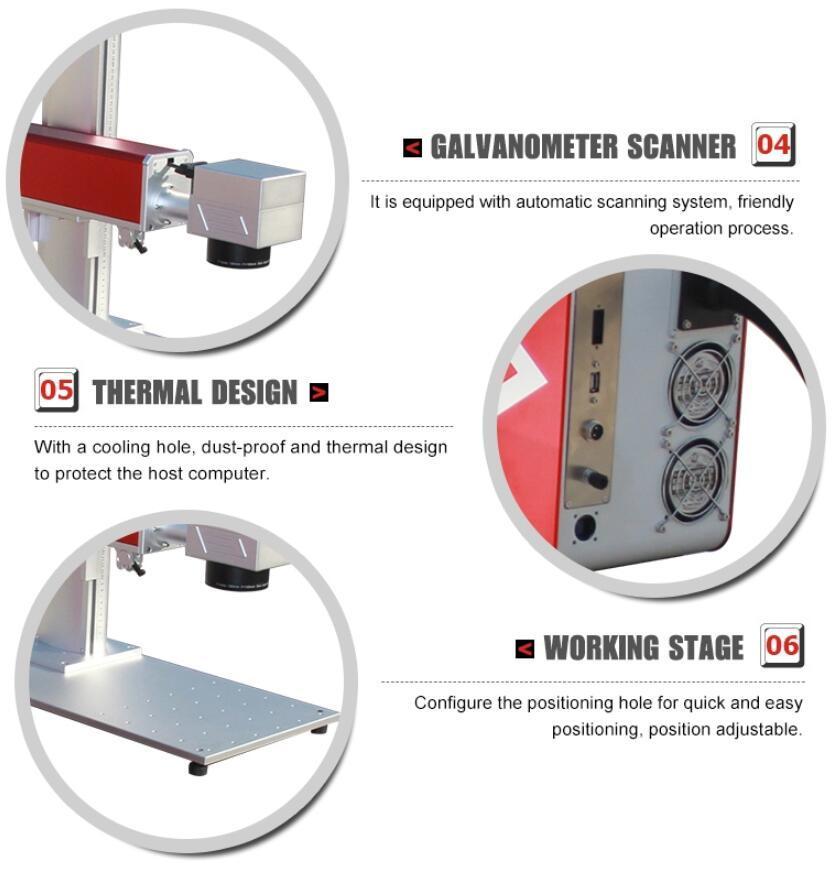

  DETAILS   IMAGES:




1. Excellent light quality:

Comparing with traditional solid laser marking machine, angle of divergence is only 1/4 of diode pump laser device.

It is especially suitable for precision marking.

2. Low usage cost:

Photo electric conversion efficiency max is 30%, whole machine power consumption is less than 500W, it is the 1/10 of laser pump lamp marking

machine. It greatly saves the cost in power consumption.

3. Free maintenance & long service life:

Using laser diode as the source of pump, full sealing light path design, its average no-failure operation is over 100 thousand hours.

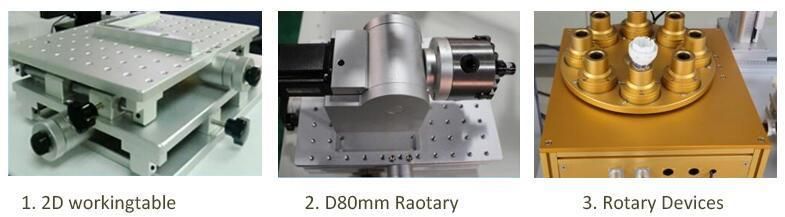

Optional Laser Parts with machine :



SAMPLE SHOW :

Applicable Industries:

1.Electronic Components: Resistors,Capacitors,Chips,Printed Circuit Boards, Keyboard, etc.

2.Mechanical Parts: Bearings, Gears, Standard Parts, Motor, etc.

3.Instrument: Panel Board, Nameplates, Precision equipment, etc.

4.Hardware Tools: Knives, Tools, Measuring Tools, Cutting Tools, etc.

5.Automobile Parts: Pistons&Rings,Gears,Shafts,Bearings,Clutch,ect.

6.Lights Daily Necessities: Handicrafts, Zipper, Key Holder, Sanitary Ware, et


 PACKAGING &  SHIPPING :
1.This fiber laser marking machine price will packed intostandard plywood case, its compressive strength and bearing quality is better.

2.the board area is bit, the soil structure is good,  it is better in leakproofness and waterproof.

3.when importing, the plywood case is with fumigation-free, the procedure is simple.

4.Delivery Detail: within 3-5 days after received your payment



SERVICES :

About payment

We accept TT or Western Union. Paypal.

Before you pay,we will make Proforma Invoice for you.all items will listed on there.

FAQ :

1. What should I do if there are problems in Laser Marking Machine?

Please first check if all the machine connection and eletric power are ok.

If ok, you can contact our 24-hour after-sales to solve the problems.Our technician is online for your service.

2. How many days of the delivery time?

7-10 days after receiving your payment.

3. What is your payment term?

Most often used one is T/T: 30% deposit; 70% balance.

4. What is your Laser Marking Machine  MOQ?

MOQ: 1 set at least. More than 3 sets, you will get a discount.

5. How should I operate Laser Marking Machine ?

Usually the machine is adjusted well before delivery, you can directly use it. If you want to learn more, our engineer can teach you.

If you can come to our factory,  you can learn Laser Marking Machine for free.
