• Model NO.：MAN-20
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Model：20W,30W
• Marking Area：110mmx110mm;
• Repeat Frequency：10kHz- 100kHz
• Voltage：220V,50Hz
• Markingspeed：7000mm
• Marking Depth：0-0.5mm
• Positioning Way：Red Light
• Cooling Mode：Air Cooling
• Software：Ezcad Software
• Certification：Ce FDA
• Transport Package：Wooden Box
• Specification：860*360*760mm
• Trademark：CNMANLASER
• Origin：Shandong
• HS Code：8456110090
• Production Capacity：500 Set,Month

Basic Info.

Model NO. MAN-20 Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Model 20W/30W Marking Area 110mmx110mm; Repeat Frequency 10kHz- 100kHz Voltage 220V/50Hz Markingspeed 7000mm Marking Depth 0-0.5mm Positioning Way Red Light Cooling Mode Air Cooling Software Ezcad Software Certification Ce FDA Transport Package Wooden Box Specification 860*360*760mm Trademark CNMANLASER Origin Shandong HS Code 8456110090 Production Capacity 500 Set/Month

Product Description

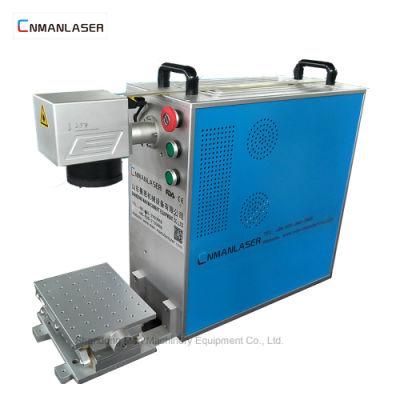

 20w Stainless Steel laser marking machine with PC control system
TECHNICAL  PARAMETER :

01	Model	MAN-FC20/ MAN-FC30
02	Laser power	Fiber 10W/20W air cooling
03	Working area	110*110mm
04	Laser Wavelength	1064nm
05	Response time	0.5ms
06	Frequency of pulse	20-100KHz
07	Max marking depth	≤0.4mm
08	Marking speed	≤7000mm/s
09	Marking lines	1-10 lines(in the marking area)
010	Minimum line width	0.1mm
011	Minimum character	0.15mm
012	Repeatability accuracy	±0.002mm
013	Resolution ratio	0.1mm
014	Marking content	Text,pattern,date,bar code,etc
015	Operation system	Microsoft Windows XP or Windows 2000
016	Control software	EZCAD control software
017	Graphic format supported	bmp, jpg, gif, tga, png,tif,ai,dxf,dst,plt,etc.
018	Unit power	≤1.2KW
019	Operation temperature	5°C-40°C
020	Relative moisture	≤ 90%,no fog
021	Supply Voltage	220V/50Hz/10A

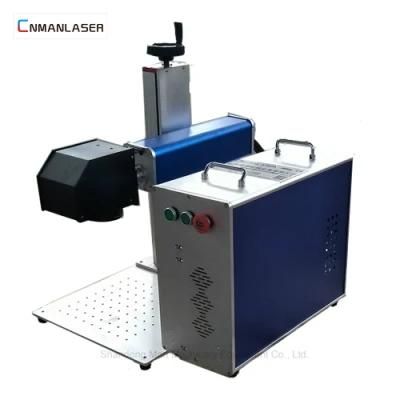

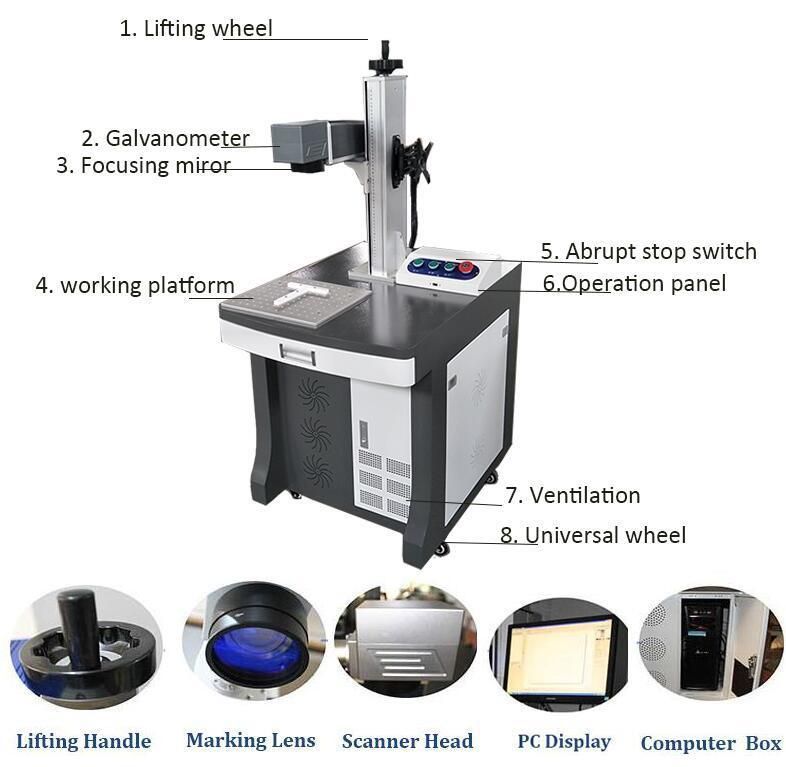

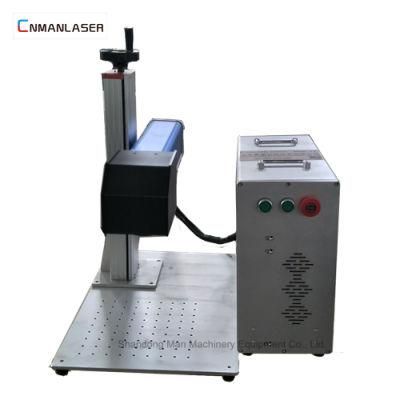

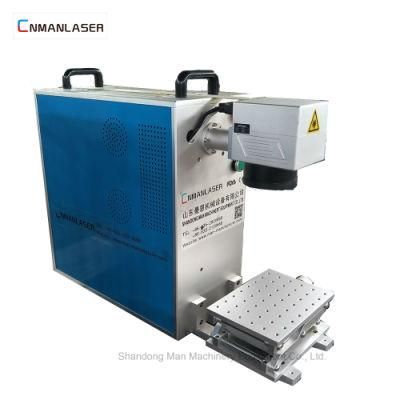

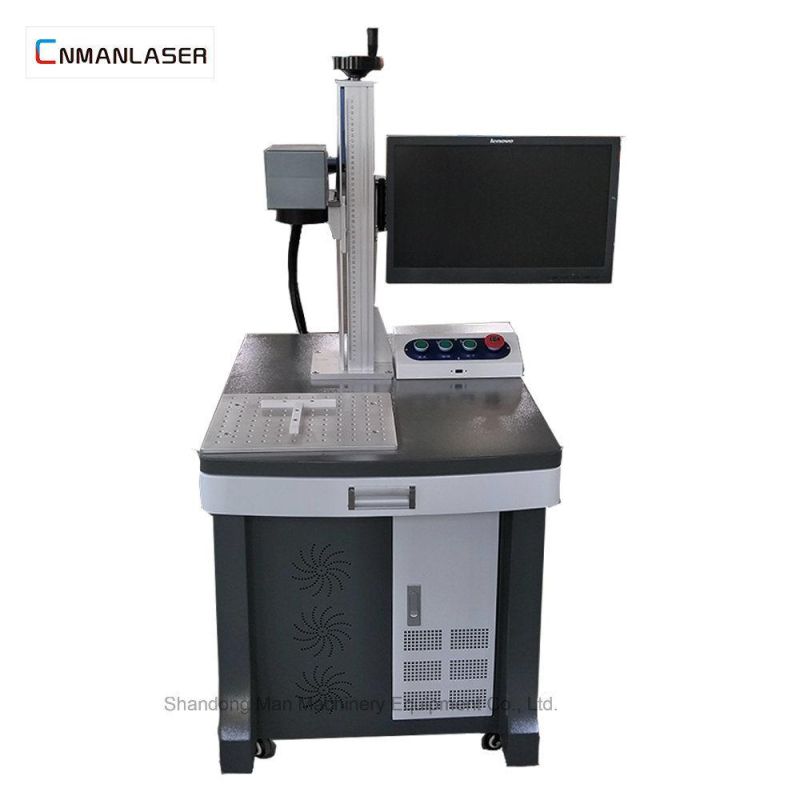

  DETAILS   IMAGES :

FEATURE :

1. Compact design, easy to move equipment, air-cooling, compact machine, good output beam quality.

 2. high reliability, no consumables, maintenance-free.

3. Long life Working time over100,000 hours long life span. Import Germany IPG fiber laser.

 4. the international latest, most reliable structure, small size, power consumption is small,

 5. no high-voltage without large water-cooled system.

6.Close to the ideal beam, USB interface, output control, optical scanning system,

 7.   laser repetition rate high,high-speed without distortion.

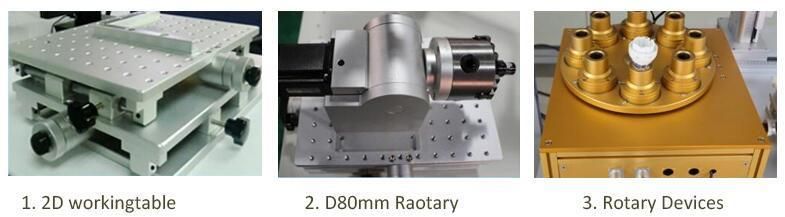

OPTIONAL LASER PARTS FOR LASER MACHINE :
SAMPLE SHOW :


  PACKAGING &  SHIPPING :
1. We can ship. air or land to your city, it is according to your location, and machine packing size.

And freight charge you need to pay for it.

We also support FOB if you have your own shipment agent.

2. Our machine producing time is 7-15 working days.

3. Delivery time, from Qingdao port to your near port, different port the time is different.


SERVICES :

1.Pre-Sale Service

Provide consulting service of customers, such as engineering staff,user department,supply department and so on;

technological experiments of sample;model choosing etc.All of services above are free of charge

2.Training & Installation

Training deliver the machine to the designated place;help installation ,testing and confirmation if need;

after fulfilling the terms of the contract,take free training to no less than 2 person.

-Laser protection knowledge

-Basic principles of laser device and structure of laser cutter

-Operating skills of controlling system

-Daily maintenance,laser  adjustment and component changing

3.After-Sale service

we provide one-year warranty,lifelong maintenance and technogical support as need.During warranty period,

if any problem of damage of components, we will help repair and change damaged(except parts that easily wear and tear) for free .

After warranty period,customer need to pay repair fee and the basic fee of the material.
