Basic Info.

Model NO. CTS65 Assembly Structure Integral Type Extruder Screw Twin-Screw Engagement System Full Intermeshing Screw Channel Structure Deep Screw Exhaust Exhaust Automation Automatic Computerized Computerized Capacity 100-600kg/H Pipe Size 16-630mm Fuction PVC Pipes or PE Pipes Speed 3-25m/Min Transport Package Film Specification 15-25meters Trademark YOUTH Origin China HS Code 8477209000 Production Capacity 200-500kg/H

Product Description

PVC HDPE PE Pipe Manufacturing Machine / Plastic PVC PE Pipe Extrusion Making Machine Price/ Production Line


PVC pipe production line, we can supply different machines for diameter from 16mm to 400mm .

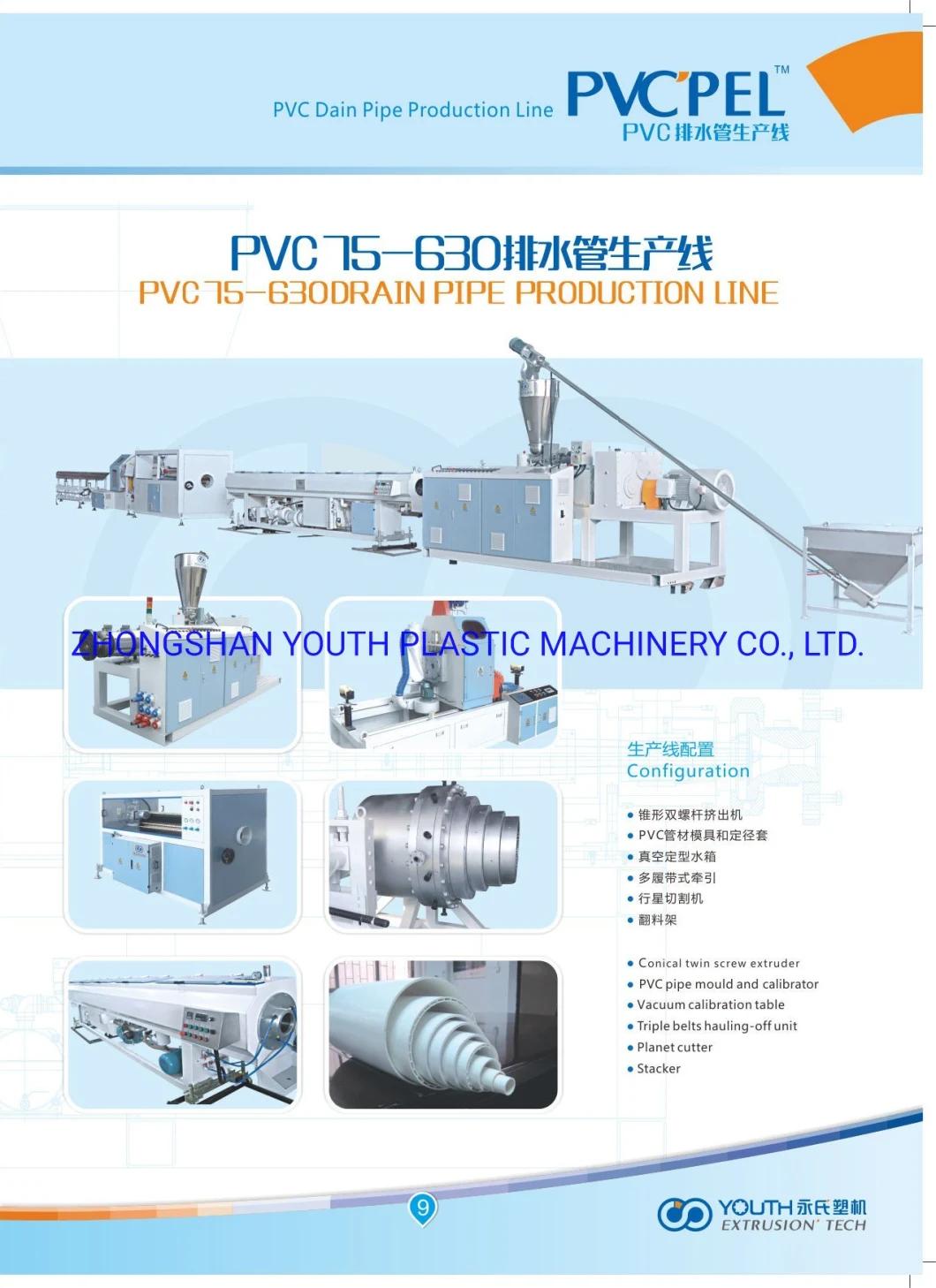

Produce process for PVC Pipe :
PVC powder + additive → mixing → spring feeding → twin screw extruder → mould and calibrator → vacuum forming machine → haul off machine → cutting machine → stacker

Machine List for PVC Pipe Machine	Quantity

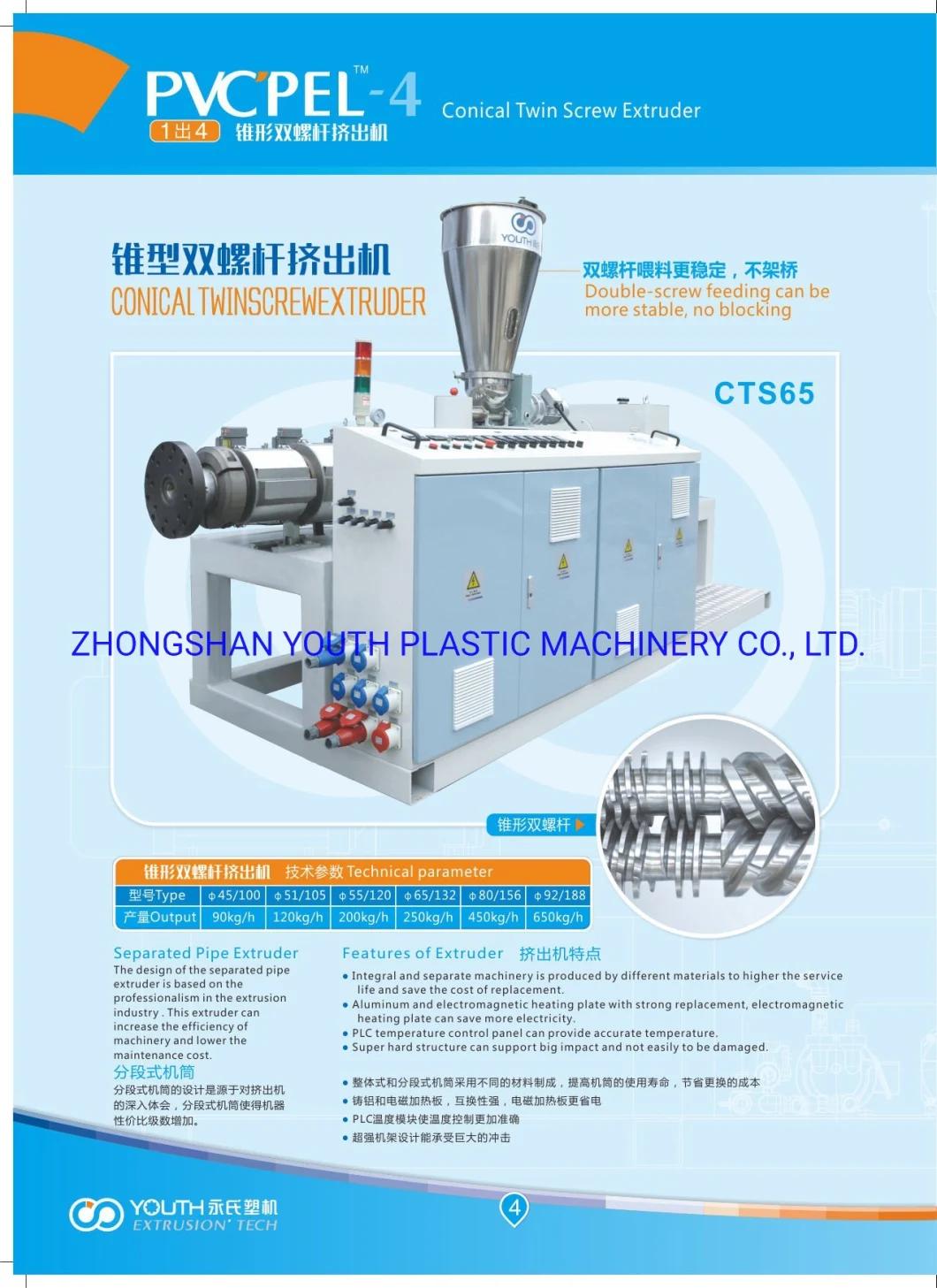

1.Conical twin screw extruder (Equipped with automatic feeding unit)	One set

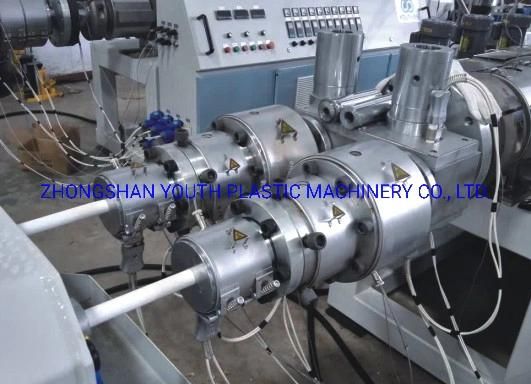

2. Molds	One set

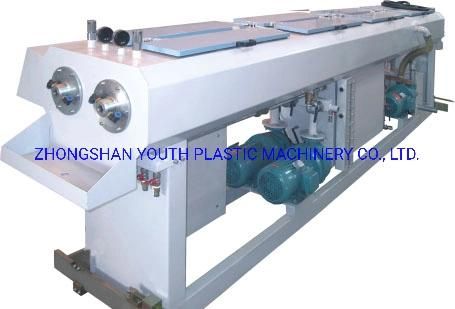

3.Vacuum calibration unit	One set
4.Haul-off unit	One set
5.Cutter Unit	One set
6.Stacker	One set



Optional auxiliary machines for your choice
1.Printer	One set

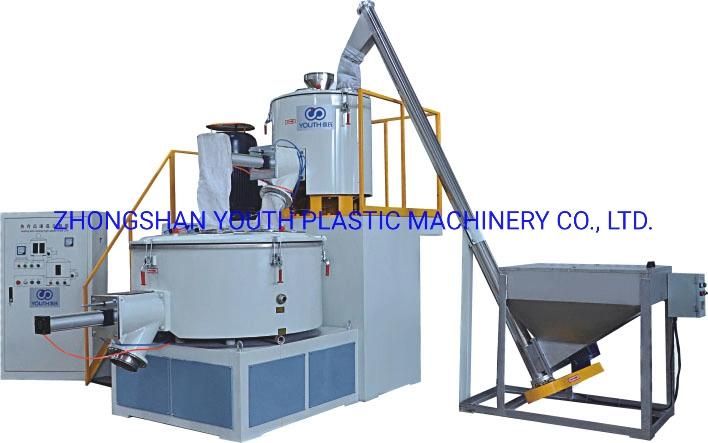

2.Mixer	One set
3.Crusher	One set
4.Milling machine	One set
5.PVC pipe belling machine	One set

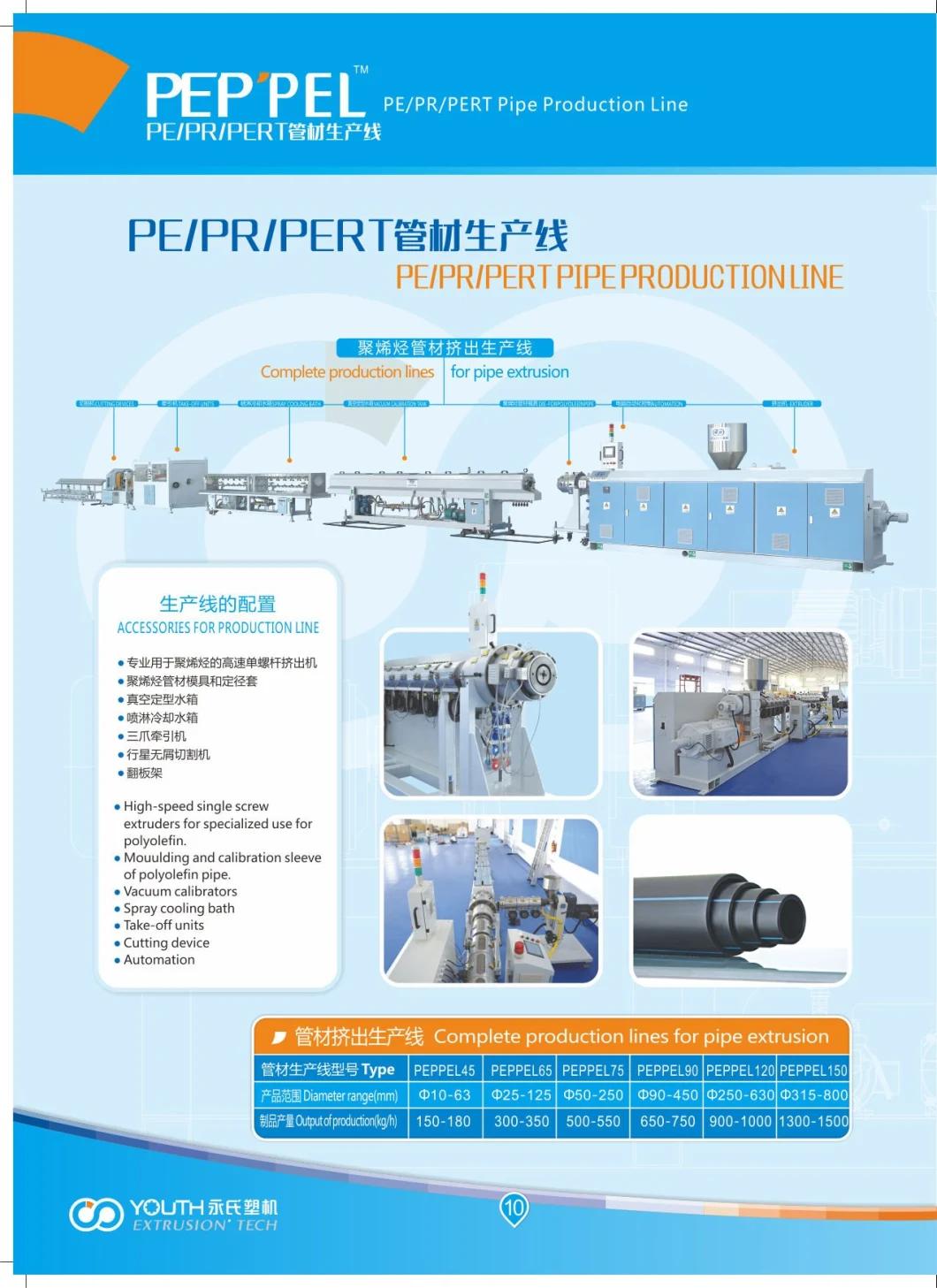

Produce process for HDPE PP PE Pipe :
Raw material +master batches → mixing → vacuum feeder→ material dryer → single screw extruder ( small CO-extruder ) → mould → vacuum calibration tank → spray cooling tank ( water tank) → haul-off unit → cutting machine→ stacker

Machine List for HDPE Pipe Machine
1.Single screw extruder	One set
2. moulds	One set
3. Cacuum calibration tank	One set
4. Spray cooling tank	One set
5. Haul-off unit	One set
6. Cutter Unit	One set
7. Stacket	One set
8. Winder	One set
Optional auxiliary machines for your choice
1.Printer	One set
2.Mixer	One set
3.Crusher	One set

Diameter(mm)	16-40dual	20-63dual	20-63	75-200	160-315	315-630
Extruder mode	SJZ51/105	SJZ65/132	SJZ51/105	SJZ65/132	SJZ80/156	SJZ92/188
Extruder power (kw)	18.5AC	37AC	18.5AC	37AC	55AC	110DC
Max lineal speed (m/min)	0.5-10	0.5-15	0.5-10	0.5-8	0.5-6	0.5-4
Max capacity (kg/h)	120	250	80-120	180-250	280-350	500-600
Installation area			24*2.8*2.0m	30*2.8*2.2m	35*3.0*2.4 m	36*3.0*2.4 m

Technical Parameters for HDPE Pipe Machine

Item	SJDRM75	SJDRM125	SJDRM250
Max Dia. Of pipe(mm)	75	125	250
Main machine	SJ65/33	SJ75/33	SJ90/33
Motor power(kw)	60	75	160
Motor type	Direct current model	Direct current model	Direct current model
Max. capacity(kg/h)	160	260	400
Traction speed(m/min)	0.5DRM8	0.3DRM4	0.2DRM2
Max. traction(N)	10000	15000	30000
Cutting type	Disc type cutting	Disc type cutting	Planet cutting
length(mm)	22000	34000	44000
