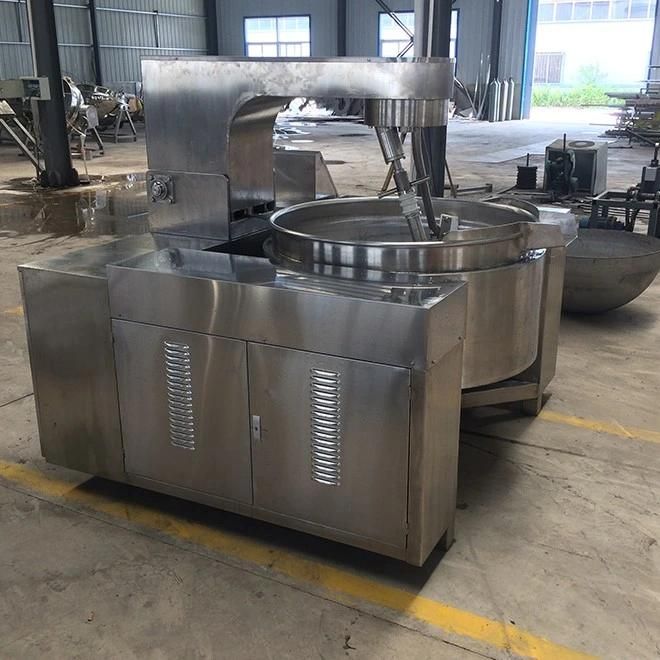

Stainless Steel Industrial Jacketed Cooking Kettle for Jam Sauce Paste
NINGBO HAISHU JUDIN PACKING PRODUCTS CO., LTD.- Processing Material：Animal Raw Materials, Forest Products, Special Agricultural Products, Garden Products, Agronomic Products, Natural Ingredients
- Application：Pet Food, Chocolate, Ice Cream, Vegetable, Fruit, Dairy, Beverage
- Customized：Customized
- Certification：CE, MET, CSA, UL, SA8000, ISO9001
- Power Source：Electric
- Automatic Grade：Automatic
Base Info
- Model NO.：KQ
- Name and Description：Stainless Steel Industrial Jacketed Cooking Kettle
- Type：Full Automatic
- Usage：for Cooking Soup, Jam, Juice, Meat
- Stainless Steel Material：AISI304 , 316
- Capacity：300L~1000L

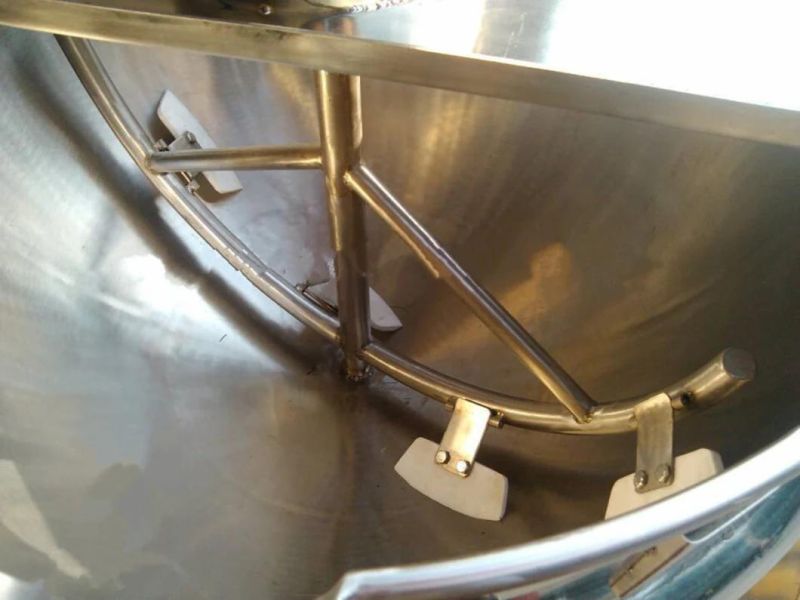

- Mixer：with Mixer, Agitator, Scrapper Mixer
- Motor Brand：ABB ,Siemens
- Lifting Mixer：Automatic
- Tilting Bowl：Automatic
- Certificate：ISO,Ce
- Factory：Shanghai
- Titling：Yes
- Packing：Wooden Box
- Delivery：15 Days After Get Your Advance Payment .
- Working Life：10 Years or More .
- Transport Package：Standard Export Wooden Box
- Specification：ISO
- Trademark：KQ
- Origin：Shanghai China
- HS Code：8479820090
- Production Capacity：300L to 1000L
Description
.Technical parameters-- stainless steel steam jacketed kettle for jam making : Model 100 200 300 400 Caliber(mm) Φ700 Φ800 Φ900 Φ1000 Depth of Pot(mm) 450 530 630 680 Heating area(m2) 0.58 1.12 1.42 1.75 Boiling time(min) 8 11 14 18 Interface size Steam pipe 3/4" 1" Condensate pipe 3/4" 1" Working pressure ≤0.09Mpa/0.25Mpa/0.5Mpa(can be adapted according to customers' requirement) Stirring speed 36 r/min(can be adapted according to customers' requirement) Stirring power(Kw) 0.55 0.75 1.1 1.1 Scraping edge stirring power(Kw) 0.75 1.1 1.5 1.5
Stainless Steel Industrial Jacketed Cooking Kettle For Jam Sauce Paste .
Stainless Steel Industrial Jacketed Cooking Kettle For Jam Sauce Paste .
