• Model NO.：KQ
• Insulation：Rock Wool ,Polyurethan Foam
• Functions：Heating and Mixing
• Application：Pasteurize Milk, Juice, Yogurt, Jam
• Heating Temperature：to 100c Able to Be Controled
• Tank Material：SS304,SS316
• Mixer Speed：36rpm,48rpm,960rpm
• Tank Construction：Double Jackets
• Delivery：10 Days
• Packing：Wooden Box
• Speed of Agitator：Adjustable
• Spare Parts：Available

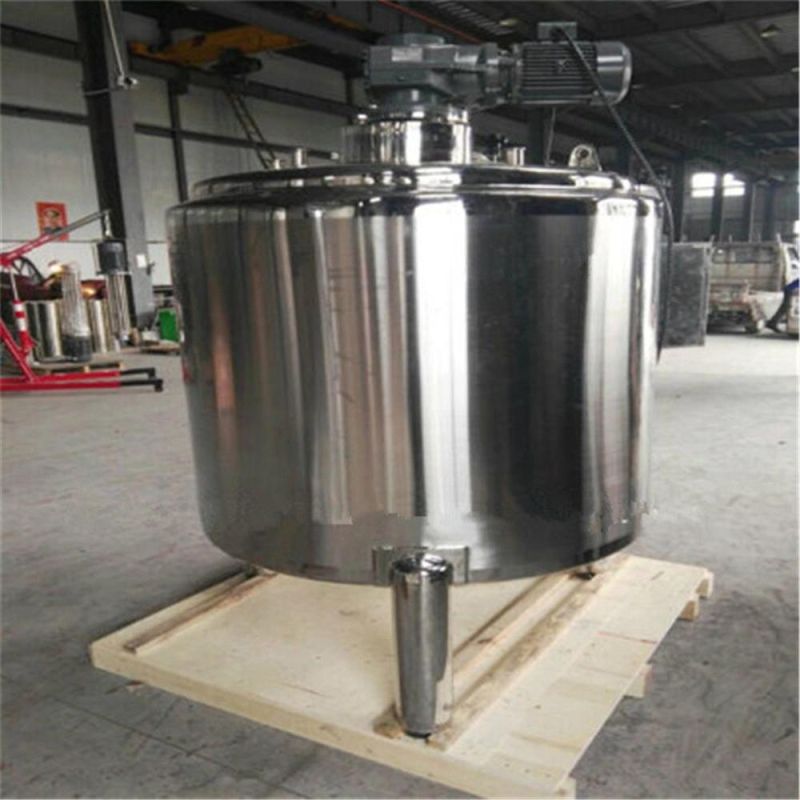

• Transport Package：Standard Export Wooden Box
• Specification：ISO
• Trademark：KQ
• Origin：Shanghai China
• HS Code：8479820090
• Production Capacity：1000set,Year

Basic Info.

Model NO. KQ Insulation Rock Wool /Polyurethan Foam Functions Heating and Mixing Application Pasteurize Milk, Juice, Yogurt, Jam Heating Temperature to 100c Able to Be Controled Tank Material SS304/SS316 Mixer Speed 36rpm,48rpm,960rpm Tank Construction Double Jackets Delivery 10 Days Packing Wooden Box Speed of Agitator Adjustable Spare Parts Available Transport Package Standard Export Wooden Box Specification ISO Trademark KQ Origin Shanghai China HS Code 8479820090 Production Capacity 1000set/Year

Product Description

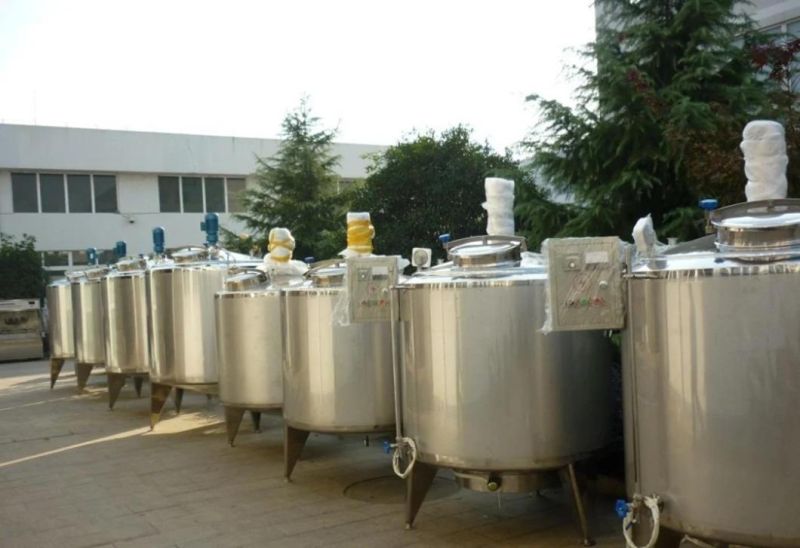

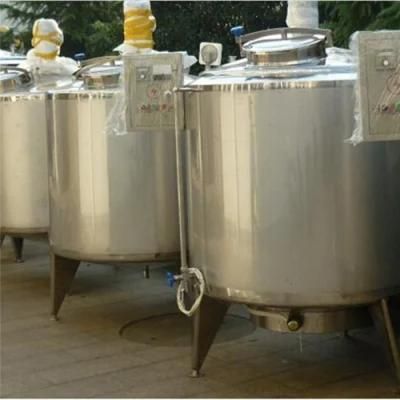

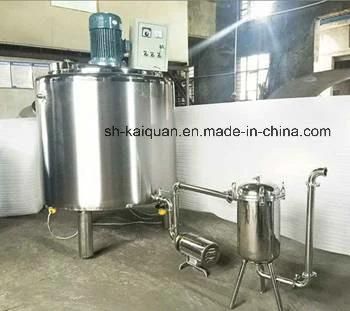

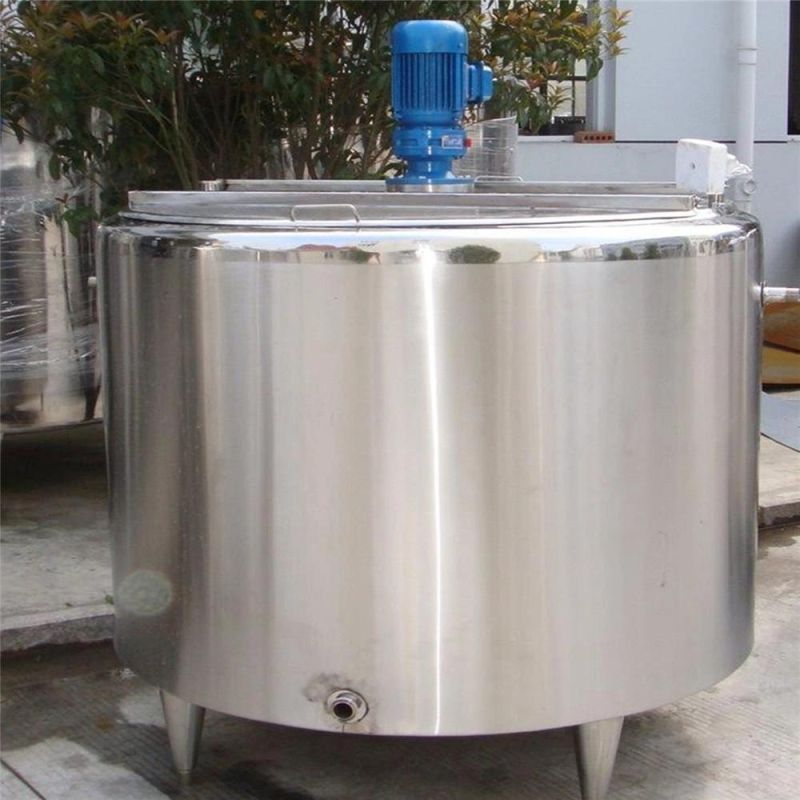

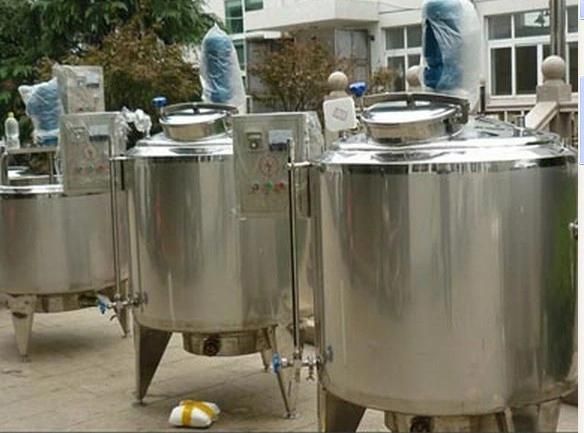

Electric Heating Milk Juice Sauce Yogurt Pasteurizer For Industry
Electric Heating Milk Batch Pasteurizer Price
Mainly used for heating, mixing, pasteurizing, preserving and storing fresh milk or other fresh liquid. It's the ideal HEATING, mixing, pasteurizing and storage equipment for pasture, milk station, milk, and food and beverage factory and pharmacy industry.

Heating by Electric (380V, 50Hz), customized electricity
* Type: with Jacket and insulation
* Internal shell thickness: 2mm
* Jacket thickness:2 mm
* Outer shell thickness: 1.5 mm
* Appearance: Ellipsoidal head top and down

* Accessories:
(1)Lid able to open on the top
(2) Charging/discharging hole at the bottom,
(3) Heat transfer oils (water) Inlet/outlet,
(4) Temperature probe,
(5) Heating tube,
(6) Electric cabinet,
(7) Reduction gears,

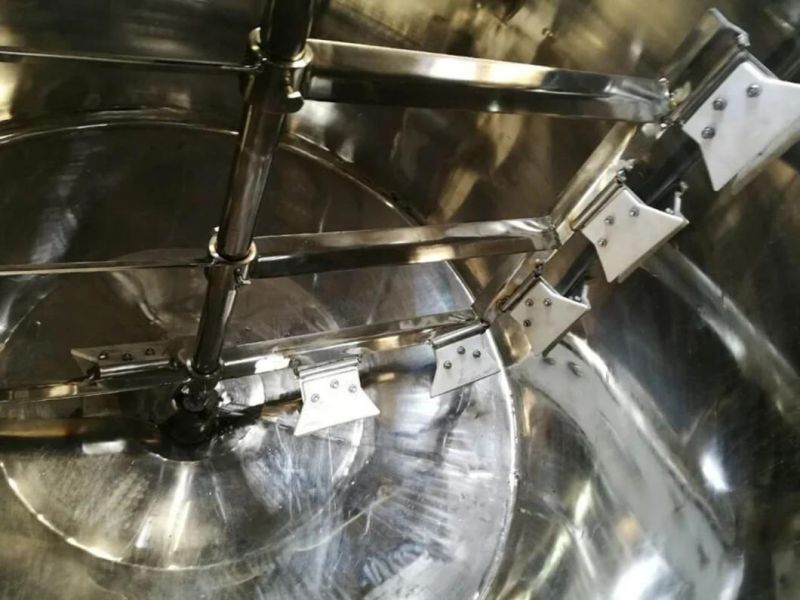

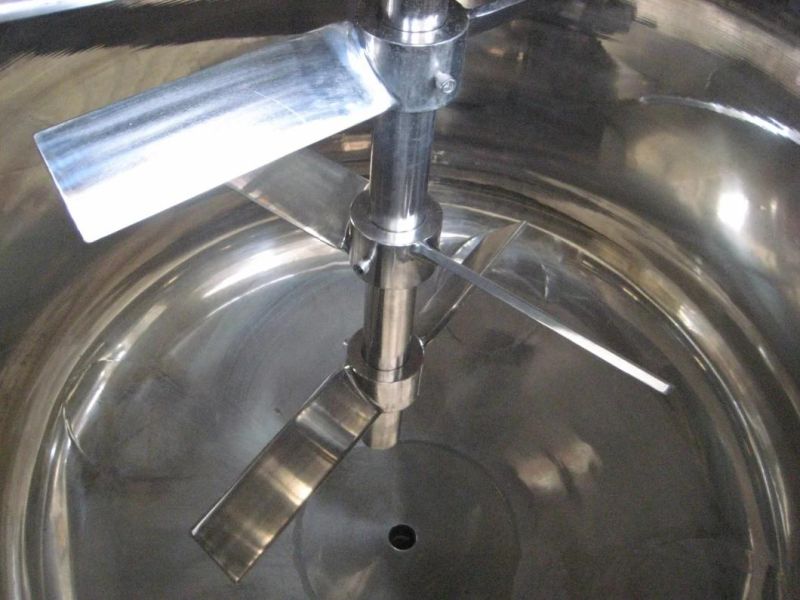

(8) Rack & blender etc
(9)The electric motor(0.75KW,380V,50Hz)
(10) ELECTRIC HEATING TUBE POWER(21KW, 380V,50Hz) FOR 500L, (18KW,380V,50Hz)
(11) WITH A QUICK INSTALL BALL VALVE CONNECT ON THE OUTLET

Electric Pasteurizer Heating Pasteurizer Milk Pasteurizer Batch Pasteurizer Price

TankCapacity(L)	200, SS304	300, SS304	500, SS304	1000,SS304
REV	36r/min	36r/min	36r/min	36r/min
Electric motor of the agitator	0.55KW,380v,50hz	0.75KW,380v,50hz	0.75KW,380v,50hz	1.1KW,380v,50hz
Electric heating tube power	15KW,380v,50hz	18KW,380v,50hz	24KW,380v,50hz	45KW,380v,50hz
Heating Area(M2)	0.9	1.1	1.9	4.5
Material Input/output(DN MM)	38	38	38	50
OUTSIDE DEMENSION(L*W*H)MM	900*900*1600	1000*1000*1500	1100*1100*1700	1400*1400*1750
GROSS WEIGHT(KGS)	150	200	300	450

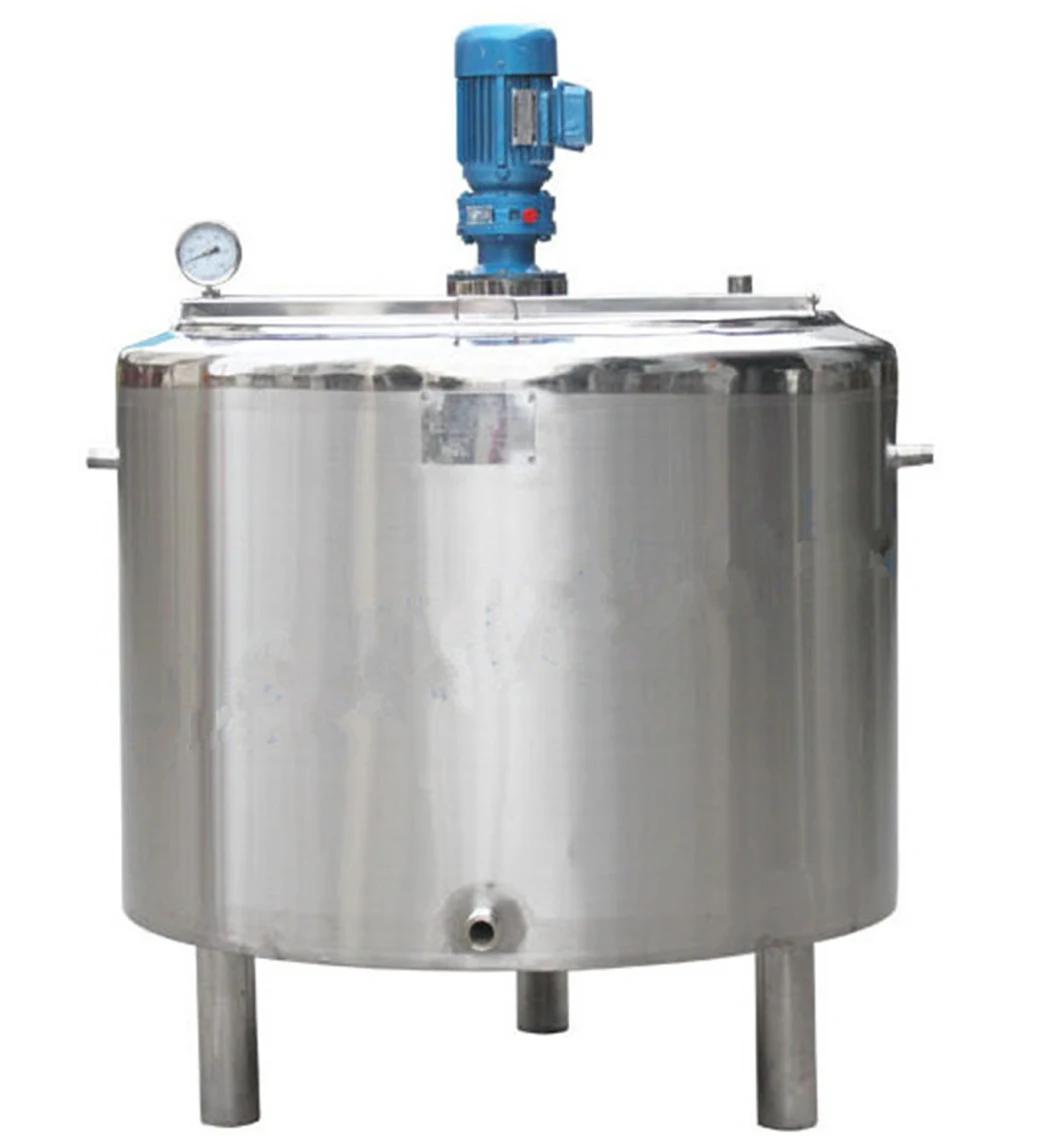

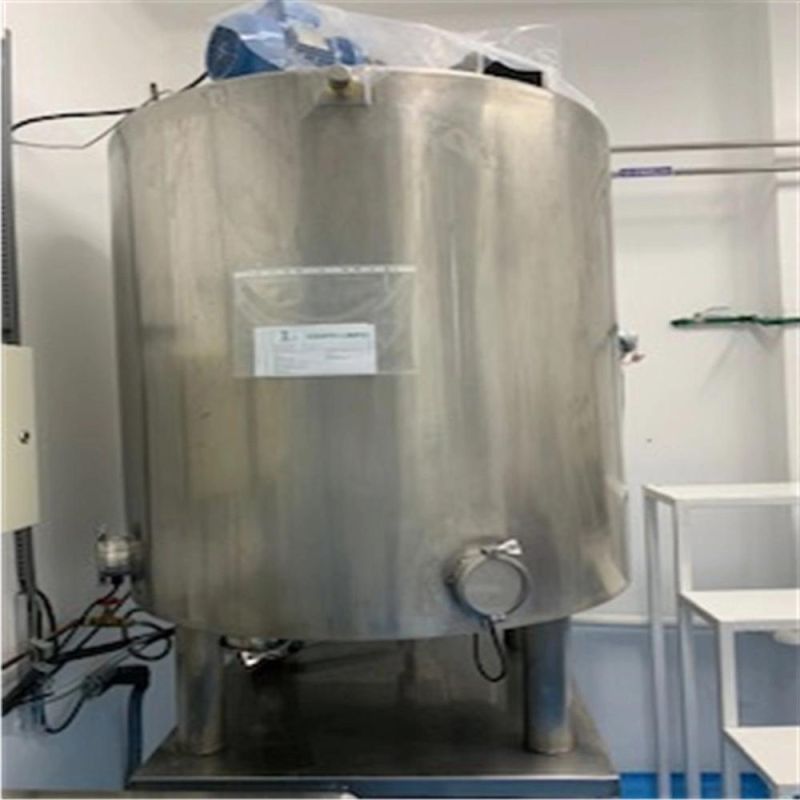

Sanitary Stainless Steel 100L Electric Milk Pasteurizer For Dairy Industry
Electric Heating Milk Juice Sauce Yogurt Pasteurizer For Industry .
