• Model NO.：MAN-20
• Type：CO2 Laser Marking Machine
• Marking Method：Scanning Marking
• Model：20W,30W
• Marking Area：110mmx110mm;
• Repeat Frequency：10kHz- 100kHz
• Voltage：220V,50Hz
• Markingspeed：7000mm
• Marking Depth：0-0.5mm
• Positioning Way：Red Light
• Cooling Mode：Air Cooling
• Software：Ezcad Software
• Certification：Ce FDA
• Transport Package：Wooden Box
• Specification：900*800*1150mm
• Trademark：CNMANLASER
• Origin：Shandong
• HS Code：8456110090
• Production Capacity：500 Set,Month

Basic Info.

Model NO. MAN-20 Type CO2 Laser Marking Machine Marking Method Scanning Marking Model 20W/30W Marking Area 110mmx110mm; Repeat Frequency 10kHz- 100kHz Voltage 220V/50Hz Markingspeed 7000mm Marking Depth 0-0.5mm Positioning Way Red Light Cooling Mode Air Cooling Software Ezcad Software Certification Ce FDA Transport Package Wooden Box Specification 900*800*1150mm Trademark CNMANLASER Origin Shandong HS Code 8456110090 Production Capacity 500 Set/Month

Product Description

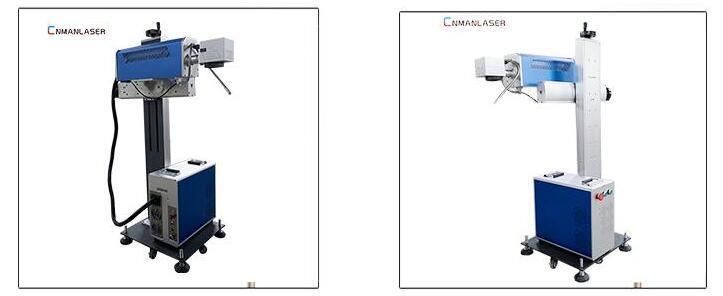

Online CO2 Flying Laser Marking Machine For Jeans Wood Bottles






1. High quality laser path suitable for delicate marking. Reaching nearest to the limit of diffraction.

Exporting TEMOO of fundamental transverse mode.M2 near to 1. Beam divergence angle is only 1/4 of diode laser.

Focus dot diameter is not over 20 um.

2. High pulse repeating rate and stable power bring high speed laser marking. Unit pulse power surge is lower than 1%.

Easy control laser dot size, thickness and shape.

3. High speed 2-3 times over than traditional diode pumped marking machine.

4. Air-cooling smart machine size!

5. Long lifetime. Ultra-low power consumption of 0.5 kw. Efficiency conversion reach to over 30%(Not suitable for stainless steel color marking ).

6.Suitable for various fiber laser generators.

TECHNICAL  PARAMETER :


Name	CO2 Laser Marking Machine
Laser Beam Quality	<2(M2)
Laser Type	CO2 Laser
Laser Working Hours	100000h
Max. Marking Line Speed	120m/min(up to the marking content)
Laser Marking Max Width	75*75mm--300*300mm
Laser Wavelength	1064nm
Laser Marking Depth	0.05-0.5mm
Marking Line Speed	7000mm/s
Min. Character Height	0.1mm
Repeat Accuracy	0.1mm
Laser Marking Content	Text, Letters, Patterns, QR codes, Barcodes, Dates,etc
Required Computer Systems	Windows XP,win7, win8,win10
File Format	MP/DXF/HPGL/JPEG/PLT/PCX
Cooling System	Air Cooling
Working Environment	Unlimited
Warranty	3 years

DETAILS   IMAGES :


Optional Laser Parts ;

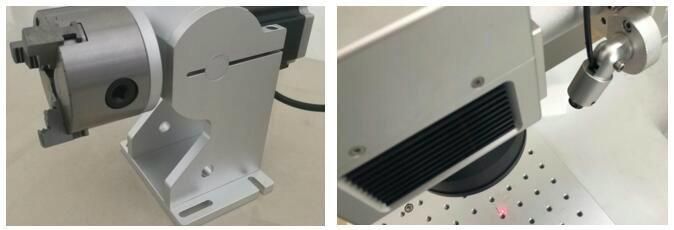

Optical fiber marking machine rotation aid

Its role is mainly to help you mark on a cylindrical object such as a ring.

It is not a standard configuration but requires an extra charge.

Optical fiber marking machine red light

It can play an auxiliary reticle and positioning role


APPLICATION :


Materials	Mark	Materials	Mark
alloy	√	hardware	√
copper	√	mobile phones	√
aluminium	√	eye glass frames	√
zinc	√	clocks and watches	√
rare metals	√	plastic buttons	√
electronic components	√	building material	√
integrated circuits	√	chemical and food packaging	√
pvc pipe	√	medical instruments	√
plate surface	√	metallic oxide	√
plate surface	√	alarm	√
commodity	√	printed material	√
brass	√	auto spare parts	√
precision equipment	√	ABS	√
tool accessories	√	motor accessories	√

PACKAGING &  SHIPPING :

Packaging and shipping

Our laser machines package include 3 layers:

1, Outside package: Polywood case with metal belt

2, Middle package: We use foam to cover the machine.

3, Inner package: We use waterproof plastick bag to cover all the machine.

3.Delivery time is within 5-7 workdays after your payment.


ABOUT US

1.3  years quality guaranty, the machine with main parts(excluding the consumables) shall  be changed free of charge

when if there is any problem during the warranty period.

2.Lifetime maintenance free of charge.

3.Free training course at our plant.

4.We will provide the consumable parts at an agency price when you need replacement.

5.24 hours on line service each day, free technical support.

6.Machine has been adjusted before delivery , operation disk was included.

FAQ :

Q1:How can I get the best machine for me?

You can tell us your working material, detail work by picture or video so that we can judge whether our machine can meet your need or not.

Then we can give you the best model depends on our experience.

Q2: How to operate the machine? is training necessary?

A: The machine is mainly controlled by software. It's very easy, not complicated. Before shipment,

we will make a simple operation manual with pictures and provide user manual of software.

Generally speaking, an operator, who is not familiar with Fiber Laser Marking Machine before can still operate it very well.

Q3: If some problems happen to this machine during warranty period, what should I do?

A: We will supply free parts during machine warranty period if machine have some problems.

While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.

Q4: Is there any technical support in case any machine problem?

A: Yes, for any machine issues, we'll solve the problem through email, skype, phone or video.

Q5: What's delivery time?

A: Generally speaking, lead time is 3-5 working days after receive the payment.
